RHYTHMIA HDx™ Mapping System

The RHYTHMIA HDx™ Mapping System offers industry-defining cardiac mapping, a powerful analysis toolset designed to streamline targeting and clinical decision-making, and unique insights into tissue substrate and lesion formation during RF ablation. Taken together, the elements of RHYTHMIA HDx provide unrivalled speed and precision in cardiac mapping and enhanced guidance in ablation delivery, helping physicians optimize treatment approaches and patient outcomes.

Designed to intelligently capture and automatically annotate high-fidelity EGM signals, RHYTHMIA HDx provides a more complete picture of cardiac electrical pathways. The system combines advanced signal-processing hardware, a cardiac mapping algorithm that can rapidly process unprecedented amounts of data, and the INTELLAMAP ORION™ High-Resolution Mapping Catheter. Its small, flat, printed electrodes capture signal only at the electrode-tissue interface, significantly reducing signal noise to a low 0.01mV. The result is an enhanced clarity and depth of detail in cardiac mapping and greater confidence in tailoring treatment.
A comprehensive portfolio of mapping and RF ablation solutions, RHYTHMIA HDx sets the standard for high-definition mapping, streamlines the identification of areas of clinical interest, and offers critical insights into tissue resistivity and lesion formation.
RHYTHMIA HDx - A comprehensive portfolio of mapping and RF ablation solutions. Discover the system that sets the standard for high-definition mapping, simplifies targeting, and offers critical insights into tissue resistivity and lesion formation.
alt text

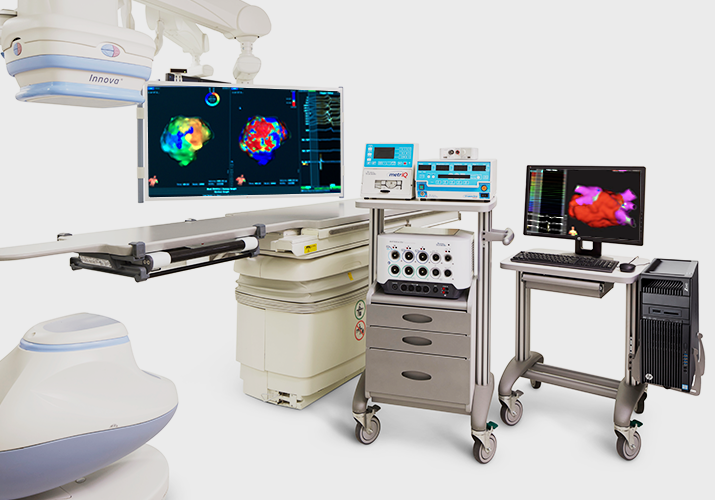

The RHYTHMIA HDx Cardiac Mapping System features a scalable hardware platform and offers automated, rapid acquisition of true high-definition maps that provide the accuracy, precision and efficiency you need.
alt text
The RHYTHMIA HDx mapping system offers 99.98% annotation accuracy.5


Featuring a continuous cardiac mapping algorithm that rapidly processes a high volume of data, RHYTHMIA HDx software creates high-definition maps that, studies have shown, offer more accurate and precise display of areas of interest, even in heavily diseased or scarred tissue.1
DIRECTSENSE™ Technology measuring tissue resistivity at the tip of the INTELLANAV MIFI™ Open-Irrigated Ablation Catheter.


Available exclusively on the RHYTHMIA HDx™ Mapping System, DIRECTSENSE™ Technology features a unique local impedance measure that reveals powerful insights into tissue resistivity and subsurface heating.

LUMIPOINT™ Software Module

RHYTHMIA HDx sets the standard with its high-density, high-resolution 3D maps, providing a level of clarity that enables accurate visualization of even the most complex activation patterns. Now, with the LUMIPONT Softward Module, you can harness this HD data to accelerate clinical decisions and enable effective minimum ablation.
The INTELLAMAP ORION high-resolution mapping catheter has eight times smaller electrodes.3

INTELLAMAP ORION™ Mapping Catheter

Designed to work with the RHYTHMIA™ HDx Cardiac Mapping System, INTELLAMAP ORION supports HD mapping, providing unprecedented clarity in a range of cases—from simple to the most complex.
The ExpertCare Service Program offers technical support for RHYTHMIA HDx 24 hours a day, 365 days a year.

ExpertCare Service Program

From software updates to preventative maintenance to coverage on parts and labor, the ExpertCare Service Program is designed to give you peace of mind and help protect your RHYTHMIA HDx Cardiac Mapping System investment.
Watch the HD mapping video to see how RHYTHMIA HDx redefines cardiac mapping.

See How RHYTHMIA HDx Redefines Cardiac Mapping

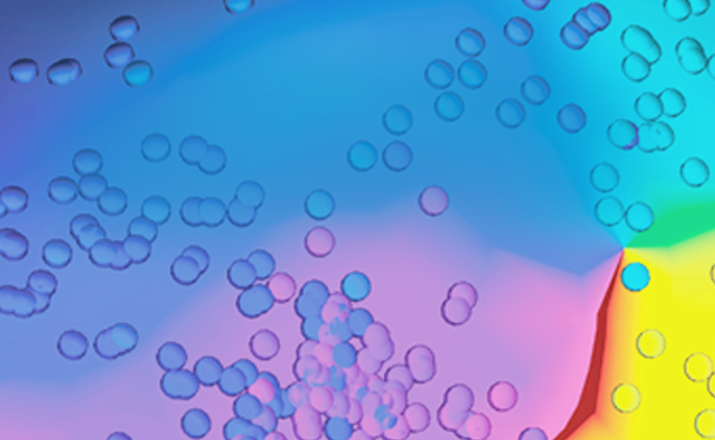

Close-up of a RHYTHMIA HDx high-definition cardiac map.

Experience RHYTHMIA HDx for Yourself

Join us for an in-person experience to see the clarity the RHYTHMIA HDx cardiac mapping system offers first-hand.
Physician using a Boston Scientific electrophysiology product.

More Cardiac Mapping and Ablation Products

See all our electrophysiology products that work with the RHYTHMIA HDx mapping system.
