Clarity for More Precise Localization

Designed to work with the RHYTHMIA HDx™ cardiac mapping system, INTELLAMAP ORION™ Mapping Catheter is engineered to support high-definition mapping, bringing unprecedented resolution and accuracy to the mapping of even the most complex arrhythmias.

Precise Localization of Even the Most Complex Arrhythmias

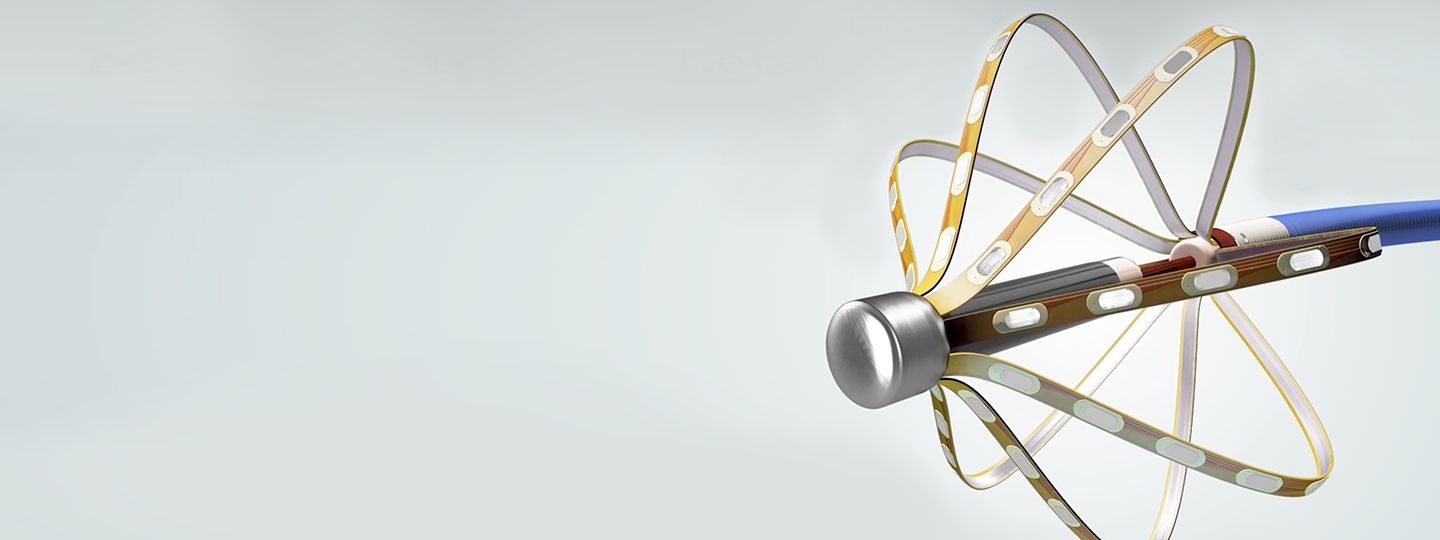

Tip Design

  • 64 flat, printed electrodes to capture more signals and only at the tissue-electrode interface, reducing the potential for signal noise
  • 3X more electrodes than standard mapping catheters1
  • Unique, iridium oxide (Ir-Ox)-coated electrode design for optimal noise performance
  • Variable diameter (3–22 mm) for use in various anatomical structures
  • 8 electrodes distributed across 8 evenly spaced splines

Electrode Size/Spacing

  • A smaller electrode surface area of 0.4 sq mm2 can provide better near-field signal quality
  • Approximately 5X smaller than the PentaRay™ NAV electrodes3 to help you maximize contact, minimize far-field signal capture and acquire the clearest map possible
  • Small electrodes combined with 2.5 mm inter-electrode spacing provide higher-density coverage and sharp, high-quality signals for precise localization of even the most complex arrhythmias

Catheter and Handle Design

  • 8.5 Fr. 180° bidirectional steerability
  • Compatible with most commercially available 8.5F fixed and steerable sheaths
  • Flushing port designed to prevent clot formation
  • Ergonomically designed deployment and steering mechanisms allows catheter manipulation to all structures of the heart
