OPTICROSS™ HD Coronary Imaging Catheters
Reimbursement
Configure or select a product to continue to order
- Overview
- Clinical data
- Technical specifications
- Ordering information
- Training
- Resources
See more with confidence
Leverage all the benefits of AVVIGOTM+ Multi-Modality Guidance System with OPTICROSS HD IVUS imaging catheters.
How it works
Learn how to prep an OPTICROSS HD Imaging Catheter in this step-by-step video. See how our PCI Guidance technology and imaging equipment work together to provide outstanding images of vessels. Clear, high-definition images result in accurate procedures and better outcomes.
Why choose OPTICROSS HD?

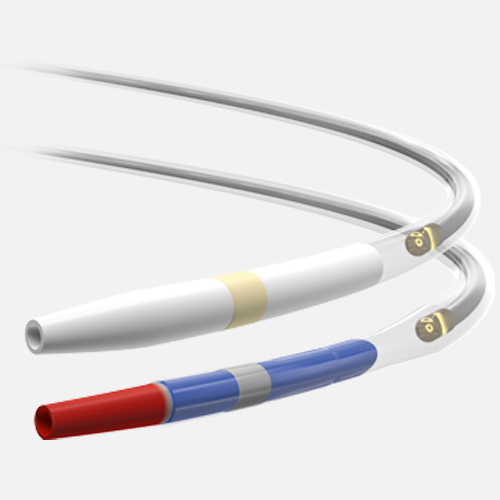

The OPTICROSS HD coronary imaging catheters utilize superior image quality to gain a clearer picture of arteries and assist in more cases and PCI procedures.
Exceptional image quality
Enables user to clearly see specific calcium, giving you more confidence.
- High-definition imaging catheters with clear images
- Precise image with 6 mm depth for small to large vessel assessment

Proven deliverability & ease of use
Flexible catheter and in 2 sizes (5F and 6F) optimizing more PCI procedures.
- Exceptional deliverability
- Well balance engineering design

OPTICROSS HD Imaging Catheter vs. Competitor
OPTICROSS HD vs Philips Volcano: The OPTICROSS HD Imaging Catheter is 46-68% more deliverable than Philips' Volcano IVUS catheters. (According to BSC bench data)

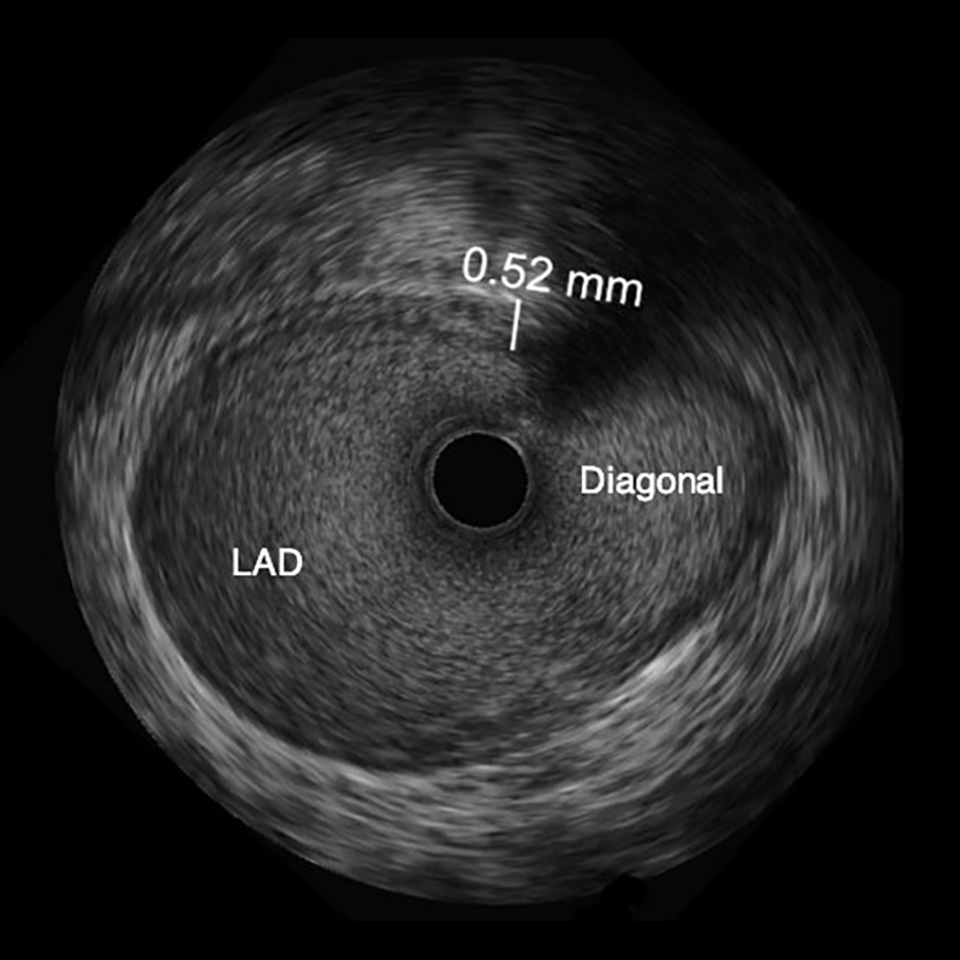

High-Definition IVUS image quality helps physicians more accurately identify lesion length, assess plaque morphology, and determine the tools required for vessel prep. See how OPTICROSS HD’s 60 MHz images stack up against the competition.

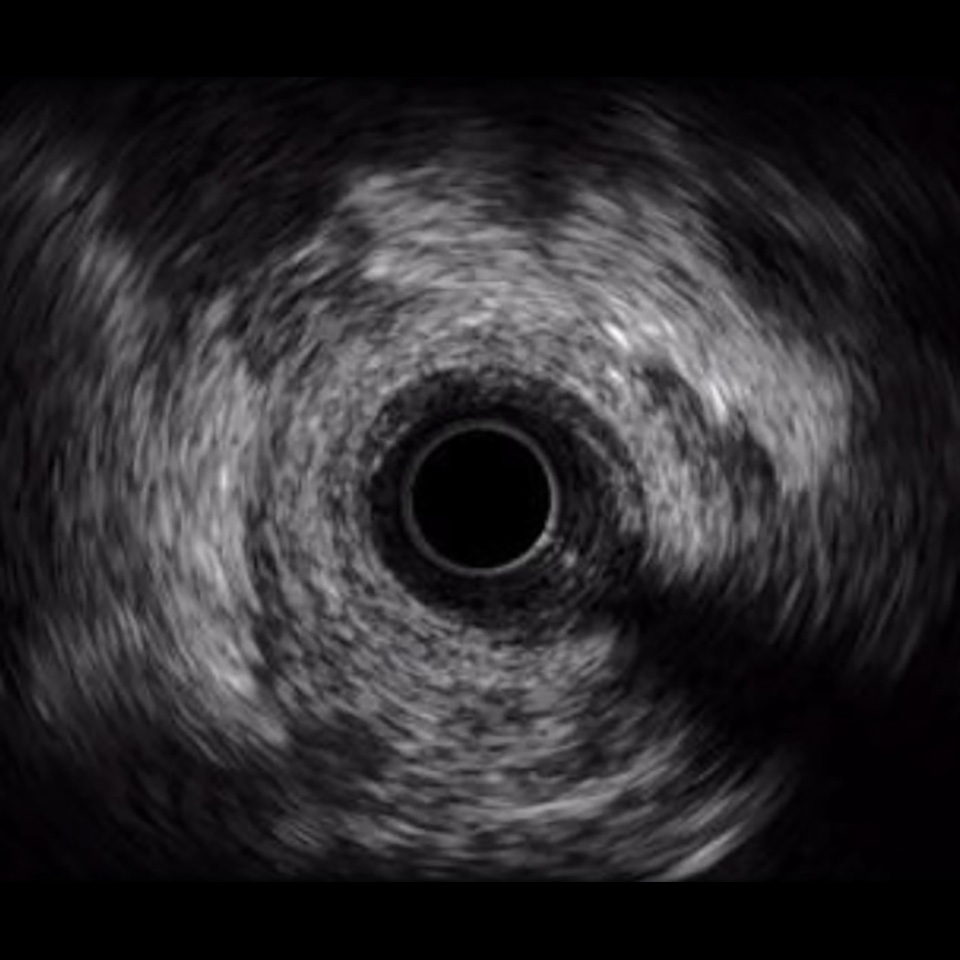

OPTICROSS Imaging Catheter 40 MHz |
---|

Axial resolution: 38 µm |

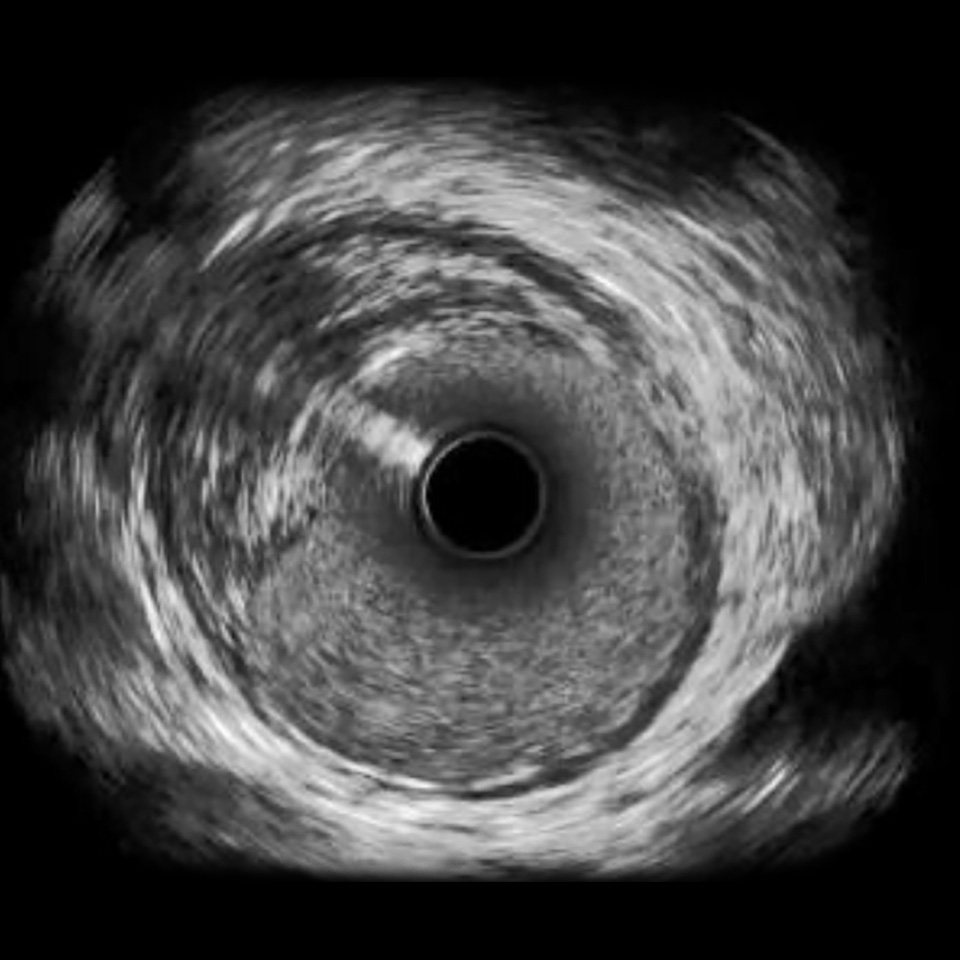

OPTICROSS HD Imaging Catheter 60MHz |
---|

Axial resolution: 22µm |

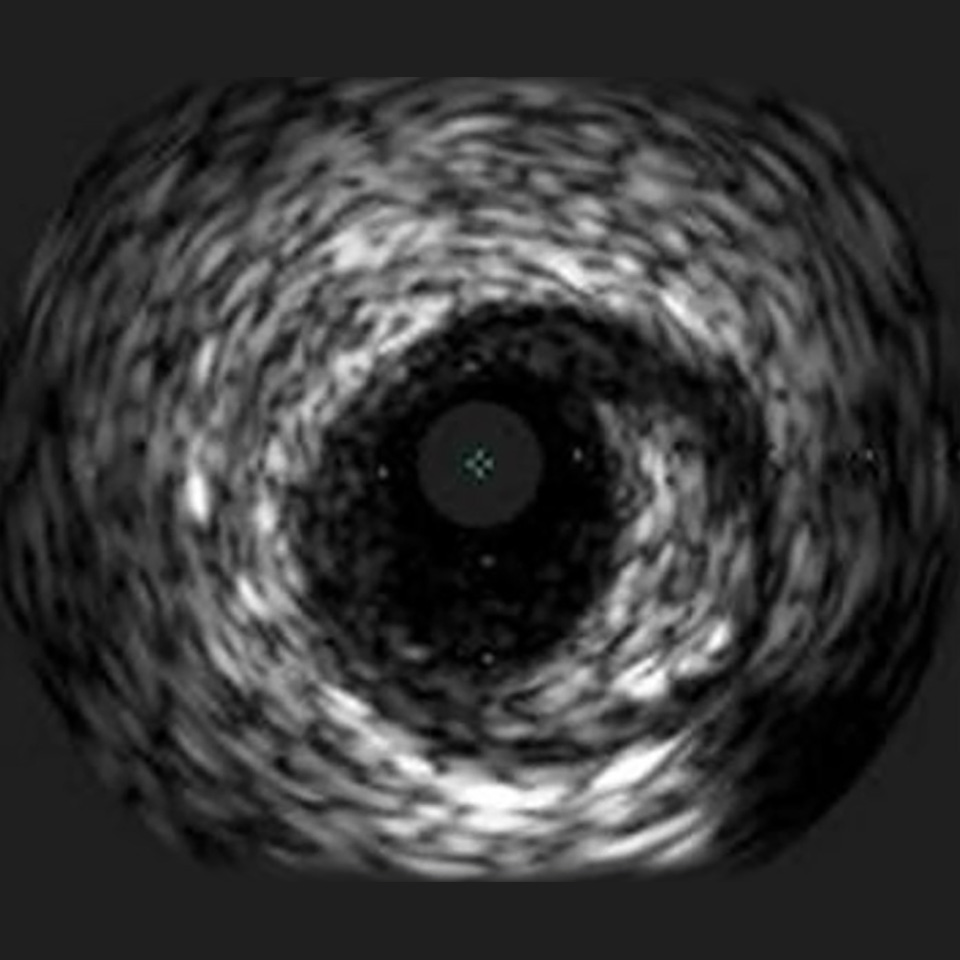

Philips Volcano Eagle Eye Platinum Imaging Catheter 20MHz |
---|

Axial resolution: <170 µm |

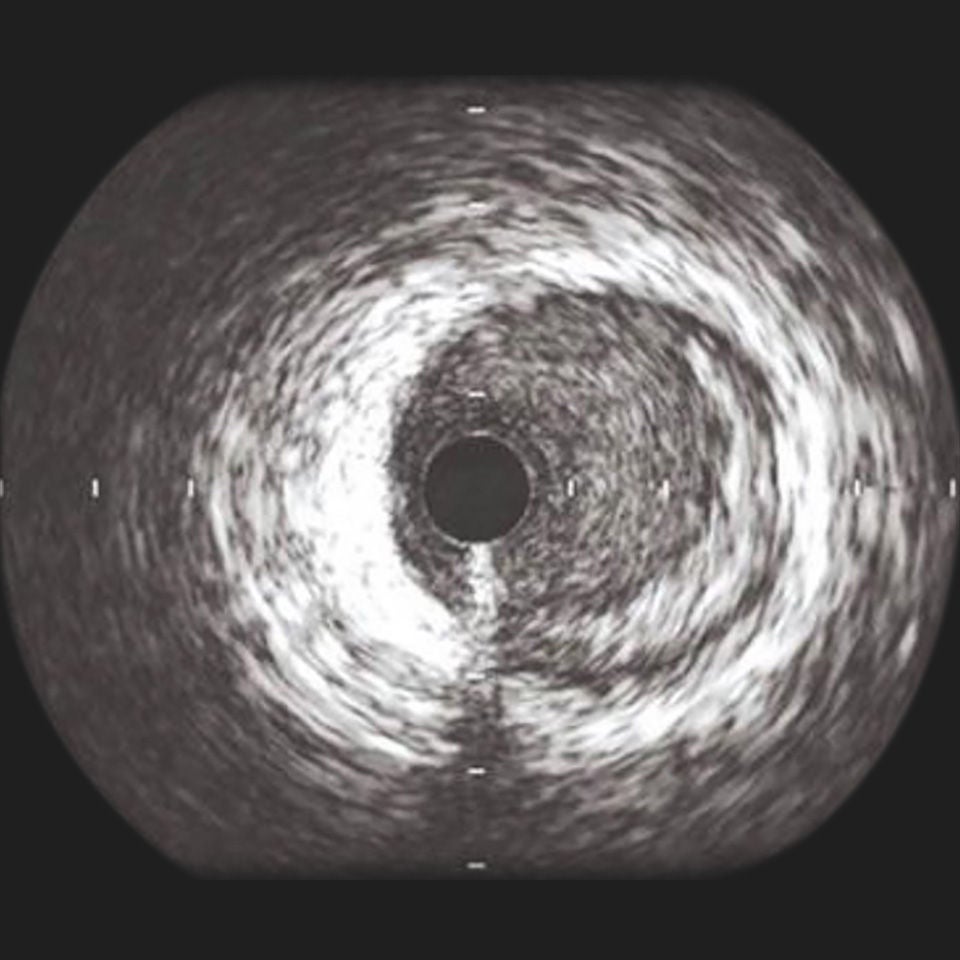

Philips Volcano Revolution Imaging Catheter 45MHz |
---|

Axial resolution: 50 µm |
OPTICROSS HD vs. Abbott
The OPTICROSS HD Imaging Catheter has comparable resolution, low contrast usage, and better depth than Abbott's optical coherence tomography (OCT).
OPTICROSS HD Imaging Catheter 60 MHz |
---|

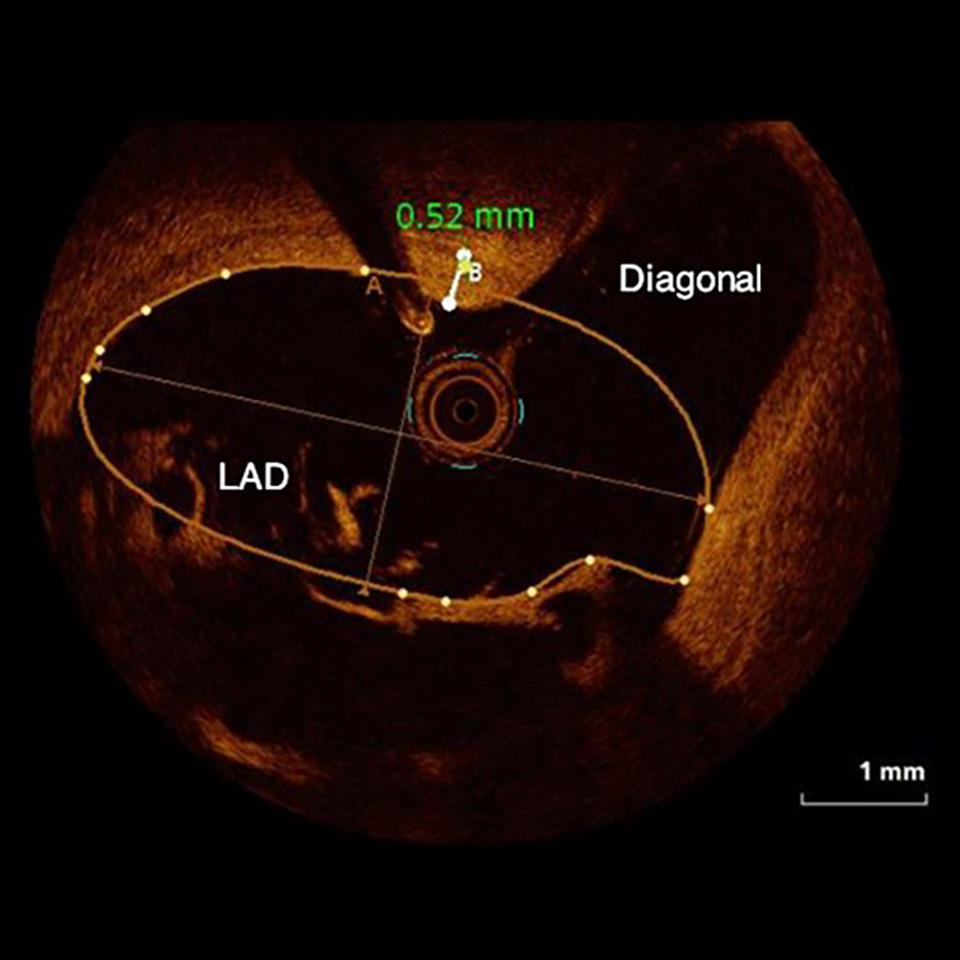

OCT |
---|

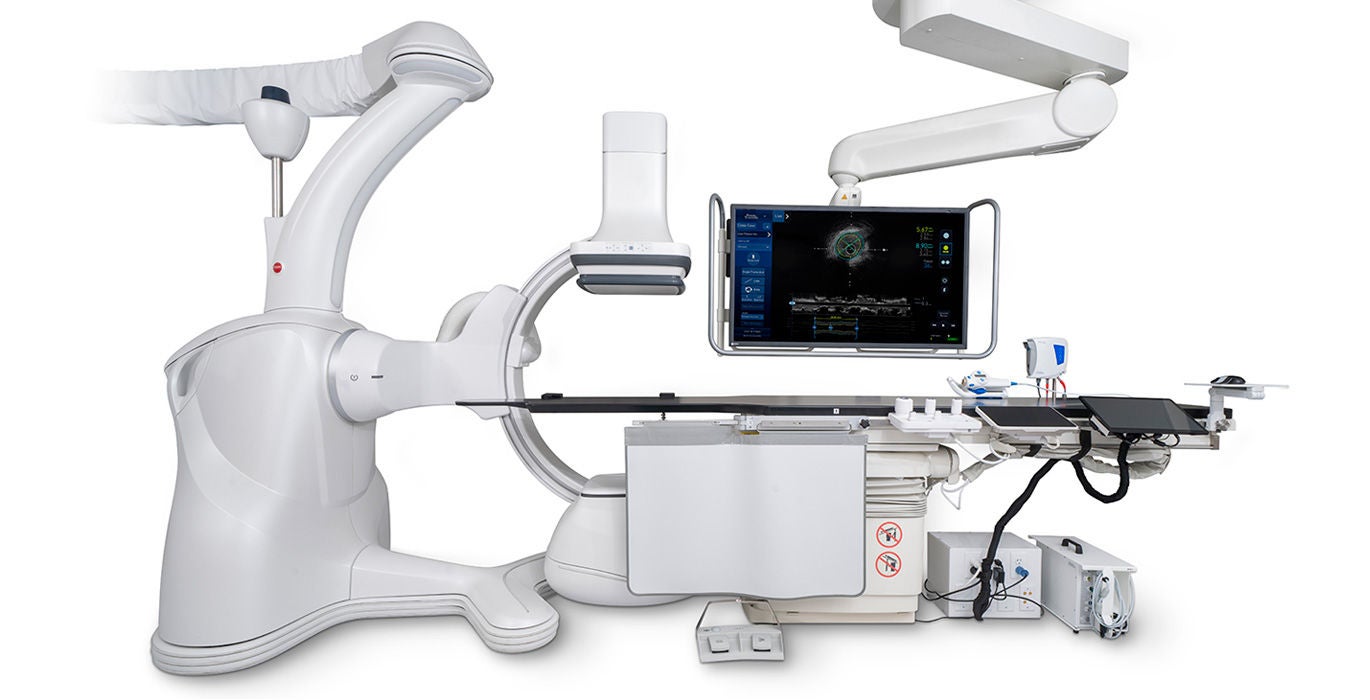

AVVIGO™+ Multi-Modality Guidance System
Use a single system to inform treatment decisions for IVUS and coronary physiology with all physiological indices – FFR, DFR and Pd/Pa - and with fully integrated and mobile options to fit seamlessly in any facility.

See the vessel
Assess plaque type and severity using the latest imaging and physiology technology. Eliminate guesswork and make clearer treatment decisions.

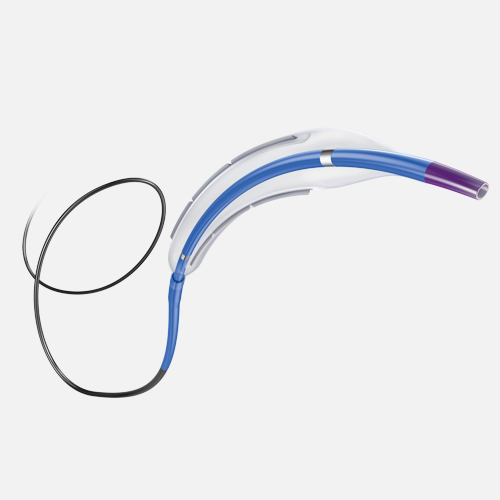

Prep the vessel
Successful outcomes start with proper lesion assessment and vessel preparation. Achieve optimal lumen gain with our cutting balloon and rotational atherectomy tools.

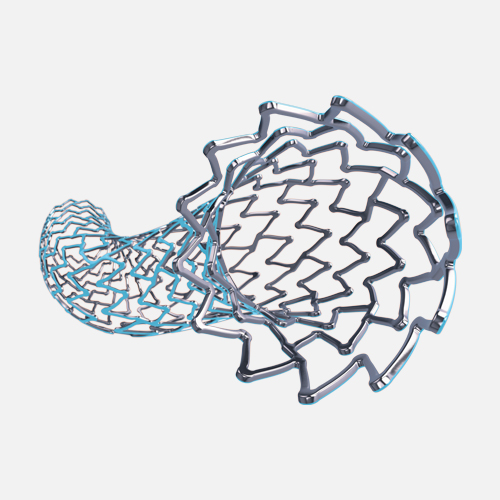

Treat the vessel
With our innovative stent portfolio and coronary drug-coated balloon technology, you have access to market-leading therapies that will ensure you are able to improve long-term patient outcomes.
The most complete PCI portfolio in the industry
Access the broadest portfolio of dependable, sophisticated PCI devices so you have access to the right tools to see, prepare, and treat coronary artery disease.
Clinical data
Network Meta-Analysis, presented by Dr. Gregg W. Stone, MD
In a network meta-analysis of 20 randomized trials involving 12,428 patients, PCI guided by intravascular imaging (IVUS or OCT) showed significant improvements over angiography guidance alone, with reductions in all-cause mortality, myocardial infarction (MI), and other key outcomes. This emphasizes IVUS’ role in enhancing procedural success and patient safety.

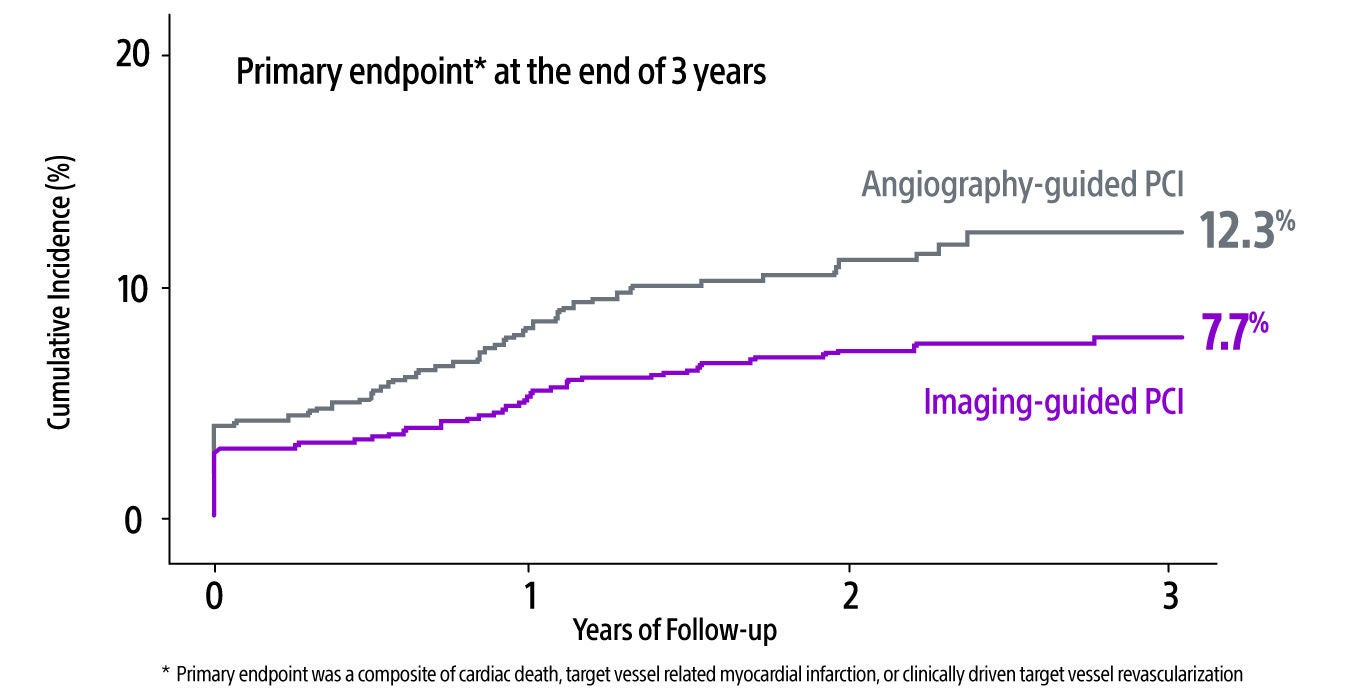

RENOVATE-COMPLEX PCI
This study shows intravascular imaging (IVUS)-guided PCI reduces the risk of target vessel failure (TVF) compared to angiography-guided PCI in patients with complex coronary lesions. This reduction in risk underscores the importance of IVUS in improving outcomes for patients with complex coronary artery disease (CAD). Learn how the RENOVATE-COMPLEX PCI trial showed that optimal procedures reduce restenosis and improve outcomes.

Modern PCI clinical data
Discover more clinical data for IVUS, FFR/physiology, and drug-eluting therapies.

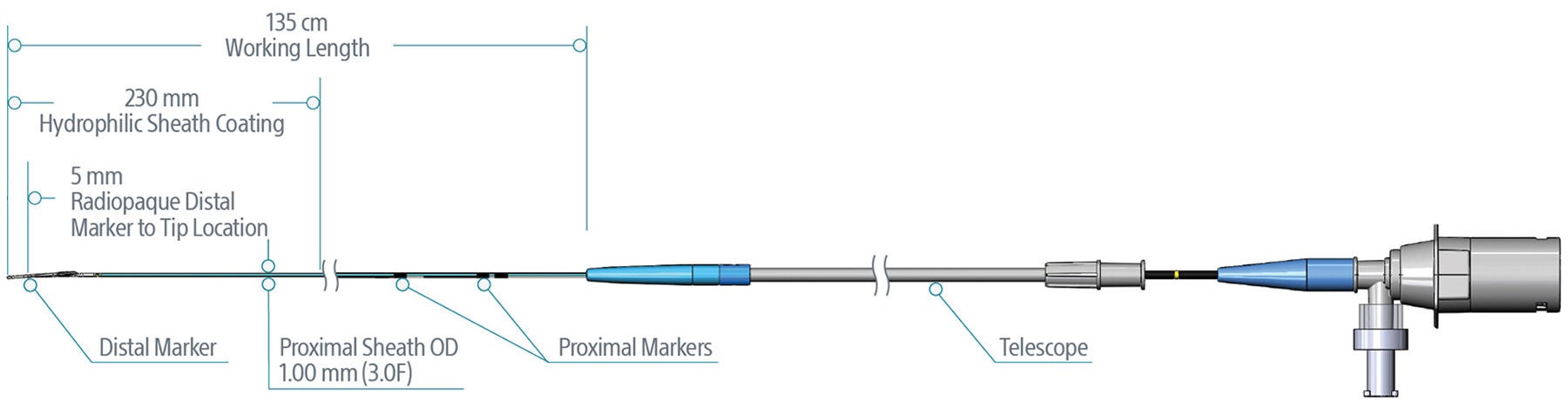

Technical specifications

Family of IVUS Catheters
OPTICROSS HD | OPTICROSS 6 HD | OPTICROSS 18 | OPTICROSS 35 | ULTRA ICE PLUS | |
---|---|---|---|---|---|
TYPICAL USE | Peripheral | Peripheral | Intracardiac | ||
Transducer Frequency | 60 MHz | 60 MHz | 30 MHz | 15 MHz | 9 MHz |
Maximum Diameter Penetration | 6 mm | 6 mm | 12 mm | 70 mm | 60 mm |
Sheath Compatibility (with max wire) | 5F | 6F | 6F | 8F | 9F |
Guide Catheter | 5F(ID>0.058”) | 6F(ID>0.064”) | 6F(ID>0.064”) | ||
Hydrophilic Coating | BIOSLIDETM | Z-GLIDETM | Z-GLIDETM | ||
Guidewire Lumen Length | 16mm | 110mm | |||
Guidewire Compatibility | >0.014” | >0.014” | >0.018” | >0.035” | |
Entry Profile | 0.026” | 0.026” | 0.021” | 0.080” | 0.096” |
Imaging Window Profile | 2.6F | 2.9F | 2.9F | 8F | 9.0F |
Crossing Profile | 3.1F | 3.1F | 3.5F | 8F | |
Prep Location | Proximal | Proximal | Distal | ||
Catheter Telescoping Length | 150 mm | 25 cm | |||
Sled Pullback Length | 100 mm | 10 cm | |||
Tip to Transducer Distance | 20 mm | >1.5 cm | 10 mm | ||
Distal Marker to Transducer | 15 mm | 5 mm | |||
Working Length | 135 cm | 105 cm | 110 cm |
Modern PCI
Access the broadest portfolio of dependable, sophisticated PCI devices to see, prep, and treat coronary artery disease.
Ordering information
Description | Order Number (GTIN) | Ref/Catalog Number |
---|---|---|
AVVIGO™+ Multi-Modality Guidance System Mobile Cart System | 00191506033125 | H749 2493120C 0 |
AVVIGO™+ Multi-Modality Guidance System Integrated System | 00191506033163 | H749 2493120I 0 |
COMETTM II Pressure Guidewire | 08714729960140 | H749 3935911 0 |
OPTICROSS HD BAGLESS NON-CE | 00191506035419 | H749 3935205 0 |
OPTICROSS 6 BAGLESS NON-CE | 00191506035433 | H749 518136 0 |
OPTICROSS 18 Imaging Catheter | 08714729904366 | H749 393280018 0 |
OPTICROSS 35 Imaging Catheter | 08714729984542 | H749 393280035 0 |
ULTRA ICE™ PLUS Imaging Catheter | 08714729904380 | M004 9912 0 |
Motor Drive MDU5 PLUS™ FPB | 08714729982845 | H749 MDU5PLUSF 0 |
FFR Link | 08714729890010 | H749 555100 0 |
Permanent Sled | 08714729896838 | H749 39316010 0 |
Permanent Sled Sterile Bag | 08714729896845 | H749 39315010 0 |
Training

IVUS Series Online Education
In the IVUS Series, you will gain clarity and confidence in imaging while exploring lessons from industry leaders, interactive learning exercises, and real-life cases studies.

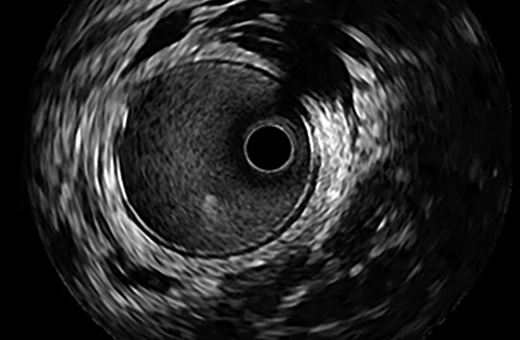

IVUS Image Library
The IVUS image library is a repository of IVUS-guided PCI images including 60 MHz IVUS runs and cross-sectional images, angiograms, and image interpretation tutorials - all available to download.

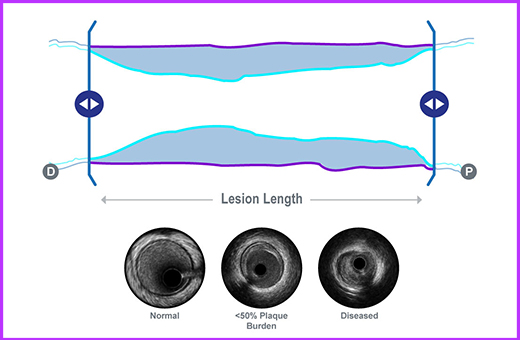

IVUS 123 Essentials
This guide provides an in-depth look at how to use IVUS during coronary interventions, covering setup, imaging techniques, and interpretation tips to enhance procedural outcomes. It is a comprehensive resource for physicians looking to integrate IVUS more effectively into their PCI practices.
Online medical training and education courses
The EDUCARE online platform makes healthcare education and training more relevant, more comprehensive, more personal, and more accessible. Register to access a library of procedural videos, case studies, training resources, and events.
Resources for OPTICROSS HD
Dissection, False Lumen and Thrombus images courtesy of Boston Scientific.
OPTICROSS versus OPTICROSS HD images courtesy of Michael Kim, MD, FACC, FSCAI North Colorado Medical Center
OPTICROSS HD versus OCT images courtesy of Massoud Leesar, MD; Professor of Medicine; Section Head, Interventional Cardiology, Baker-Dean Endowed Professor in Interventional Cardiology, University of Alabama-Birmingham
