Peripheral ROTAPRO™

Rotational Atherectomy System

play icon
Peripheral Rotapro
ROTAPRO Atherectomy System Components - Rotapro console, advancer and Rotawire guidewire.
Learn more about Boston Scientific's Peripheral ROTAPRO™ Rotational Atherectomy System
ROTAPRO Atherectomy System Components

Performance you trust. Simplicity you need. Treat calcium effectively with proven technology and streamlined design. Get the same trusted performance with simpler, smoother control and components that are easier to transport, set up, and use.



System Components

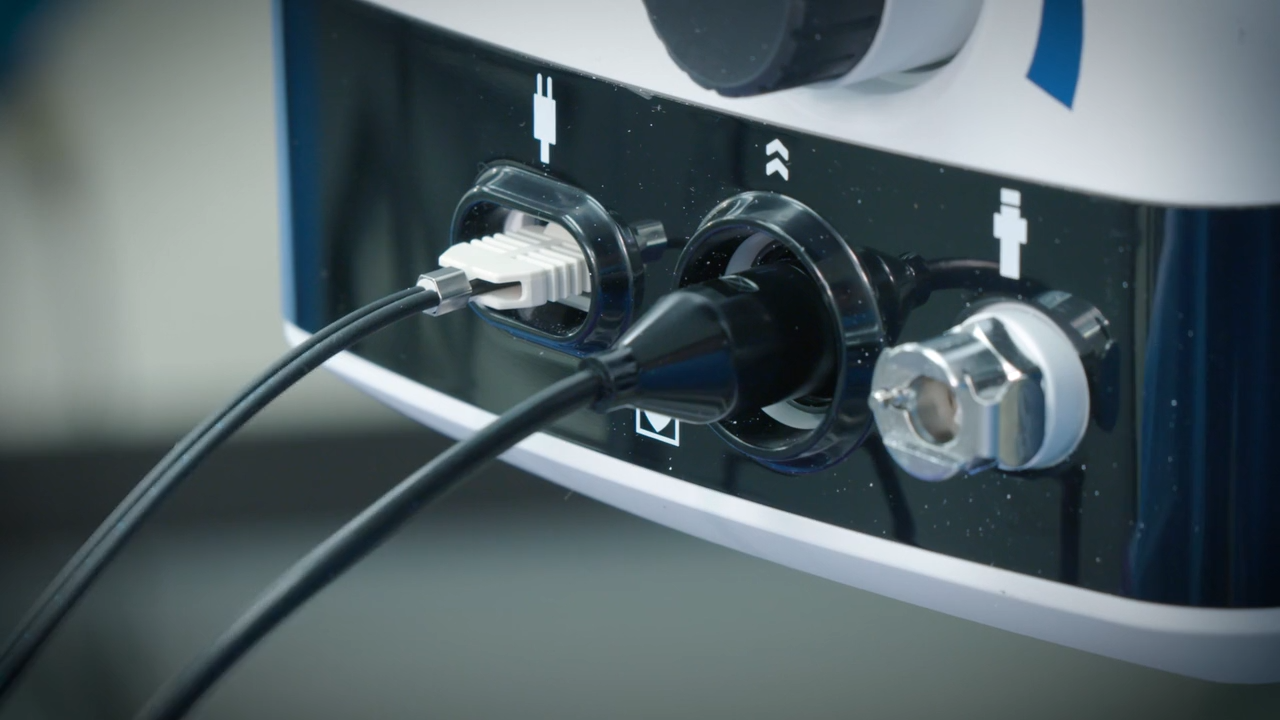

The Peripheral ROTAPRO Rotational Atherectomy System console regulates the flow of air to the advancer, controlling burr rotation speed. It also monitors and displays burr rotation speed and rotational atherectomy procedural time. The console may be powered by both nitrogen and compressed air.
ROTAPRO Console.
  • Vibrant Digital Display – Enhanced feedback and deceleration indicator
  • Streamlined Connections – Quick and easy setup
  • IV Pole Clamp – Installation flexibility

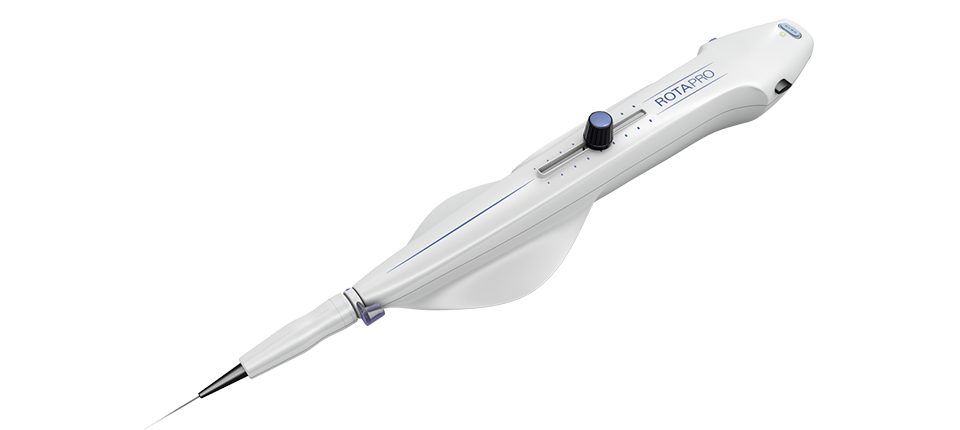

The Peripheral ROTAPRO Rotational Atherectomy system features an advancer which is used to control movement of the burr.
  • Easy-to-use Controls – Incorporated on the advancer
  • Ergonomic Dynaglide™ Design – Simple system removal
  • Hybrid Harness – Improved cable management
ROTAPRO Advancer.


The Peripheral ROTAPRO Rotational Atherectomy System offers multiple burr size options to achieve predictable lumen size.
Peripheral rotablator burr sizes of 1.25mm, 1.50mm, 1.75mm, 2.00mm shown.  Also available in 2.25 and 2.50mm but not shown.


The Peripheral ROTAWIRE™ Extra Support Guidewire is designed specifically for use with the Peripheral ROTAPRO Rotational Atherectomy System.
Peripheral Rotawire™ guidewire specifications, .014 max spring tip diameter, 2.8cm tip length, 5cm wire, .009 width base


  • Steerability – able to navigate calcified lesions with 1:1 torque through tortuous anatomy, providing access for Peripheral ROTAPRO Rotational Atherectomy System
  • Tip Design – .014” platinum coil to provide visibility during rotational atherectomy
  • Core Wire – one-piece core wire with Asahi technology, transmits torque for predictable steering

Peripheral ROTAGLIDE™ Lubricant


Peripheral ROTAGLIDE is a lipid based emulsion designed to lubricate the Peripheral ROTAPRO Rotational Atherectomy System.*

  • Reduces friction and improves tactile feel
  • Reduces heat generation
  • Reduces sudden drops in RPMs caused by lesion feedback

*Contraindicated if patient is allergic to eggs or olive oil


System Set Up Resources


Ordering Information


ROTAPRO System Console

GTINUPNModel/ Description
08714729975076H74939309010ROTAPRO Console Kit Assy UL/CSA

Peripheral ROTAPRO Pre-Connected Burr and Advancing Device

GTINUPNModel/DescriptionBurr SizeRecommended SheathLength
00191506007119H749395141250Peripheral ROTAPRO Pre-Connected Burr and Advancing Device1.25 mm5F 135 cm
00191506007126H749395141500Peripheral ROTAPRO Pre-Connected Burr and Advancing Device1.50 mm5F 135 cm
00191506007133H749395141750Peripheral ROTAPRO Pre-Connected Burr and Advancing Device1.75  mm6F135 cm
00191506007140H749395142000Peripheral ROTAPRO Pre-Connected Burr and Advancing Device2.00 mm7F135 cm
00191506007164H749395142250Peripheral ROTAPRO Pre-Connected Burr and Advancing Device2.25 mm7F135 cm
00191506007188H749395142500Peripheral ROTAPRO Pre-Connected Burr and Advancing Device2.50 mm8F135 cm

Peripheral ROTAWIRE™ Guidewire

GTINUPNModel/ DescriptionLengthTip LengthFlexibilitySpring Tip DiameterWire DiameterQuantity
08714729838890M0011373321Peripheral ROTAWIRE Extra Support Guidewire with WireClip Torquer330 cm2.8 cmStiff0.014"0.009"Box of 5


08714729847557M00114100062Peripheral ROTAGLIDE™ LubricantBox of 6
08714729974307H74939369010ROTAGO™ Cart and Infusion StandSingle
08714729263371H80215901011HTI Regulator Kit – USSingle
08714729195535H802221960032WireClip™ TorquerBox of 5
08714729977377H74939373010ROTAPRO Gas HoseSingle
05056190782696161818-421F5Pressure Reducing RegulatorSingle
08714729975342H74939368010Power CordSingle
08714729979128H74939371010Replacement FuseSingle


The C-code used for this product is C1724, catheter, transluminal atherectomy, rotational. The Peripheral ROTAWIRE™ Extra Support Guidewire C-code is C1769. C-codes are used for hospital outpatient device reporting for Medicare and some private payers.
Note: Boston Scientific is not responsible for the correct use of codes on submitted claims; this information does not constitute reimbursement or legal advice.
