Peripheral Rotablator™

Rotational Atherectomy System

The Peripheral Rotablator Rotational Atherectomy System.
play icon
Watch Single Vessel Revascularization Using Rotablator Atherectomy in a CLI Patient.
The Peripheral Rotablator Atherectomy System.
play icon

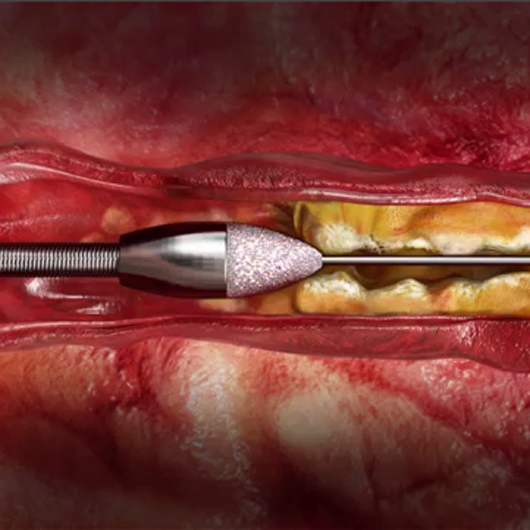

See the Peripheral Rotablator Atherectomy System Mechanism of Action.
play icon
Learn more about setting up the Peripheral Rotablator System.
The Peripheral Rotablator Rotational Atherectomy System
Watch Single Vessel Revascularization Using Rotablator Atherectomy in a CLI Patient
The Peripheral Rotablator Atherectomy System
The Peripheral Rotablator Atherectomy System Mechanism of Action
The Peripheral Rotablator Rotational Atherectomy System Set-up Video

Precise. Predictable. Proven. Experience the controlled precision of a diamond-tipped burr designed to modify vessel compliance in even the most calcified peripheral lesions. When it comes to atherectomy, trust the Rotablator System for proven patient outcomes.

Key Resources

Explore

Product Details

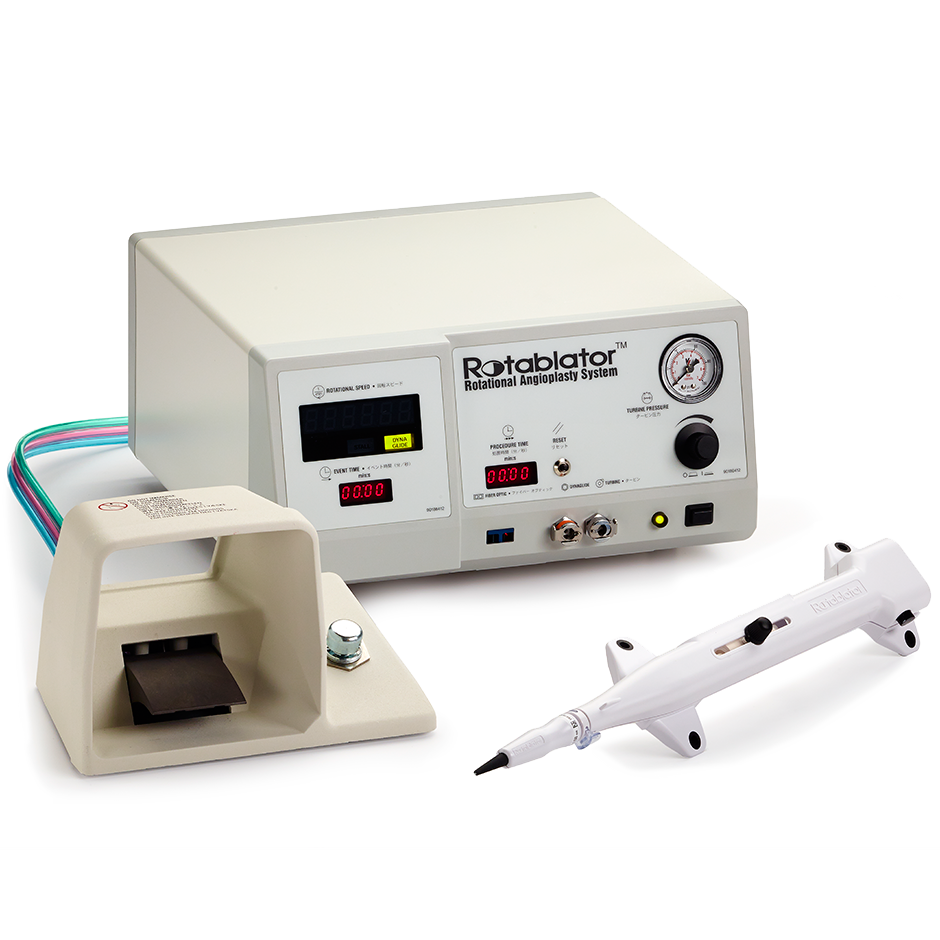

The Rotablator Atherectomy System is an air-driven system featuring a 5-micron diamond-tipped burr that rotates at up to 190,000 RPM.

Precise

Front-Cutting

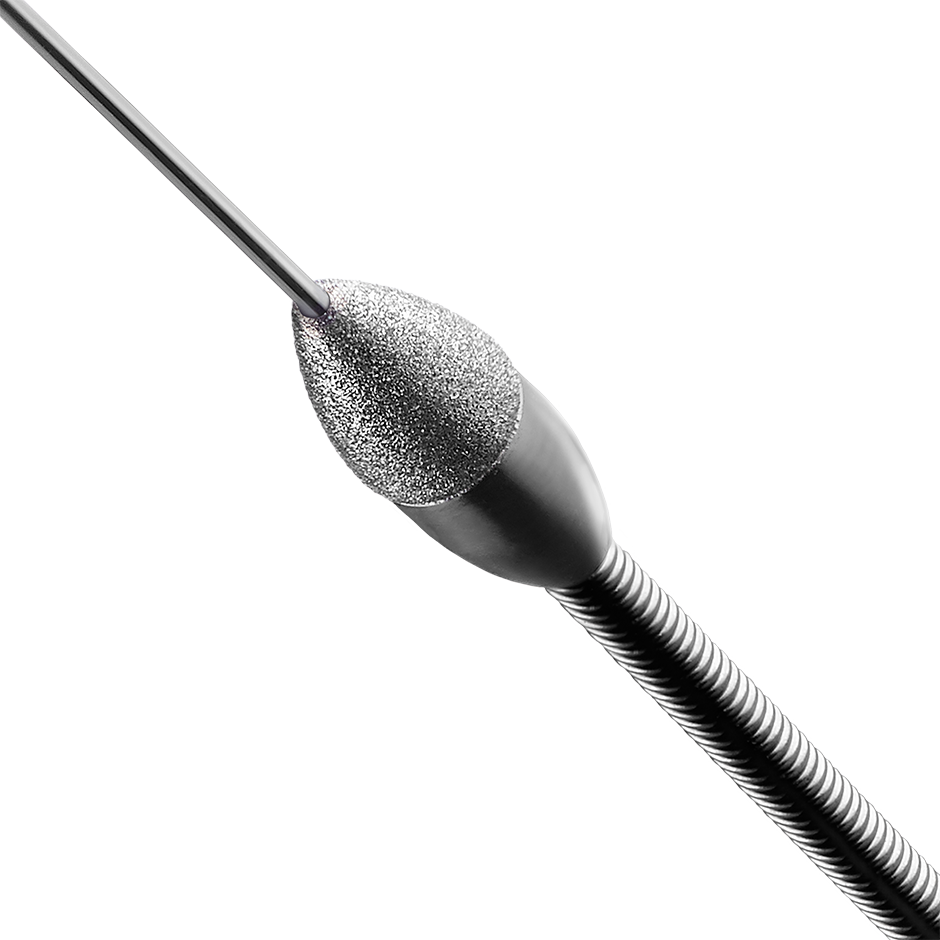

The Rotablator System’s diamond-tipped burr is engineered to immediately engage the lesion, enabling precise control of ablation even in tight or occluded lesions.

Cutting surface immediately engages the lesion

Predictable

Stable Rotation
The Rotablator System’s diamond-tipped burr spins concentrically on the wire, providing confidence even when treating small or tortuous vessels.

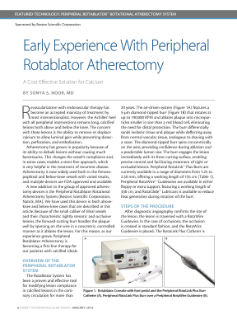

Endovascular Today Article

Download the EVT BTK Approach to Calcium Article
Below-the-Knee Approach to Calcium

Download Now!
Cutting surface immediately engages the lesion

Total Control

  • Control the outcome with a symmetric burr that creates a smooth lumen at a specific diameter.
  • Control ablation with a burr that follows the wire.
  • Control embolic release with a 5-micron diamond-tipped burr that ablates plaque into micro-particles smaller in size than a red blood cell.



Proven

Confidence in calcium for over 20 years

  • Low complication rates1
  • 76% primary patency2
  • 89% limb salvage rate3
            Proven in calcified arteries
            20μm diamond grit (5μm exposed)

Product Specifications

  • 135cm catheter length
  • 0.009” over-the-wire
  • 4.3F protective sheath

Burr Size (mm)

Guide Sheath or Introducer Sheath Size*

1.25

5 F

1.50

5 F

1.75

6 F

2.00

7 F

2.25

7 F

2.50

8 F

* For a given French size guide sheath or introducer sheath, the internal lumen and hemostasis valve will vary from manufacturer to manufacturer. When using an introducer for the first time, it should be tested with the largest Peripheral RotaLink Plus burr intended to be used with it.

Advancer

Burr

Peripheral RotaWire™ Guide Wire

  • 330cm total length
  • 0.009” body
  • 0.014” spring tip
  • Extra Support – a more supportive wire for distal lesions or heavily calcified proximal lesions
  • Floppy – more flexible and torqueable wire with reduced guide wire bias

Peripheral RotaGlide™ Lubricant

  • 20cc vial lubricant intended to reduce friction and improve tactile feel

Ordering Information

Peripheral RotaLink™ Plus Burr Catheter 135 cm catheter length, 0.009” OTW, 4.3 F (0.058”) protective sheath

UPNCatalogDescription
M0011401250140-1251.25 mm Peripheral RotaLink Plus, 5 F
M0011401500140-1501.50 mm Peripheral RotaLink Plus, 5 F
M0011401750140-1751.75 mm Peripheral RotaLink Plus, 6 F
M0011402000 140-2002.00 mm Peripheral RotaLink Plus, 7 F
M0011402250 140-2252.25 mm Peripheral RotaLink Plus, 7 F
M0011402500 140-2502.50 mm Peripheral RotaLink Plus, 8 F

Peripheral RotaWire Guidewire and WireClip™ Torquer 330 cm length, 0.009” diameter body with 0.014” spring tip

UPNCatalogDescription
M0011373321137-3321Extra Support Peripheral RotaWire (Box of 5)

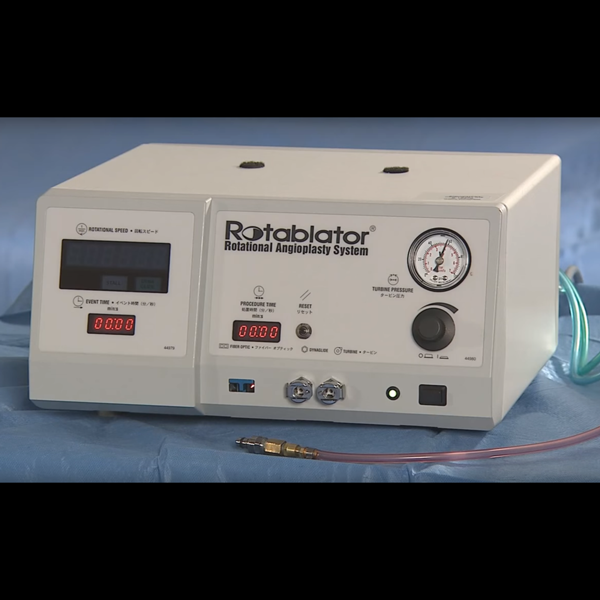

Rotablator Console

UPNCatalogDescription
H80222020039122020-039Rotablator Console Kit (includes console, foot pedal and 20 ft. air supply hose)
H802216000031 21600-00320 ft Air Supply Hose – replacement
H802224360021 22436-002Dynaglide™ Foot Pedal – replacement
H802221510011 22151-001Console Power Cord – replacement

Accessories

UPNCatalogDescription
M00114100062141-0006Peripheral RotaGlide™ Lubricant (Box of 6)
H8021590101115901-01HTI Regulator Kit
H802221960032 22196-003WireClip Torquer (Box of 5)


System Set-up



Reimbursement

The C-Code used for the Peripheral Rotablator Rotational Atherectomy System is C1724. The C-Code used for Peripheral RotaWire Guide Wire is C1769. C-Codes are used for hospital outpatient device reporting for Medicare and some private payers. Note: Boston Scientific Corporation is not responsible for correct use of codes on submitted claims; this information does not constitute reimbursement or legal advice.
