Vercise™ Cartesia™ X and Vercise™ Cartesia™ HX Directional Leads

Name: Vercise™ Cartesia™ X and Vercise™ Cartesia™ HX Directional Leads - Boston Scientific
Brand: Boston Scientific

The first and only 16-contact directional leads. These leads offer the best in span, spacing and directionality, allowing precise targeting of neural structures.¹

Explore product details

Reimbursement

Coding and payment guides

Configure or select a product to continue to order

Instructions for use are found inside the product packaging and on our product literature website.

Access product literature

Need additional help with product literature?

Go to customer support

Overview
Technical specifications
Ordering information
Training
Resources

The best in span, spacing and directionality¹

The Boston Scientific Vercise Genus™ Deep Brain Stimulation (DBS) System features the first and only 16-contact Vercise Cartesia X and Cartesia HX Directional Leads, allowing more flexibility in programming for precise personalized therapy.

Why choose Vercise Cartesia X and Vercise Cartesia HX Directional Leads

Precise personalized therapy

The longer directional span and tight spacing allow for more precise targeting of the neural structures, maximizing efficacy while avoiding side effect regions.

>200% increase in directional span compared to any other lead on the market^2-4
2.5x the directional contacts than any other lead on the market^2-4

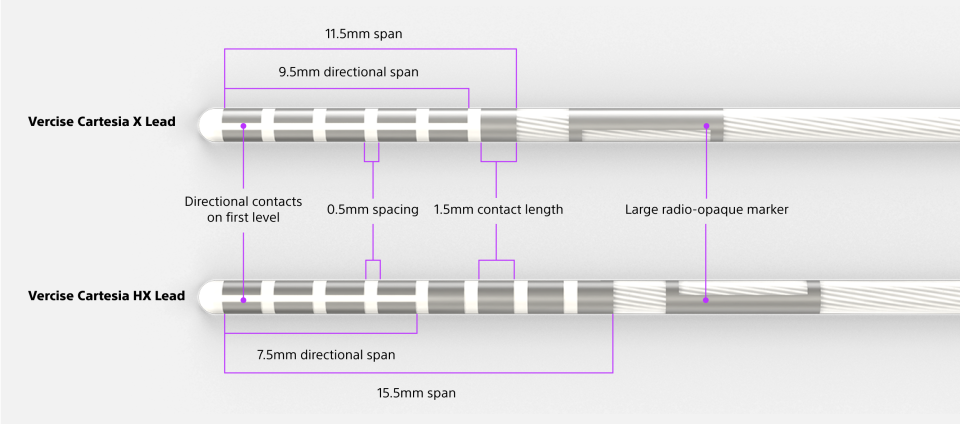

Comparison diagram of Vercise Cartesia X and Vercise Cartesia HX Leads showing directional contact spans and radio-opaque marker.

More DBS programming flexibility

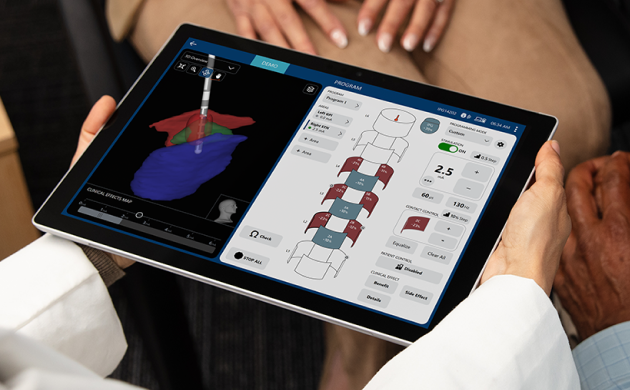

When Vercise Cartesia Directional Leads are combined with Image Guided Programming using Illumina 3D™ technology, clinicians can quickly personalize therapy in each patient’s specific anatomy for optimal patient outcomes.⁵

Learn more about Image Guided Programming

Life-changing outcomes

Image Guided Programming has been proven to improve patient outcomes, preserve therapy stability and save programming time.^5-7

Explore Image Guided Programming clinical data

84%

of patients experienced lasting Motor and Quality of Life improvements after being re-programmed using Image Guided Programming (n=31)⁵

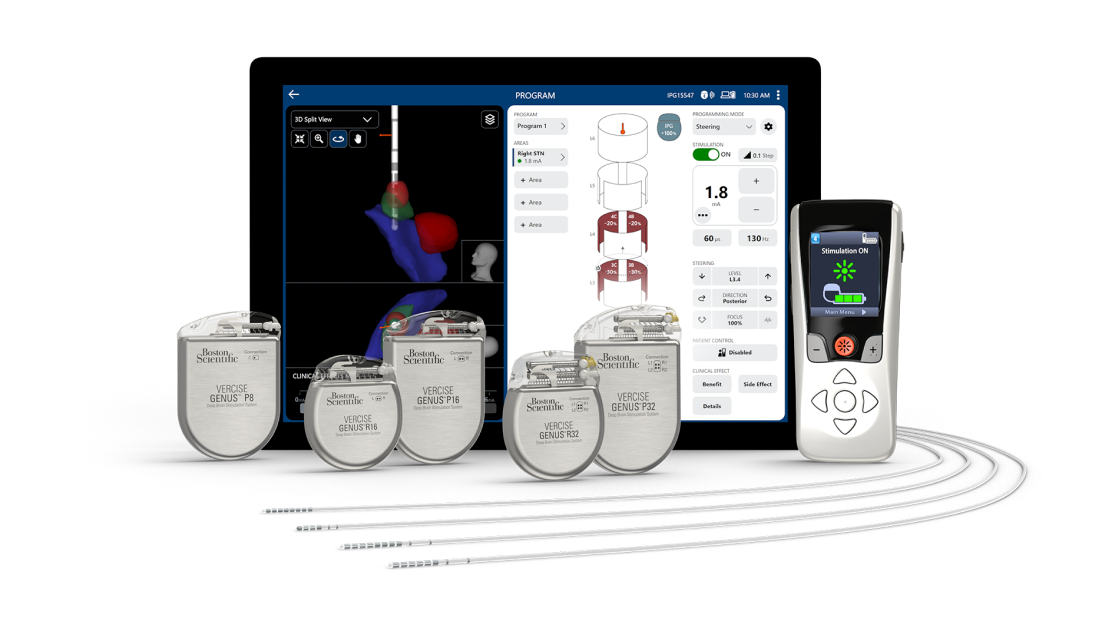

Vercise Genus DBS System

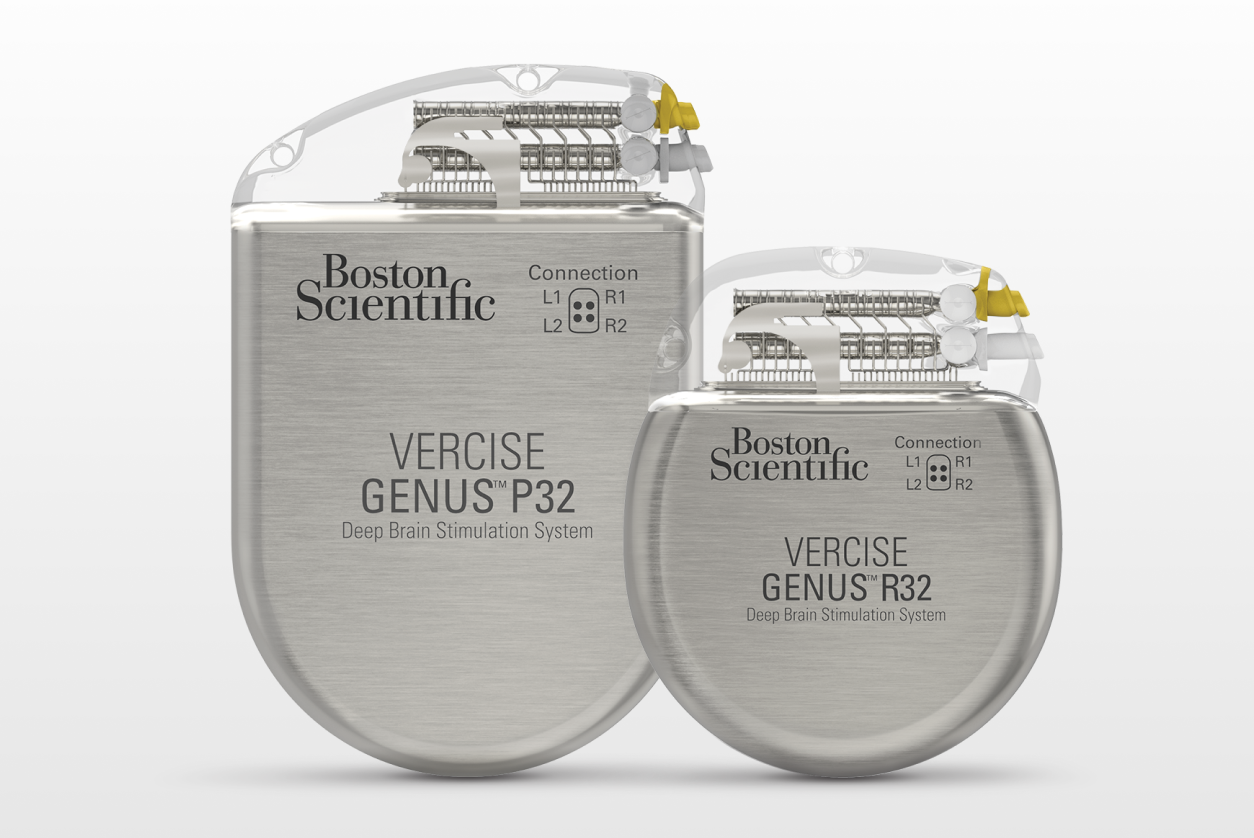

Learn more about the Vercise Genus DBS System, including the first and only 32-channel rechargeable or non-rechargeable MR-Conditional battery designed for patient comfort and convenience.**

Discover the Vercise Genus DBS System

Are you a health care provider?

Request more information about the Vercise DBS System and Image Guided Programming with Illumina 3D technology.

Contact a DBS sales representative

Are you a patient?

If you or a loved one is living with Parkinson's Disease (PD) or essential tremor (ET), explore patient-specific DBS resources.

Visit DBSandMe.com

Technical specifications

FEATURE	VERCISE CARTESIA X DIRECTIONAL LEAD	VERCISE CARTESIA HX DIRECTIONAL LEAD
Configuration	Directional 3-3-3-3-3-1	Directional 3-3-3-3-1-1-1-1
Lead length	45 or 30 cm
Lead body diameter	1.3 mm
Contact length	1.5 mm
Contact spacing	0.5 mm
Array span	11.5 mm	15.5 mm
Directional span	9.5 mm	7.5 mm

Ordering information

MODEL NUMBER	UPN	DESCRIPTION
DB-2203-30	M365DB2203300	Vercise Cartesia X Directional Lead Kit (30 cm)
DB-2203-45	M365DB2203450	Vercise Cartesia X Directional Lead Kit (45 cm)
DB-2204-30	M365DB2204300	Vercise Cartesia HX Directional Lead Kit (30 cm)
DB-2204-45	M365DB2204450	Vercise Cartesia HX Directional Lead Kit (45 cm)
DB-3216-55	M365DB3216550	16 Contact Lead Extension Kit (55cm)
DB-3216-95	M365DB3216950	16 Contact Lead Extension Kit (95cm)

Online medical training and education courses

The EDUCARE online platform makes healthcare education and training more relevant, more comprehensive, more personal, and more accessible. Register to access a library of procedural videos, case studies, training resources, and events.

On demand

Get 24-hour access to content from your desktop, laptop or mobile device.

Personalized

Explore interactive videos, case studies and more tailored to your medical field.

Trusted

Gain education and insights from globally recognized industry experts.

Resources

To explore our comprehensive portfolio, visit BostonScientific.com/DBS .

To get answers to your questions and additional information, contact a DBS sales representative.

Find Vercise Genus DBS System procedural coding and reimbursement information for inpatient, outpatient, office and ASC codes.

If you are a patient looking for more information on DBS, visit DBSandMe.com.

References:

The Vercise Genus™ DBS System, Vercise Genus Mixed System with Vercise™ M8 Adapter, Vercise Genus Mixed System with Vercise™ Adapter S8, Vercise Gevia™ DBS System, and Vercise™ DBS Lead-only system (before Stimulator is implanted) provide safe access to full-body MRI scans when used with specific components and the patient is exposed to the MRI environment under specific conditions defined in the supplemental manual ImageReady™ MRI Guidelines for Boston Scientific DBS Systems.

**The 32-channel battery is part of Boston Scientific’s comprehensive portfolio of MR-Conditional rechargeable and non-rechargeable options.

Best is defined as the directional lead with the longest directional span and most directional levels Boston Scientific. (2024). Vercise™ Deep Brain Stimulation Systems Surgical Implant Manual. Medtronic. (2021). Medtronic Sensight™ Directional Lead Kit. https://www.medtronic.com/content/dam/emanuals/neuro/M982097A_a_013_view.pdf Abbott. (2021). Lead and Extensions Kits for Deep Brain Stimulation Systems. Clinician’s Manual. https://manuals.eifu.abbott/en/detail-screen.html
Boston Scientific. (2024). Vercise™ Deep Brain Stimulation Systems Surgical Implant Manual.
Medtronic. (2021). Medtronic Sensight™ Directional Lead Kit. https://www.medtronic.com/content/dam/emanuals/neuro/M982097A_a_013_view.pdf
Abbott. (2021). Lead and Extensions Kits for Deep Brain Stimulation Systems. Clinician’s Manual. https://manuals.eifu.abbott/en/detail-screen.html
Torres V, et al. Image-guided programming deep brain stimulation improves clinical outcomes in patients with Parkinson’s disease. NPJ Parkinsons Dis. 2024 Jan 27;10(1):29.
Aldred JL et al. Sustained Therapeutic Benefits Using Image-Guided Programming at Activation of Deep Brain Stimulation for Parkinson's Disease. Mov Disord Clin Pract. 2025 Nov;12(11):1821-1830. doi: 10.1002/mdc3.70154. Epub 2025 Jun 5. PMID: 40474569; PMCID: PMC12625106.
Lange F, et al. (2021). Reduced Programming Time and Strong Symptom Control Even in Chronic Course Through Imaging-Based DBS Programming. Front. Neurol. 12:785529. doi: 10.3389/fneur.2021.785529
