ANGIOJET™ Ultra

Coronary Thrombectomy System

ANGIOJET Ultra Thrombectomy System
ANGIOJET Catheters: Spiroflex™, Spiroflex™ VG, XMI™

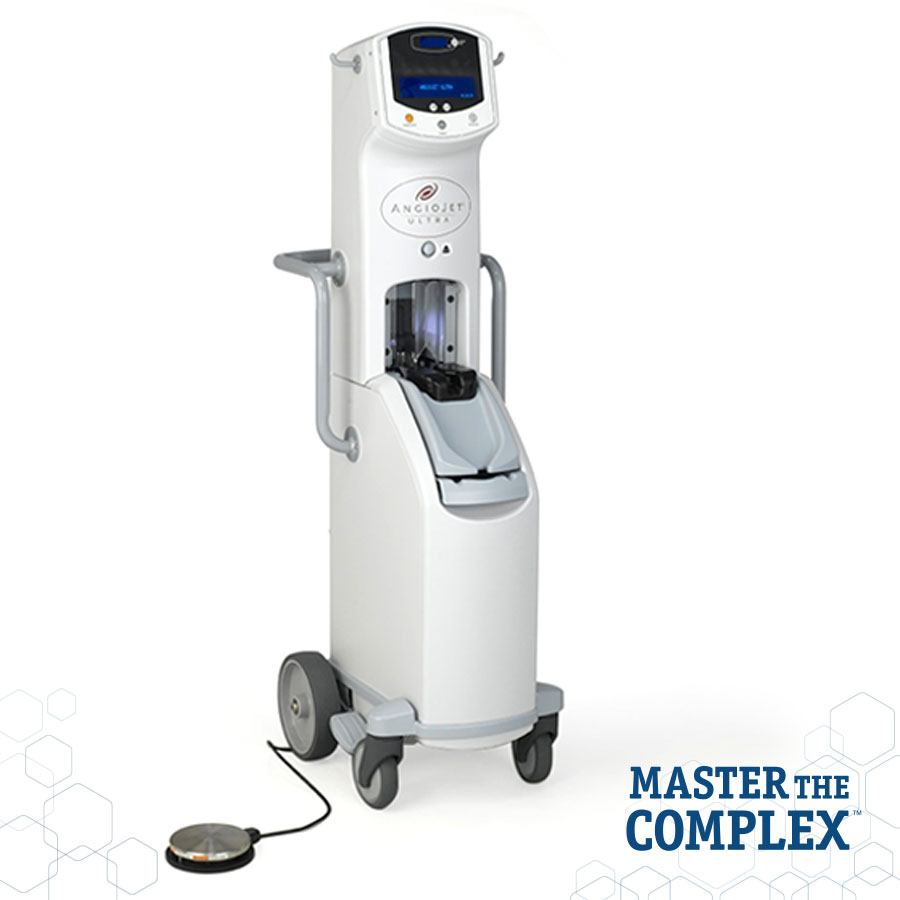

ANGIOJET Ultra Thrombectomy System

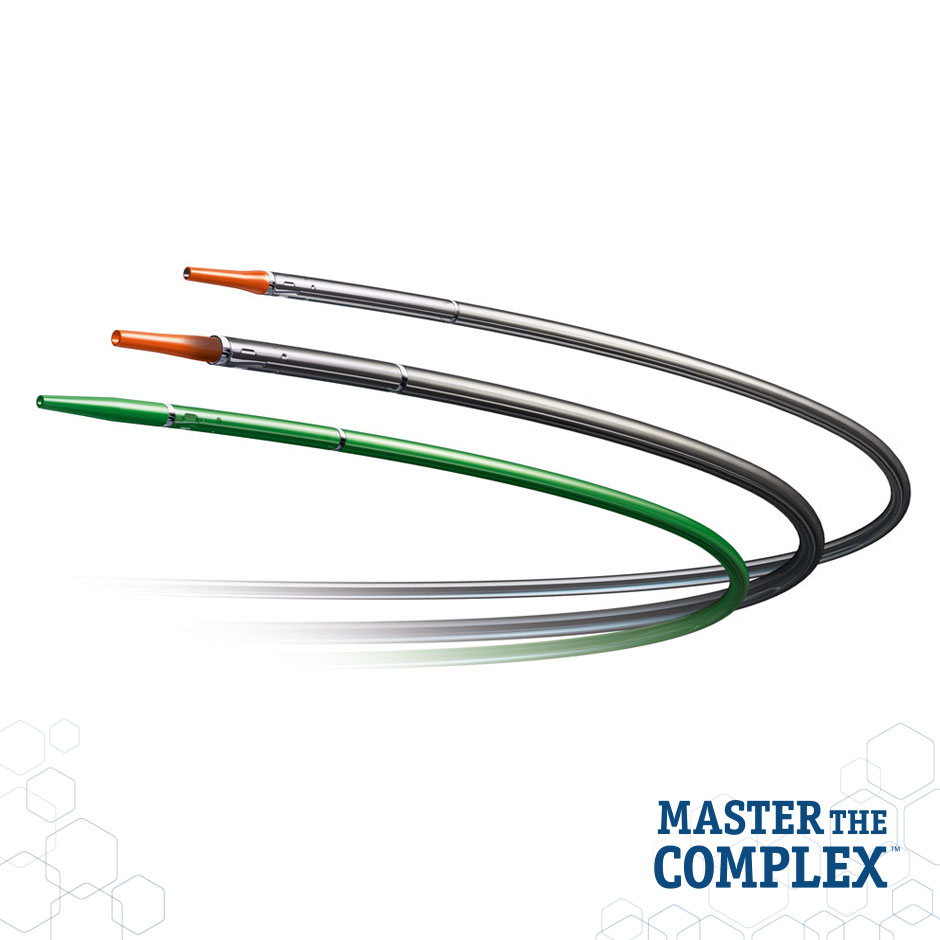

ANGIOJET Catheters: Spiroflex™, Spiroflex™ VG, XMI™

The ANGIOJET Ultra Thrombectomy System is a mechanical thrombectomy device for PCI patients with large thrombus burden and the ONLY FDA-approved mechanical thrombectomy device for removal of thrombus in coronary arteries. The system is designed to mechanically restore blood flow of patients with thrombosed arteries.

Key Resources

Explore



Assessing the level of thrombus burden and determining the treatment pathway¹

AngioJet mechanical thrombectomy to treat burden



Product Details

Powerful mechanical thrombectomy performance

  • Proven: The leading choice for large thrombus evacuation, utilized in more than 600,000 cases worldwide
  • Versatile: Able to meet your preferences and a broad range of clinical scenarios with a wide range of catheters

Simple set-up

  • Easy 3-step set-up: Preparation, loading and priming are straightforward, even for new users
  • Compact design: The highly portable design enhances ease of integration in the hospital setting

Mechanism of Action

ANGIOJET uses high pressure saline to create a vacuum at the tip of the catheter to break up and remove thrombus.
Saline jets travel backwards at high speed to create a negative pressure zone (less than -600 mmHg) causing a powerful vacuum effect.
Cross-StreamTM windows optimize the fluid flow for more effective thrombus removal.
Thrombus is drawn into the catheter where it is fragmented by the jets and evacuated from the body.

Your single source for a full offering of thrombectomy solutions

Only Boston Scientific supplies thrombectomy solutions for every level of thrombus burden, with proven performance and minimal complications.

Case Study

SPIROFLEX™ ANGIOJET thrombectomy of a native coronary artery in a patient presenting with a ST elevation myocardial infarction (STEMI) due to stent thrombosis.

Patient History

  • 52 year old male
  • Former smoker, diabetes, hypertension, hyperlipidemia
  • History of coronary artery disease
    • Prior stent to the LAD and D1
    • Prior stent to the circumflex
    • Prior stent to the RCA
    • Inferior MI secondary to stent thrombosis in January 2014 was treated with a second layer of stents in the proximal, mid, and distal RCA
    • Presented with a second stent thrombosis of the RCA in January 2015 which was treated with PTCA and stenting of the mid RCA (3rd layer)
  • Patient presented with chest pressure and inferior ST elevation approximately 3 months later
  • Patient was referred for coronary angiography

Diagnostic Angiogram

  • Initial angiogram showed TIMI 0 flow
  • Initial angiogram showed thrombus grade of 5
  • The left main and left anterior descending arteries had no significant lesions. The stents in the LAD and D1 were patent
  • The circumflex had no significant lesions. The stent in the first OM had a 50% lesion and the stents in the mid circumflex were patent
  • The RCA was occluded in the mid vessel

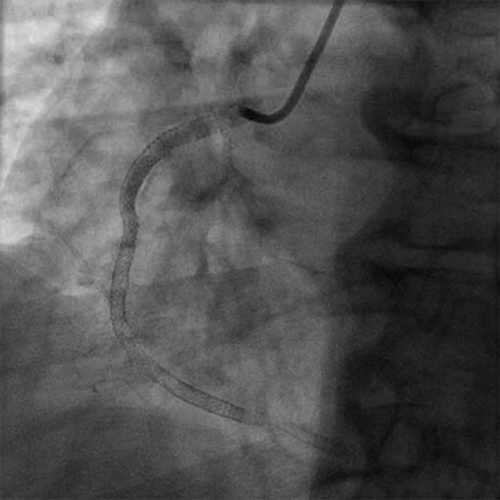

Occluded RCA Acute Stent Thrombosis

Occluded RCA Acute Stent Thrombosis

Procedure

  • The patient was anticoagulated with heparin and Integrilin™
  • Vascular access was gained utilizing a 6 F JR4 guiding catheter and a 190 cm wire
  • Post wire TIMI flow was 0; post wire thrombus grade was 5
  • The RCA was treated with ANGIOJET thrombectomy utilizing the SPIROFLEX catheter
  • There was residual thrombus in the mid and distal stents

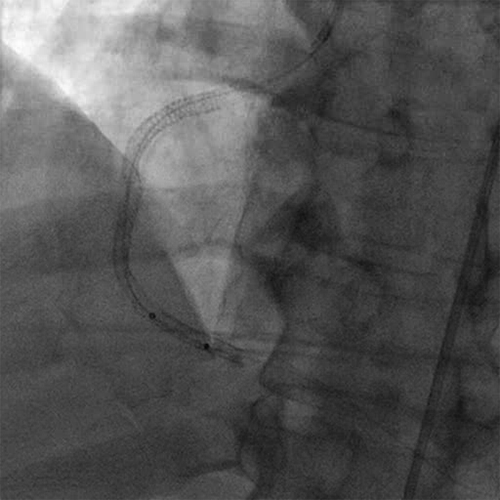

ANGIOJET using SPIROFLEX

ANGIOJET using SPIROFLEX

  • Initially the mid and distal RCA into the posterior lateral artery were treated with multiple SPIROFLEX passes for a total of 27.5 seconds
  • A second series of runs was performed utilizing SPIROFLEX ANGIOJET for a total of 35 seconds

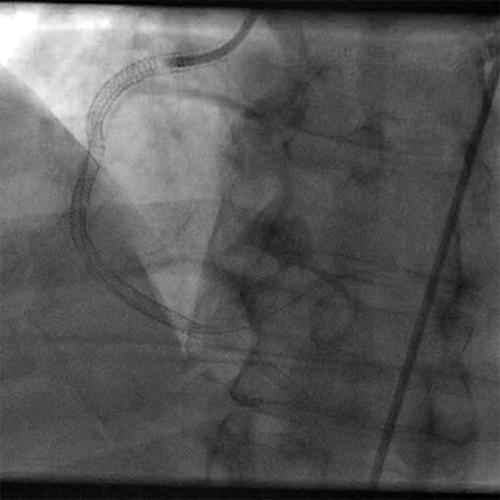

  • Significant angiographic improvement was observed post mechanical thrombectomy
  • Post ANGIOJET thrombus grade was 3

Definitive Treatment

Following PTCA with stenting, final TIMI flow was 3; final thrombus grade was 0.

Physician Commentary

As in this case, patients presenting with recurrent thrombosis over a long stented segment often have a large thrombus burden.

The ANGIOJET Thrombectomy System is ideal to treat patients with a considerable amount of large thrombus and in this patient the ANGIOJET successfully removed a significant thrombus from the mid and distal RCA making definitive treatment easier and reestablishing TIMI 3 flow.

This case demonstrates the utility of mechanical thrombectomy with the ANGIOJET SYSTEM in a patient presenting with a STEMI secondary to stent thrombosis and a substantial thrombus burden in the culprit vessel.

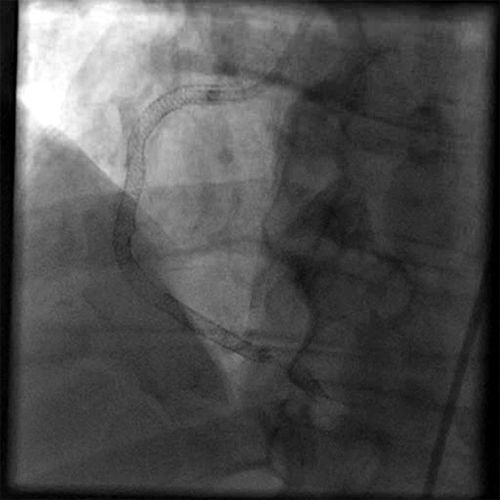

Final Result Post Definitive Treatment

Final Result Post Definitive Treatment

Study and cines courtesy of Jeffrey Chambers, MD, Metropolitan Heart and Vascular Institute, Minneapolis, MN. Results from case studies are not predictive of results in other cases. Results in other cases may vary.

Ordering Information

Product NameCatalog NumberUPN
Spiroflex™106553106553-001
Spiroflex™ VG106608106608-001





Reimbursement

The C-Code used for the ANGIOJET Thrombectomy System is C1757. C-Codes are used for hospital outpatient device reporting for Medicare and some private payers.

Note: Boston Scientific Corporation is not responsible for correct use of codes on submitted claims; this information does not constitute reimbursement or legal advice.
