Epic™ Biliary Endoscopic Stent System

Epic™ Biliary Endoscopic Stent System
Image of tantalum radiopaque markers
Image demonstrating flexible design
Image of 220 cm long-wire delivery system
Image showing 6, 8, 10mm diameters
Thumb wheel deployment with auditory indicators and tactile feedback for ease of placement and control, or the optional pull grip
Tantalum radiopaque markers at proximal and distal end of stent

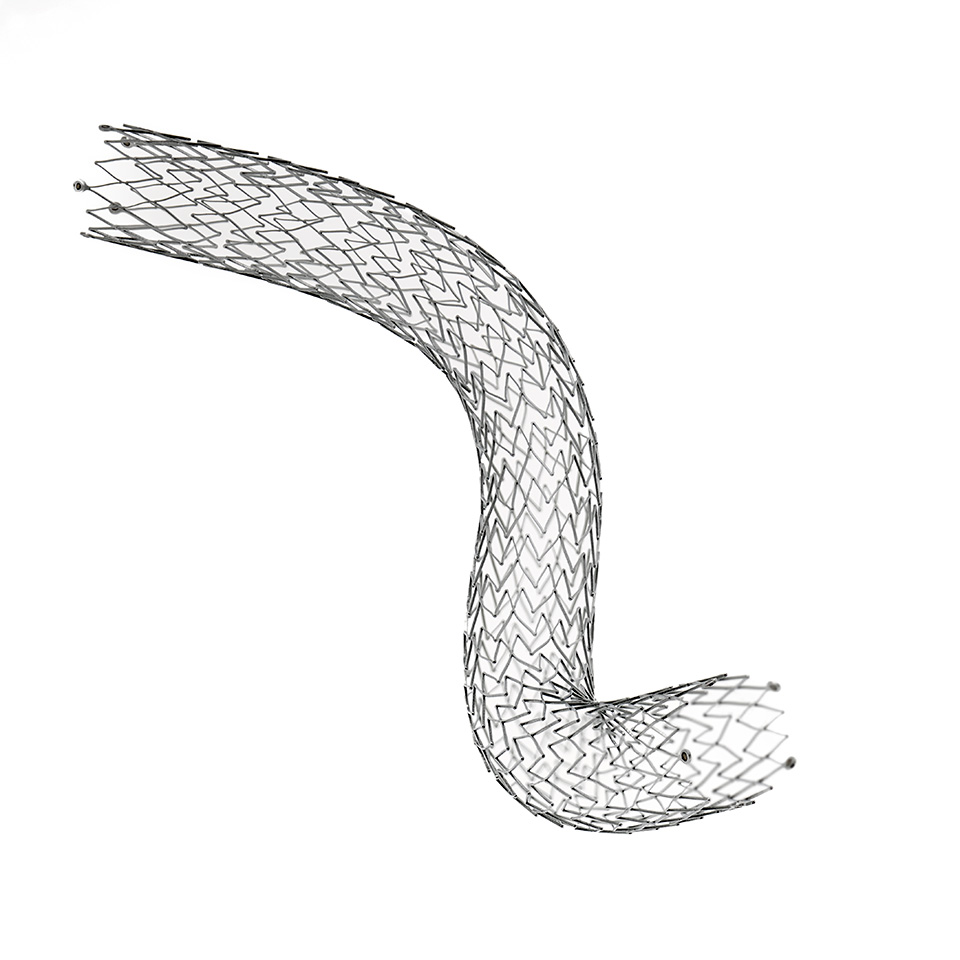

Flexible design to minimize kinking
220 cm long-wire delivery system to aid in enteroscopy-assisted ERCP
6, 8, 10mm diameters, up to 100mm in length

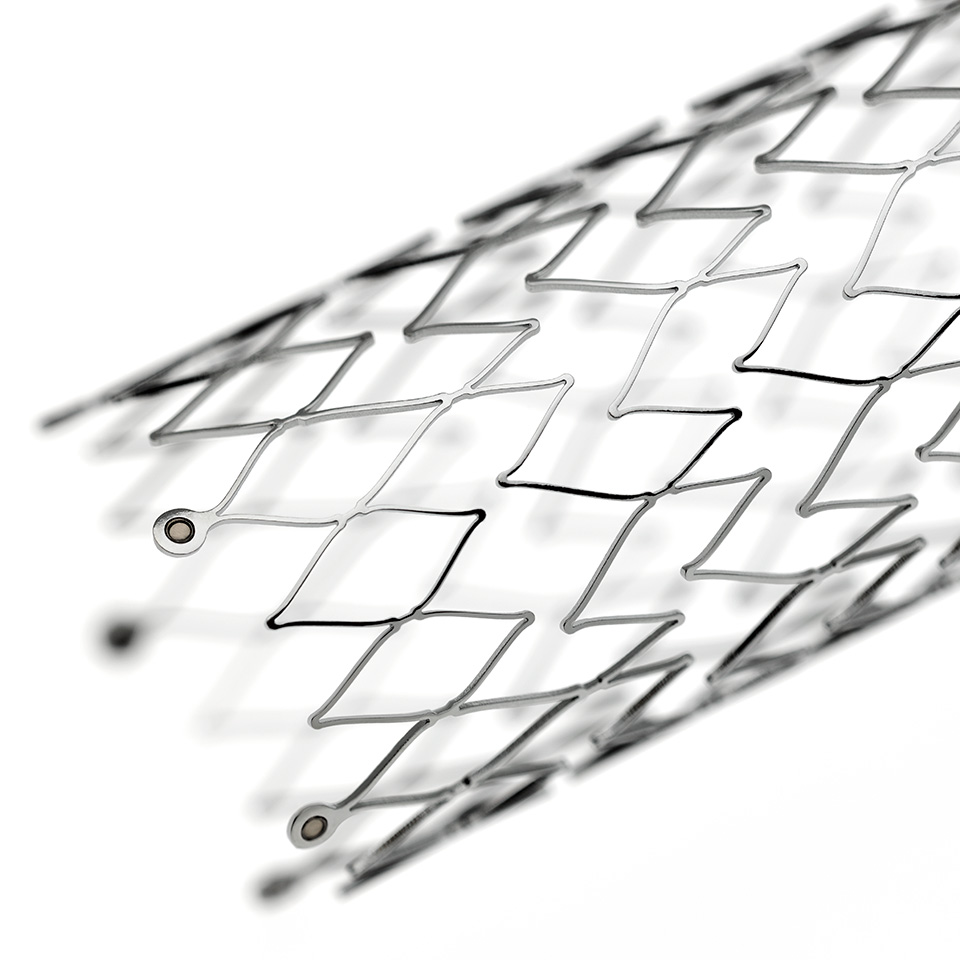

Laser Cut Self-Expanding Metal Stent
The Epic Biliary Endoscopic Stent System was developed to complement our best-in-class braided metal stent portfolio. The Epic Biliary Endoscopic Stent System is indicated for the palliation of malignant neoplasms in the biliary tree. It may be used to palliate strictures caused by unresectable Bile Duct Cholangiocarcinoma. The Epic Biliary Stent was developed for physicians who prefer a laser cut stent.

Product Details

uImage showing Epic™ Biliary Endoscopic Stent System features; Minimal foreshortening, low profile 6Fr Catheter, up to 100mm stent length, tantalum radiopaque markers at distal and proximal end of stent, 220cm catheter

Ordering Information

Schematic illustration of Epic™ Biliary Endoscopic Stent System
Product Code Description

Stent

Diameter

(mm)

Stent

Length

(mm)

Catheter Diameter

(Fr)

Guidewire Diameter

(in)

Catheter

Working Length (cm)

M00572230 Epic Biliary Stent 6 40 6 0.035 220
M00572240 Epic Biliary Stent 6 60 6 0.035 220
M00572250 Epic Biliary Stent 6 80 6 0.035 220
M00572260 Epic Biliary Stent 6 100 6 0.035 220
M00572270 Epic Biliary Stent 8 40 6 0.035 220
M00572280 Epic Biliary Stent 8 60 6 0.035 220
M00572290 Epic Biliary Stent 8 80 6 0.035 220
M00572300 Epic Biliary Stent 8 100 6 0.035 220
M00572310 Epic Biliary Stent 10 40 6 0.035 220
M00572320 Epic Biliary Stent 10 60 6 0.035 220
M00572330 Epic Biliary Stent 10 80 6 0.035 220
M00572340 Epic Biliary Stent 10 100 6 0.035 220
