OPTICROSS™ HD, 6 HD 60MHz Coronary Imaging Catheters
High Definition, Clear Results
Set a new standard for image quality, depth and deliverability with the new OPTICROSS HD 60 MHz Coronary Imaging Catheters.
Key Resources
Explore

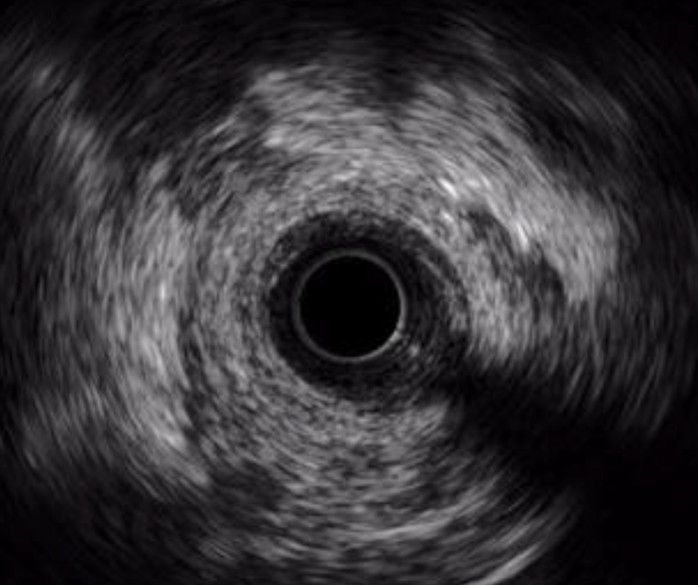

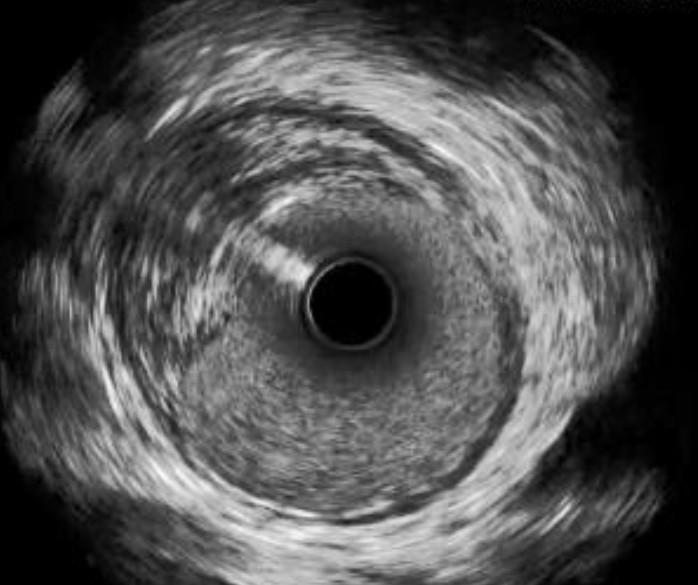

Image Comparison
The OPTICROSS HD 60 MHz Imaging Catheter provides increased stent visibility with clearer resolution to confirm adequate stent apposition to vessel wall.
Product Overview
High-Resolution Imaging

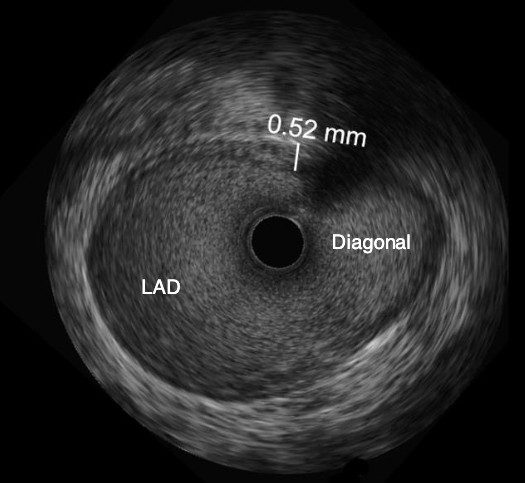

A 60 MHz wideband transducer increases lateral and axial resolution for superior image quality to visualize all three vessel layers, plaque morphology, and improves stent strut visibility for better optimization.
Unmatched Versatility
Expect exceptional near-field visibility for small vessel imaging as well as penetration depth of 6mm for large vessel assessment.
Proven Deliverability

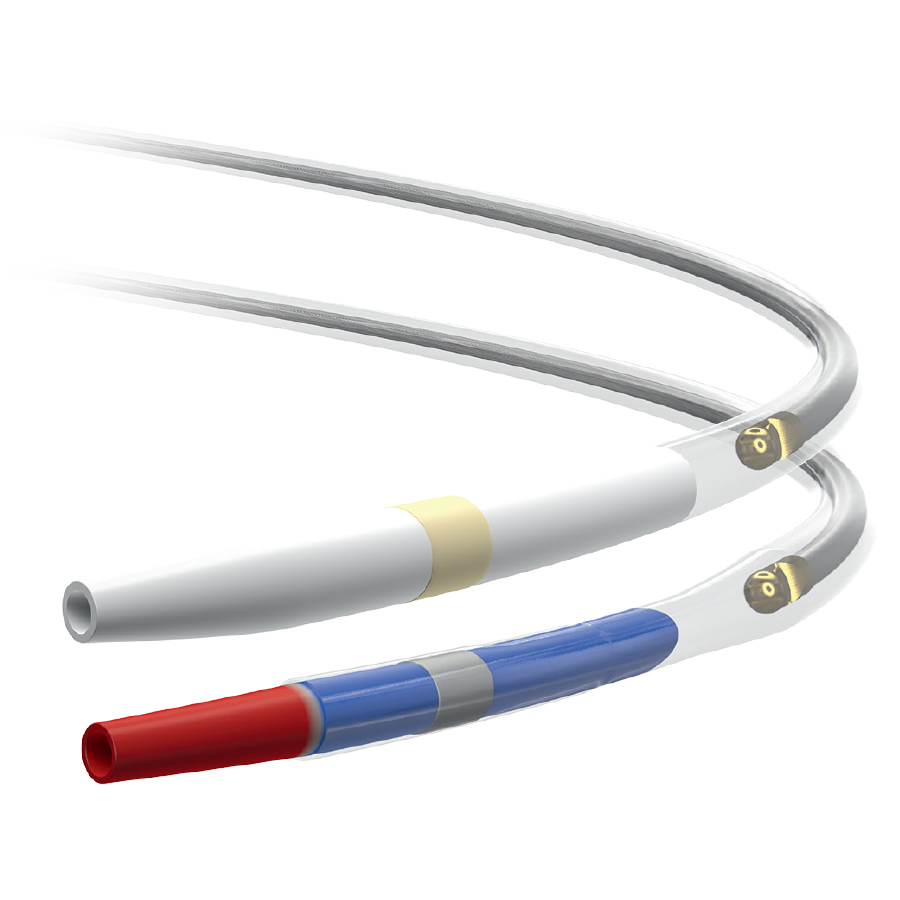

Available in 5F and 6F, catheters feature a trusted, well-balanced design to ensure best-in-class deliverability.

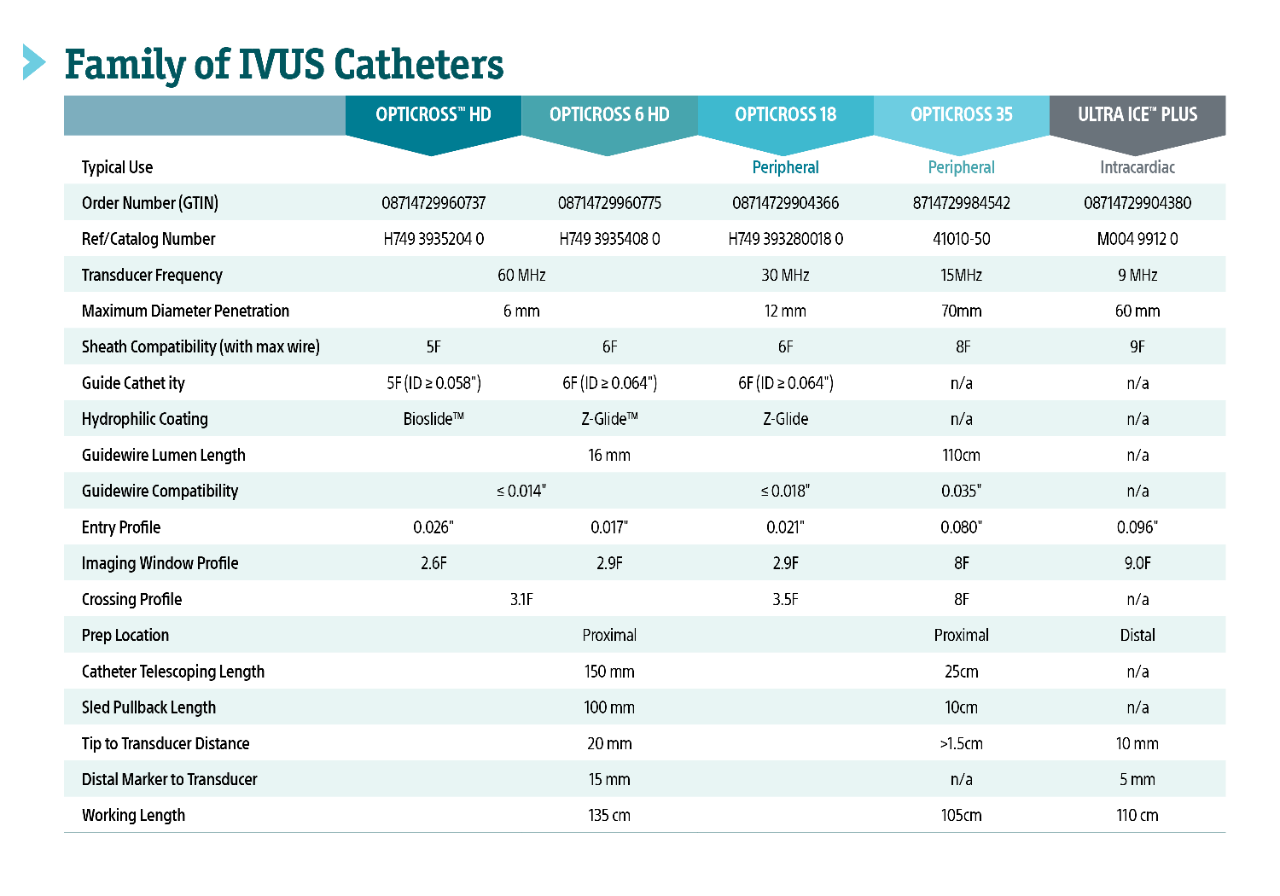

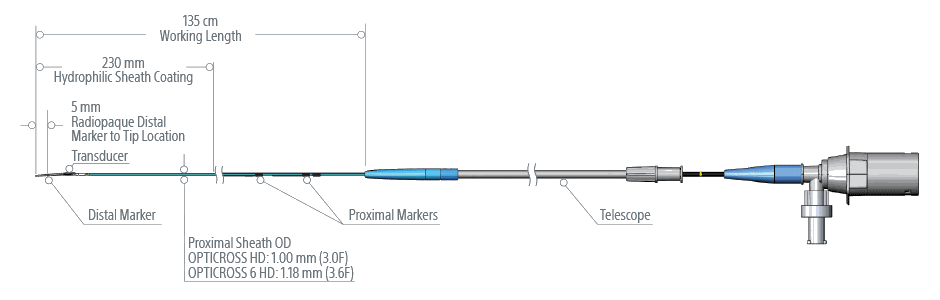

Product Specifications
|
OPTICROSS HD | OPTICROSS 6 HD | OPTICROSS |
OPTICROSS 6 |
|---|---|---|---|---|
Typical Use |
Coronary | Coronary | Coronary |
Coronary |
Transducer Frequency |
60 MHz | 60 MHz | 40 MHz |
40 MHz |
Maximum Diameter Penetration |
6 mm | 6 mm | 6 mm |
6 mm |
Sheath Compatibility (with max wire) |
5F | 6F | 5F |
6F |
Guide Catheter Compatibility |
5F (ID ≥ 0.058") | 6F (ID ≥ 0.064") | 5F (ID ≥ 0.058") |
6F (ID ≥ 0.064") |
Guidewire Lumen Length |
16 mm | 16 mm | 16 mm |
16 mm |
Guidewire Compatibility |
≤ 0.014" | ≤ 0.014" | ≤ 0.014" |
≤ 0.014" |
Entry Profile |
0.026" | 0.017" | 0.026" |
0.017" |
Imaging Window Profile |
2.6F | 2.9F | 2.6F |
2.9F |
Crossing Profile |
3.1F | 3.1F | 3.1F |
3.1F |
Prep Location |
Proximal | Proximal | Proximal |
Proximal |
Catheter Telescoping Length |
150 mm | 150 mm | 150 mm |
150 mm |
Sled Pullback Length |
100 mm | 100 mm | 100 mm |
100 mm |
Tip to Transducer Distance |
20 mm | 20 mm | 20 mm |
20 mm |
Distal Marker to Transducer |
15 mm | 15 mm | 15 mm |
15 mm |
Working Length |
135 mm | 135 mm | 135 mm |
135 mm |
Hydrophilic Coating |
Bio-SlideTM | Z-GlideTM | Bio-SlideTM |
Z-GlideTM |
Integration Options
AVVIGO Guidance System II
Ordering Information
| Description | Order Number (GTIN) | Ref/Catalog Number |
| OPTICROSS HD Imaging Catheter | 08714729960737 | H749 3935204 0 |
| OPTICROSS 6 HD Imaging Catheter | 8714729960775 | H749 3935408 0 |
| OPTICROSS Imaging Catheter | 08714729847878 | H749 51811 0 |
| OPTICROSS 6 Imaging Catheter | 08714729904762 | H749 518116 0 |
| OPTICROSS 18 Imaging Catheter | 08714729904366 | H749 393280018 0 |
| OPTICROSS 35 Imaging Catheter | 8714729984542 | H749 393280035 0 |
| ULTRA ICE PLUS Imaging Catheter | 08714729904380 | M004 9912 0 |
| MDU5+ Motor Drive | 08714729842279 | H749 MDU5PLUS 0 |
| MDU5+ Sterile Bag | 08714729842255 | H749 MDU5PLUSBAG 0 |
| Automatic Pullback Sled | 08714729339328 | H749 A7020 0 |
