LUX-Dx™ Insertable Cardiac Monitor (ICM) System

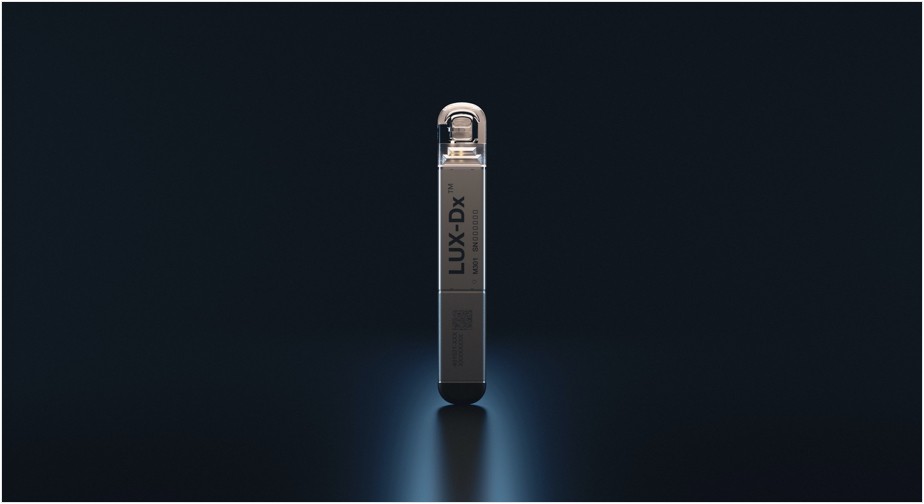

LUX-Dx™ ICM Device

It’s Time for an ICM Like No Other
The LUX-Dx ICM System puts you in control like never before with a dual-stage algorithm that is capable of rejecting false positives and remote programming technology that lets you make critical adjustments without bringing patients into the clinic for another appointment.

Key Resources


Product Details

Lux ICM banner
The LUX-Dx ICM System features a dual-stage algorithm that automatically detects and then verifies data before sending results, provides actionable insights and gets you to an accurate diagnosis faster. The system—which monitors AF, AT, pause, tachy and brady events—is comprised of four main components:
ICM Device

1. ICM Device

The insertable cardiac monitor is a small, leadless electronic device inserted just under the skin in the left pectoral region. It uses two electrodes to monitor the patient’s subcutaneous ECG (S-ECG) data when specific arrhythmias are detected. Arrhythmia detection parameters are based on the Reason for Monitoring entered during device setup or can be programmed manually by the clinician. The device is MR-conditional.

LATITUDE Clarity Data Management System

2. LATITUDE Clarity™ Data Management System

Built exclusively for the LUX-Dx ICM, the LATITUDE Clarity Data Management System helps clinics streamline their workflow, review data efficiently, accelerate critical decision making and adjust device settings remotely without bringing patients in for another appointment.

Learn More

LUX-Dx Clinic Assistant App

3. LUX-Dx™ Clinic Assistant App

Designed to enhance workflow and maximize efficiencies, the LUX-Dx Clinic Assistant app lets you:

  • Connect to any LUX-Dx ICM device within 6 feet (2 meters)
  • View ICM device status and real-time S-ECG
  • Interrogate LUX-Dx ICM devices
  • Apply programming changes

Explore the Apps

myLUX Patient App

4. myLUX™ Patient App

This user-friendly mobile app helps empower patients and improve confidence.

  • Transmits device data
  • Displays messages from clinic
  • Shows monitoring status
  • Connects to educational resources
  • Lets patients record symptoms based on clinic configuration

Explore App Features

LUX-Dx ICM Product Specifications

Volume1.2 cm3
Mass3 g
Dimensions W X H X D7.2 mm x 44.8 mm x 4.0 mm
Surface Area of Can Electrode75.3 mm2
Surface Area of Header Electrode10.2 mm2
Battery Longevity3 years*

*3 years projected longevity, under the following usage scenarios:

  • Average of 1 auto-detected event per day
  • Average of 1 patient-initiated event per month
  • Less than or equal to 6 months shelf life between device manufacture and insertion


  • At the maximum shelf storage time of 18 months, longevity is reduced by approximately 4 months
  • Projected longevity is 2 years when the Bluetooth Manual Connection is configured to not require a magnet

Download Full Product Specs

Ordering Information

DescriptionModel Number
LUX-Dx Insertable Cardiac MonitorM301
myLUX Patient Kit with Mobile Device6259
LUX-Dx Clinic Assistant Kit with Mobile Device6256
**Magnet Model 6386 is an accessory used to initiate communication between the device and the mobile applications. It is available as a separately packaged accessory in addition to being packaged with the provided clinic and mobile devices.


Rhythm Management Reimbursement Resources
Learn more about the Remote Programming CPT Code, effective July 1, 2021.
