WALLSTENT™ Endoprosthesis Stent
- Overview
- Ordering information
- Training

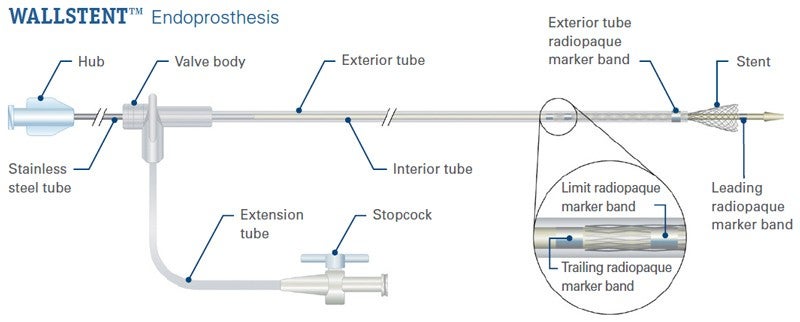

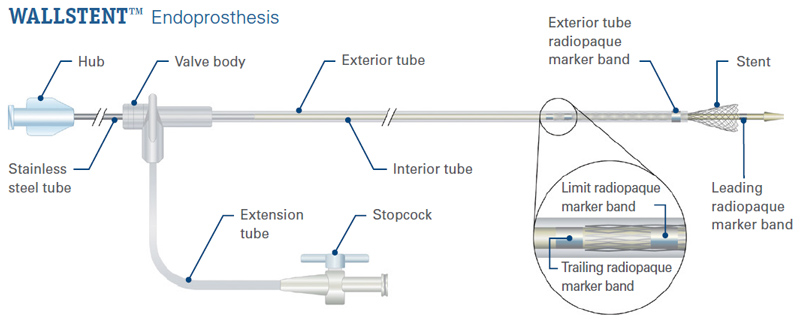

How it works
The Wallstent Self-Expanding Stent has been engineered to combine a unique stent design with a minimal free cell area, and a highly flexible, intuitive delivery system. Designed to provide excellent compression resistance.
Closed Cell Stent Design
- lntended to provide increased scaffolding for optimal lesion coverage
- Designed to promote excellent angiographic results
- Engineered to provide a smooth inner lumen
Reconstrainable
- Reconstrainable* when deployed up to the limit marker band
Radiopaque
- Exceptional stent radiopacity intended toprovide excellent angiographic visibility for precise positioning
- Radiopaque markers on the inner shaft and retractable outer sheath are designed to aid in stent positioning
References:
*Available sizes vary per indication. See product information table for specific size availability.
Ordering information
Wallstent™ RP Endoprosthesis
75 cm catheter working length
| UPN/Order Code | GTIN | Unconstrained Stent Diameter | Unconstrained Stent Length | Sheath Compatibility | Catheter Total Length | Indications | C-Code |
| (mm) | (mm) | (F) | (cm) | ||||
| M001711060 | 8714729406174 | 5 | 80 | 6 | 100 | 1 | C1876 |
| M001711080 | 8714729406198 | 6 | 20 | 6 | 100 | 1 | C1876 |
| M001711100 | 8714729406211 | 6 | 45 | 6 | 100 | 1 | C1876 |
| M001711240 | 8714729406358 | 8 | 20 | 6 | 100 | 1,3 | C1876 |
| M001711260 | 8714729406372 | 8 | 40 | 6 | 100 | 1,3 | C1876 |
| M001711280 | 8714729406396 | 8 | 60 | 6 | 100 | 1,3 | C1876 |
| M001711300 | 8714729406419 | 8 | 80 | 6 | 100 | 1,3 | C1876 |
| M001712000 | 8714729345589 | 6 | 24 | 6 | 100 | 4 | C1876 |
| M001712020 | 8714729345602 | 6 | 36 | 6 | 100 | 4 | C1876 |
| M001712040 | 8714729345626 | 6 | 46 | 6 | 100 | 4 | C1876 |
| M001712060 | 8714729345640 | 6 | 59 | 6 | 100 | 4 | C1876 |
| M001712080 | 8714729338130 | 7 | 23 | 6 | 100 | 4 | C1876 |
| M001712100 | 8714729345671 | 7 | 34 | 6 | 100 | 4 | C1876 |
| M001712120 | 8714729345695 | 7 | 55 | 6 | 100 | 4 | C1876 |
| M001712140 | 8714729345701 | 7 | 67 | 6 | 100 | 4 | C1876 |
| M001712160 | 8714729345725 | 8 | 20 | 6 | 100 | 4 | C1876 |
| M001712180 | 8714729345749 | 8 | 38 | 6 | 100 | 4 | C1876 |
| M001712200 | 8714729320067 | 8 | 47 | 6 | 100 | 4 | C1876 |
| M001712220 | 8714729345770 | 8 | 66 | 6 | 100 | 4 | C1876 |
| M001712260 | 8714729345817 | 9 | 35 | 6 | 100 | 4 | C1876 |
| M001712280 | 8714729320074 | 9 | 52 | 6 | 100 | 4 | C1876 |
| M001712300 | 8714729345848 | 9 | 61 | 6 | 100 | 4 | C1876 |
| M001712320 | 8714729345862 | 10 | 20 | 6 | 100 | 4 | C1876 |
| M001712340 | 8714729345886 | 10 | 39 | 6 | 100 | 4 | C1876 |
| M001712360 | 8714729345909 | 10 | 49 | 6 | 100 | 4 | C1876 |
| M001712380 | 8714729345923 | 10 | 69 | 6 | 100 | 4 | C1876 |
Indications: 1 = Tracheobronchial, 2 = Transjugular Intrahepatic Portosystemic Shunt (TIPS), 3 = Transhepatic Biliary, 4 = Iliac, 5 = Venous
Fully open dimensions: to determine implanted length, refer to Box Label
135 cm catheter working length
| UPN/Order Code | GTIN | Unconstrained Stent Diameter | Unconstrained Stent Length | Sheath Compatibility | Catheter Total Length | Indications | C-Code |
| (mm) | (mm) | (F) | (cm) | ||||
| M001711030 | 8714729406143 | 5 | 40 | 6 | 160 | 1 | C1876 |
| M001711050 | 8714729406167 | 5 | 55 | 6 | 160 | 1 | C1876 |
| M001711070 | 8714729406181 | 5 | 80 | 6 | 160 | 1 | C1876 |
| M001711230 | 8714729406341 | 7 | 90 | 6 | 160 | 1 | C1876 |
| M001711290 | 8714729406402 | 8 | 60 | 6 | 160 | 1 | C1876 |
| M001711310 | 8714729406426 | 8 | 80 | 6 | 160 | 1 | C1876 |
| M001711350 | 8714729406464 | 10 | 42 | 7 | 160 | 1 | C1876 |
| M001711370 | 8714729406488 | 10 | 68 | 7 | 160 | 1 | C1876 |
| M001711390 | 8714729406501 | 10 | 94 | 7 | 160 | 1 | C1876 |
| M001712070 | 8714729345657 | 6 | 59 | 6 | 160 | 1 | C1876 |
| M001712090 | 8714729345664 | 7 | 23 | 6 | 160 | 4 | C1876 |
| M001712110 | 8714729345688 | 7 | 34 | 6 | 160 | 4 | C1876 |
| M001712130 | 8714729338147 | 7 | 55 | 6 | 160 | 4 | C1876 |
| M001712190 | 8714729345756 | 8 | 38 | 6 | 160 | 4 | C1876 |
| M001712210 | 8714729345763 | 8 | 47 | 6 | 160 | 4 | C1876 |
| M001712230 | 8714729345787 | 8 | 66 | 6 | 160 | 4 | C1876 |
| M001712270 | 8714729345824 | 9 | 35 | 6 | 160 | 4 | C1876 |
| M001712350 | 8714729345893 | 10 | 39 | 6 | 160 | 4 | C1876 |
| M001712370 | 8714729345916 | 10 | 49 | 6 | 160 | 4 | C1876 |
| M001712390 | 08714729345930 | 10 | 69 | 6 | 160 | 4 | C1876 |
Indications: 1 = Tracheobronchial, 2 = Transjugular Intrahepatic Portosystemic Shunt (TIPS), 3 = Transhepatic Biliary, 4 = Iliac, 5 = Venous
Fully open dimensions: to determine implanted length, refer to Box Label
Wallstent™ Endoprosthesis with Unistep™ Plus Delivery System
75 cm catheter working length
| UPN/Order Code | GTIN | Unconstrained Stent Diameter | Unconstrained Stent Length | Sheath Compatibility | Catheter Total Length | Indications | C-Code |
| (mm) | (mm) | (F) | (cm) | ||||
| H965404500 | 8714729204121 | 22 | 35 | 11 | 100 | 1 | C1876 |
| H965404510 | 8714729204138 | 22 | 45 | 11 | 100 | 1 | C1876 |
| H965404520 | 8714729204145 | 22 | 70 | 11 | 100 | 1 | C1876 |
| H965405100 | 8714729204152 | 24 | 35 | 12 | 100 | 1 | C1876 |
| H965405110 | 8714729204169 | 24 | 45 | 12 | 100 | 1 | C1876 |
| H965405120 | 8714729204176 | 24 | 70 | 12 | 100 | 1 | C1876 |
Indications: 1 = Tracheobronchial, 2 = Transjugular Intrahepatic Portosystemic Shunt (TIPS), 3 = Transhepatic Biliary, 4 = Iliac, 5 = Venous
Fully open dimensions: to determine implanted length, refer to Box Label
135 cm catheter working length
| UPN/Order Code | GTIN | Unconstrained Stent Diameter | Unconstrained Stent Length | Sheath Compatibility | Catheter Total Length | Indications | C-Code |
| (mm) | (mm) | (F) | (cm) | ||||
| H965412000 | 8714729204398 | 12 | 20 | 9 | 160 | 1 | C1876 |
Indications: 1 = Tracheobronchial, 2 = Transjugular Intrahepatic Portosystemic Shunt (TIPS), 3 = Transhepatic Biliary, 4 = Iliac, 5 = Venous
Fully open dimensions: to determine implanted length, refer to Box Label
Venous Wallstent™ Self-Expanding Stent
75 cm catheter working length
| UPN/Order Code | GTIN | Unconstrained Stent Diameter | Unconstrained Stent Length | Sheath Compatibility | Catheter Total Length | Indications | C-Code |
| (mm) | (mm) | (F) | (cm) | ||||
| H74912044102070 | 8714729979401 | 10 | 20 | 6 | 75 | 5 | C1876 |
| H74912044104270 | 8714729979418 | 10 | 42 | 7 | 75 | 5 | C1876 |
| H74912044106870 | 8714729979425 | 10 | 68 | 7 | 75 | 5 | C1876 |
| H74912044109470 | 8714729979432 | 10 | 94 | 7 | 75 | 5 | C1876 |
| H74912044122070 | 8714729979449 | 12 | 20 | 9 | 75 | 5 | C1876 |
| H74912044124070 | 8714729979456 | 12 | 40 | 9 | 75 | 5 | C1876 |
| H74912044126070 | 8714729979470 | 12 | 60 | 9 | 75 | 5 | C1876 |
| H74912044129070 | 8714729979494 | 12 | 90 | 9 | 75 | 5 | C1876 |
| H74912044142070 | 8714729979517 | 14 | 20 | 10 | 75 | 5 | C1876 |
| H74912044144070 | 8714729979524 | 14 | 40 | 10 | 75 | 5 | C1876 |
| H74912044146070 | 8714729979531 | 14 | 60 | 10 | 75 | 5 | C1876 |
| H74912044149070 | 8714729979548 | 14 | 90 | 10 | 75 | 5 | C1876 |
| H74912044162070 | 8714729979555 | 16 | 20 | 10 | 75 | 5 | C1876 |
| H74912044164070 | 8714729979562 | 16 | 40 | 10 | 75 | 5 | C1876 |
| H74912044166070 | 8714729979579 | 16 | 60 | 10 | 75 | 5 | C1876 |
| H74912044169070 | 8714729979586 | 16 | 90 | 10 | 75 | 5 | C1876 |
| H74912044184070 | 8714729979593 | 18 | 40 | 11 | 75 | 5 | C1876 |
| H74912044186070 | 8714729979609 | 18 | 60 | 11 | 75 | 5 | C1876 |
| H74912044189070 | 8714729979616 | 18 | 90 | 11 | 75 | 5 | C1876 |
| H74912044204070 | 8714729979623 | 20 | 40 | 11 | 75 | 5 | C1876 |
| H74912044205570 | 8714729979630 | 20 | 55 | 11 | 75 | 5 | C1876 |
| H74912044208070 | 8714729979647 | 20 | 80 | 11 | 75 | 5 | C1876 |
Indications: 1 = Tracheobronchial, 2 = Transjugular Intrahepatic Portosystemic Shunt (TIPS), 3 = Transhepatic Biliary, 4 = Iliac, 5 = Venous
Fully open dimensions: to determine implanted length, refer to Box Label
135 cm catheter working length
| UPN/Order Code | GTIN | Unconstrained Stent Diameter | Unconstrained Stent Length | Sheath Compatibility | Catheter Total Length | Indications | C-Code |
| (mm) | (mm) | (F) | (cm) | ||||
| H74912044124010 | 08714729979463 | 12 | 40 | 9 | 135 | 5 | C1876 |
| H74912044126010 | 08714729979487 | 12 | 60 | 9 | 135 | 5 | C1876 |
| H74912044129010 | 08714729979500 | 12 | 90 | 9 | 135 | 5 | C1876 |
Indications: 1 = Tracheobronchial, 2 = Transjugular Intrahepatic Portosystemic Shunt (TIPS), 3 = Transhepatic Biliary, 4 = Iliac, 5 = Venous
Fully open dimensions: to determine implanted length, refer to Box Label
