OPTICROSS™ 35
Peripheral Imaging Catheter
Explore
Product Details
Unique Design

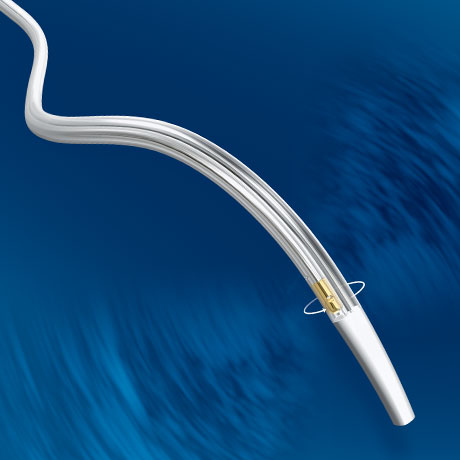

OptiCross 35 uses a first of its kind rotating transducer to produce a TRUE 360 degree view.
- 1800 RPM Rotation Speed
High Image Quality
The images produced by the OptiCross 35 catheter deliver excellent clarity and a large depth of field.
- 70 mm Target Imaging Diameter
- 15 MHz Target Operating Frequency
Optimal Outcomes
Clear IVUS images help refine treatment pathway to provide a reliable plan and improve patient outcomes.
Product Specifications
OptiCross™ 35 Peripheral Imaging Catheter |
|
|---|---|
Transducer Frequency |
15 MHz |
Order Number |
|
Typical Use |
Common & External Iliac, IVC, Femoral |
Maximum Diameter Penetration |
70 mm |
Prep Location |
Proximal |
Catheter Telescoping Length |
25 cm |
Sled Pullback Length |
10 cm |
Distance from Transducer to Tip |
1.0 cm |
Guidewire Lumen Length |
105 cm |
Guidewire Compatibility |
≤ 0.035" |
Sheath Compatibility (with max wire) |
8 F |
| Crossing Profile | 8 F |
| Entry Profile | 6 F |
Working Length |
105 cm |
Necessary Equipment
The following are required for use of the OptiCross 35 Peripheral Catheter:
- POLARIS Multi-Modality Guidance System
- MDU5 PLUSTM Motor Drive Unit
Ordering Information
| Product Code | Material Description | GTIN |
|---|---|---|
| H7493932800350 | OPTICROSS 35 | 8714729984542 |
