Dilation Assisted Stone Extraction (DASE)

The DASE procedure using the CRE™ PRO Wireguided Balloon Dilatation Catheter and CRE™ RX Biliary Balloon Dilatation Catheters helps facilitate removal of bile duct stones.
The CRE RX Biliary Balloon Dilatation Catheters offers a shorter balloon option, along with 5.5 cm balloon length. Furthermore, it has shortwire (RX) specific compatibility and ability to inject contrast through the balloon for enhanced visualization.

Key Resources

DASE Abstract Collection DASE - Animation Visit the EndoSuite Learning Center

Explore

Product Details

CRE-PRO-w-inflation-device-silver CRE-PRO-w-inflation-device-silver

The CRE PRO Wireguided Balloon Dilatation Catheter and CRE RX Biliary Balloon Dilatation Catheter are CRE Balloon Dilatation Catheters with a streamlined profile for optimal passability plus embedded platimum iridium RO markers.

  • Optimized Passability—Made with a new balloon folding process for a lower profile leading to consistent ease of passage through the scope.
  • Simplified Scope Compatability—Compatible with 2.8 mm+ working channel endoscopes and 3.7 mm+ working channel duodenoscopes. Smaller sizes (6-8, 8-10, 10-12, 12-15mm) are also compatible with 3.2 mm working channel duodenoscopes.
  • Fluoroscopic Visualization—Embedded RO markers to facilitate balloon placement using fluoroscopy

CRE RX Biliary Balloon Dilatation Catheter offers a new 3cm balloon length option, in addition to 5.5cm length, providing a wide range of choices for patients with altered anatomy, for varied scope position and direct approach to the papilla.

Dilation Products Brochure

Dilation Products Matrix

Ordering Information

CRE PRO Wireguided Esophageal/Pyloric/Biliary Balloon Dilatation Catheters (Indicated for Use in the DASE Procedure)

Order Number GTIN Balloon Inflated O.D. (mm) Balloon Inflated O.D. (Fr) Balloon Length (cm) Inflation Pressure (ATM) Inflation Pressure (kPa) Minimum Working Channel (mm) Catheter Size (Fr) Working Length (cm) Packaging
M00558600 08714729797487 6-7-8 18-21-24 5.5 3-6-10 304-608-1013 2.8/3.2* 7.5 180 Each
M00558610 08714729797494 8-9-10 24-27-30 5.5 3-5.5-9 304-557-912 2.8/3.2* 7.5 180 Each
M00558620 08714729797500 10-11-12 30-33-36 5.5 3-5-8 304-507-811 2.8/3.2* 7.5 180 Each
M00558630 08714729797517 12-13.5-15 36-40.5-45 5.5 3-4.5-8 304-456-811 2.8/3.2* 7.5 180 Each
M00558640 08714729797524 15-16.5-18 45-49.5-54 5.5 3-4.5-7 304-456-709 2.8/3.7* 7.5 180 Each
M00558650** 08714729797531 18-19-20 54-57-60 5.5 3-4.5-6 304-456-608 2.8/3.7* 7.5 180 Each

Recommended Inflation Device: Alliance™ II Integrated Inflation/Lithotripsy Device Order #5062, Alliance II Single-use Syringe/Gauge Assembly Order #5060. (See below.)
Guidewire included and preloaded in balloon catheter.
*Duodenoscope channel size.
**Esophageal and Biliary application only.

View Ordering Information For The Single-Use Wireguided Biliary Balloon Dilators

CRE PRO Wireguided Esophageal/Pyloric/Colonic/Biliary Balloon Dilatation Catheters (Indicated for Use in the DASE Procedure)

CRE PRO Wireguided Esophageal/Pyloric/Colonic/Biliary Balloon Dilatation Catheters (Indicated for Use in the DASE Procedure) CRE PRO Wireguided Esophageal/Pyloric/Colonic/Biliary Balloon Dilatation Catheters (Indicated for Use in the DASE Procedure)

Order Number GTIN Balloon Inflated O.D. (mm) Balloon Inflated O.D. (Fr) Balloon Length (cm) Inflation Pressure (ATM) Inflation Pressure (kPa) Minimum Working Channel (mm) Catheter Size (Fr) Working Length (cm) Packaging
M00558660 08714729797548 6-7-8 18-21-24 5.5 3-6-10 304-608-1013 2.8/3.2* 7.5 240 Each
M00558670 08714729797555 8-9-10 24-27-30 5.5 3-5.5-9 304-557-912 2.8/3.2* 7.5 240 Each
M00558680 08714729797562 10-11-12 30-33-36 5.5 3-5-8 304-507-811 2.8/3.2* 7.5 240 Each
M00558690 08714729797579 12-13.5-15 36-40.5-45 5.5 3-4.5-8 304-456-811 2.8/3.2* 7.5 240 Each
M00558700 08714729797586 15-16.5-18 45-49.5-54 5.5 3-4.5-7 304-456-709 2.8/3.7* 7.5 240 Each
M00558710*** 08714729797593 18-19-20 54-57-60 5.5 3-4.5-6 304-456-608 2.8/3.7* 7.5 240 Each

Recommended Inflation Device: Alliance™ II Integrated Inflation/Lithotripsy Device Order #5062, Alliance II Single-use Syringe/Gauge Assembly Order #5060. (See below.)
Guidewire included and preloaded in balloon catheter.
*Duodenoscope channel size.
***Esophageal, Colonic and Biliary application only.

View Ordering Information for CRE PRO Wireguided Colonic/Esophageal/Pyloric/Biliary Balloon Dilatation Catheters

CRE RX Biliary Balloon Dilatation Catheter (Indicated for Use in the DASE Procedure)

CRE-RX Ordering Information CRE-RX Ordering Information
View Ordering Information For CRE RX Biliary Balloon Dilatation Catheter

The AllianceTM II Inflation System

Order Number Description Packaging
M00550620 Inflation Handle Each
M00550601 Single-Use Syringe / Gauge Assembly Box 5

View Ordering Information for the Alliance II Inflation System



Clinical Information

     A Collection of Dilation Assisted Stone Extraction (DASE) Abstracts

Presented by a number of physicians

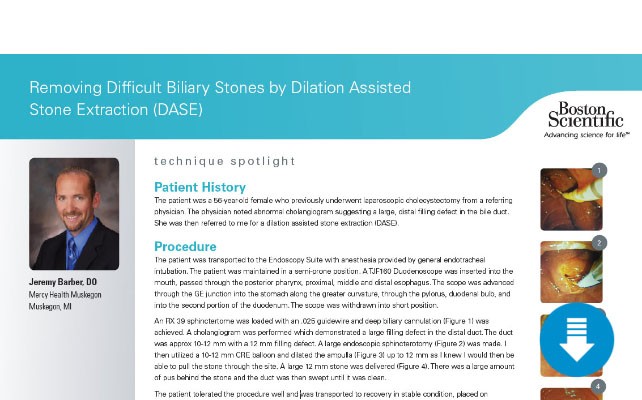

     Literature Review, Step-by-Step Technique Guide and Case Study of DASE Procedure

Presented by Drs. Oleh Haluszka, Thomas E. Kowalski, and Jeffrey Tokar (USA)



Case Studies
