VersaCross Connect™ Access Solution for CARTO VIZIGO™ Sheath
Configure or select a product to continue to order
- Overview
- Technical specifications
- Ordering information
- Training
- Resources
Zero-exchange access-to-delivery
For your CARTO VIZIGO Sheath workflow
Why choose the VersaCross Connect Access Solution for CARTO VIZIGO Sheath
Predictable transseptal access. Seamless integration.
What’s included
The VersaCross Connect Access Solution for CARTO VIZIGO Sheath includes:
- VersaCross RF Wire (pigtail)
- VersaCross Connect Transseptal Dilator (8.5F) with TRUform technology
- Single-use RFP-100A™ Connector Cable
Required product
Designed for controlled tissue puncture using radiofrequency energy

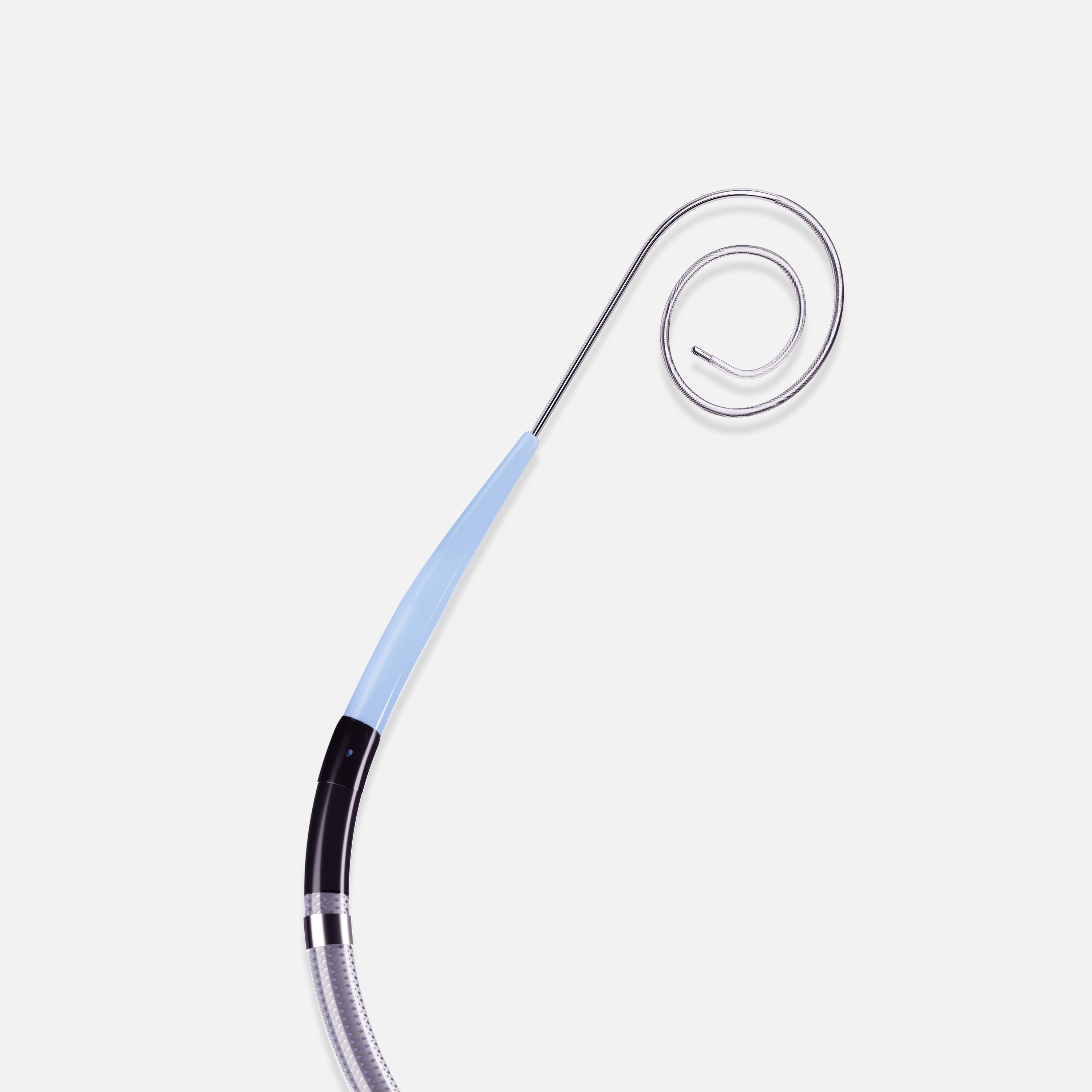

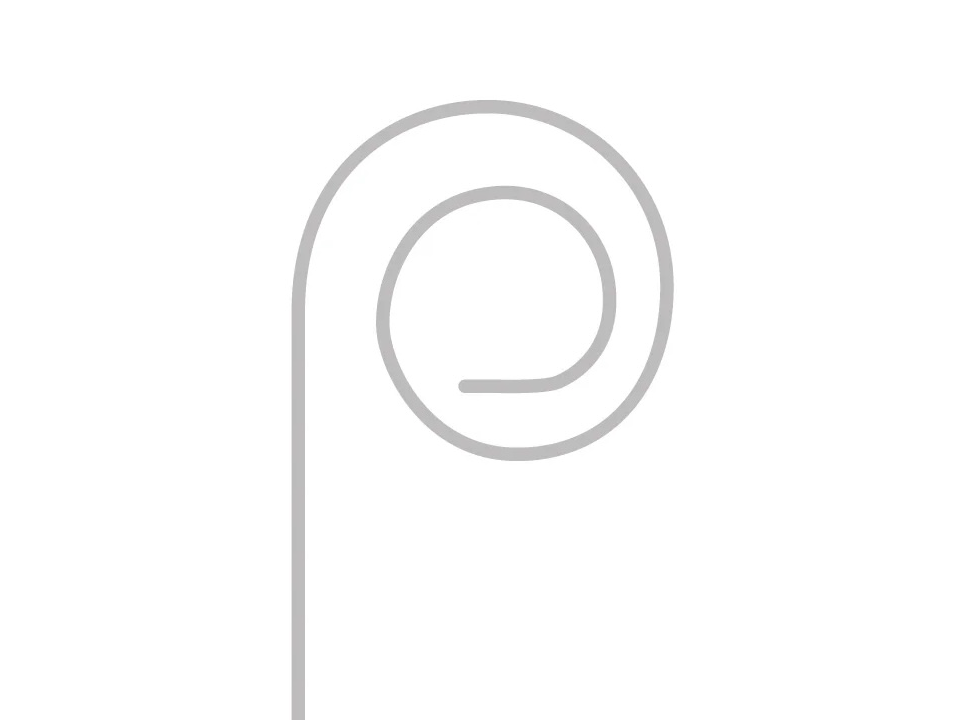

VersaCross RF Wire
| Feature | Specifications |
| Tip configurations | Pigtail |
| Curve shape | 24 mm (pigtail) |
| Wire diameter | 0.035 in (0.89 mm) |
| Overall length | 180 cm |
VersaCross Connect Transseptal Dilator
| Feature | Specifications |
| Outer diameter | 8.5F (3.0 mm) |
| Inner diameter | 0.036 in (0.9 mm) |
| Usable length | 93 cm |
| Curve | D1 |

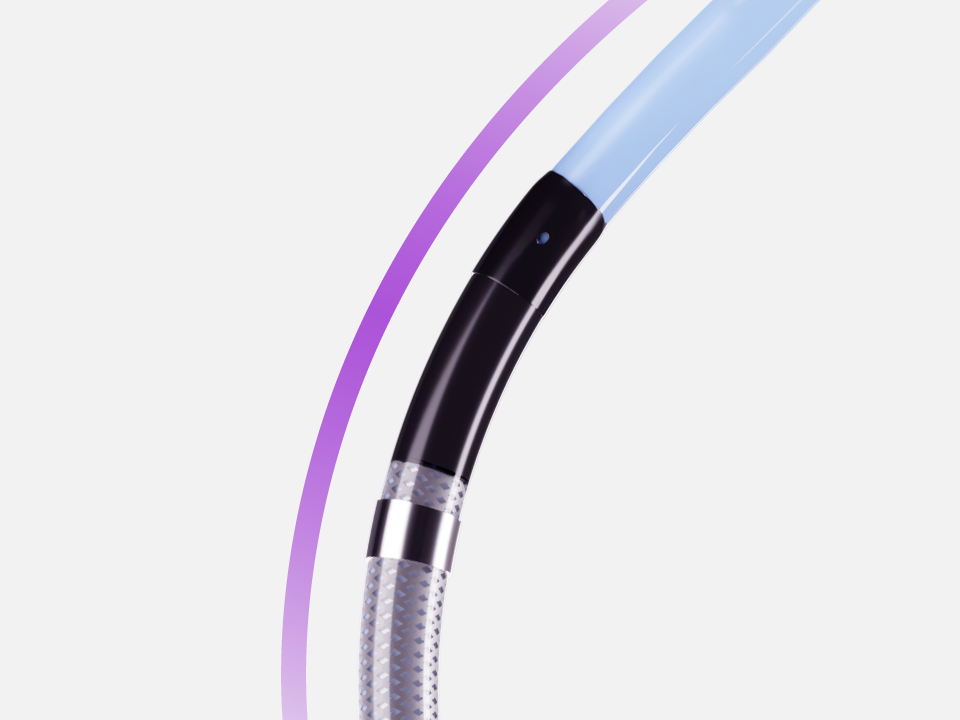

Sheath compatibility
The VersaCross Connect Transseptal Dilator is for use with an 8.5F (3.0 mm) ID CARTO VIZIGO Bi-Directional Guiding Sheath which is 71 cm in usable length, specifically, models: D138501, D138502, D138503
Ordering information
| 1. Choose your VersaCross RF Wire |
Pigtail
| VersaCross RF Wire |
| RF wire length: 180 cm |
| Wire diameter: 0.035 in (0.89 mm) |
| Curve diameter: 24 mm (pigtail) |
| 2. Connect with VersaCross Connect Transseptal Dilator |
| VersaCross Connect Transseptal Dilator with TRUform shapeable technology |
| Inner diameter: 0.036 in (0.9 mm) |
| Outer diameter: 8.5F (3.0 mm) |
| Usable length: 93 cm |
Looking for more training? Contact our medical education team
In-person training
Explore in-person training opportunities for electrophysiologists of all experience levels.
Online education
Online medical training and education courses
The EDUCARE online platform makes healthcare education and training more relevant, more comprehensive, more personal, and more accessible. Register to access a library of procedural videos, case studies, training resources, and events.
Detail package
Analysis
The VersaCross Connect™ Transseptal Dilator is for use with an 8.5F (3.0 mm) ID CARTO VIZIGO™ Bi-Directional Guiding Sheath which is 71 cm in usable length, specifically, models: D138501, D138502, D138503.
The CARTO VIZIGO™ Bi-Directional Guiding Sheath is owned and manufactured by Biosense Webster, Inc.
All trademarks are the property of their respective owners.
