CATAPULT™ Guide Sheath
Reimbursement
Configure or select a product to continue to order
- Overview
- Technical specifications
- Ordering information
- Training
- Resources
Maximize efficiency
with a balanced design
The Catapult Guide Sheath offers an atraumatic tip with smooth transitions from sheath-dilator to dilator-wire, along with a kink and crush-resistant shaft that ensures excellent pushability.
Additionally, it provides a broad range of tip configurations, French sizes, and lengths. These key components contribute to its functionality during peripheral endovascular procedures.
How CATAPULT works

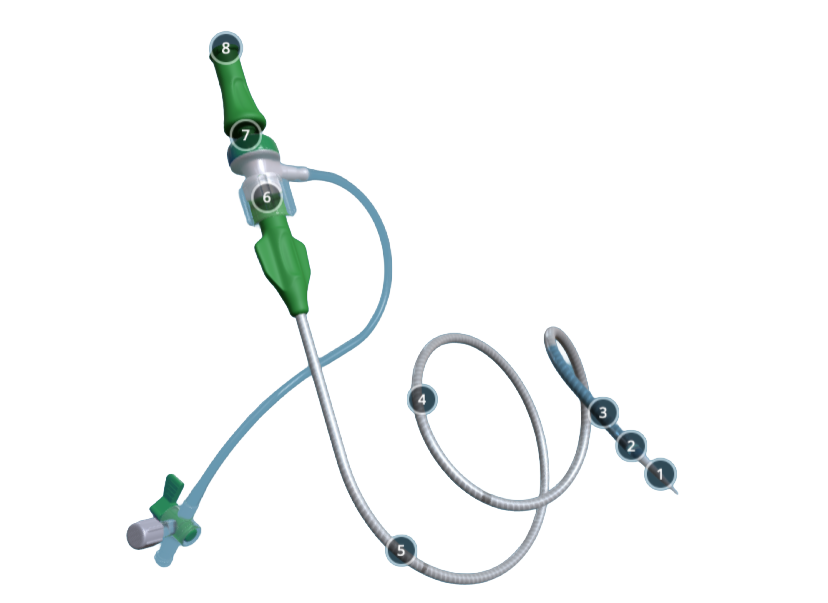

3D interactive product rendering
Explore a 360-degree interactive view of Boston Scientific's CATAPULT Catheter and learn about the key features of the system.
Included are short animations of how CATAPULT provides support at every turn.
Why choose CATAPULT
Designed to balance the competing priorities of support and atraumatic passage
The Catapult Guide Sheath expands your ability to achieve access and successfully deliver supporting therapies through any anatomy.

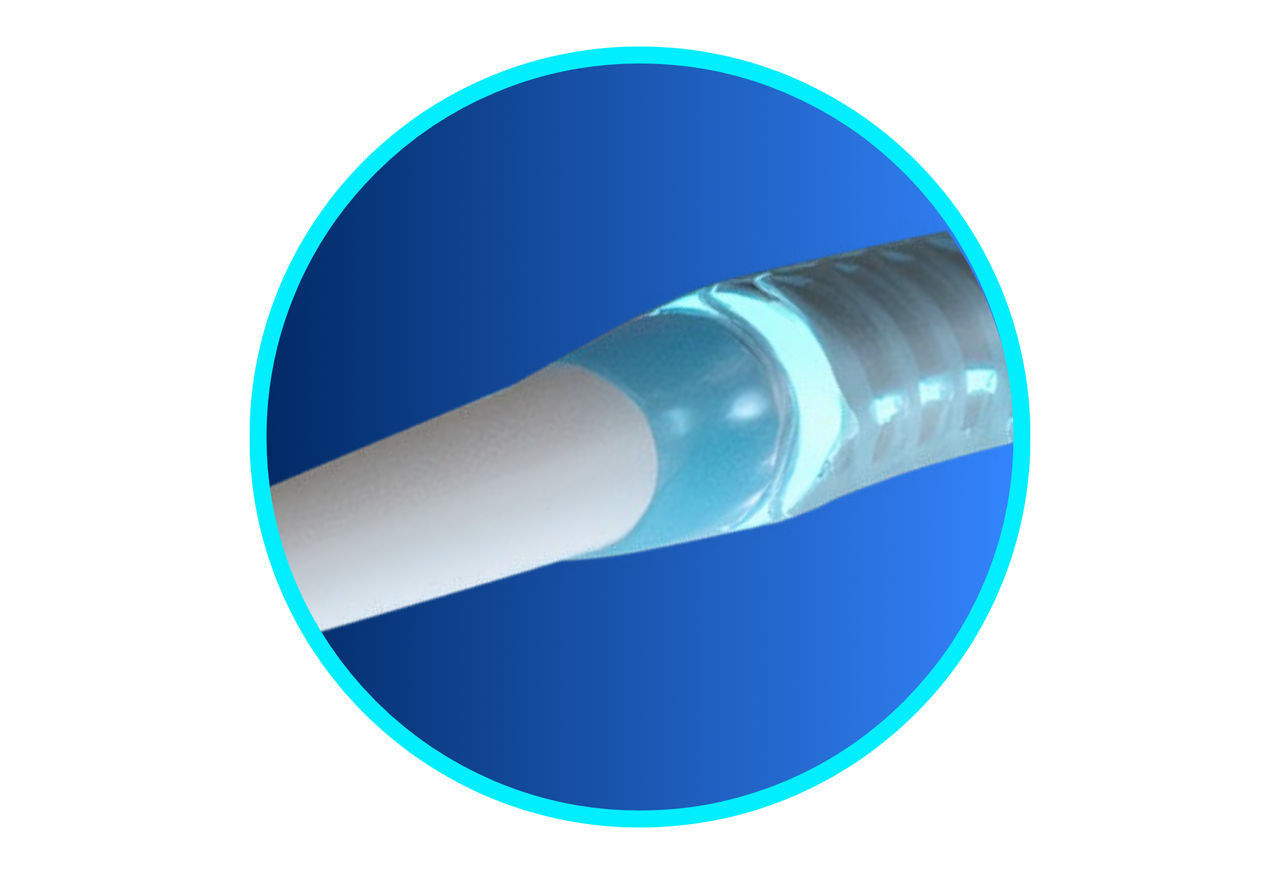

Atraumatic tip transitions
Designed for easy insertion with smooth transitions from sheath to dilator and dilator to wire

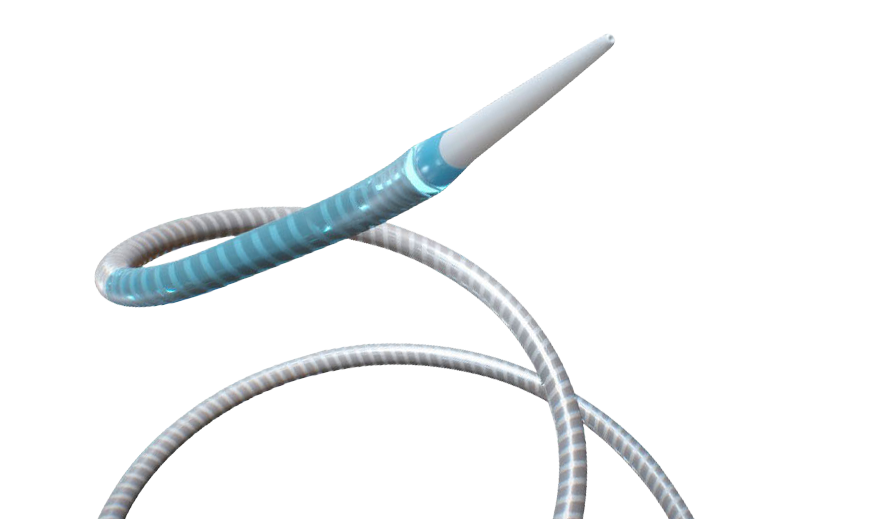

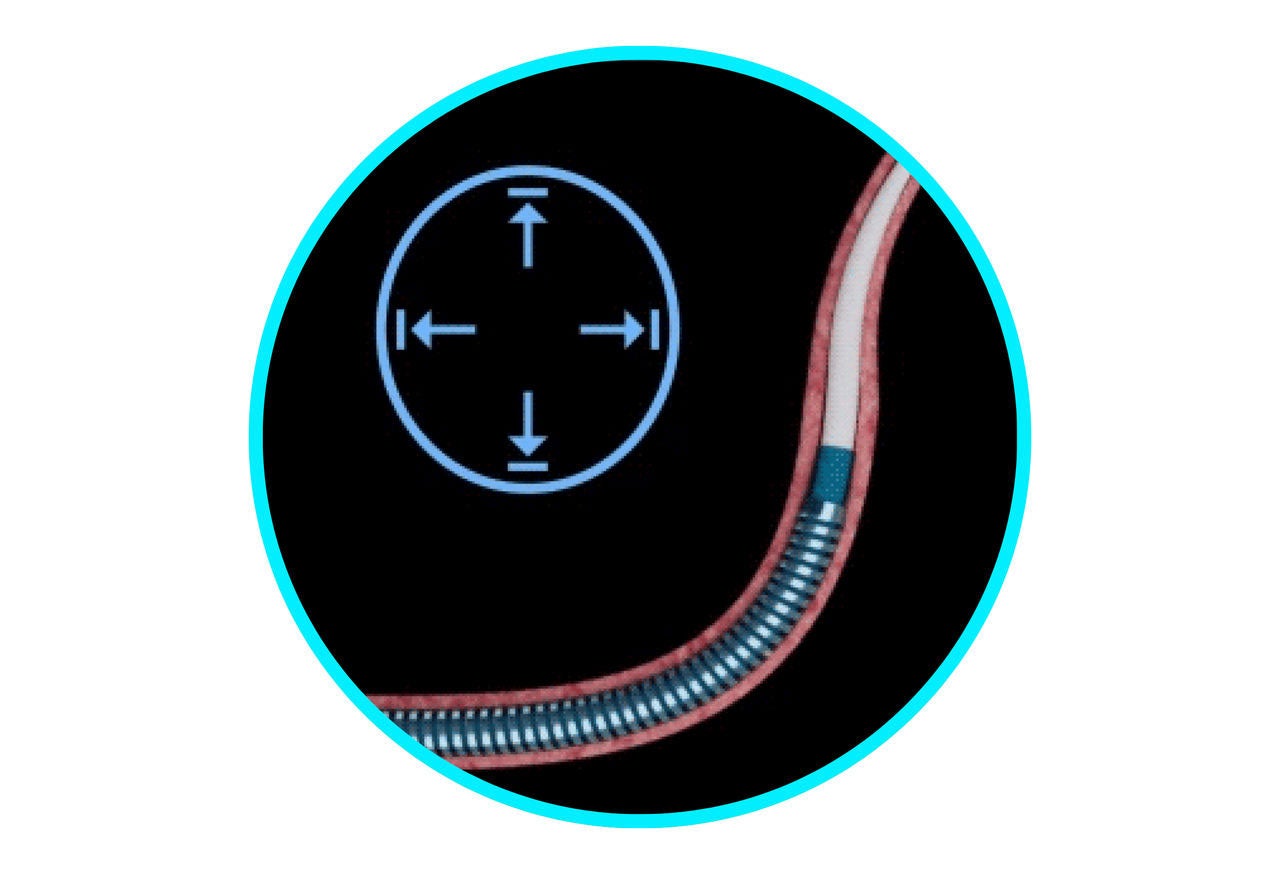

Kink- and crush-resistant shaft
Reinforced coil-shaft technology is kink-resistant and maintains circular inner diameter even when curved

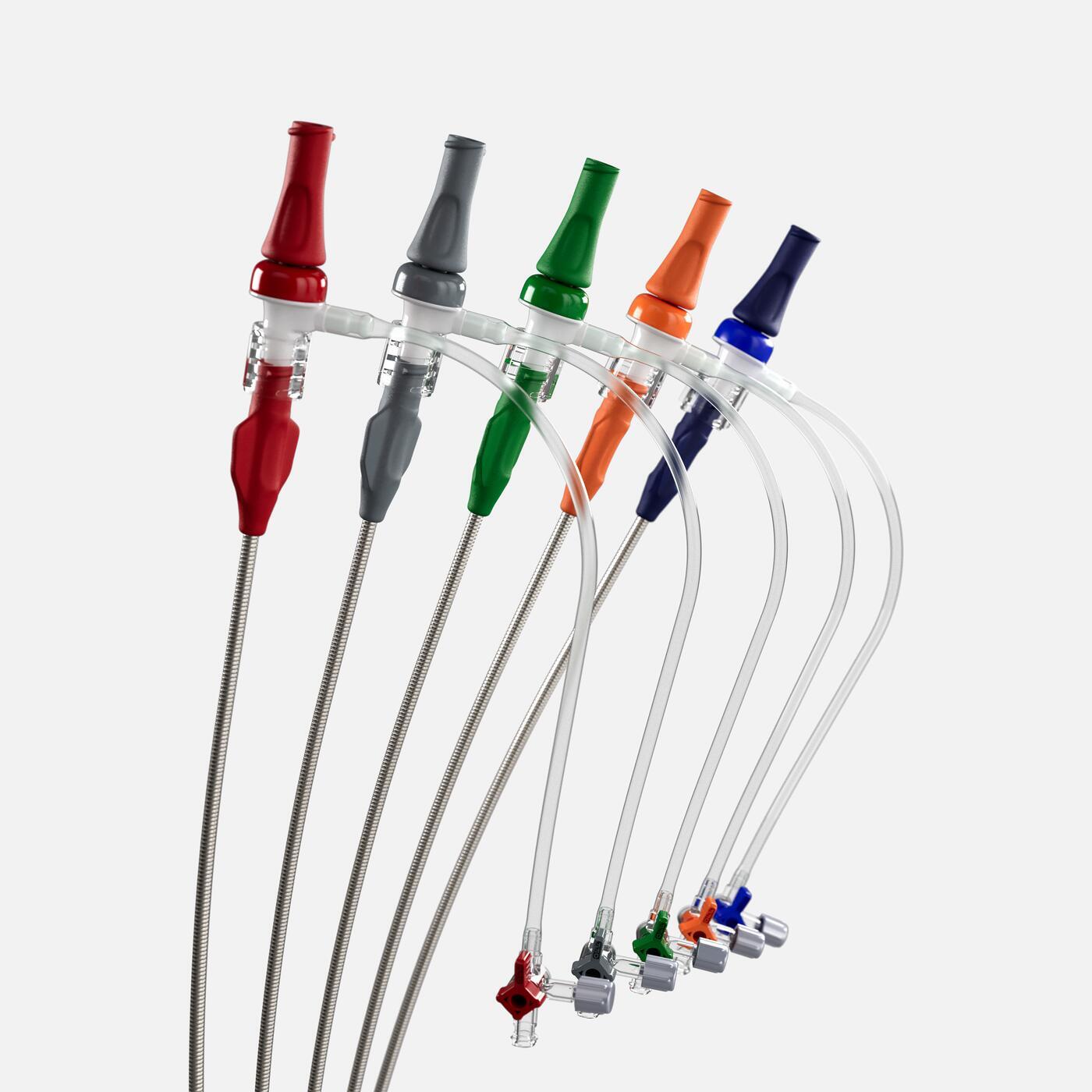

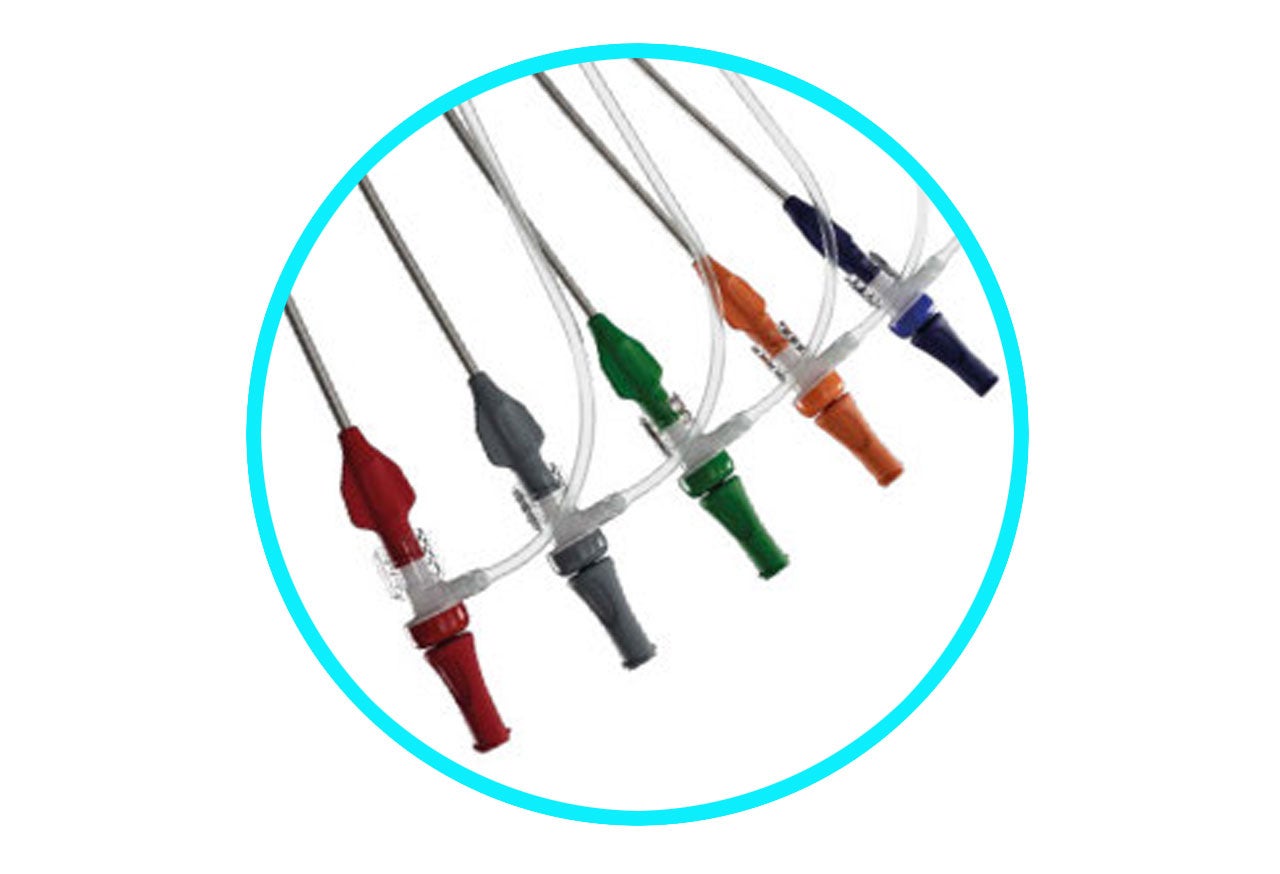

Tip configurations
Broad matrix of tip configurations, sizes and lengths

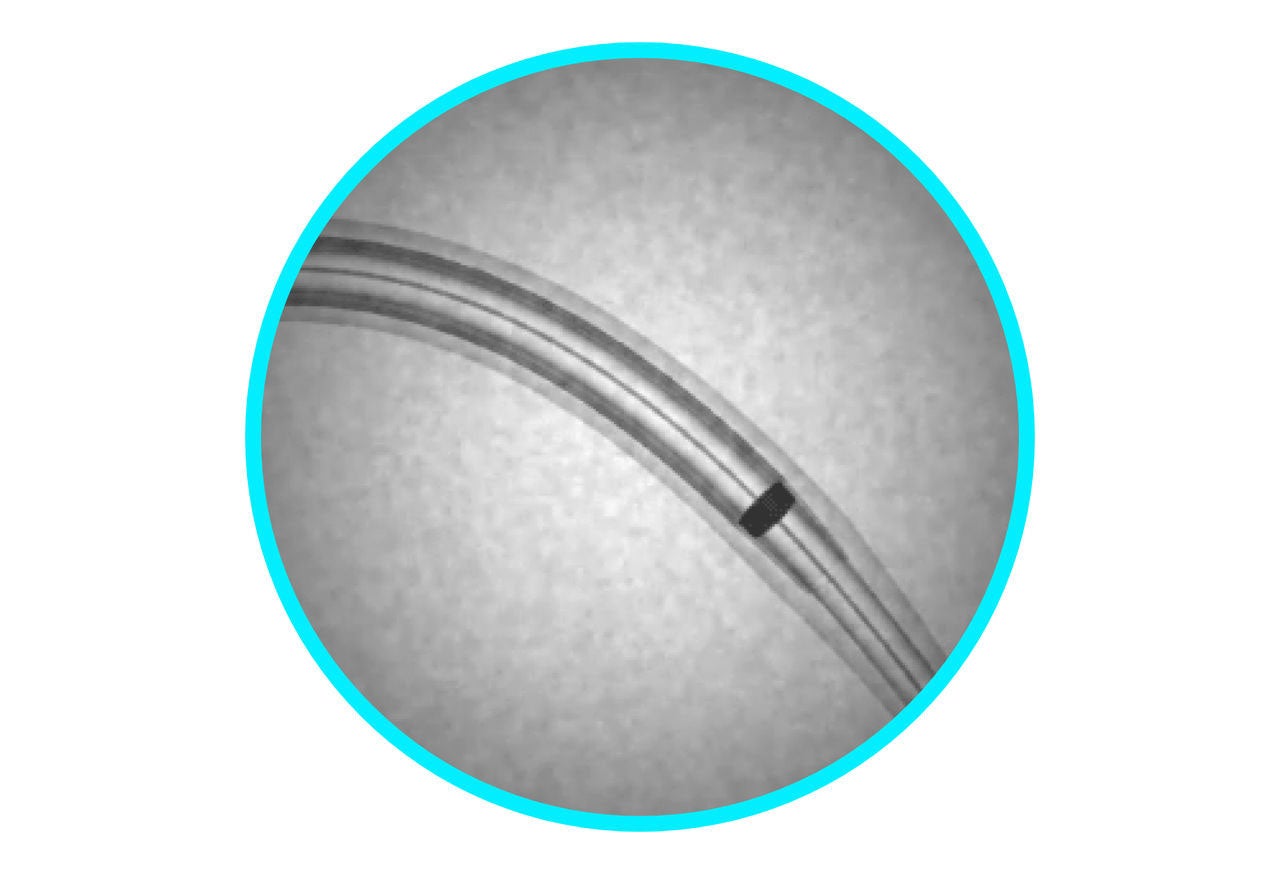

Marker band
Platinum-iridium marker band for excellent radiopacity

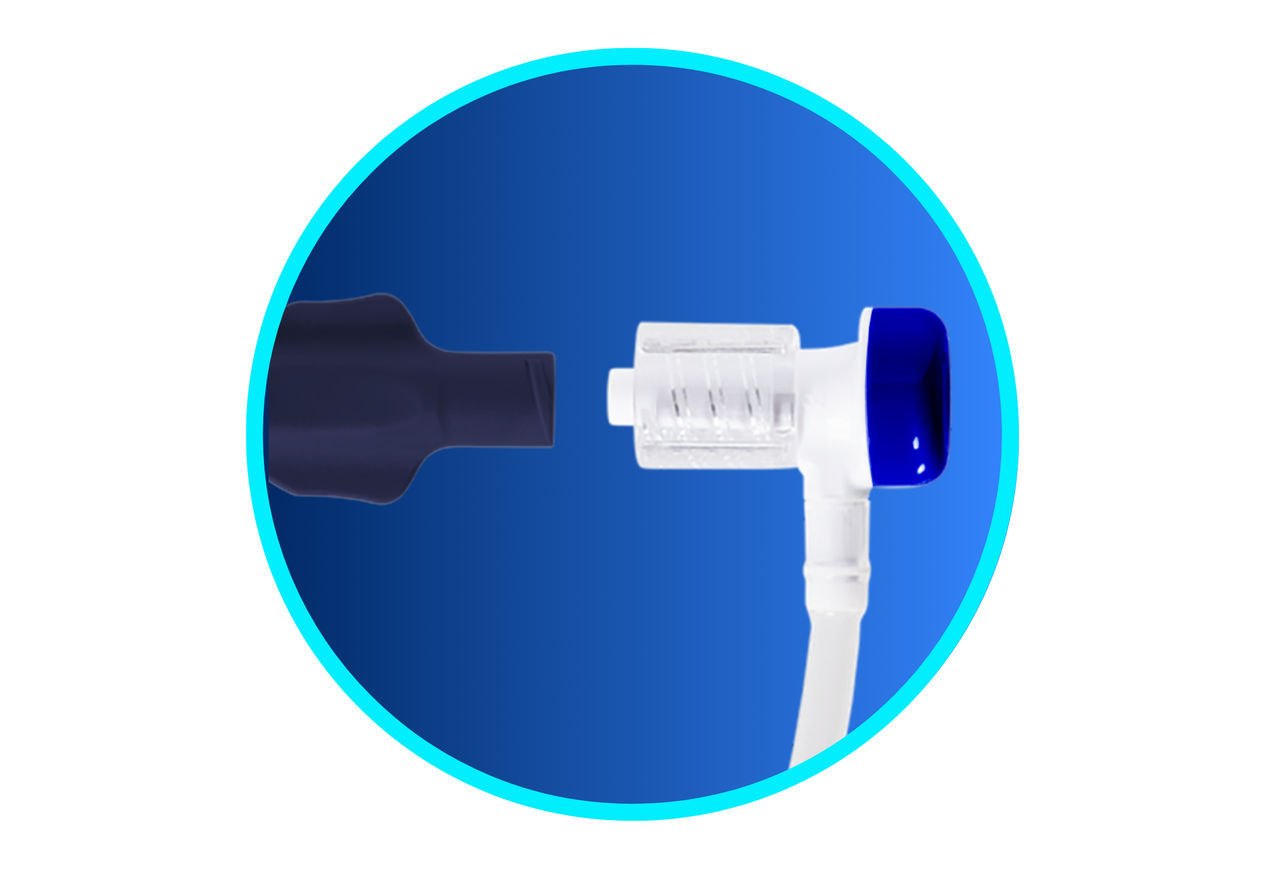

Detachable haemostatic valve
Allows easy and secure connection while also providing more optionality in complex cases

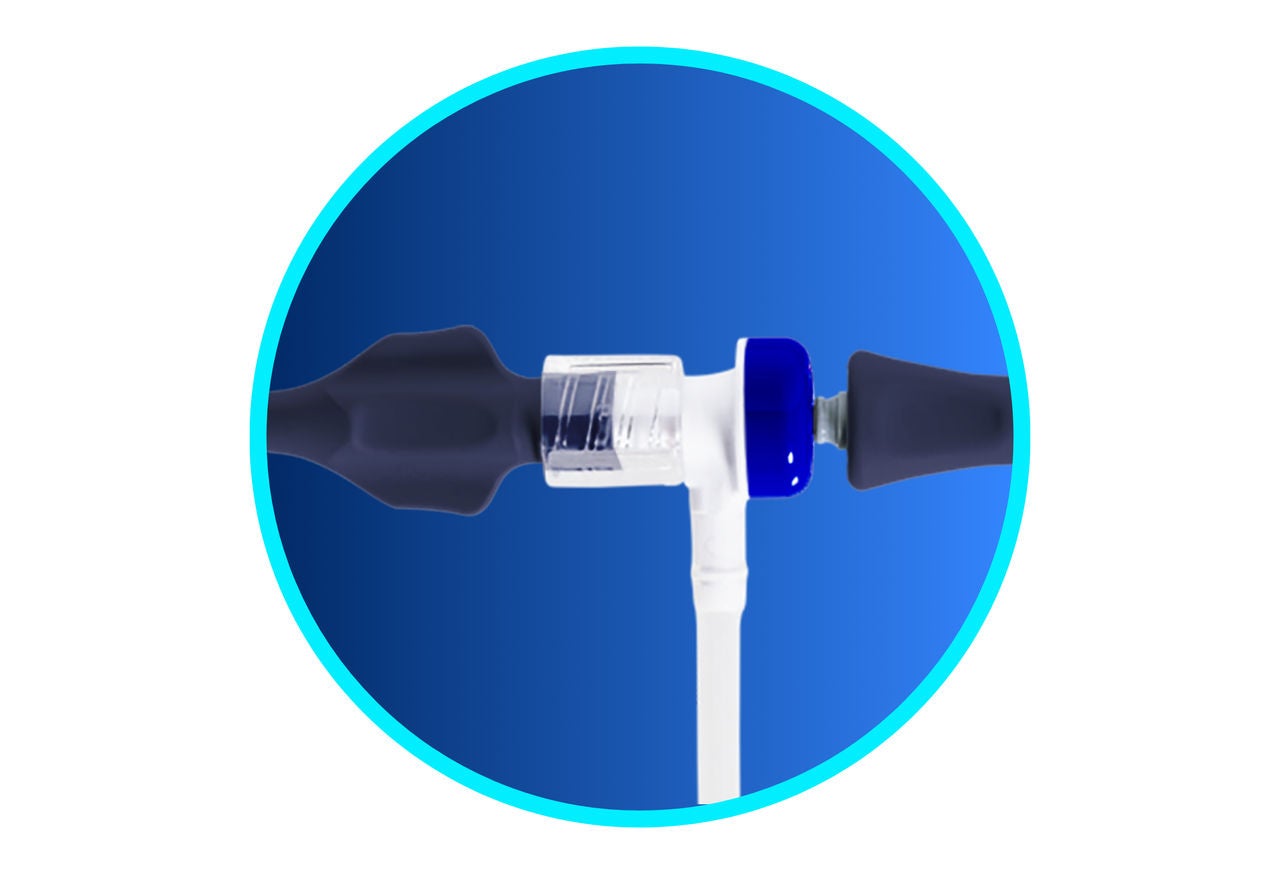

Dilator with snap fit
Allows for safe and secure connection and insertion. In order to lock, you slide in until you hear and feel it click
These components work together to provide stability, support, and controlled access for the delivery of devices during peripheral endovascular procedures. They play a crucial role in ensuring successful navigation, device deployment, and hemostasis during the intervention.
CATAPULT specifications
Tortuous anatomy poses unique challenges. The Catapult Guide Sheath provides the lengths, sizes, control and performance to allow easier device passage in tight spaces, so you can be confident in providing the highest quality of care.
Tip shape options — 4F to 8F sizes & 15-130 cm lengths
* Not available on all sizes, see ordering information
| Tip shape | Catheter length |
| Straight | 4F to 8F 4F to 6F |
| Multipurpose | 5F to 7F 45 cm & 90 cm |
| Left internal mammary artery (LIMA) | 6F to 7F 45 cm |
| Renal double curve (RDC) | 5F to 7F 45 cm |
| Hockey stick | 5F to 7F 45 cm & 90 cm |
Ordering information
Review the ordering detail information below. Contact a rep to order or order online.
| French size | Catheter length | Tip shape | Product description | UPNs |
| 4F | 15cm | Straight | Catapult 4F 15cm Straight | US-34015-F-ST-H |
| 4F | 45cm | Straight | Catapult 4F 45cm Straight | US-34045-F-ST-H |
| 4F | 60cm | Straight | Catapult 4F 60cm Straight | US-34060-F-ST-H |
| 4F | 90cm | Straight | Catapult 4F 90cm Straight | US-34090-F-ST-H |
| 4F | 130cm | Straight | Catapult 4F 130cm Straight | US-34130-F-ST-H |
| 5F | 15cm | Straight | Catapult 5F 15cm Straight | US-35015-F-ST-H |
| 5F | 45cm | Multipurpose | Catapult 5F 45cm Multipurpose | US-35045-F-MP-H |
| 5F | 45cm | RDC | Catapult 5F 45cm Renal Double Curve | US-35045-F-RDC-H |
| 5F | 45cm | Hockey Stick | Catapult 5F 45cm Hockey Stick | US-35045-F-HS-H |
| 5F | 45cm | Straight | Catapult 5F 45cm Straight | US-35045-F-ST-H |
| 5F | 60cm | Straight | Catapult 5F 60cm Straight | US-35060-F-ST-H |
| 5F | 90cm | Straight | Catapult 5F 90cm Straight | US-35090-F-ST-H |
| 5F | 130cm | Straight | Catapult 5F 130cm Straight | US-35130-F-ST-H |
| 6F | 15cm | Straight | Catapult 6F 15cm Straight | US-36015-F-ST-H |
| 6F | 45cm | Straight | Catapult 6F 45cm Straight | US-36045-F-ST-H |
| 6F | 45cm | Multipurpose | Catapult 6F 45cm Multipurpose | US-36045-F-MP-H |
| 6F | 45cm | LIMA | Catapult 6F 45cm LIMA | US-36045-F-LIMA-H |
| 6F | 45cm | RDC | Catapult 6F 45cm Renal Double Curve | US-36045-F-RDC-H |
| 6F | 45cm | Hockey Stick | Catapult 6F 45cm Hockey Stick | US-36045-F-HS-H |
| 6F | 60cm | Straight | Catapult 6F 60cm Straight | US-36060-F-ST-H |
| 6F | 90cm | Straight | Catapult 6F 90cm Straight | US-36090-F-ST-H |
| 6F | 90cm | Multipurpose | Catapult 6F 90cm Multipurpose | US-36090-F-MP-H |
| 6F | 90cm | RDC | Catapult 6F 90cm Renal Double Curve | US-36090-F-RDC-H |
| 6F | 90cm | Hockey Stick | Catapult 6F 90cm Hockey Stick | US-36090-F-HS-H |
| 6F | 130cm | Straight | Catapult 6F 130cm Straight | US-36130-F-ST-H |
| 7F | 15cm | Straight | Catapult 7F 15cm Straight | US-37015-F-ST-H |
| 7F | 45cm | Straight | Catapult 7F 45cm Straight | US-37045-F-ST-H |
| 7F | 45cm | Multipurpose | Catapult 7F 45cm Multipurpose | US-37045-F-MP-H |
| 7F | 45cm | LIMA | Catapult 7F 45cm LIMA | US-37045-F-LIMA-H |
| 7F | 45cm | RDC | Catapult 7F 45cm Renal Double Curve | US-37045-F-RDC-H |
| 7F | 45cm | Hockey Stick | Catapult 7F 45cm Hockey Stick | US-37045-F-HS-H |
| 7F | 60cm | Straight | Catapult 7F 60cm Straight | US-37060-F-ST-H |
| 7F | 90cm | Straight | Catapult 7F 90cm Straight | US-37090-F-ST-H |
| 7F | 90cm | Multipurpose | Catapult 7F 90cm Multipurpose | US-37090-F-MP-H |
| 7F | 90cm | Hockey Stick | Catapult 7F 90cm Hockey Stick | US-37090-F-HS-H |
| 8F | 15cm | Straight | Catapult 8F 15cm Straight | US-38015-F-ST-H |
| 8F | 45cm | Straight | Catapult 8F 45cm Straight | US-38045-F-ST-H |
| 8F | 60cm | Straight | Catapult 8F 60cm Straight | US-38060-F-ST-H |
| 8F | 90cm | Straight | Catapult 8F 90cm Straight | US-38090-F-ST-H |
