Steerable Diagnostic Catheters

POLARIS X Catheter handle
POLARIS X Steerable Diagnostic Catheter
POLARIS X Catheter handle has an ergonomic piston design to help reduce hand fatigue during long procedures.
POLARIS X Steerable Diagnostic Catheter with a soft distal tip provides greater tip stability.

Intuitive handling with precise maneuverability. The POLARIS X™ Catheter is designed to provide accurate, sharp electrograms from the left atrium when positioned in the coronary sinus.

Key Resources



Product Details

Precise steering control allows for continuous curve adjustment, providing access to challenging sites such as the CS

  • Variety of configurations for site specific mapping
  • Ergonomic piston design offers enhanced actuation and handling comfort
  • Directional dimple on slide mechanism facilitates tactile recognition of actuation curve plane
  • Handle shape designed to comfortably rest in palm of the hand to reduce hand fatigue during long mapping procedures
Polaris X Ergonomic Handle
POLARIS X Ergonomic Handle with Precise Maneuverability
Description Specifications
Shaft Diameter 6F
Usable Length 105cm
Electrode Material Platinum/Iridium
Curve Size 270° standard
Curve Direction Unidirectional
Configuration Decapolar

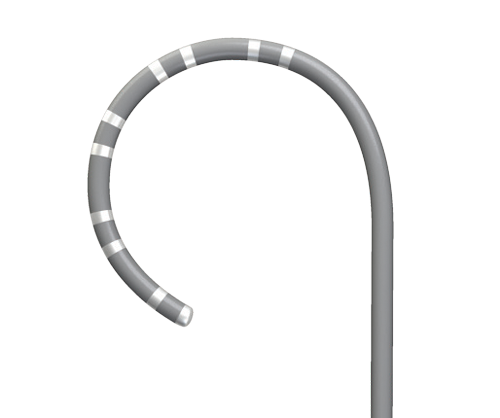

Polaris X 270° Standard Curve
POLARIS X 270° Standard Curve

Ordering Information







Cable Model


M004 7000D 0 Decapolar 2.5mm M004 5454S 0
M004 7001D 0 Decapolar 5mm M004 5454S 0
M004 7003D 0 Decapolar 2.5/5/2.5mm M004 5454S 0
M004 7004D 0 Decapolar 2/8/2mm M004 5454S 0
M004 7005D 0 Decapolar 2/10/2mm M004 5454S 0
