INTELLAGEN™ Cardiac Ablation System
Configure or select a product to continue to order
- Overview
- Technical specifications
- Ordering information
- Service plan
- Training
- Resources
How it works
The INTELLAGEN™ Cardiac Ablation System supports efficient setup with its automatic catheter identification and presets, and it features enhanced safety notifications and an intuitive interface. The ablation system is compatible with Boston Scientific's full portfolio of therapeutic RF catheters.
Why choose the INTELLAGEN Cardiac Ablation System

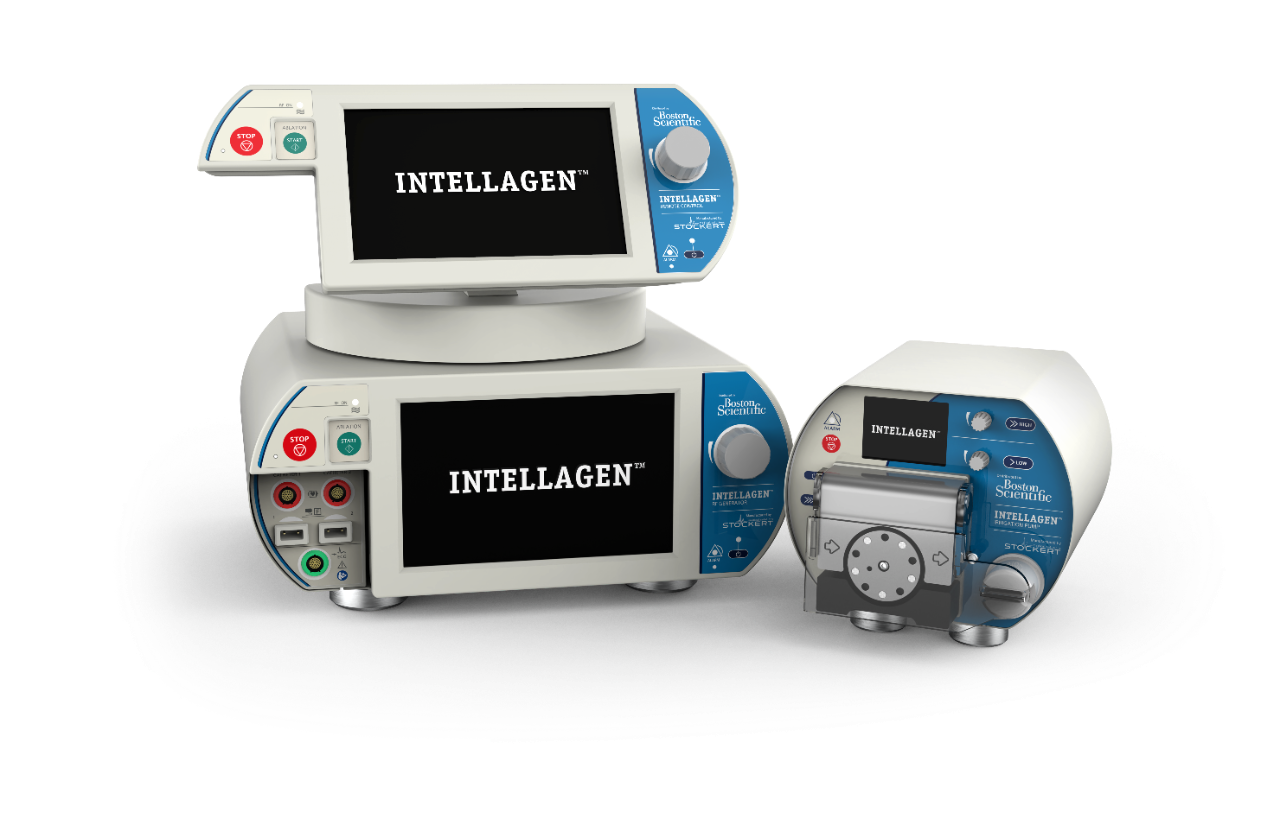

What is included
The INTELLAGEN Cardiac Ablation System includes
- INTELLAGEN™ RF Generator Kit, which includes the INTELLAGEN™ Foot Pedal
INTELLAGEN™ Irrigation Pump Kit
INTELLAGEN™ Remote Control Kit
INTELLAGEN Cardiac Ablation Generator specifications
Feature | Specifications |
Dimensions | 399 mm wide x 178 mm high x 344 mm deep (15.7” wide x 7.0” high x 13.5” deep) |
Weight | 18.5 kg (40.8 lbs.) |
Power | 115–120 V/230 V (50/60 Hz) |
Catheter detection | Yes |
Contact quality monitor | Yes – 2 indifferent electrodes (independently) |
Maximum RF output | 100 W (preset dependent) |
Overhead warning | >700 mA for >10 sec |
RF frequency | 480 kHz + 1 kHz |
| RF maximum output voltage | 290 Vp |
| RF maximum output current | 1.7 A |
Modes | Power control (all presets) Temperature control (small tip & high-power) |
| Impedance measurement range | 0 Ω–500 Ω |
| Impedance measurement accuracy (without catheters, cable, or OPAL HDx™) | ±5% or ±3 Ω (whichever is higher) |
| Impedance measurement current | 6.5 μA, 45 kHz sinusoidal |
IP rating | IP21 |
INTELLAGEN System and Components specifications
Feature | Specifications |
Max. operating noise | Standby max. 45 db(A) (Device switched on, but no energy output); Error condition min. 75 db(A) |
Operating conditions |
|
Ambient temperature | +10° C to +40° C (50° F to 104° F) |
Relative humidity | 10% to 85% (non-condensing) |
Atmospheric pressure | 700 mbar to 1060 mbar (10.2 psi to 15.4 psi) |
INTELLAGEN Irrigation Pump specifications
Feature | Specifications |
Dimensions | 195 mm wide x 180 mm high x 235 mm deep (7.7” wide x 7.1” high x 9.3” deep) |
Weight | 5.5 kg (12.1lbs) |
Power | 100–120 V/220–230 V (50/60 Hz) |
IP rating | IP54 |
INTELLAGEN Remote Control specifications
Feature | Specifications |
Dimensions | 395 mm wide x 220 mm high x 170 mm deep (15.6” wide x 8.7” high x 6.7” deep) |
Weight | 4.5 kg (9.9 lbs.) |
IP rating | IP21 |
INTELLAGEN Foot Pedal specifications
Feature | Specifications |
Dimensions | 144 mm wide x 39 mm high x 135 mm deep (5.7” wide x 1.5” high x 5.3” deep) |
Weight | 0.82 kg (1.8 lbs.) |
IP rating | IPX8 |
INTELLAGEN™ Cardiac Ablation System ordering information
Product description | Reference number |
INTELLAGEN™ RF Generator Kit, which includes the INTELLAGEN™ Foot Pedal | M004GEN100204010 |
INTELLAGEN™ Irrigation Pump Kit | M004GEN100204020 |
INTELLAGEN™ Remote Control Kit | M004GEN100204030 |
Connection Box - INTELLAGEN™ | M004RA65010 |
Connection Box - INTELLAGEN StablePoint™ | M004RA63020 |
INTELLAGEN™ Tubing Set (pack of 10) | M004GEN100206251 |

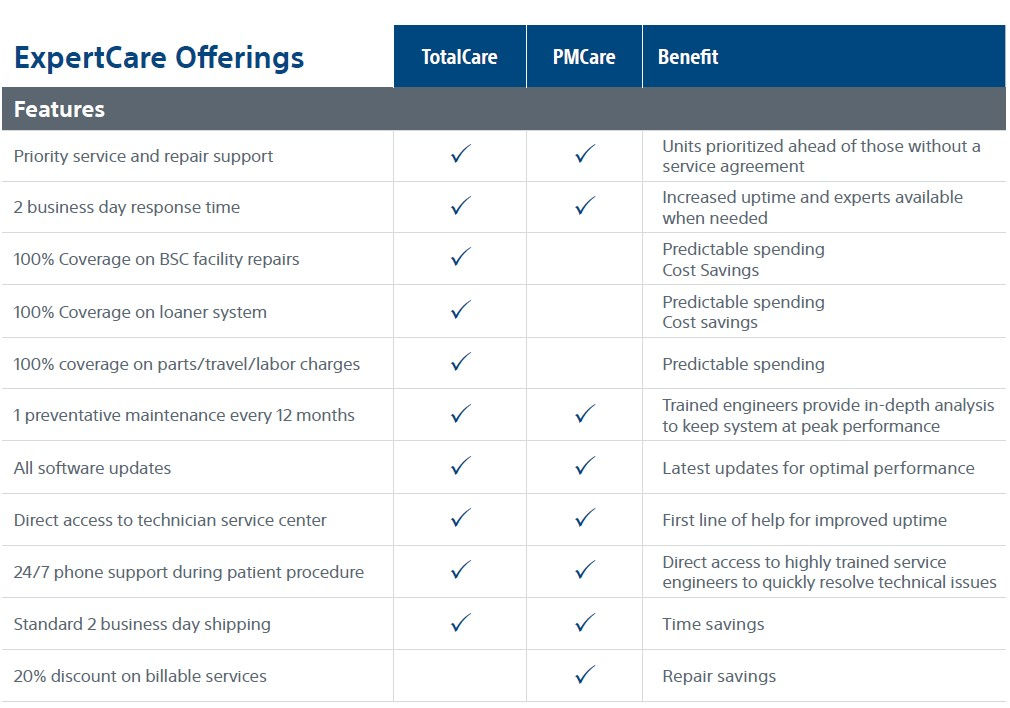

INTELLAGEN™ ExpertCare Offerings
(1-5 yr. contracts)
| Features | TotalCare | PMCare | Benefit |
| Priority service and repair support | x | x | Units prioritized ahead of those without a service agreement |
| 2 business day response time | x | x | Increased uptime and experts available when needed |
| 100% coverage on BSC facility repairs | x | Predictable spending, cost savings | |
| 100% coverage on loaner equipment | x |
| Predictable spending, cost savings |
| 100% coverage on parts/travel/labor charges | x | Predictable spending | |
| 1 preventive maintenance every 24 months | x | x | Trained engineers provide in-depth analysis to keep system at peak performance |
| All software updates | x | x | Latest updates for optimal performance |
| Direct access to technician service center | x | x | First line of help for improved uptime |
| 24/7 phone support during patient procedure | x | x | Design access to highly trained service engineers to quickly resolve technical issues |
| Standard 2 business day shipping | x | x | Time savings |
| 20% discount on billable services | x | Repair savings | |
| Exchange of an INTELLAGEN™ RF Generator in need of servicing | x | Avoid downtime |
Online education
Online medical training and education courses
The EDUCARE online platform makes healthcare education and training more relevant, more comprehensive, more personal, and more accessible. Register to access a library of procedural videos, case studies, training resources, and events.
Brochure
Related products
Locate information on MAESTRO 4000™ and MetriQ™.
INTELLAGEN™ is a trademark of Boston Scientific Corporation or its affiliates. All trademarks are the property of their respective owners.
INTELLAGEN™ Cardiac Ablation System is manufactured by Stockert GmbH, Boetzinger Strasse 31, 79111 Freiburg, Germany
