SpyGlass™ Discover Digital Catheter

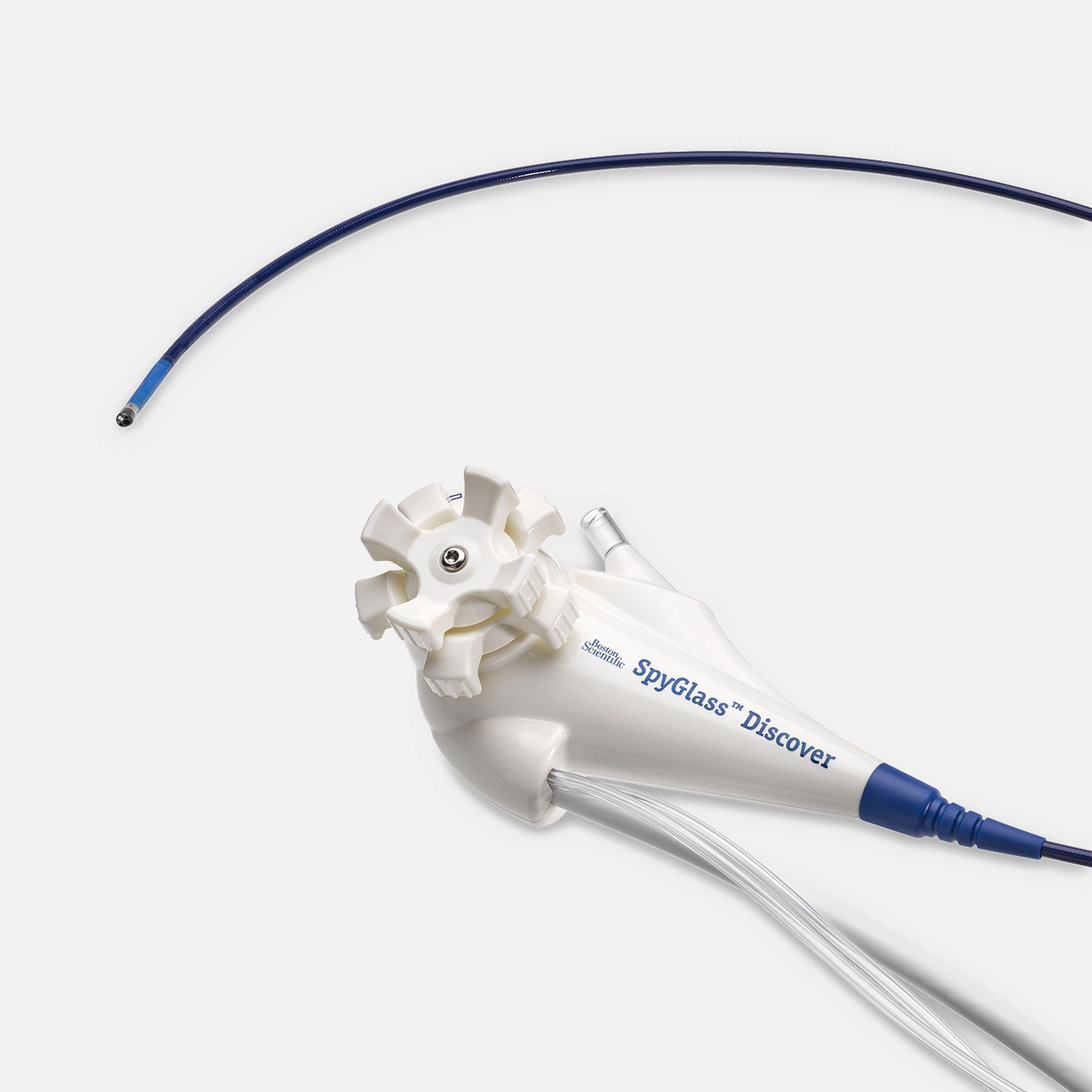

SpyGlass™ Discover Digital Catheter

The SpyGlass Discover Digital Catheter is intended to provide direct visualization and to guide both optical and accessory devices for diagnostic and therapeutic applications during endoscopic procedures in the pancreaticobiliary system including the hepatic ducts.
Explore product details

Reimbursement

Coding and payment guides

Configure or select a product to continue to order

Continue to e-commerce website

Product details

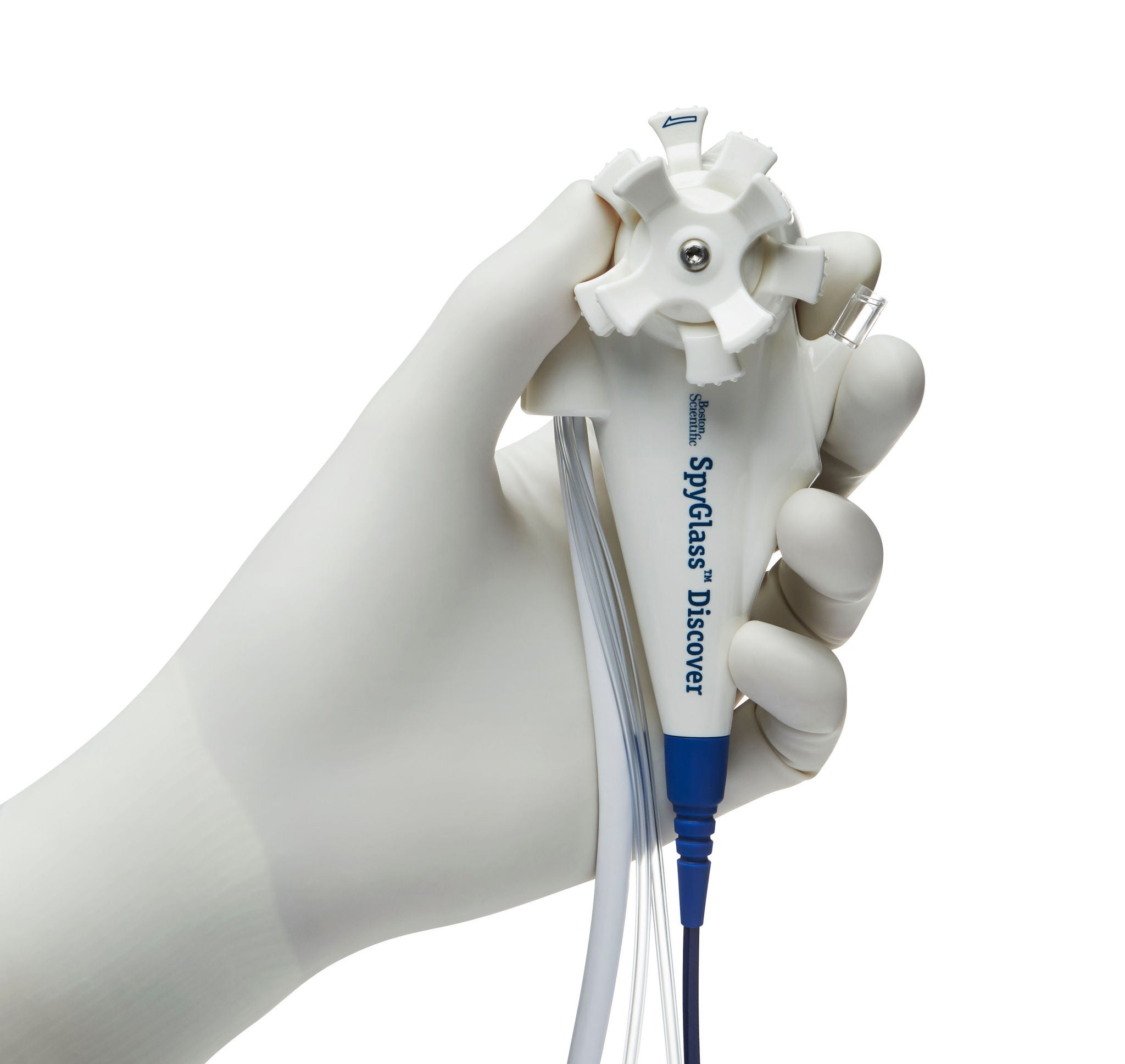

white gloved hand holding Spyglass Digital Catheter

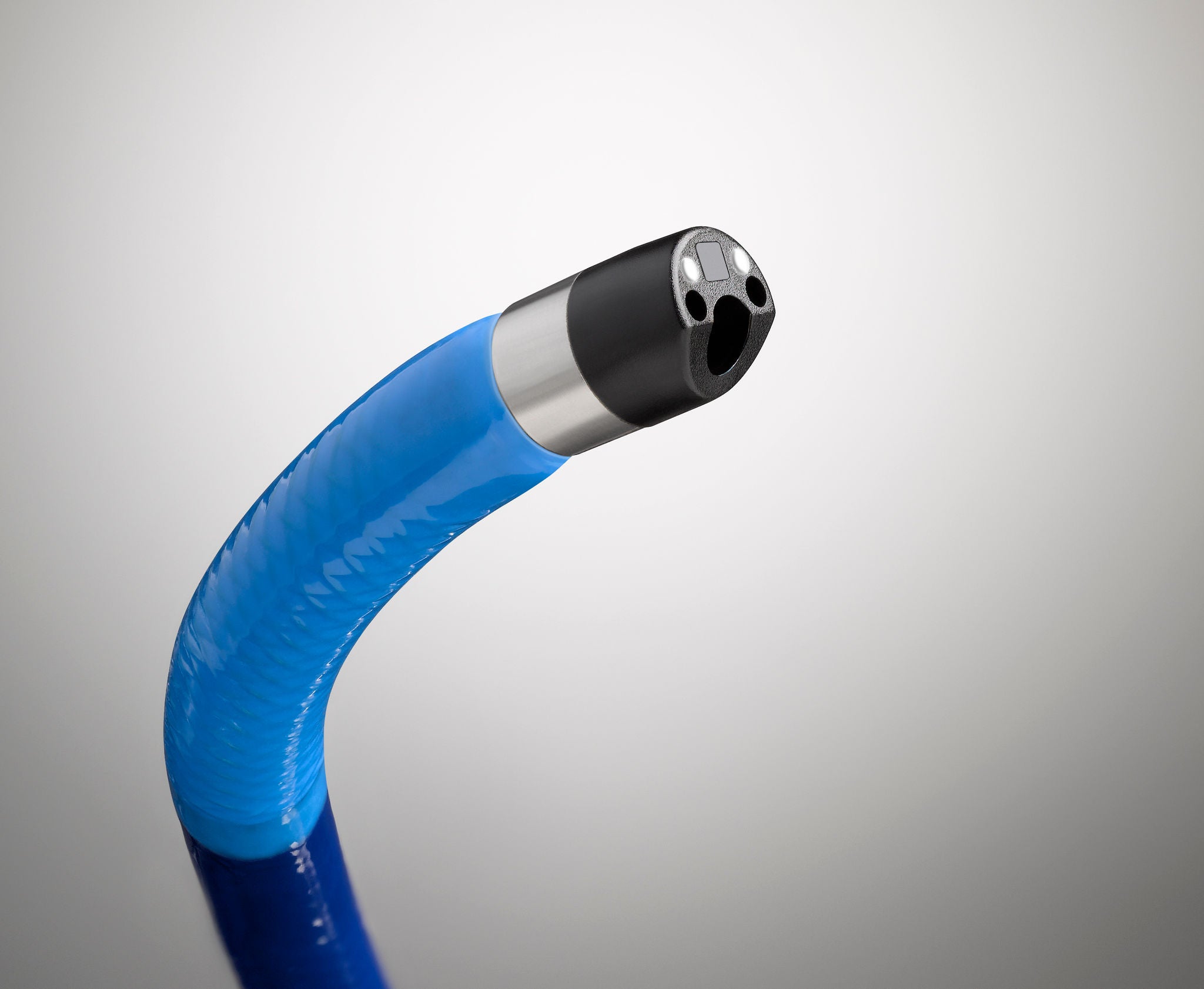

Spyglass Discover distal tip closeup image

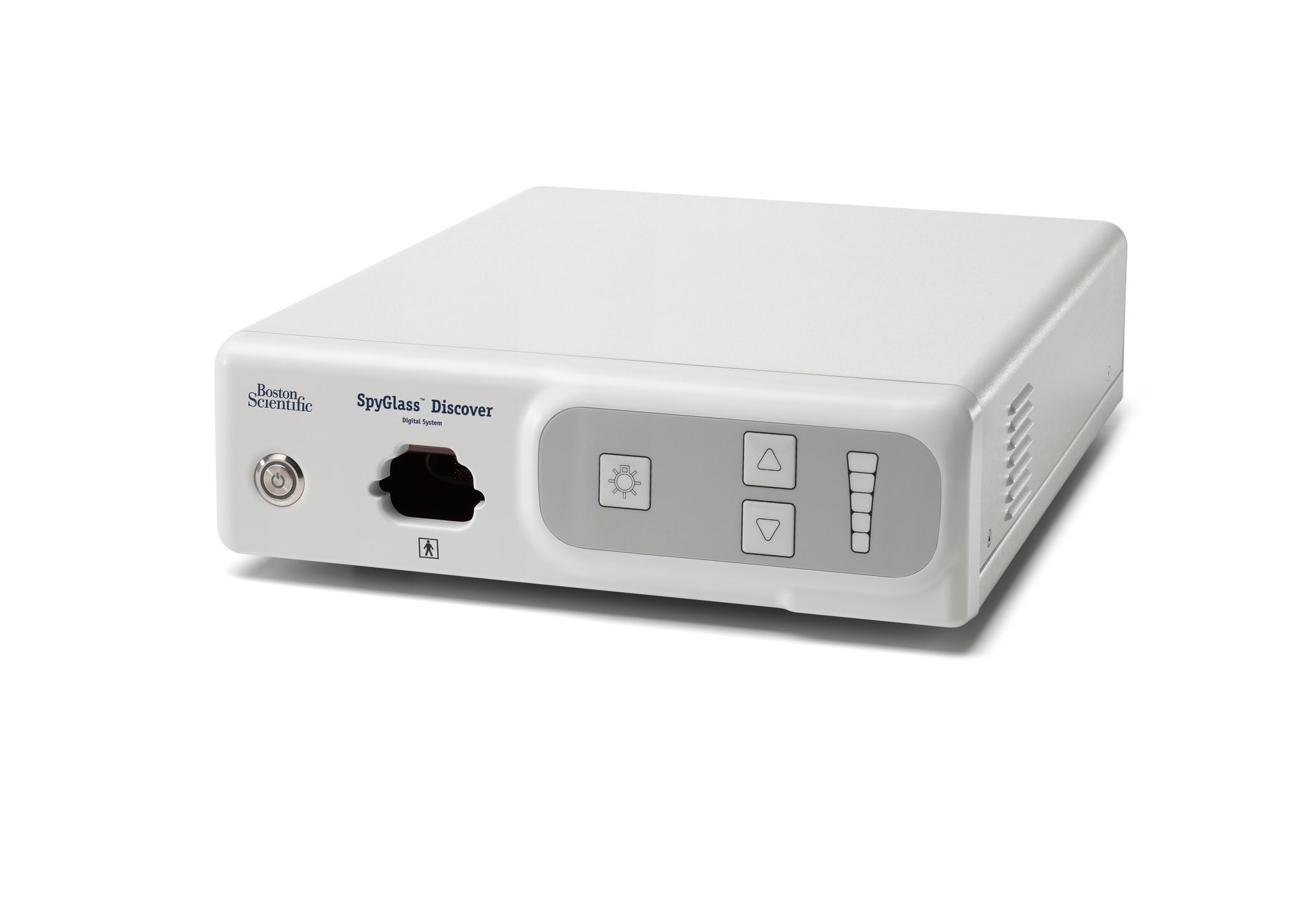

Spyglass Discover controller device image

Ergonomic and lightweight. Provides four-way steering, allowing for navigation throughout the biliary system.

Consists of imaging sensor, dual light sources, dual dedicated irrigation, 1.2mm working channel. Equipped for use in diagnostic and therapeutic procedures.

Designed to provide a reduced footprint in the OR.

SpyGlass™ Discover Digital Catheter compatible devices

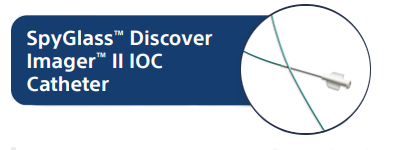

SpyGlass™ Discover Imager™ II IOC Catheter image

The SpyGlass Discover Imager II IOC Catheter has a braided, torqueable, catheter line for ease of insertion.

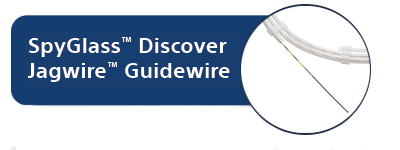

SpyGlass™ Discover Jagwire™ Guidewire image

The SpyGlass Discover Jagwire Guidewire has a 5cm hydrophilic tip to help a physician facilitate selective cannulation and negotiate the difficult biliary anatomy.

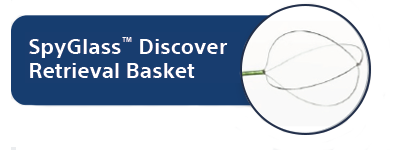

SpyGlass™ Discover Retrieval Basket image

The SpyGlass Discover Retrieval Basket is a 4-wire nitinol basket that is reliable, durable, grasps stones, and is built to maintain its shape through multiple cycles in the biliary anatomy.

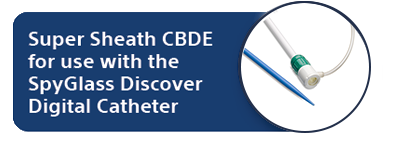

Super Sheath CBDE for use with the SpyGlass Discover Digital Catheter image

The Super Sheath CBDE for use with the SpyGlass Discover Digital Catheter has smooth transitions to help physicians facilitate an easier entry. The silicone coated valve and smooth inner surface helps promote device passage.

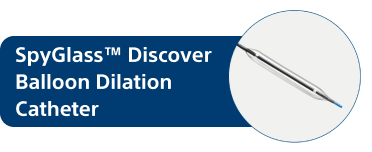

spyglass discover balloon dilation image

SpyGlass Discover Balloon Dilation Catheter, used with Encore™ 26 Inflation Device, is available in multiple diameter sizes, 6mm, 7mm, 8mm, allowing you additional options to dilate the cystic duct.

Specifications

SpecificationValue
Direction of view0 degrees (forward viewing)
Field of view120 degrees in air
Distal tip width10.5Fr (3.5mm)
Maximum insertion portion width10.8Fr (3.6mm)
Working length65cm
Minimum accessory channel width1.2mm (3.6Fr)
Minimum angulation range30 degrees with accessory device in working channel

Ordering information


Order number		Product descriptionPackaging
M00546780SpyGlass™ Discover Digital CatheterBox 1
M00542950SpyGlass™ Discover ControllerBox 1
M00543000 SpyGlass™ Discover Balloon Dilation CatheterBox 16.0mm x 40mm
M00543010  SpyGlass™ Discover Balloon Dilation CatheterBox 17.0mm x 40mm
M00543040 SpyGlass™ Discover Balloon Dilation CatheterBox 18.0mm x 40mm
M00566670  Encore™ 26 Inflation DeviceEach
M00542981SpyGlass™ Discover Imager™ II IOC CatheterBox 5
M00542971SpyGlass™ Discover Jagwire™ GuidewireBox 2
M00542990SpyGlass™ Discover Retrieval BasketBox 1
M00542961Super Sheath CBDE for use with the SpyGlass Discover Digital CatheterBox 10

Connect with your representative

Interested in using SpyGlass Discover in your practice?

Let’s talk
All trademarks are the property of their respective owners.
All images owned by Boston Scientific.

CAUTION: U.S. Federal law restricts this device to sale by or on the order of a physician.
Indications, contraindications, warnings and instructions for use can be found in the product labeling supplied with each device.
