EXALT™ Model D Single-Use Duodenoscope Generation 4

Name: EXALT™ Model D Single-Use Duodenoscope Generation 4
Brand: Boston Scientific
SKU: fp90000250

This always available duodenoscope eliminates the risk of patient-to-patient infection due to ineffective reprocessing — while also eliminating or reducing reprocessing costs — with an out of the box, consistent performance physicians expect in a duodenoscope.

Explore product details

Reimbursement

Coding and payment resources

Configure or select a product to continue to order

Continue to e-commerce website

Instructions for use are found inside the product packaging and on our product literature website.

Access product literature

Need additional help with product literature?

Go to customer support

Overview
Specifications
Ordering information

The EXALT Model D Single-Use Duodenoscope

Since launching the world’s first single-use duodenoscope in 2019, Boston Scientific has continued to follow through on its mission to innovate and positively impact patient care and the day-to-day operation of an endoscopy suite.

Force reduction and ergonomic updates have been achieved in multiple generations of Model D enhancements, including:

35% in the Left/Right direction (average)*
25% in the Up/Down direction (average)*
25% in elevator force*

*The testing was performed by or on behalf of BSC. Data on file. Bench test results may not necessarily be indicative of clinical performance. Versus EXALT Model D Single Use Duodenoscope Generation 2.

The EXALT Model D Single-Use Duodenoscope provides clinicians with a familiar design in a single-use platform.

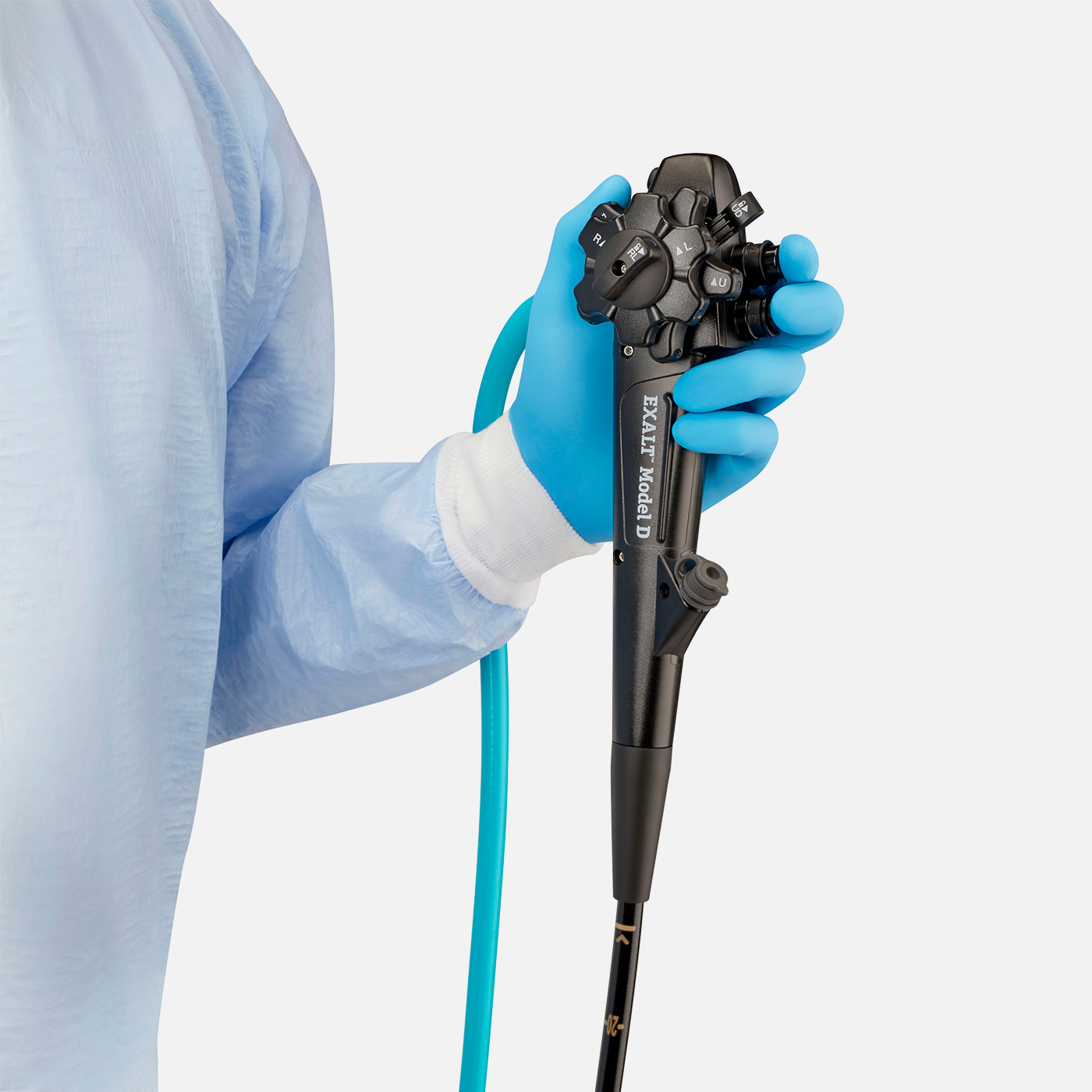

new generation 3 Exalt Model D single use duodenoscope being held by a surgeon

Lightweight, familiar design with physician comfort in mind.

Exalt Model D distal tip showing left to right and up and down motion

4-way bending capability at the distal tip. Consistent out-of-the-box range of motion comparable to reusable duodenoscopes.

guidewire passing through the distal tip of Exalt Model D

Elevator designed to deliver consistent performance and facilitate guidewire locking at the distal tip of the duodenoscope.

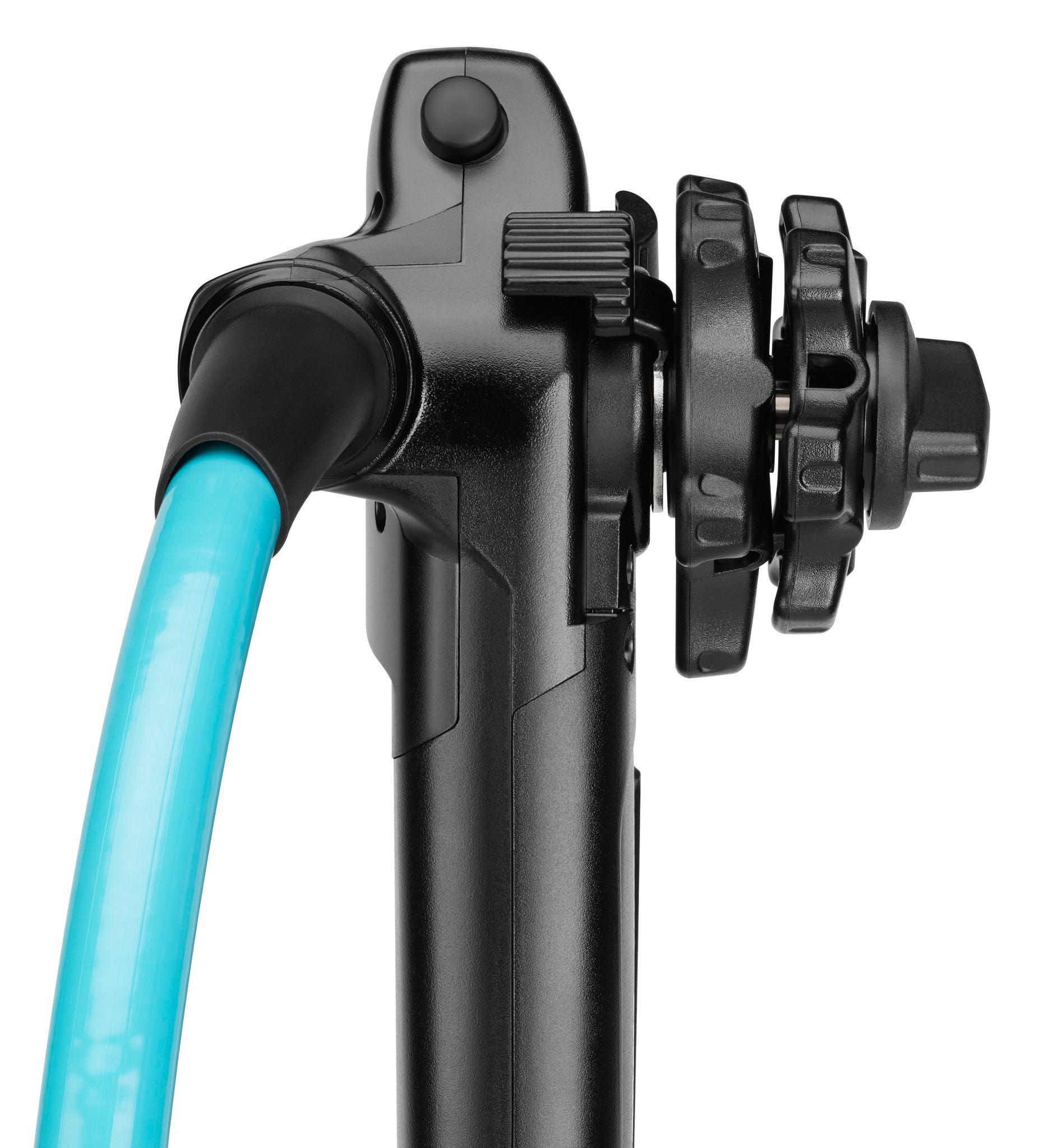

the assembly of the new generation 3 Exalt Model D.

Designed to facilitate image capture and integrate with your endoscopic report writer.

Use with the EXALT™ Controller, designed to provide a reduced capital footprint during ERCP.

Generation 3 Exalt Model D with SpyGlass DS.

Compatible with Boston Scientific single-use endoscope accessories.

Specifications

Specification	Value
Retro viewing angle (o)	5
Field of view (o)	108
Depth of field (mm)	5-60
Distal end outer diameter (mm)	15.1
Insertion tube outer diameter (mm)	11.3
Working length (mm)	1240
Working channel inner diameter (mm)	4.2
Angulation range Up (o)	120
Angulation range Down (o)	90
Angulation range Right (o)	110
Angulation range Left (o)	90

Ordering information

UPN	Item	Description	Packaging
M00542420	EXALT Model D Single-Use Duodenoscope	Sterile Single-Use Duodenoscope for use with EXALT Controller	Box 1
M00542421	EXALT Model D Single-Use Duodenoscope	Sterile Single-Use Duodenoscope for use with EXALT Controller	Box 2
M00542423	EXALT Model D Single-Use Duodenoscope	Sterile Single-Use Duodenoscope for use with EXALT Controller	Box 4
M00542424	EXALT Model D Single-Use Duodenoscope	Sterile Single-Use Duodenoscope for use with EXALT Controller	Box 8
M00542430	EXALT Controller	100-240 VAC Controller for use with single-use duodenoscope (including detachable power cable, DVI and HDMI cables)	Box 1

Connect with your representative

Interested in using EXALT Model D in your practice?

Let's talk
