PERCIVA™ Implantable Cardiac Defibrillator (ICD)

PERCIVA™ MINI Implantable Cardiac Defibrillator (ICD)

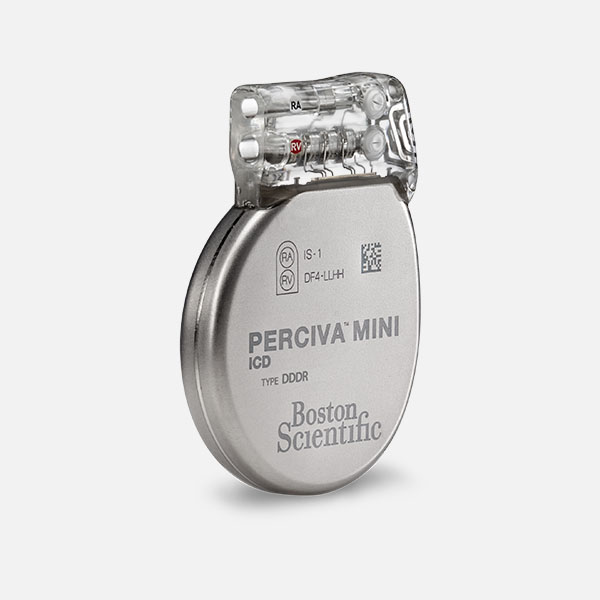

Name: PERCIVA™ MINI Implantable Cardiac Defibrillator (ICD)
Brand: Boston Scientific
SKU: fp90000272

PERCIVA™ MINI transvenous implantable cardioverter defibrillators (ICDs) deliver more shocks in a series and shock polarity options, providing increased protection against sudden cardiac death. PERCIVA ICDs have a compact device profile while offering powerful solutions that include advanced atrial arrythmia diagnostics, RYTHMIQ™ pacing algorithm, and HeartLogic™ heart failure diagnostic.

Explore product details

Reimbursement

Rhythm Management reimbursement resources

Configure or select a product to continue to order

Request a Rep

Access product literature

Overview
Technical specifications

Overview

HeartLogic heart failure diagnostic

HeartLogic uses multiple sensors to track physiological trends, combines them into one composite index and sends a proactive alert of a potential heart failure event weeks in advance.¹

ImageReady MR-Conditional Systems

Your patients can safely undergo Full Body MRI scans with ImageReady MR-Conditional Systems.*

Longevity Information

The following tables represent example pulse generator life expectancy estimation (implant to explant) as provided in product labeling. For specific programmable parameter ranges, refer to product labeling at www.bostonscientific.com/manuals, or contact Boston Scientific technical services or your local representative.

Projected Longevity^a	Type	Pacing Amplitude	Pacing	500Ω with LATITUDE^b	700Ω with LATITUDE^b	900Ω with LATITUDE^b	700Ω no LATITUDE™, RS, or HFSS^c
VR
Typical programmed setting	VR	2.5 V	15%	8.0	8.0	8.1	9.1
Maximum labeled longevity	VR	2.0 V / Off	0%	8.2	8.2	8.2	9.3
DR
Typical programmed setting	DR	2.5 V	15%	7.2	7.3	7.3	8.1
Maximum labeled longevity	DR	2.0 V	0%	7.5	7.5	7.6	8.5

Assumes 70 PPM LRL; DDDR mode; 0.4 ms Pulse Width (RA, RV); sensors On, Heart Failure Sensor Suite On.
Projected longevity is calculated assuming 2 maximum energy charging cycles per year, including automatic capacitor re-forms and therapeutic shocks. These calculations also assume 3-channel EGM Onset is on and that the pulse generator spends 3 months in Storage mode during shipping and storage.

a. Assumes ZIP telemetry use for 2 hours at implant and for 40 minutes annually for in-clinic follow-up checks.

b. Assumes standard use of the LATITUDE™ Communicator as follows: Daily Device Check on, quarterly scheduled remote follow ups, and other typical interrogations.

c. Assumes LATITUDE™ Communicator is not used, Respiratory Sensor is Off, and Heart Failure Sensor Suite is Off.

Additional Longevity Information

Boston Scientific devices have corporate warranties at 5 years in available geographies. Warranty information available at www.bostonscientific.com/warranty.
Devices use Li/MnO₂ chemistry.
The Usable Battery Capacity is 1.0 Amp-hours (typical implant to battery capacity depleted).
Shelf life is 2 years (before use by).

Technical specifications

Model	Type	Size (cm) (W x H x D)	Mass (g)	Volume (cc)	Connector Type	MR Conditional	C-Codes
D400	VR	5.23 x 7.14 x 0.99	61.9	28.5	RV: IS-1/DF-1	No	C1722
D401	DR	5.23 x 7.14 x 0.99	62.3	28.5	RA: IS-1; RV: IS-1/DF–1	No	C1721
D412	VR	5.23 x 6.71 x 0.99	60.0	26.5	RV: DF4	Yes	C1722
D413	DR	5.23 x 7.03 x 0.99	62.5	28.0	RA: IS-1; RV: DF4	Yes	C1721

References

*When conditions of use are met.

1. Boehmer JP, Hariharan R, Devecchi FG, et al. A Multisensor algorithm predicts heart failure events in patients with implanted devices: resultsfrom the MultiSENSE study. JACC Heart Fail. 2017 Mar;5(3):216-25.
