Peripheral Rotablator™ Rotational Atherectomy System
Reimbursement
Configure or select a product to continue to order
- Overview
- Technical specifications
- Ordering information
- Training
- Resources
Product Details

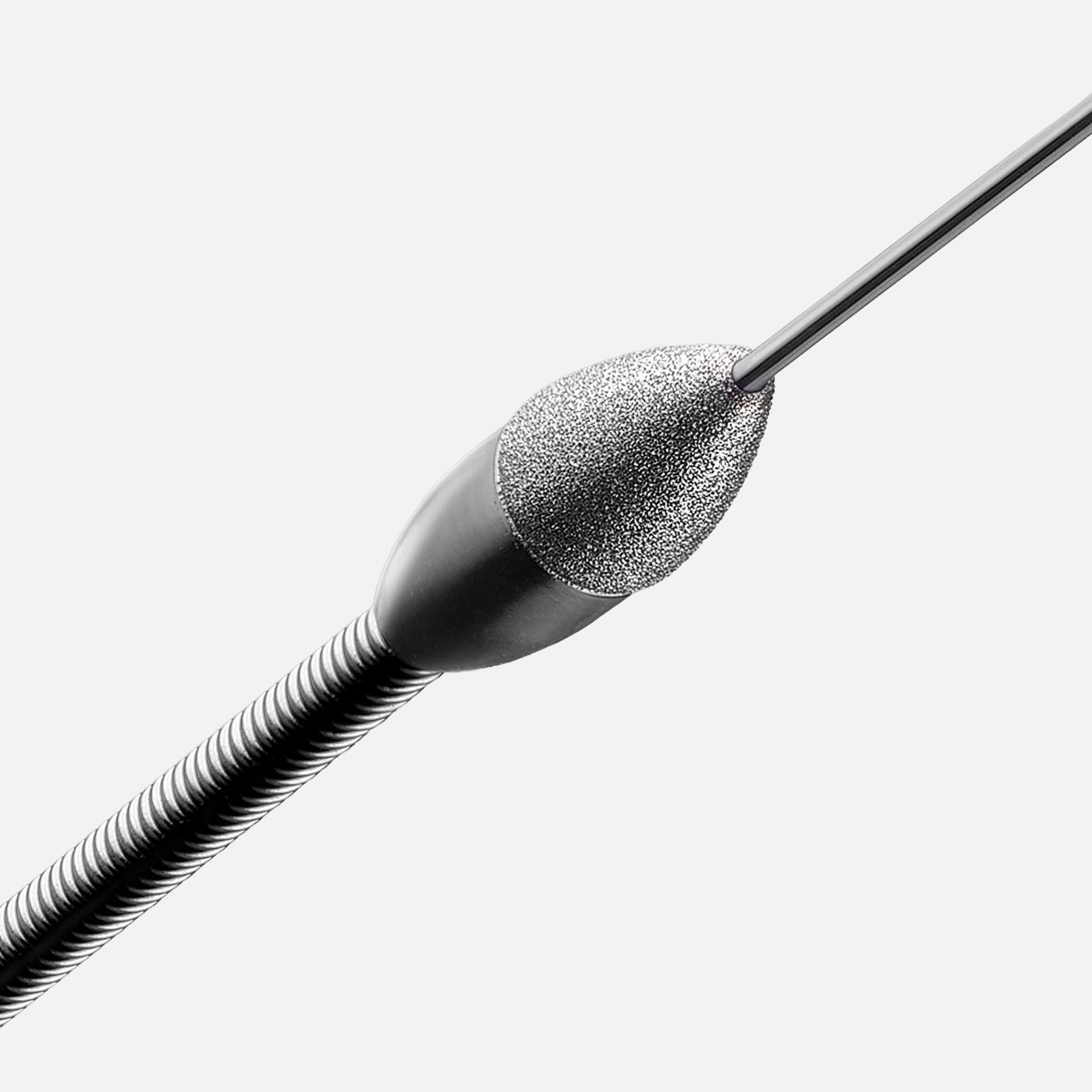

The Rotablator Atherectomy System is an air-driven system featuring a 5-micron diamond-tipped burr that rotates at up to 190,000 RPM.
Precise
Front-Cutting
The Rotablator System’s diamond-tipped burr is engineered to immediately engage the lesion, enabling precise control of ablation even in tight or occluded lesions.
Predictable
Stable Rotation
The Rotablator System's diamond-tipped burr spins concentrically on the wire, providing confidence even when treating small or tortuous vessels.
Cutting surface immediately engages the lesion
Endovascular Today Article
Below-the-Knee Approach to Calcium
Total Control
- Control the outcome with a symmetric burr that creates a smooth lumen at a specific diameter.
- Control ablation with a burr that follows the wire.
- Control embolic release with a 5-micron diamond-tipped burr that ablates plaque into micro-particles smaller in size than a red blood cell.

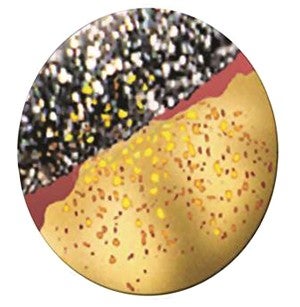

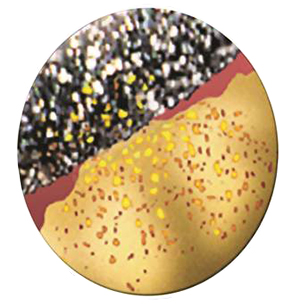

20μm diamond grit (5μm exposed)
Proven
Confidence in calcium for over 20 years
- Low complication rates1
- 76% primary patency2
- 89% limb salvage rate3
Proven in calcified arteries
Product Specifications
- 135cm catheter length
- 0.009" over-the-wire
- 4.3F protective sheath
| Burr Size (mm) | Guide Sheath or Introducer Sheath Size* |
|---|---|
| 1.25 | 5 F |
| 1.50 | 5 F |
| 1.75 | 6 F |
| 2.00 | 7 F |
| 2.25 | 7 F |
| 2.50 | 8 F |
* For a given French size guide sheath or introducer sheath, the internal lumen and hemostasis valve will vary from manufacturer to manufacturer. When using an introducer for the first time, it should be tested with the largest Peripheral RotaLink Plus burr intended to be used with it.

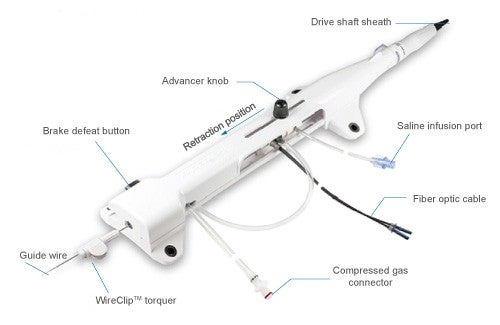

Advancer

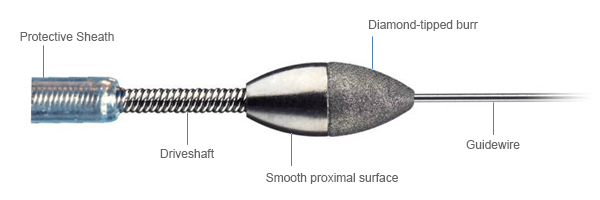

Burr
Peripheral RotaWire™ Guide Wire
- 330cm total length
- 0.009" body
- 0.014" spring tip
- Extra Support – a more supportive wire for distal lesions or heavily calcified proximal lesions
- Floppy – more flexible and torqueable wire with reduced guide wire bias
Peripheral RotaGlide™ Lubricant
- 20cc vial lubricant intended to reduce friction and improve tactile feel
Peripheral Rotablator ordering information
Peripheral RotaLink™ Plus Burr Catheter 135 cm catheter length, 0.009" OTW, 4.3 F (0.058") protective sheath
| UPN | Catalog | Description |
|---|---|---|
| M0011401250 | 140-125 | 1.25 mm Peripheral RotaLink Plus, 5 F |
| M0011401500 | 140-150 | 1.50 mm Peripheral RotaLink Plus, 5 F |
| M0011401750 | 140-175 | 1.75 mm Peripheral RotaLink Plus, 6 F |
| M0011402000 | 140-200 | 2.00 mm Peripheral RotaLink Plus, 7 F |
| M0011402250 | 140-225 | 2.25 mm Peripheral RotaLink Plus, 7 F |
| M0011402500 | 140-250 | 2.50 mm Peripheral RotaLink Plus, 8 F |
Peripheral RotaWire Guidewire and WireClip™ Torquer 330 cm length, 0.009" diameter body with 0.014" spring tip
| UPN | Catalog | Description |
|---|---|---|
| M0011373321 | 137-3321 | Extra Support Peripheral RotaWire (Box of 5) |
Rotablator Console
| UPN | Catalog | Description |
|---|---|---|
| H802220200391 | 22020-039 | Rotablator Console Kit (includes console, foot pedal and 20 ft. air supply hose) |
| H802216000031 | 21600-003 | 20 ft Air Supply Hose – replacement |
| H802224360021 | 22436-002 | Dynaglide™ Foot Pedal – replacement |
| H802221510011 | 22151-001 | Console Power Cord – replacement |
Accessories
| UPN | Catalog | Description |
|---|---|---|
| M00114100062 | 141-0006 | Peripheral RotaGlide™ Lubricant (Box of 6) |
| H80215901011 | 15901-01 | HTI Regulator Kit |
| H802221960032 | 22196-003 | WireClip Torquer (Box of 5) |
Online medical training and education courses
The EDUCARE online platform makes healthcare education and training more relevant, more comprehensive, more personal, and more accessible. Register to access a library of procedural videos, case studies, training resources, and events.
