1.3F Nitinol Stone Retrieval Basket

play icon
Ureteroscopy Case Study - 25-year-old patient with nearly 40 urinary stones rendered stone free.
OptiFlex basket and handle

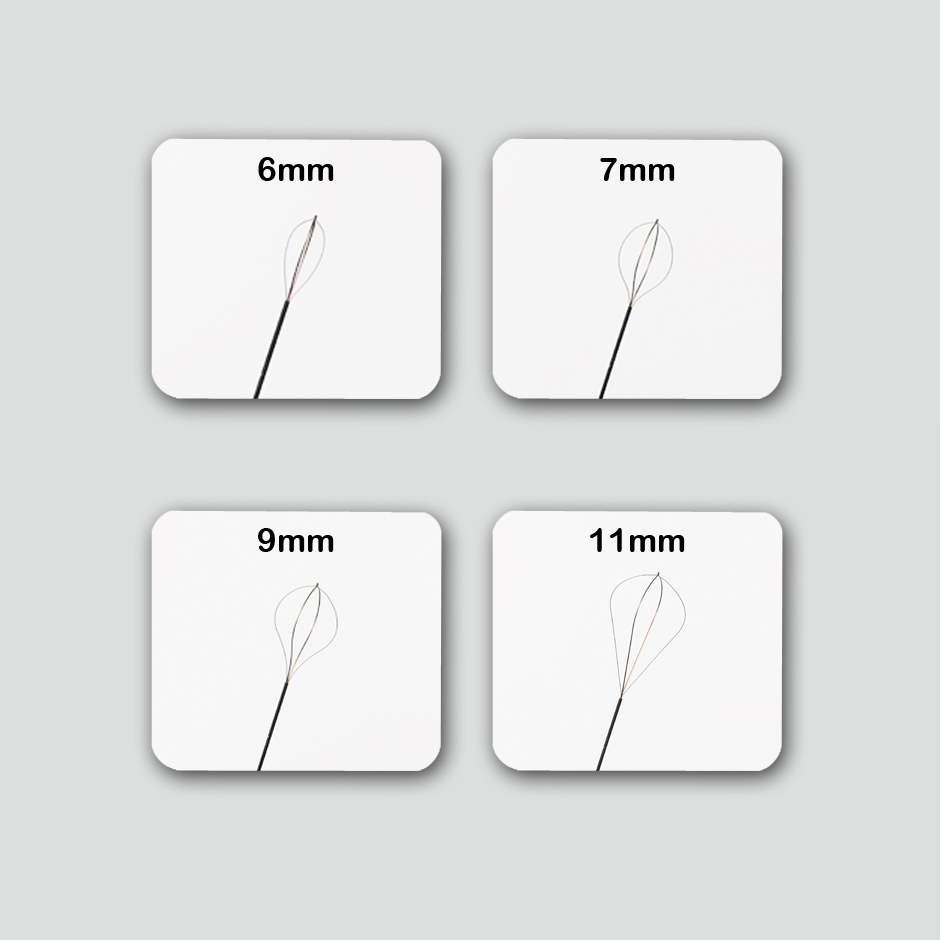

The Optiflex Basket's cage diameter can be extended from 6mm to 11mm.

The precision basket that puts you in control. Now you can approach and capture fragments with a flexible basket that gives you the precision and control you need in tight places. With a small 1.3F sheath, the OptiFlex Nitinol Retrieval Basket allows for maximum irrigation and a clear field of view and superior irrigation when compared to the Cook 1.5F NCircle in a bench study.1

Key Resources



Product Details

1.3F Sheath Size

  • Small sheath size designed for increased irrigation flow and scope deflection during ureteroscopy1
  • Designed to maintain full basket functionality at 180° deflection
  • Sheath material provides lubricity for tracking through small scope working channels

Distinct Cage Design

  • Laser cut nitinol 4-wire cage construction
  • Basket is designed to maintain cage stability during deployment
  • The OptiFlex Basket's cage diameter can be extended from 6mm to 11mm

Precision Handle Design

  • Thumb wheel designed for precise, customized cage sizing from 6 to 11 mm
  • Rack & pinion locking mechanism designed for controlled basket cage deployment
  • Control wheel designed for 360° cage rotation

Ordering Information

Order NumberUPNDescriptionSizeQuantity
390300M0063903000OptiFlex Nitinol Retrieval Basket1.3F x 90cmEach
390301M0063903010OptiFlex Nitinol Retrieval Basket1.3F x 120cmEach

Case Studies





1. Magheli A, Semins MJ, Allaf ME, Matlaga BR. Critical analysis of the miniaturized stone basket: effect on deflection and flow rate. J Endourol. 2012 Mar;26(3):275-7.
