Injection Gold Probe™ and Gold Probe™
Bipolar Hemostasis Catheters
The Injection Gold Probe and Gold Probe Bipolar Hemostasis Catheters are designed to provide uniform burn, effective coagulation, and en face tangential tamponade, even in difficult scope positions.
Key Resources
Explore
Product Details
Learn more about the features and benefits of the Injection Gold Probe, Gold Probe Bipolar Hemostasis Catheters.

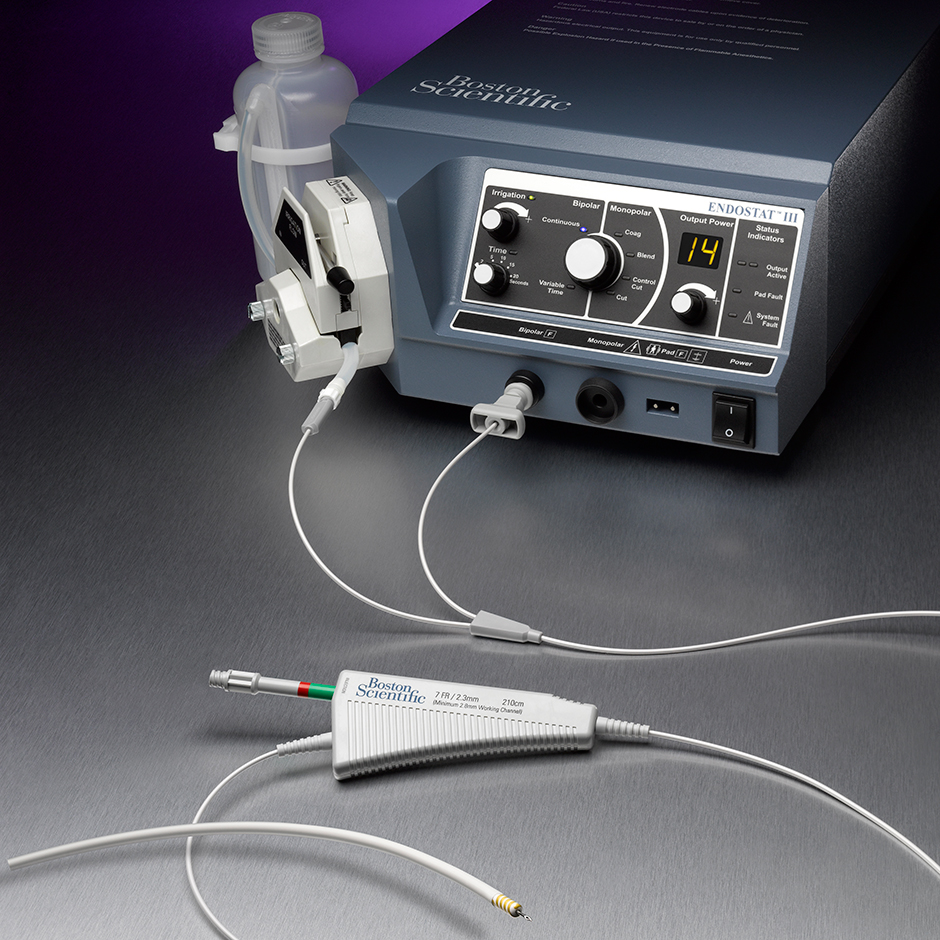

- Unique integrated injection and thermal hemostasis capabilities

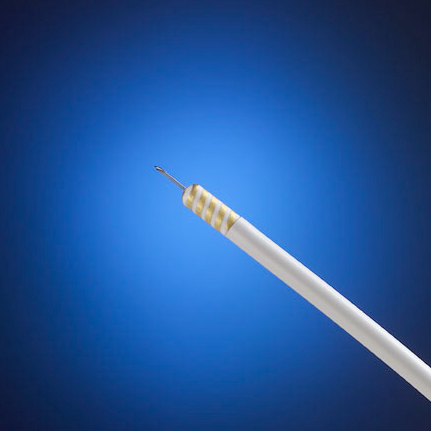

- Rounded Gold distal tip designed to provide excellent conductivity, uniform burn and effective coagulation
- Designed to reduce kinking, facilitating advancement and helping to provide better en face and tangential tamponade
Ordering Information
| GTIN | Order Number | O.D. (F/mm) | Needle Gauge | Needle O.D. (mm) | Needle I.D. (mm) | Minimum Working Channel (mm) | Working Length (cm) | Connector | Units |
|---|---|---|---|---|---|---|---|---|---|
| 08714729056492 | M00560150 | 7/2.33 | 25 |
0.51 |
0.24 |
2.8 | 210 | Standard | Box 1 |
| 08714729056508 | M00560160 | 10/3.33 |
25 |
0.51 |
0.24 |
3.7 | 201 | Standard | Box 1 |
| GTIN | Order Number | O.D. (F/mm) | Minimum Working Channel (mm) | Working Length (cm) | Connector | Units |
|---|---|---|---|---|---|---|
| 08714729174691 | M00560070 | 7/2.33 | 2.8 | 300 | Standard | Box 1 |
| 08714729071013 | M00560071 | 7/2.33 | 2.8 | 300 | Standard | Box 5 |
| 08714729174684 | M00560100 | 10/3.33 | 3.7 | 300 | Standard | Box 1 |
| 08714729071020 | M00560101 | 10/3.33 | 3.7 | 300 | Standard | Box 5 |
| 08714729099574 | M00560220 | 7/2.33 | 2.8 | 350 | Standard | Box 1 |
| GTIN | Order Number | Description and Pin Spacing | Generator Compatibility** | Packaging |
|---|---|---|---|---|
| 08714729797609 | M00561440 | Bipolar Cable Adapter - 18mm | EMC (Coagulasem Dolley) | Each |
| 08714729797616 | M00561450 | Bipolar Cable Adapter - 22mm | ERBE, EMC Dolley, Olympus (ESG100 & PSD60) | Each |
| 08714729797623 | M00561460 | Bipolar Cable Adapter - 25mm | Lamidey (Optima 4) | Each |
| 08714729797630 | M00561470 | Bipolar Cable Adapter - 28mm | Valleylab™, Lamidey (Duo), Bovie (Aaron 3250™), Olympus (UES10, UES30 & Surgemaster), Bowa, Soring | Each |
| 08714729797647 | M00561480 | Bipolar Cable Adapter - 28mm/third pin | ConMed™ (System 5000), Bovie (Aaron 2250™), Ethicon® | Each |
| 08714729797654 | M00561490 | Bipolar Cable Adapter - 32mm/third pin | ConMed (Sabre 180, Excalibur, System 7550) | Each |
| 08714729797661 | M00561500 | Bipolar Cable Adapter - 39mm | Codman, Malis | Each |
