Direxion™

and Direxion HI-FLO™ Torqueable Microcatheters

play icon
Direxion™ Microcatheter and Fathom™ Guidewire
play icon
play icon
play icon
Direxion™ Microcatheter and Fathom™ Guidewire
play icon
play icon
Experience the powerful combination of Direxion™ Microcatheter and Fathom™ Guidewire to save time, treat more patients, and deliver better outcomes.
The Direxion Microcatheter, with its unique shaft design, offers you unrivaled torqueability for improved maneuverability. Further enhancing your ability to access challenging treatment sites are a variety of tip shapes that allow for flexibility and efficiency. Watch to learn more.

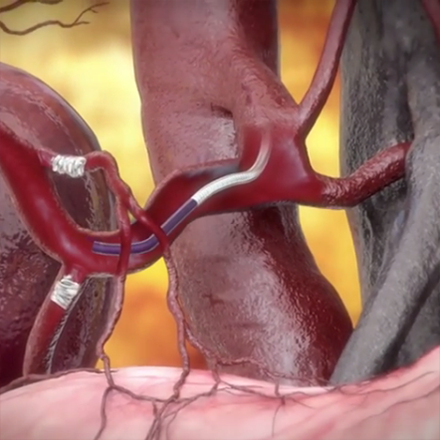

Discover the features of the Direxion Torqueable Microcatheter and watch how it can be repositioned without a wire to complete a common embolization procedure prior to liver cancer treatment.

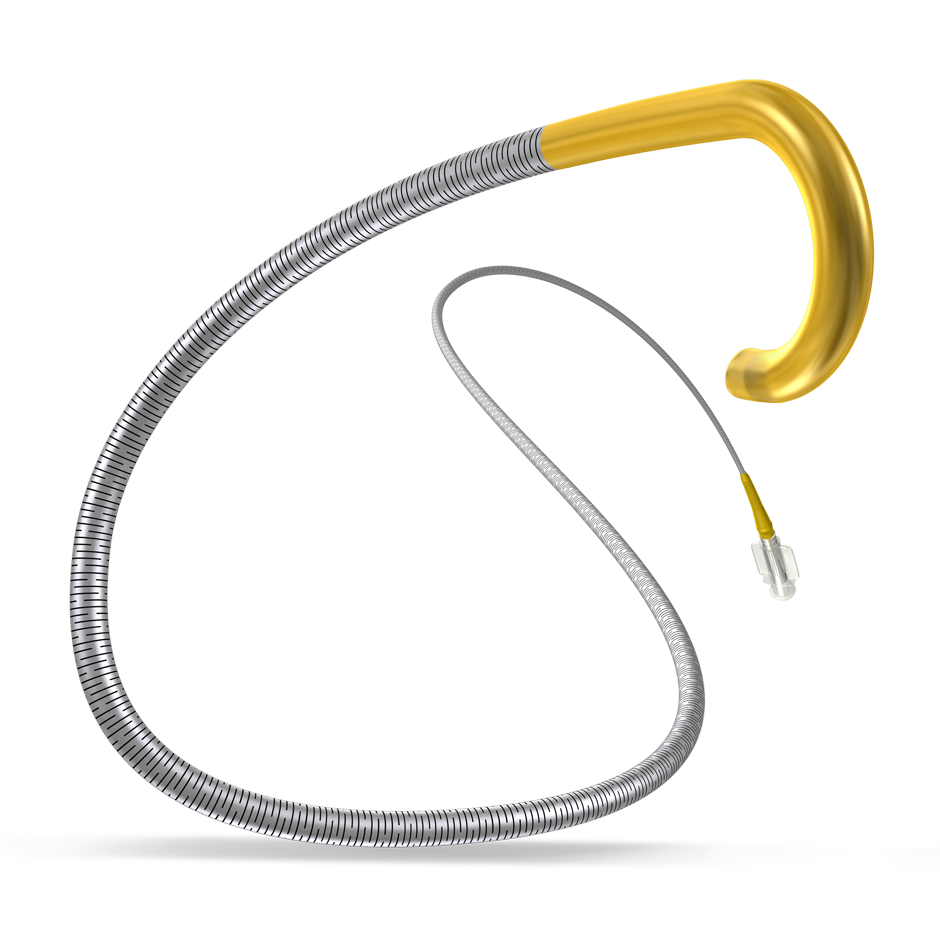

The Direxion Torqueable Microcatheter is the world’s first nitinol microcatheter, featuring incredible torque response and four tip shapes for precise control during embolization procedures.

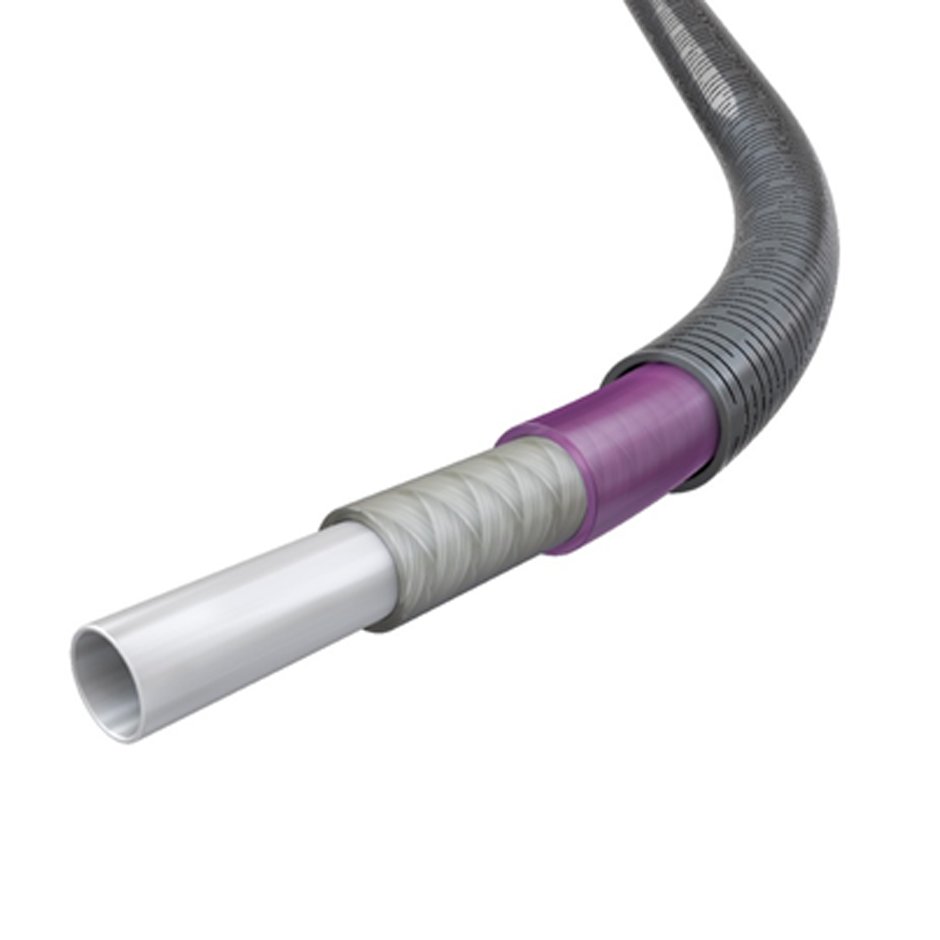

The Direxion Torqueable Microcatheter has four unique layers, from its polymer layers of PTFE and PEBAX to its support layers of polyethylene and the outer nitinol hypotube.
Direxion HI-FLO, the 0.027" size designated by the yellow tip, with a J Shape pre-shaped tip configuration.

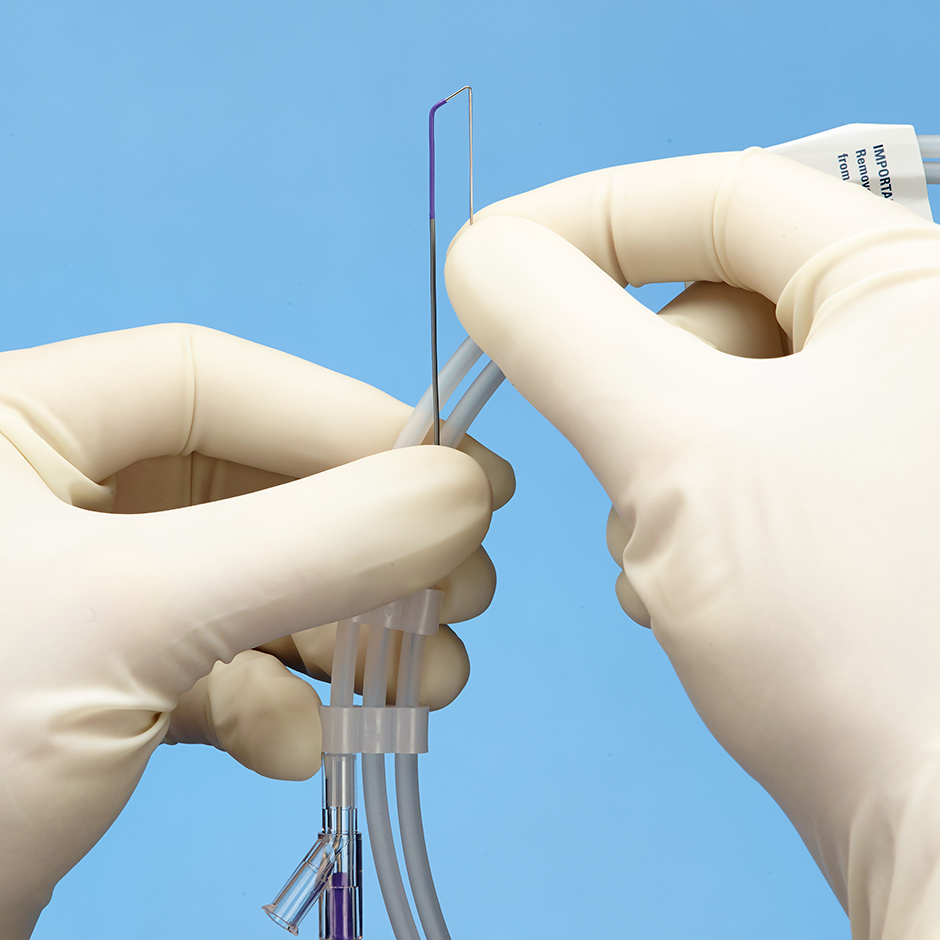

The Direxion Torqueable Microcatheter is available in four pre-shaped tip options: Straight, Bern, J Shape and Swan Shape. Please be sure to remove the shaping mandrel, as shown above, prior to use.

With Direxion’s best-in-class torque response and high-pressure flow rates, now with improved tip shapes and hydrophilic coating, you can reposition the microcatheter tip without a guidewire and obtain clear imaging with power injections up to 1200 psi.

Key Resources

Indication, Safety, and Warnings
Sign-up for Peripheral Embolization Updates
Request a Sales Rep

Request a Sales Rep

Explore

Product Details

  • Slotted nitinol technology similar to the Fathom™-16 Guidewire
  • Stiffness profile is changed by increasing or decreasing the distance between the laser cuts
  • Catheter flexibility profile is designed with a soft distal tip to aid in trackability and stiffer proximal end to assist with pushability
  • Each microcatheter has 10,000+ laser cuts
The Direxion Microcatheter is available in six tip configurations, as shown below. The distal tip is available in four pre-shaped options: Straight, Bern Shape, J Shape, and Swan Shape. These shapes are designed to facilitate access to the most challenging anatomy. Direxion Microcatheters are also available with two radiopaque markers, 2RO, which is designed to aid in the delivery of detachable embolic coils during embolization procedures.




Direxion™ Microcatheter

Direxion HI-FLO™ Microcatheter

Lumen Size (in)

0.021”

0.027”

Distal Tip Size (F)

2.4F

2.8F

Length Options

105, 130, 155 cm

Number of UPNs

14

12

Tip Shapes

Straight, Bern, J, Swan

2 RO Marker Options

Straight and Bern

N/A

Pre-loaded System Offering

Fathom™-16 Guidewire

Transend™-14 Guidewire

Fathom-16 Guidewire

Transend-18 Guidewire

Maximum Injection Pressure

1200 PSI

Maximum Flow Rate @ 1200 PSI

3.5 mL/s

6.3 mL/s

Hydrophilic Coating

Yes

Yes




Direxion™ Microcatheter

Direxion HI-FLO™ Microcatheter

Guidewire Size

≤ 0.018”

≤ 0.021”

Max Diagnostic Catheter Size

0.035”

0.038”

Compatible with 0.018” coils

Yes

No

Non-Spherical Embolic Particles

 Up to ≤ 500 Micron

 Up to ≤ 700 Micron

Spherical Embolic Particles

 Up to ≤ 710 Micron

 Up to ≤ 900 Micron

Compatible with Chemical Agents

(Glue, DMSO, Alcohol, Chemotherapy)

Yes

Yes

Ordering Information

Singles – Units Packaged With Microcatheter Only

Direxion™ Torqueable Microcatheters

UPN / Order Code

Catalog No.

GTIN

Usable Length
(cm)

Proximal/
Distal OD
(F)

Lumen
Inner Diameter
(in)

Tip Shape

RO Markers

C-Code

M001195200

19-520

08714729839316

105

2.7/2.4

0.021

Straight

1

C1887

M001195210

19-521

08714729839323

130

2.7/2.4

0.021

Straight

1

C1887

M001195220

19-522

08714729839330

155

2.7/2.4

0.021

Straight

1

C1887

M001195230

19-523

08714729839347

105

2.7/2.4

0.021

Bern

1

C1887

M001195240

19-524

08714729839354

130

2.7/2.4

0.021

Bern

1

C1887

M001195250

19-525

08714729839361

155

2.7/2.4

0.021

Bern

1

C1887
M001195260 19-526 08714729839378 105 2.7/2.4 0.021 J 1 C1887

M001195270

19-527

08714729839385

130

2.7/2.4

0.021

J

1

C1887
M001195280 19-528 08714729839392 155 2.7/2.4 0.021 J 1 C1887
M001195290 19-529 08714729839408 105 2.7/2.4 0.021 Swan 1 C1887

M001195300

19-530

08714729839415

130

2.7/2.4

0.021

Swan

1

C1887
M001195310 19-531 08714729839422 155 2.7/2.4 0.021 Swan 1 C1887

M001195320

19-532

08714729839439

130

2.7/2.4

0.021

Straight

2

C1887
M001195330 19-533 08714729839446 155 2.7/2.4 0.021 Straight 2 C1887

M001195340

19-534

08714729839453

130

2.7/2.4

0.021

Bern

2

C1887
M001195350 19-535 08714729839460 155 2.7/2.4 0.021 Bern 2 C1887

 Direxion™ HI-FLO™ Torqueable Microcatheters

UPN / Order Code

Catalog No.

GTIN

Usable
 Length
(cm)

Proximal/
Distal OD
(F)

Lumen
Inner Diameter
(in)

Tip Shape



C-Code

M001195400

19-540

08714729839477

105

3.0/2.8

0.027

Straight



C1887

M001195410

19-541

08714729839484

130

3.0/2.8

0.027

Straight



C1887

M001195420

19-542

08714729839491

155

3.0/2.8

0.027

Straight



C1887

M001195430

19-543

08714729839507

105

3.0/2.8

0.027

Bern



C1887

M001195440

19-544

08714729839514

130

3.0/2.8

0.027

Bern



C1887

M001195450

19-545

08714729839521

155

3.0/2.8

0.027

Bern



C1887

M001195470

19-547

08714729839545

130

3.0/2.8

0.027

J



C1887
M001195480 19-548 08714729839552 155 3.0/2.8 0.027 J   C1887

M001195500

19-550

08714729839576

130

3.0/2.8

0.027

Swan



C1887
M001195510 19-551 08714729839583 155 3.0/2.8 0.027 Swan   C1887

Systems – Units Packaged With Microcatheter and Guidewire Already Pre-Loaded

Direxion™ Fathom™ - 16 System Pre-Loaded Torqueable Microcatheters

UPN / Order Code

Catalog No.

GTIN

Usable
 Length
(cm)

Proximal/
Distal OD
(F)

Lumen
Inner Diameter
(in)

Tip Shape

Fathom™ 16 Steerable Guidewire Overall Length
(cm)

C-Code

M001195610

19-561

08714729839606

130

2.7/2.4

0.021

Straight

180

C1887
M001195620 19-562 08714729839613 155 2.7/2.4 0.021 Straight 180 C1887

M001195640

19-564

08714729839637

130

2.7/2.4

0.021

Bern

180

C1887
M001195650 19-565 08714729839644 155 2.7/2.4 0.021 Bern 180 C1887
M001195660 19-566 08714729839651 130 2.7/2.4 0.021 Straight 180 C1887
M001195670 19-567 08714729839668 130 2.7/2.4 0.021 Bern 180 C1887

Direxion™ Transend™ - 14 System Pre-Loaded Torqueable Microcatheters

UPN / Order Code

Catalog No.

GTIN

Usable
 Length
(cm)

Proximal/
Distal OD
(F)

Lumen
Inner Diameter
(in)

Tip Shape

Fathom™ 16 Steerable Guidewire Overall Length
(cm)

C-Code

M001195810

19-581

08714729839743

130

 2.7/2.4

0.021

Straight

165

C1887

M001195840

19-584

08714729839774

130

2.7/2.4

0.021

Bern

165

C1887
M001195850 19-585 08714729839781 155 2.7/2.4 0.021 Bern 165 C1887

Direxion™ HI-FLO Fathom™ - 16 System Pre-Loaded Torqueable Microcatheters

UPN / Order Code

Catalog No.

GTIN

 Usable Length
(cm)

Proximal/
Distal OD
(F)

Lumen
Inner Diameter
(in)

 Tip Shape

Fathom™ 16 Steerable Guidewire Overall Length
(cm)

C-Code

M001195710

19-571

08714729839682

130

3.0/2.8

0.027

Straight

180

C1887
M001195720 19-572 08714729839699 155 3.0/2.8 0.027 Straight 180 C1887

M001195740

19-574

08714729839712

130

3.0/2.8

0.027

Bern

180

C1887
M001195750 19-575 08714729839729 155 3.0/2.8 0.027 Bern 180 C1887

Direxion™ HI-FLO Transend™ - 18 System Pre-Loaded Torqueable Microcatheters

UPN / Order Code

Catalog No.

GTIN

 Usable Length
(cm)

Proximal/
Distal OD
(F)

Lumen
Inner Diameter
(in)

 Tip Shape

Fathom™ 16 Steerable Guidewire Overall Length
(cm)

C-Code

M001195910

19-591

08714729839828

130

3.0/2.8

0.027

Straight

165

C1887

M001195940

19-594

08714729839842

130

3.0/2.8

0.027

Bern

165

C1887
The C-Code used for the Direxion Torqueable Microcatheter is C1887. C-Codes are used for hospital outpatient device reporting for Medicare and some private payers. Note: Boston Scientific Corporation is not responsible for correct use of codes on submitted claims; this information does not constitute reimbursement or legal advice.
