VersaCross Steerable Access Solution enables exchangeless access-to-delivery of left heart ablation devices, with high precision steering and consistent contact force

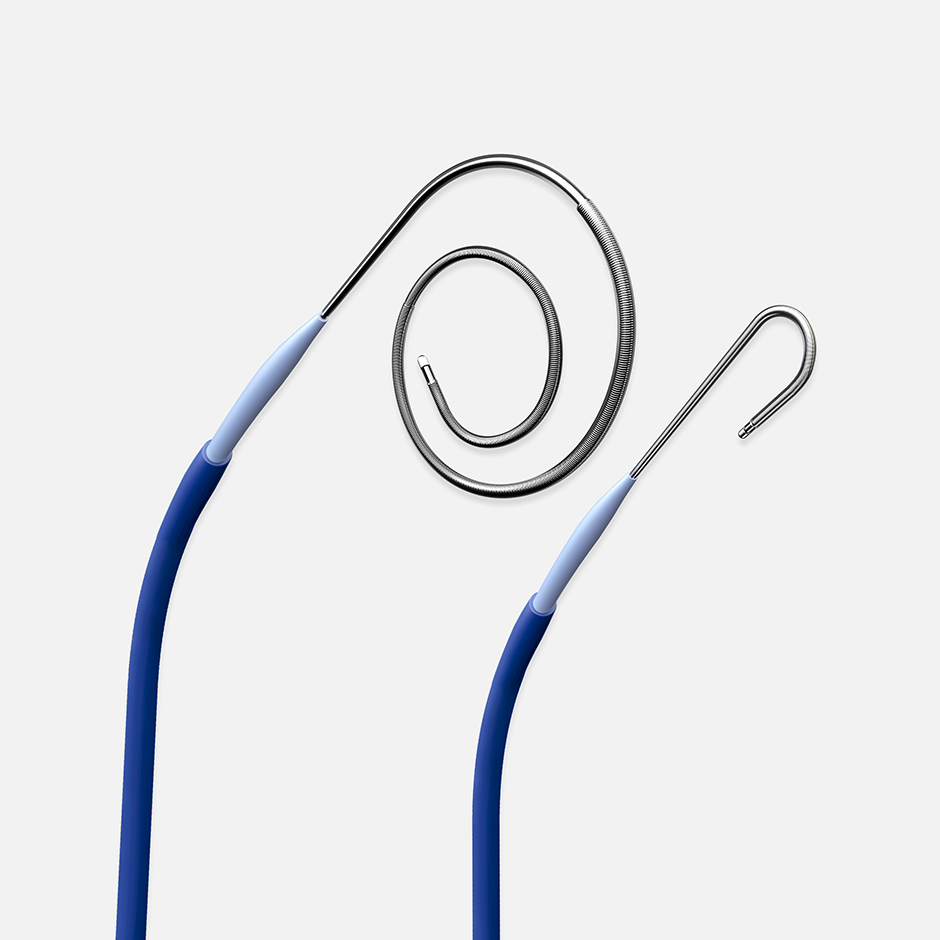

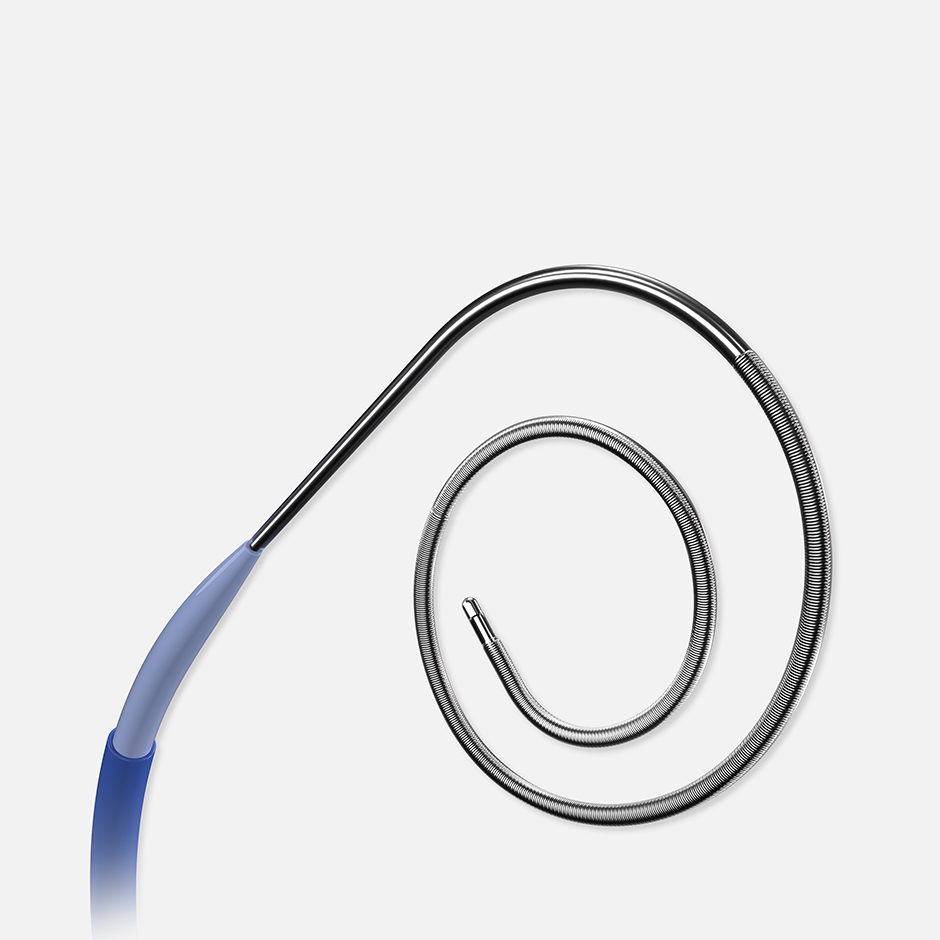

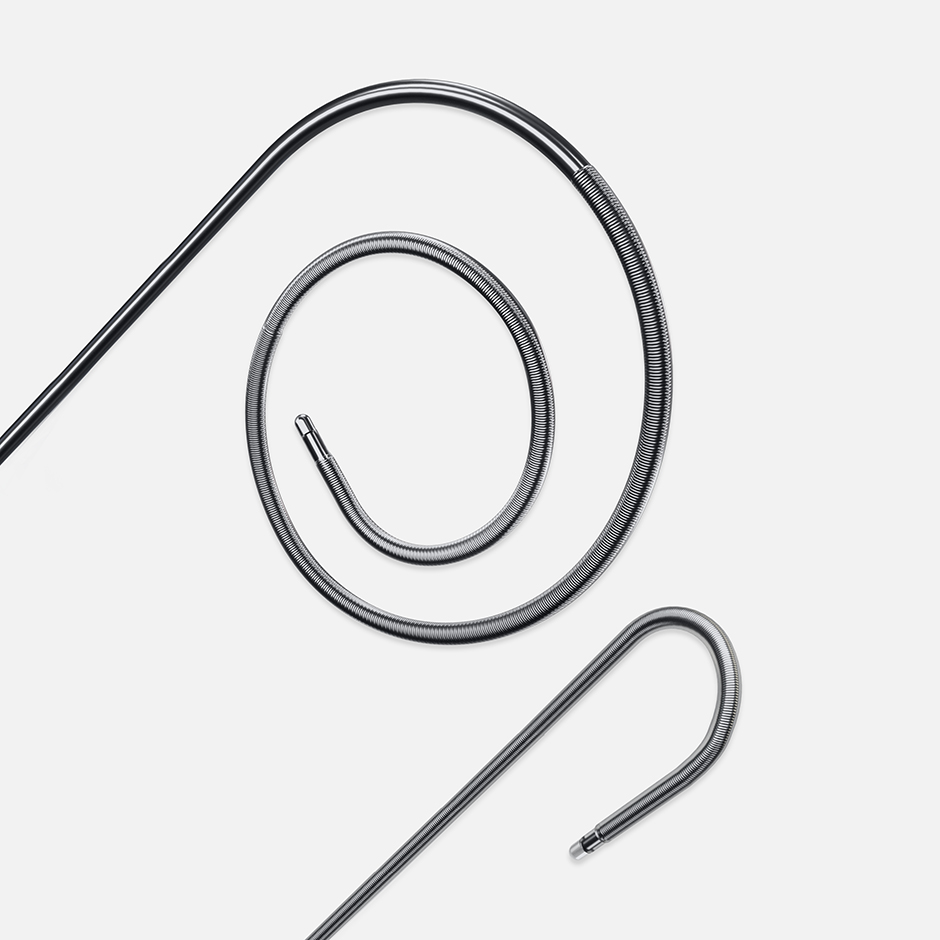

VersaCross RF Wire
| Feature | Specifications |
| Tip configurations | J-tip, pigtail |
| Curve shape | 9 mm (j-tip), 24 mm (pigtail) |
| Wire diameter | 0.035" |
| Overall length | 180 cm, 230 cm |

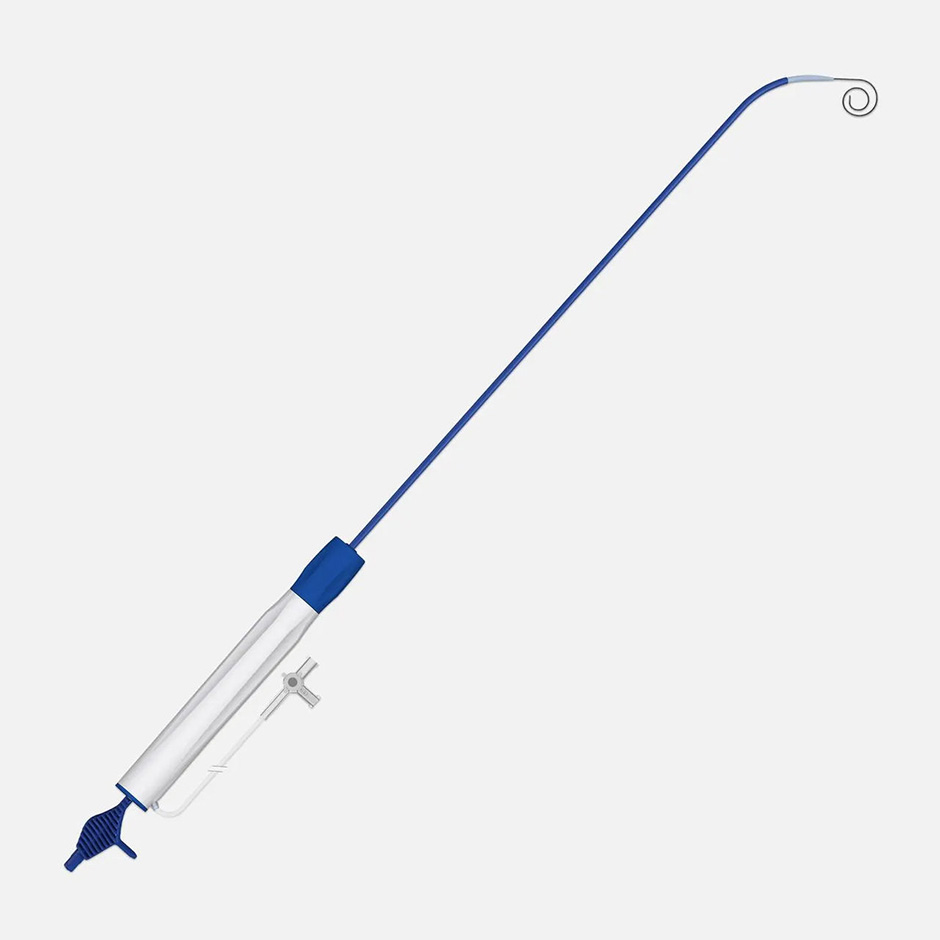

VersaCross Steerable Sheath
| Feature | Specifications |
| French size | 8.5F |
| Sheath usable length | 72 cm |
| Sheath curves | Small (17 mm), Medium (22 mm), Large (50 mm) |
| Bidirectional curve angles | 90° CCW, 180° CW |
| Dilator usable length | 95 cm |
| Dilator curve | D0, D1 |
| Guidewire max outer diameter | 0.035" |
| Guidewire length | 180 cm |
