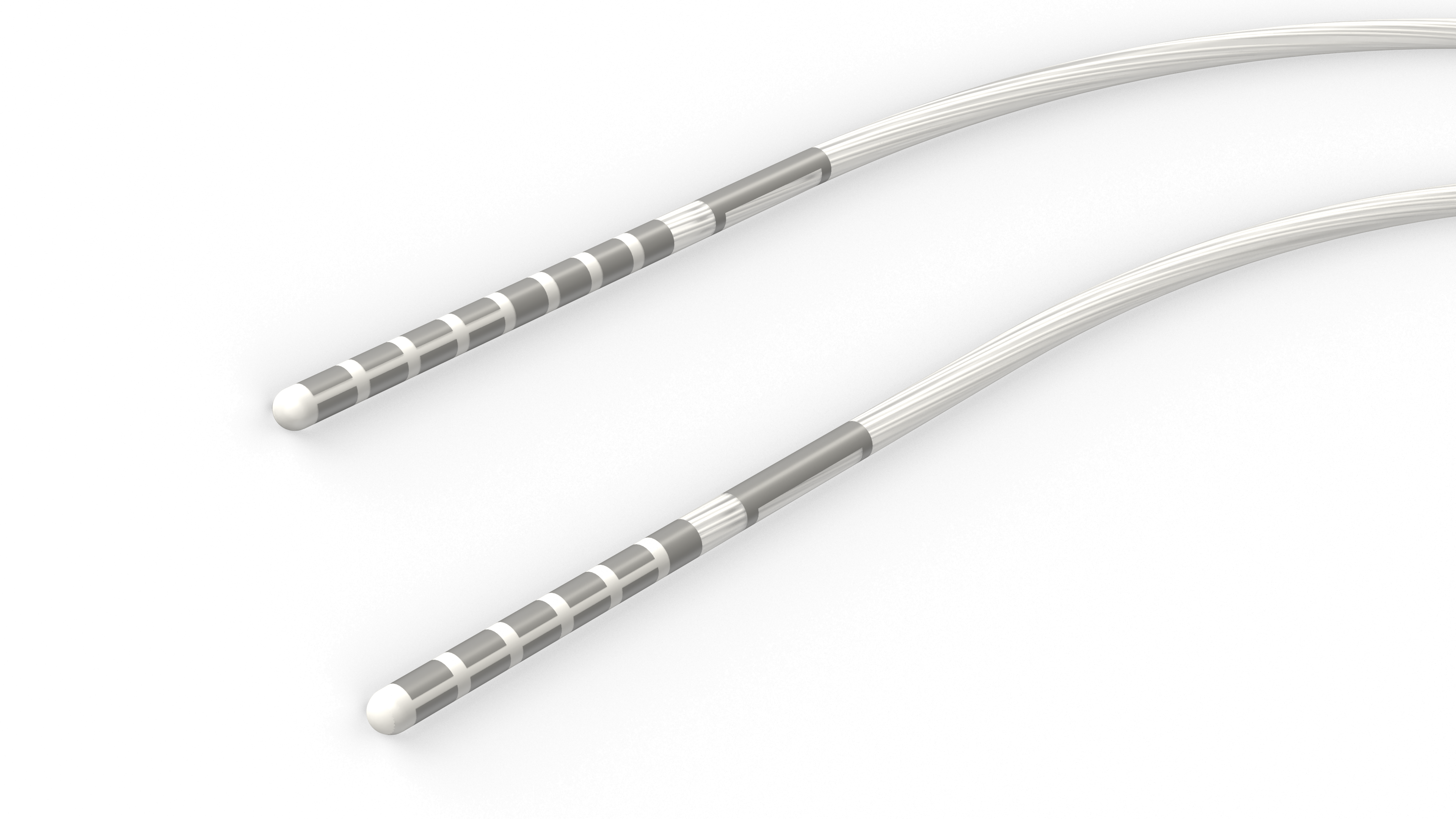

The first and only 16-contact directional leads. These leads offer the best in span, spacing and directionality.
Explore
Overview
Why choose Vercise Cartesia X and Vercise Cartesia HX Directional Leads
- Precise personalised therapy
- Easy and efficient programming
- Improves outcomes1,2
- Proven battery technology
Technical Specifications

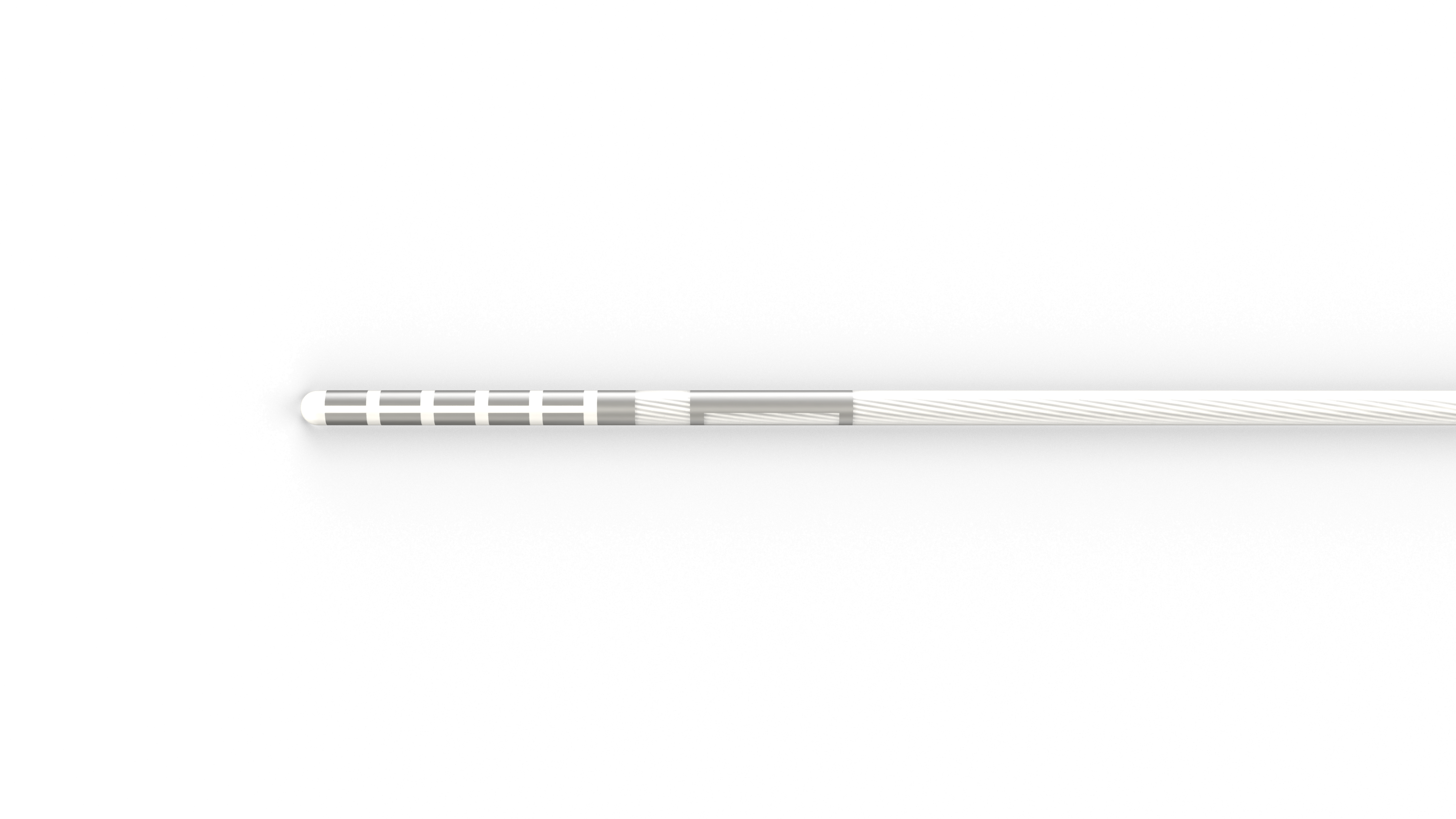

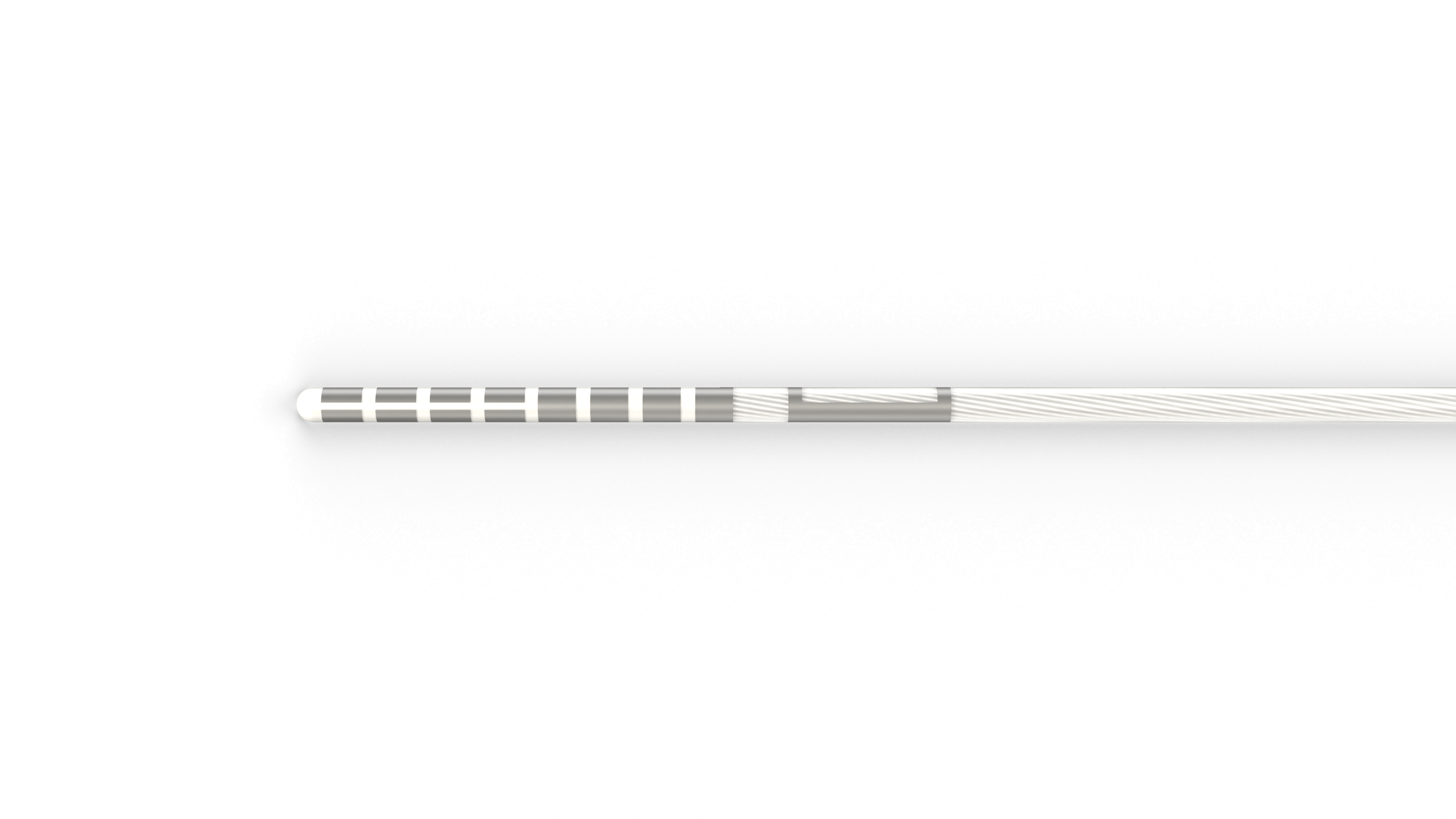

Feature | Vercise Cartesia X Directional Lead | Vercise Cartesia HX Directional Lead |
Configuration | Directional | Directional |
Lead length | 45 or 30 cm | |
Lead body diameter | 1.3 mm | |
Contact length | 1.5 mm | |
Contact spacing | 0.5 mm | |
Array span | 11.5 mm | 15.5 mm |
Directional span | 9.5 mm | 7.5 mm |
Ordering Information
| MODEL NUMBER | UPN | DESCRIPTION |
|---|---|---|
| DB-2203-30 | M365DB2203300 | Vercise Cartesia X Directional Lead Kit (30 cm) |
| DB-2203-45 | M365DB2203450 | Vercise Cartesia X Directional Lead Kit (45 cm) |
| DB-2204-30 | M365DB2204300 | Vercise Cartesia HX Directional Lead Kit (30 cm) |
| DB-2204-45 | M365DB2204450 | Vercise Cartesia HX Directional Lead Kit (45 cm) |
| DB-3216-55 | M365DB3216550 | 16 Contact Lead Extension Kit (55cm) |
| DB-3216-95 | M365DB3216950 | 16 Contact Lead Extension Kit (95cm) |
