Site Selective Pacing Catheters (SSPC)

Site selective pacing catheters, sspc, for conduction system pacing
Site selective pacing catheters, sspc, for conduction system pacing

Navigate. Reach. Support.​
The Site Selective Pacing Catheter portfolio (SSPC and SSPC NXT) are single-use percutaneous catheters intended for the venous introduction of pacing or defibrillation leads.

The SSPC NXT catheters expand the SSPC portfolio, providing additional design features to target right ventricular locations, inclusive of the left bundle branch area (LBBA).

Key Resources

SSPC Spec Sheet SSPC NXT Spec Sheet
Request a Sales Rep

Request a Sales Rep

 Submit Your Questions

Submit Your Questions

Product details

Delivery catheters designed to reach right ventricular locations, inclusive of the left bundle branch area (LBBA).

Why choose our Site Selective Pacing Catheters

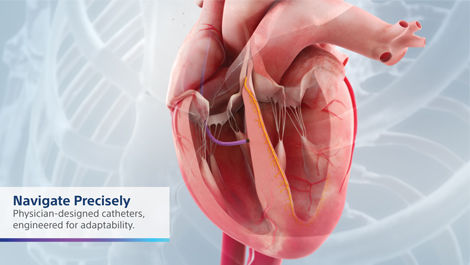

Anatomical heart model showing conduction system pacing lead path toward the left bundle branch area

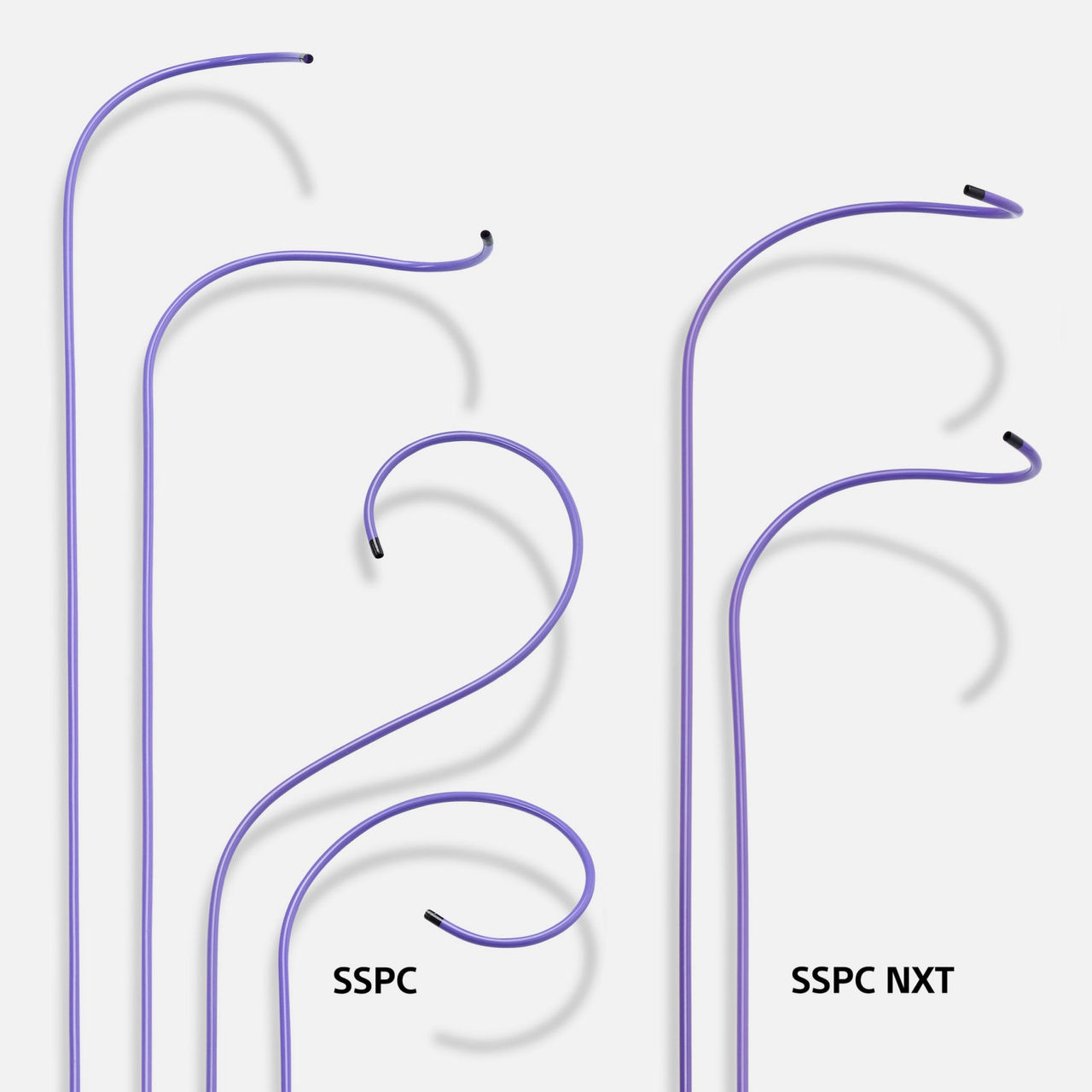

The SSPC portfolio of catheters is designed to target different locations on the septum. As part of the Conduction System Pacing (CSP) portfolio, the SSPC family includes a variety of shapes and features, including a hemostatic valve and radiopaque distal tip, which facilitate accurate lead placement and navigation to the septal plane. Additionally, the slittable sheath allows for straightforward catheter removal, contributing to smoother procedures.
Navigate
Navigate within diverse heart anatomies targeting right ventricular locations, inclusive of the LBBA.
Reach
Reach the septal wall with a variety of catheter shapes.
Support
Support lead delivery with a robust braided catheter.

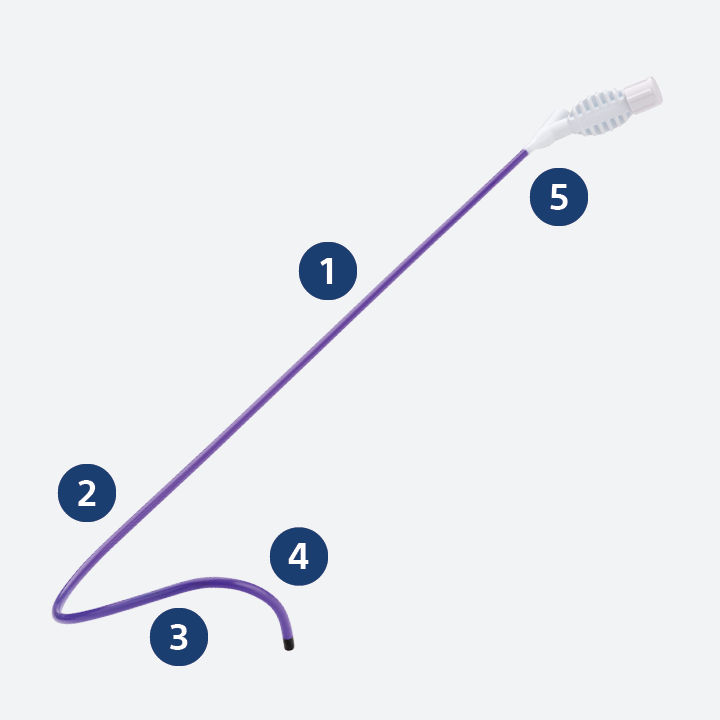

SSPC NXT Catheters feature the following enhancements:

1. Enhanced support with a reinforced braided stainless steel incorporating a stiffer polymer to provide greater catheter stability.
2. Extended length available in a 42 cm length provides 2 additional centimeters of reach.
3. New shapes specifically designed for a variety of heart sizes to enable septal placement inclusive of areas optimal for LBBAP.
4. More prominent septal curve at the distal tip allows for consistent perpendicular placement.
5. Increased sizing of outer and inner diameter facilitates ease of lead passage through the catheter and offers more stability.
SSPC NXT image
SSPC NXT Image

Featured therapy

"INGEVITY+ pacing lead with exposed helix tip and stylet-based components for precise LBBA placement "

Conduction system pacing

Anchored by the INGEVITY+ pacing lead, Boston Scientific’s Conduction System Pacing portfolio works together to precisely navigate to the septum and efficiently fixate with the stylet design allowing continuous monitoring of electrical measurements to confidently capture the left bundle branch area.

Explore therapy details


Products in this therapy

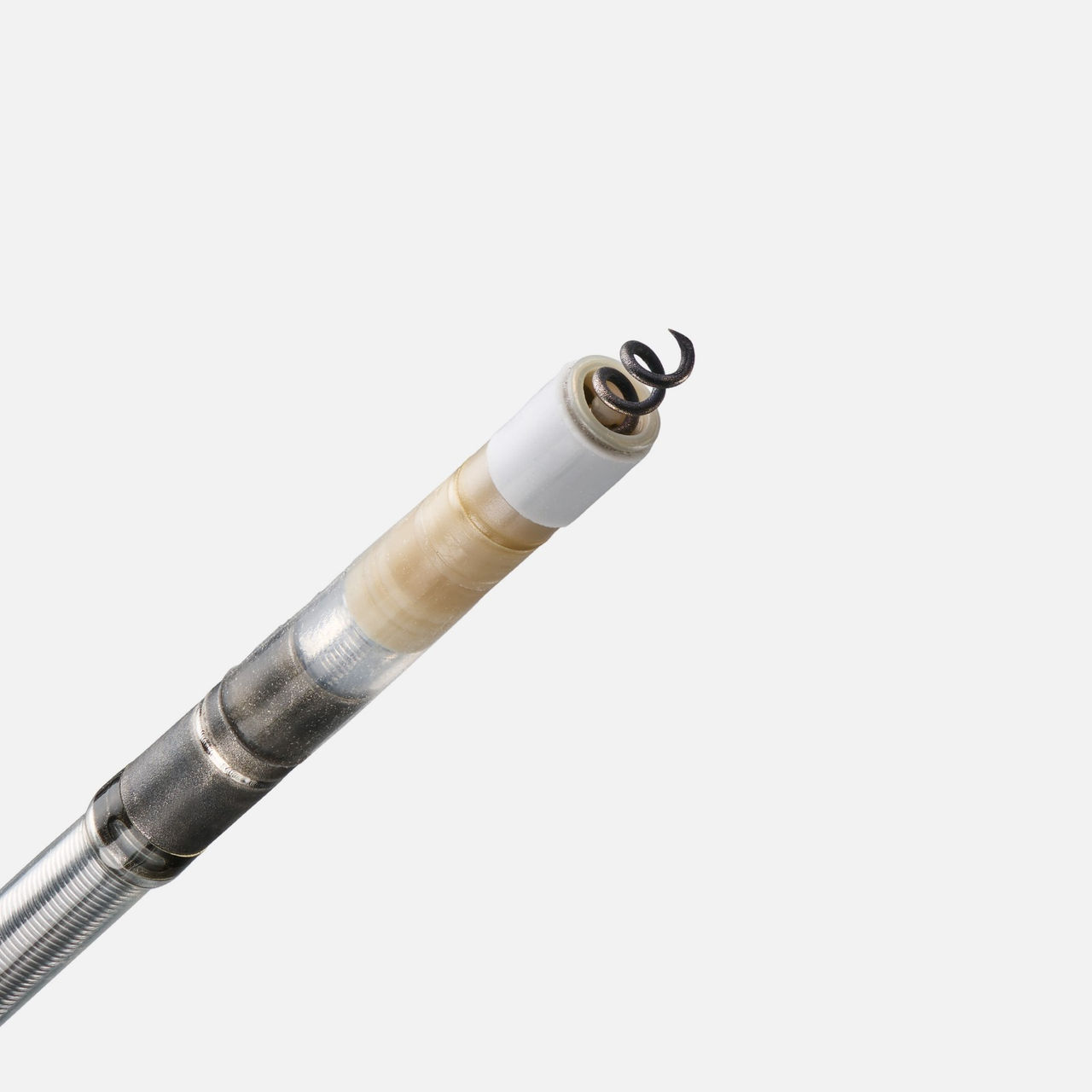

Closeup of ingevity plus pacing lead for conduction system pacing.
INGEVITY+ Pacing Lead

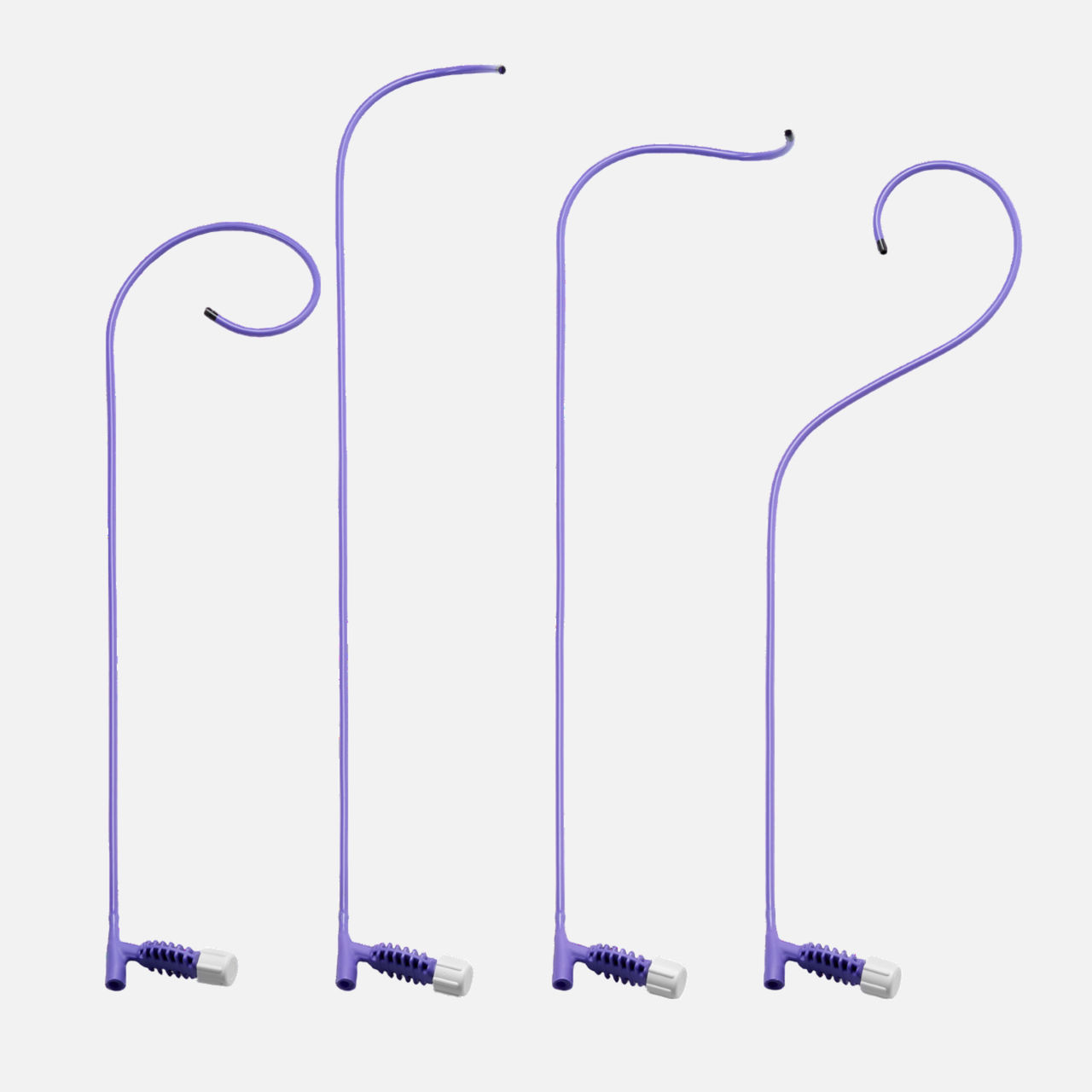

Site selective pacing catheters, sspc, for conduction system pacing
Site Selective Pacing Catheters

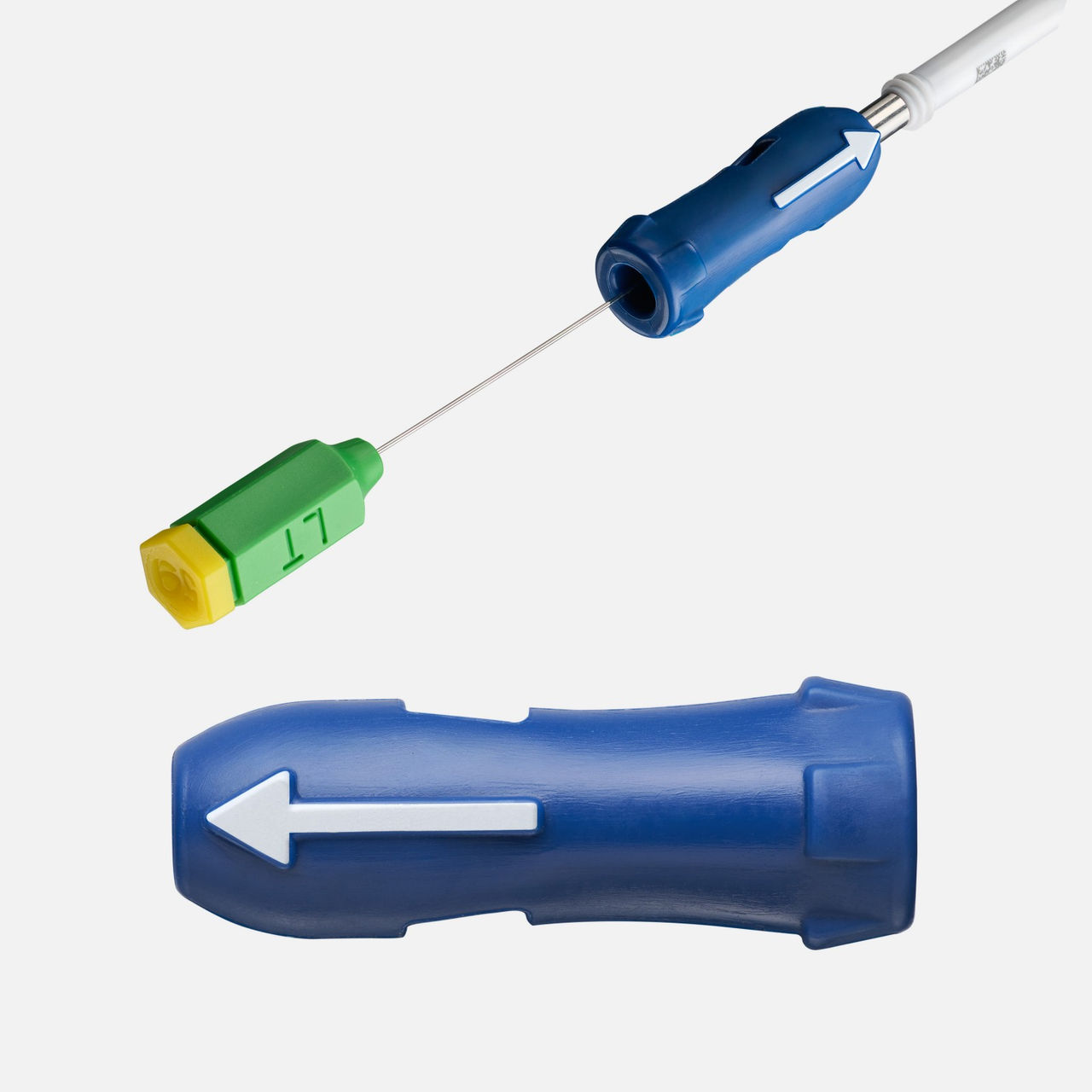

Helix locking tool for conduction system pacing
Helix Locking Tool

Technical specifications

  SSPC (SSPC 1, SSPC 2, SSPC 3 and SSPC 4)  SSPC NXT (2,5 and Y)
Working Length 40 cm 42 cm
Outer Diameter 8 Fr compatible with 8 Fr introducer 9 Fr compatible with 9 Fr introducer
Inner Diameter 6.5 Fr 7 Fr
Hub Purple hub with hemostatic seal and side flush port
Accommodates INGEVITY™+ Model 7842 59 cm active fix pacing leads		 White hub with hemostatic seal and side flush port
Tip Radiopaque. Allows better visualization of tip of catheter and lead under fluoroscopy.
Cutter Universal cutter is packaged separately. Catheters are designed to be slitable, thereby allowing its removal after device placement.
Dilator & Guide Wire Dilator is packaged with SSPC Catheter.
Compatible with 0.035” guide wire – packaged separately.

Ordering Information

Model Length Description
SSPC1 40 cm          “C-shape” designed for RA septal locations
SSPC2  40 cm “Multipurpose” designed for RA and RV septal locations
SSPC3  40 cm “Extended hook” designed for dilated RA and RV septal locations
SSPC4  40 cm "Right-sided” designed for right sided venous access to RA septal locations

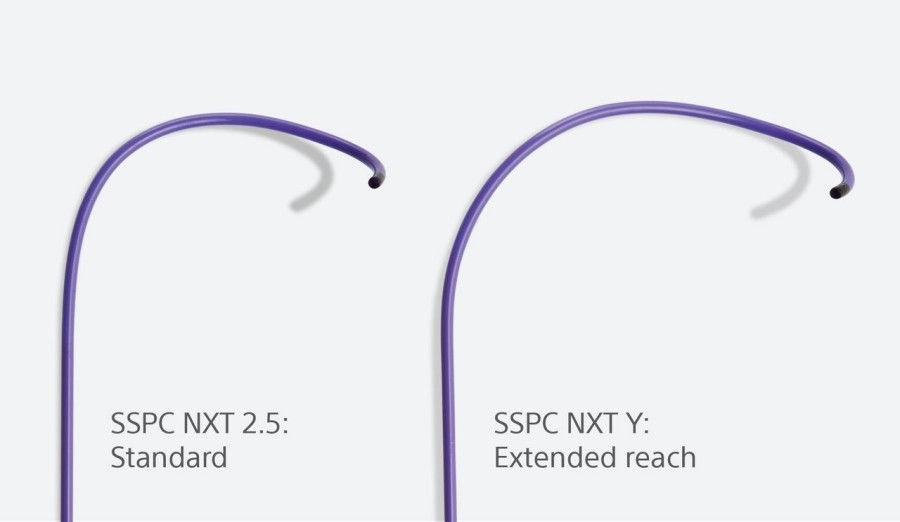

SSPC NXT 2.5         42 cm "Standard" designed for normal RV septal locations, inclusive of LBBA locations
SSPC NXT Y 42 cm "Extended reach" designed for normal and dilated RV septal locations inclusive of LBBA locations
