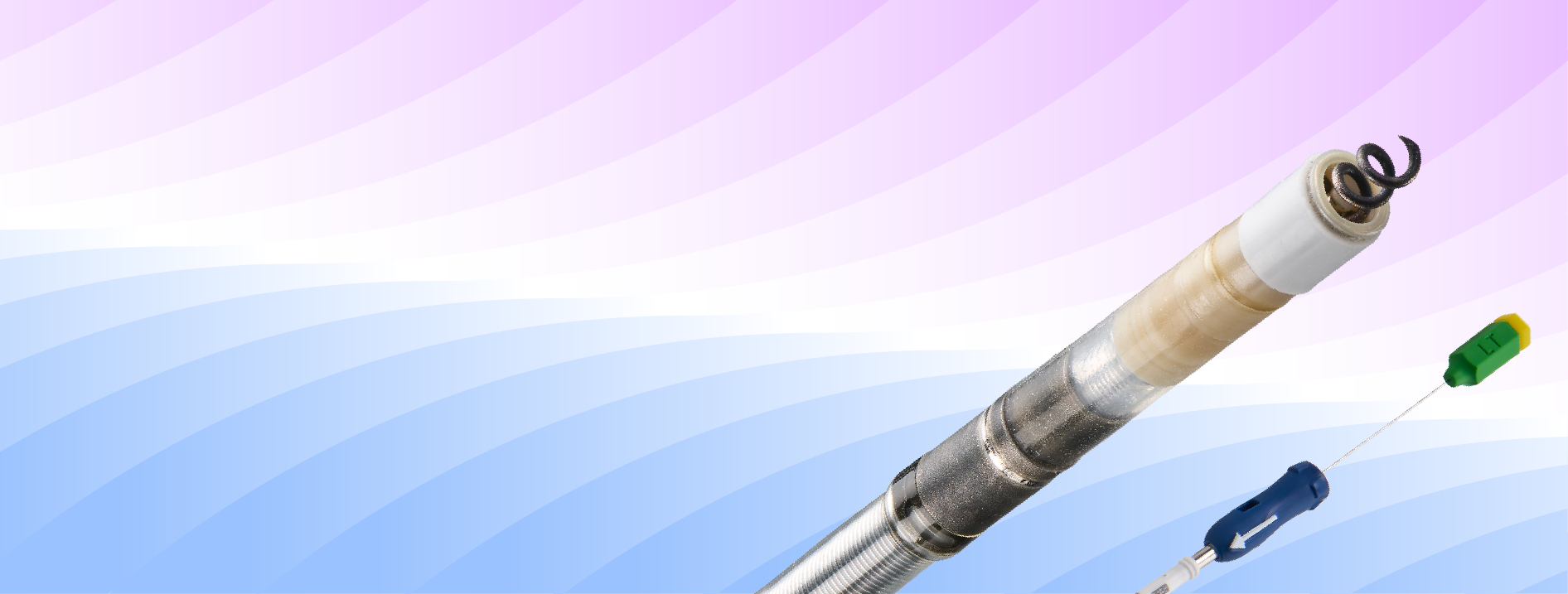

INGEVITYTM+
Pacing Lead
Proven Longevity.
Predictable Performance.
INGEVITY+ pacing leads are 6F (2.0 mm) steroid-eluting, endocardial/interventricular septal pace/sense leads intended for chronic right atrium and/or right ventricle
or left bundle branch area application.
Product details
Why choose INGEVITY+
Proven lead performance in a new application.
Tested and proven lead design, expanded to LBBAP
- The stylet design INGEVITY+ pacing lead allows for precise positioning including continuous pacing and monitoring of electrical measurements during lead body rotations3
- Outer insulation has more than 20 years of experience with Boston Scientific pacing leads and continues to be durable even when exposed to rough simulated LBBAP use3,4,5
- Designed with 3 robust layers of insulation between conductors6
- Zero conductor fractures demonstrated under simulated use conditions with extensive preconditioning, INGEVITY+ leads in LBBA positions met a minimum of a 10-year survivability similar to right ventricular apical pacing4
Enhanced Design

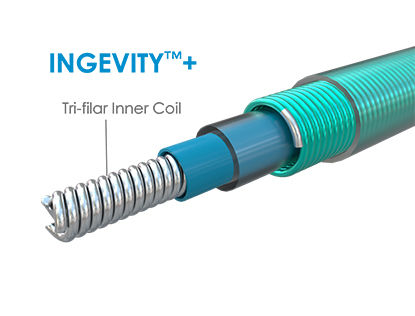

Improved inner coil design
The traditional tri-filar inner coil of INGEVITY+ improves the torque transmission of the inner coil and allows for removal of the ETFE covering. The traditional tri-filar inner coil of INGEVITY+ improves the torque transmission of the inner coil and allows for removal of the ETFE covering.
Experience predictable performance with low and consistent turn counts:
- In tortuous bends
- In atrial placements
- When repositioning the lead
- Across a wider breadth of physician techniques

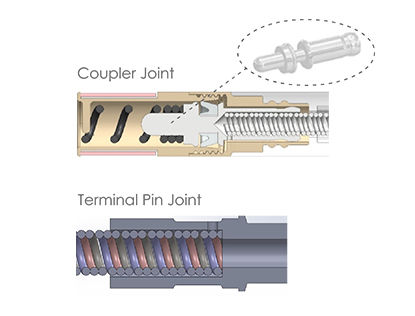

Improved joint design
- Incorporated joint design principles from the RELIANCE™ family of leads, which have multi-filar coils and proven performance
- Reduces potential stress concentrations which could cause conductor fracture if the coil was over-torqued or severely bent in a fatigue condition
- Strengthens the joint construction so INGEVITY+ can withstand extraction forces over 200% more than the previous generation
Featured therapy
Conduction system pacing

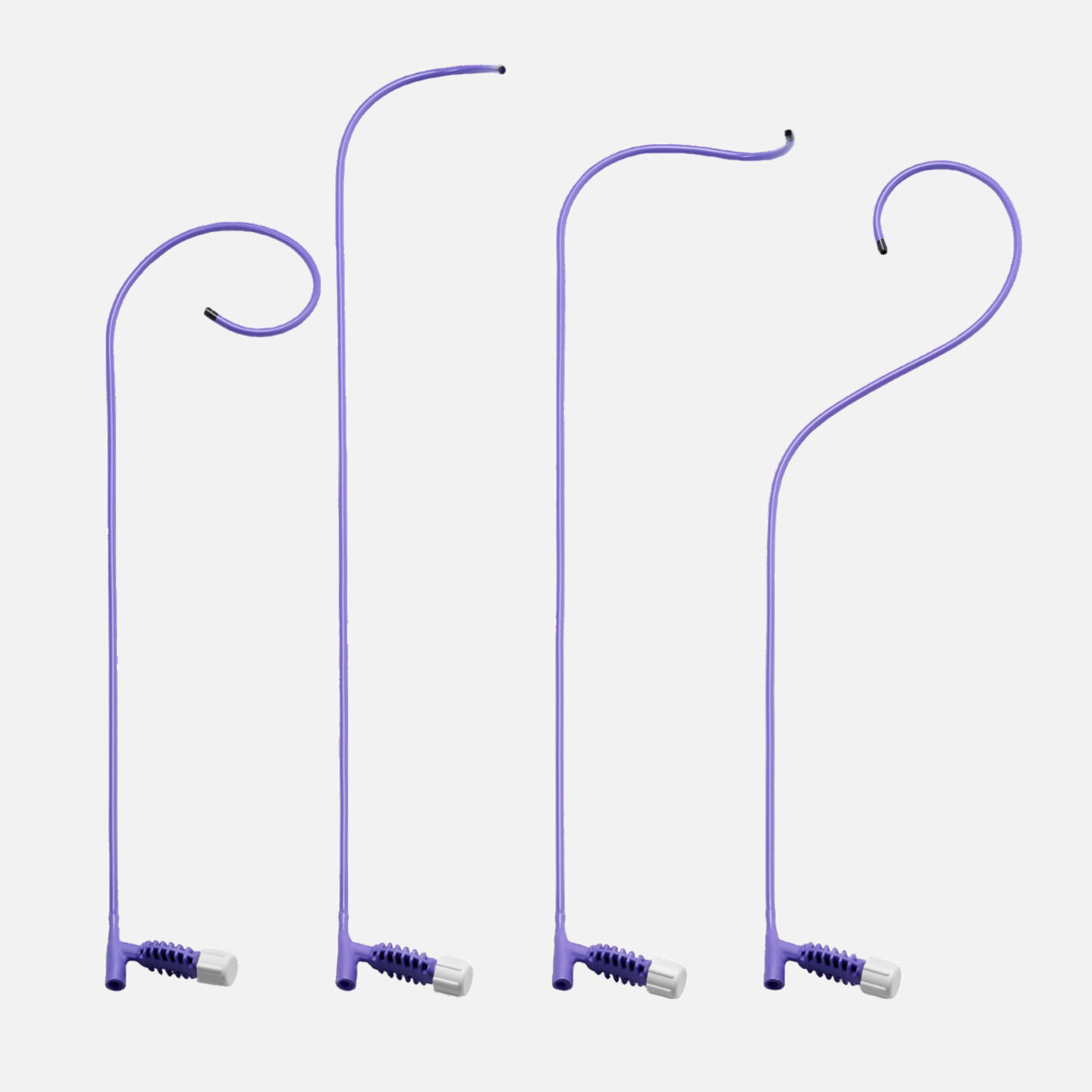

Anchored by the INGEVITY+ pacing lead, Boston Scientific’s Conduction System Pacing portfolio works together to precisely navigate to the septum and efficiently fixate with the stylet design allowing continuous monitoring of electrical measurements to confidently capture the left bundle branch area.
Explore therapy details
Explore therapy details
Products in this therapy
Technical specifications
| Product | INGEVITY+ Pacing Lead |
|---|---|
| Model/Length | 7840 / 45 cm 7841 / 52 cm 7842 / 59 cm |
| Type | Bipolar Atrial / Ventricular Straight |
| Connector | IS-1 BI |
| Compatibility | Pulse generators with an IS-1 port, which accepts an IS-1 terminal |
| MRI Conditions of Use* | ImageReady™ MR-Conditional System when used with an MR-Conditional pulse generator - Full body scan 1.5T and 3T |
| Introducer without guide wire | 6F (2.0 mm) |
| Introducer with guide wire | 9F (3.0 mm) |

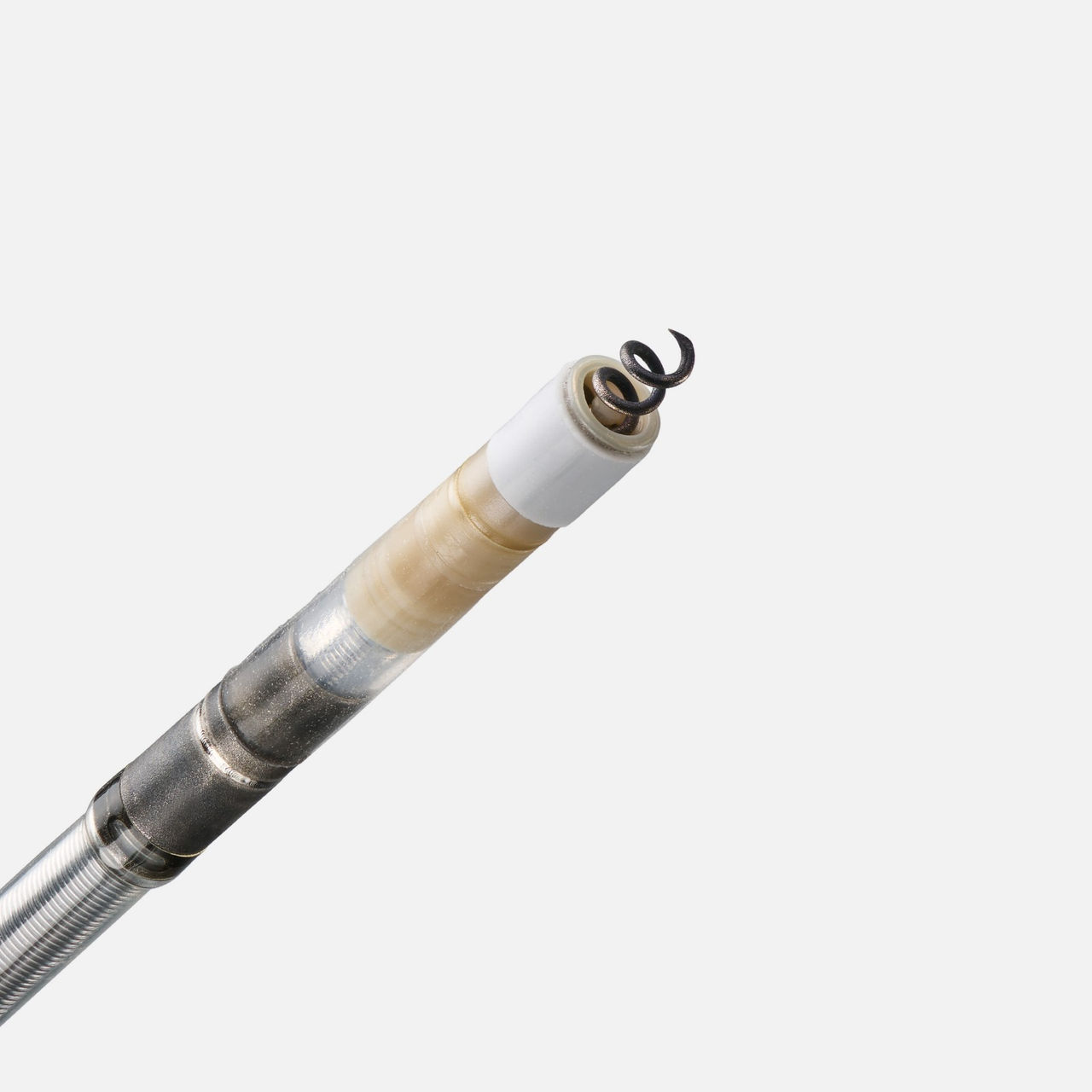

| Fixation | Extendable / retractable helix |
| Expected number of rotations to fully extend/retract the helix** | 6 ± 2 turns with straight stylet 7 ± 3 turns with J stylet |
| Recommended maximum number of turns to extend / retract the helix** | 30 |
| Nominal fixation helix penetration depth | 1.8 mm |
| Nominal Electrode: Fixation helix surface area Distance between electrodes Anode electrode surface area |
4.5 mm2 10.7 mm 20 mm2 |
| Nominal Diameter: Insertion Anode electrode Lead body Fixation helix |
2.0 mm (6 F) 2.0 mm 1.9 mm 1.2 mm |
| Material: External insulation Internal insulation Terminal ring contact IS-1 terminal pin contact Tip electrode Anode electrode |
Polyurethane (55 D) Silicone rubber 316 L stainless steel 316L stainless steel IROX™ (iridium oxide) coated Pt-Ir IROX (iridium oxide) coated Pt-Ir |
| Conductor Type | Tri-filar inner coil of MP35N™ and single-filar outer coil of MP35N with a silver core.1 (MP35N is a trademark of SPS Technologies, Inc.) |
| Steroid | 0.91 mg dexamethasone acetate |
| Radiopaque Markers | Pt-Ir |
| Suture Sleeve | Radiopaque white silicone rubber |
| C-code | 1898 |
