Chronic pancreatitis case: Paul​

Patient and doctor

Discover a patient’s walled off pancreatic necrosis journey developed in collaboration with clinician experts.​

Start of symptoms​

Paul Willemse, a 33-year old man, was admitted to the emergency room for assessment, following three days of abdominal pain, fever, loss of appetite, nausea, and vomiting.​

His ER laboratory results demonstrated:​

  • Elevated white blood cell count​

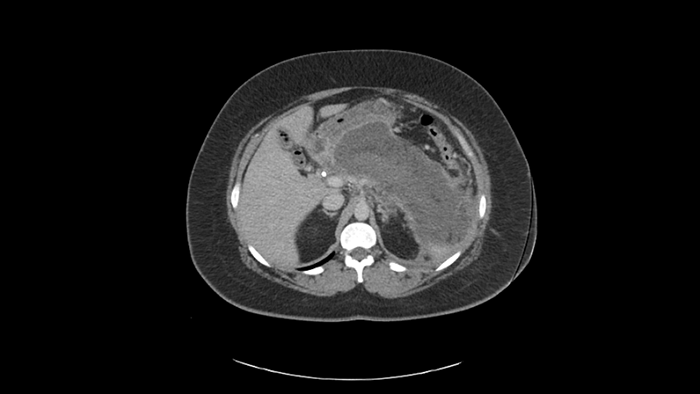

CT scan

His CT scan results showed:​

  • Severe necrotizing pancreatitis​

  • Peripancreatic fluid largely replacing the body and tail of the gland​

​Symptomatic pancreatic pseudocysts may be treated surgically, percutaneously, or endoscopically. However, surgery is associated with high rates of morbidity (7%–37%) and mortality (6%). Percutaneous drainage is associated with increased infection risk and fistula formation.1​

​On the other hand, another recent retrospective comparative study, including 133 patients with WON treated with multiple plastic stents (n = 61) or LAMSs (n = 72), showed a superior clinical success rate for LAMSs (94 % vs. 74%; P < 0.05).2​

Paul’s treatment​

Paul sad

1. WON formation​

Due to the acute nature of Paul’s clinical presentation, the gastroenterologist decided to delay the treatment. This was done to allow the necrotic area to mature into a walled-off pancreatic necrosis (WON).​

Won formation

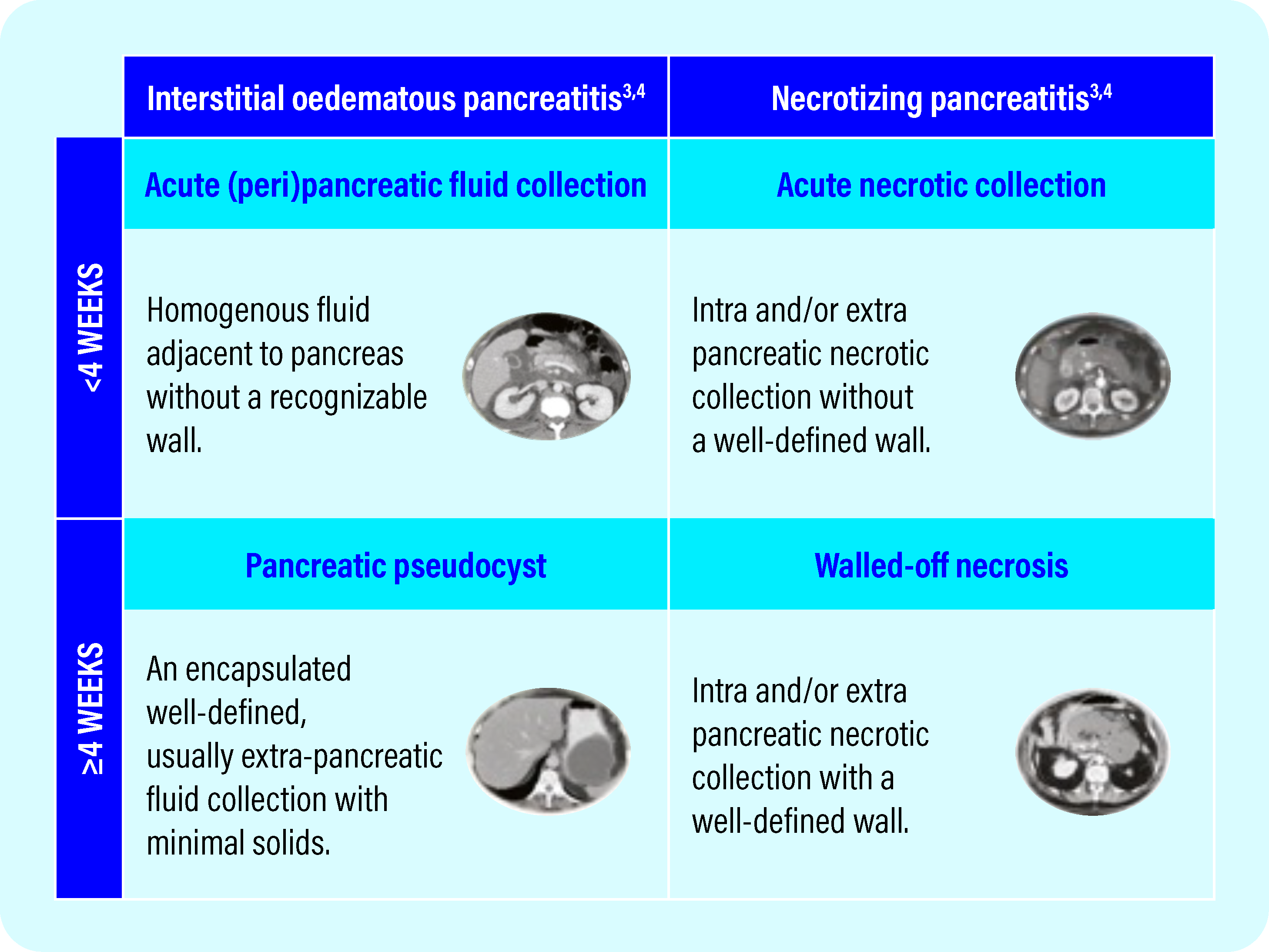

Revised Atlanta Classification: An expert consensus panel reclassified how Pancreatic Fluid Collection (PFC) are defined, considering both ​the length of time the fluid collection has been present and its content.3,4​

2. EUS-guided transluminal Lumen Apposing Metal Stent placement

A CT scan was performed six weeks later showing WON formation with liquefaction, as well as good apposition to the posterior wall of the stomach. The patient was referred for EUS-guided transluminal AXIOS™ Lumen Apposing Metal Stent (LAMS) placement/cyst gastrostomy.​

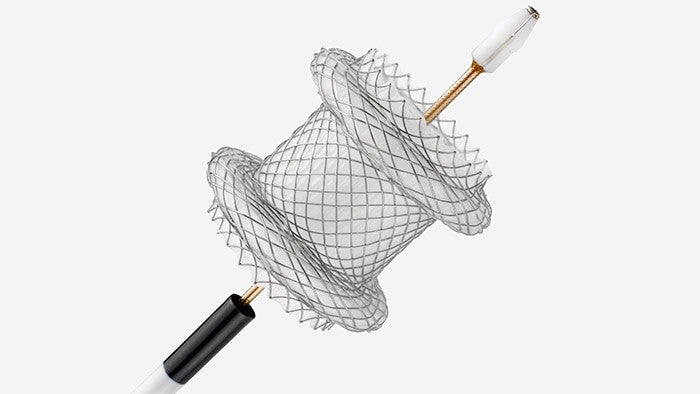

The Hot AXIOS™ Stent and Electrocautery​ Enhanced Delivery System​

The AXIOS Stent is specifically designed for drainage of pancreatic pseudocysts and is intended to overcome the limitations of other drainage options.

Hot Axios stent

3. Lumen-apposing metal stent (LAMS) deployment

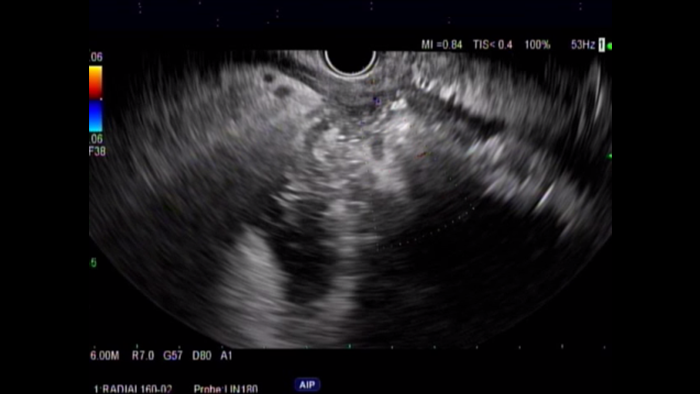

EUS with Doppler revealed a large wall of necrosis measuring 20cm. The lesion had a thick wall and contained solid debris with copious amounts of liquid, common for WON with liquefaction.​

​The stent creates an anastomotic conduit between the lumens of the pancreas and GI tract, enabling large fluid collection and WON to be drained. The Hot AXIOS integrates an electrocautery delivery system that eliminates the need to use a needle to puncture the pancreatic lumen.​

Pancreatic fluid

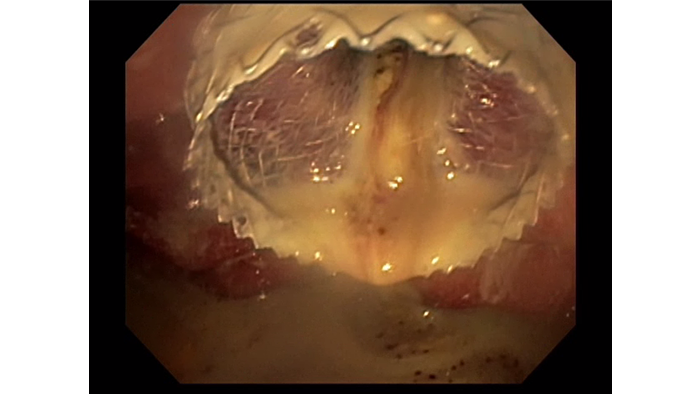

Using the AXIOS Stent, the WON was accessed via a transgastric route. A 20mm wide and 10mm long AXIOS™ LAMS was deployed across the gastric wall.​

Pancreatic fluid

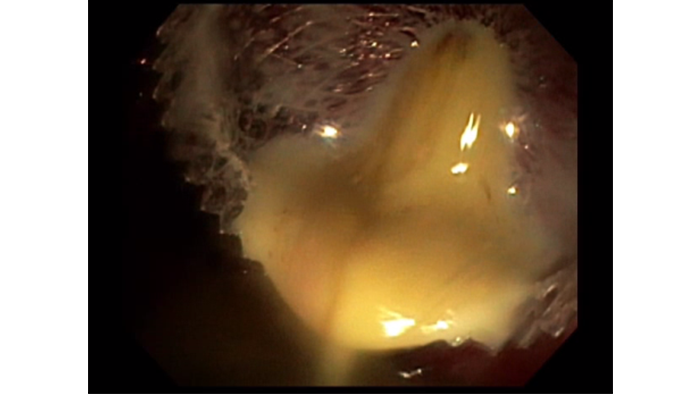

4. Pancreatic fluid collection drainage​

Approximately 1L of purulent content, mixed with solid and liquid PFC drained from the WON to the stomach. The stent was left in situ.​

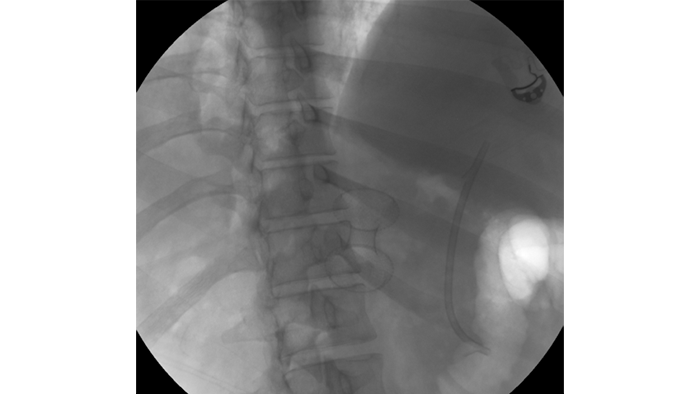

Radio imagery

The larger 20mm AXIOS™ Stent was ideal for this patient as it allowed rapid drainage of both solid and liquid contents and will greatly facilitate endoscopic necrosectomy if needed in the future.​

The end of Paul’s discomfort​

Paul happy

The patient tolerated the procedure well without difficulty or any adverse events. He was given a prescription for oral antibiotics and allowed to return home with instructions to follow up with an outpatient appointment. ​

Connect with us:


  1. Shah RJ, et al. Safety and efficacy of endoscopic ultrasound-guided drainage of pancreatic fluid collections with lumen-apposing covered self-expanding metal stents. Clin Gastroenterol Hepatol. 2015;13(4):747-52.​

  2. Arvanitakis M, et al. Endoscopic management of acute necrotizing pancreatitis: European Society of Gastrointestinal Endoscopy (ESGE) evidence-based multidisciplinary guidelines. Endoscopy. 2018;50(5):524-546.​

  3. Trikudanathan G, et al. Current Concepts in Severe Acute and Necrotizing Pancreatitis: An Evidence-Based Approach. Gastroenterology. 2019;156(7):1994-2007.e3.​

  4. Baron TH, et al. American Gastroenterological Association Clinical Practice Update: Management of Pancreatic Necrosis. Gastroenterology. 2020;158(1):67-75.e1.

This hypothetical scenario was developed in collaboration with expert clinicians to demonstrate how BSC HPB solutions can support similar pathways. All photographs were taken by Boston Scientific.​
