Interlock™
Fibered IDC™ Occlusion System Family

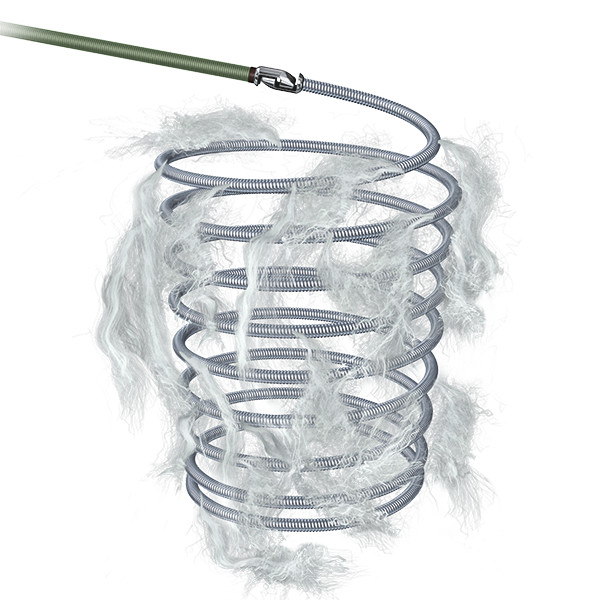

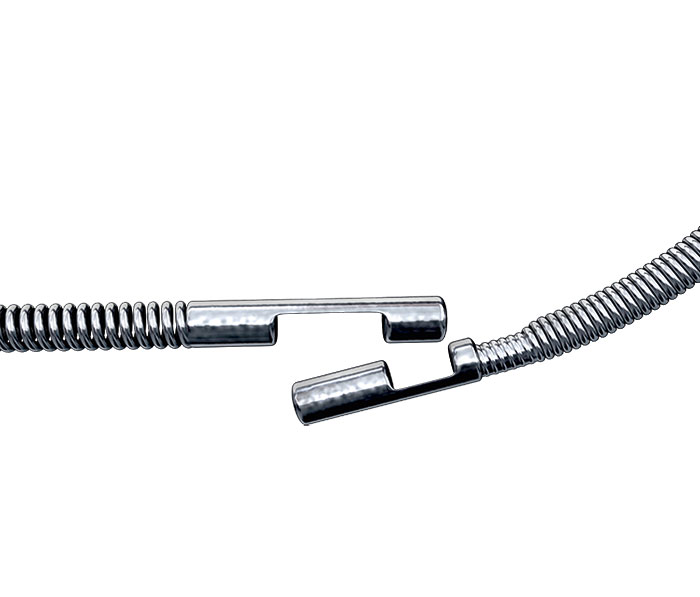

Associates Precision & Control of a detachable coil to the powerful Thrombogenicity of a fibered coil configuration. The Interlocking arm is designed to allow the coil to be advanced and retracted before final placement. Synthetic streamlined oriented & dense fibers onto the platinum coil improve stasis for more confidence in occlusion. Available in a broad range of product sizes, Interlock™ Fibered occlusion system offers precise treatment and clinical flexibility.
Key Resources
Explore
Product Details
Coil types:
Interlockᵀᴹ Fibered ICDᵀᴹ Occlusion System Family
Three-Dimensional
- design allows for circumferential wall apposition and packability in visceral aneurysms
Anchorability
- results from the helical shape of the coil in constant, consistent contact with the wall of the vessel.
Occlusive Power
- is obtained by tapering the proximal and distal coil diameters, maximizing crosssectional flow disruption.
Ordering Information:
Interlock™ -35 Fibered IDC™ Occlusion System
| UPN | Coil Type | Description |
|---|---|---|
| 2D | ||
| M001363500 | 0.035” (0.89 mm) | 2D 3 mm x 4 cm |
| M001363520 | 0.035” (0.89 mm) | 2D 4 mm x 10 cm |
| M001363540 | 0.035” (0.89 mm) | 2D 6 mm x 10 cm |
| M001363550 | 0.035” (0.89 mm) | 2D 6 mm x 20 cm |
| M001363570 | 0.035” (0.89 mm) | 2D 8 mm x 10 cm |
| M001363580 | 0.035” (0.89 mm) | 2D 8 mm x 20 cm |
| M001363590 | 0.035” (0.89 mm) | 2D 8 mm x 40 cm |
| M001363600 | 0.035” (0.89 mm) | 2D 10 mm x 20 cm |
| M001363610 | 0.035” (0.89 mm) | 2D 10 mm x 40 cm |
| M001363620 | 0.035” (0.89 mm) | 2D 12 mm x 20 cm |
| M001363630 | 0.035” (0.89 mm) | 2D 12 mm x 40 cm |
| M001363640 | 0.035” (0.89 mm) | 2D 15 mm x 20 cm |
| M001363650 | 0.035” (0.89 mm) | 2D 15 mm x 40 cm |
| M001363660 | 0.035” (0.89 mm) | 2D 18 mm x 20 cm |
| M001363670 | 0.035” (0.89 mm) | 2D 18 mm x 40 cm |
| CUBE | ||
| M001363700 | 0.035” (0.89 mm) | Cube 4 mm x 6 cm |
| M001363720 | 0.035” (0.89 mm) | Cube 6 mm x 10 cm |
| M001363730 | 0.035” (0.89 mm) | Cube 6 mm x 20 cm |
| M001363760 | 0.035” (0.89 mm) | Cube 8 mm x 20 cm |
| M001363790 | 0.035” (0.89 mm) | Cube 10 mm x 25 cm |
| M001363800 | 0.035” (0.89 mm) | Cube 10 mm x 40 cm |
| M001363810 | 0.035” (0.89 mm) | Cube 15 mm x 25 cm |
| M001363820 | 0.035” (0.89 mm) | Cube 15 mm x 40 cm |
| M001363830 | 0.035” (0.89 mm) | Cube 20 mm x 40 cm |
| DIAMOND | ||
| M001363910 | 0.035” (0.89 mm) | Diamond 4 mm x 4.5 cm |
| M001363920 | 0.035” (0.89 mm) | Diamond 6 mm x 9 cm |
| M001363930 | 0.035” (0.89 mm) | Diamond 8 mm x 14 cm |
| M001363940 | 0.035” (0.89 mm) | Diamond 10 mm x 21.5 cm |
Interlockᵀᴹ -18 Fibered IDCᵀᴹ Occlusion System
| UPN | Coil Type | Description |
|---|---|---|
| 2D | ||
| M001361500 | 0.018” (0.46 mm) | 2D 3 mm x 6 cm |
| M001361510 | 0.018” (0.46 mm) | 2D 3 mm x 12 cm |
| M001361520 | 0.018” (0.46 mm) | 2D 4 mm x 8 cm |
| M001361530 | 0.018” (0.46 mm) | 2D 4 mm x 15 cm |
| M001361540 | 0.018” (0.46 mm) | 2D 5 mm x 8 cm |
| M001361550 | 0.018” (0.46 mm) | 2D 5 mm x 15 cm |
| M001361560 | 0.018” (0.46 mm) | 2D 6 mm x 10 cm |
| M001361570 | 0.018” (0.46 mm) | 2D 6 mm x 20 cm |
| M001361580 | 0.018” (0.46 mm) | 2D 8 mm x 20 cm |
| M001361590 | 0.018” (0.46 mm) | 2D 10 mm x 20 cm |
| M001361600 | 0.018” (0.46 mm) | 2D 10 mm x 30 cm |
| M001361610 | 0.018” (0.46 mm) | 2D 12 mm x 20 cm |
| M001361620 | 0.018” (0.46 mm) | 2D 12 mm x 30 cm |
| M001361630 | 0.018” (0.46 mm) | 2D 14 mm x 20 cm |
| M001361640 | 0.018” (0.46 mm) | 2D 14 mm x 30 cm |
| DIAMOND | ||
| M001361740 | 0.018” (0.46 mm) | Diamond 2/3 mm x 2.3 cm |
| M001361750 | 0.018” (0.46 mm) | Diamond 2/4 mm x 4.1 cm |
| M001361760 | 0.018” (0.46 mm) | Diamond 2/5 mm x 5.8 cm |
| M001361770 | 0.018” (0.46 mm) | Diamond 2/6 mm x 8.0 cm |
