ICEFX™: Cryoablation Needles

Cryoablation Needles

Image-guided cryoablation needles used with CT systems enable cryoablation visualization for optimal tumor coverage and improved CT artifact.

Sign-Up for Product Updates

Explore

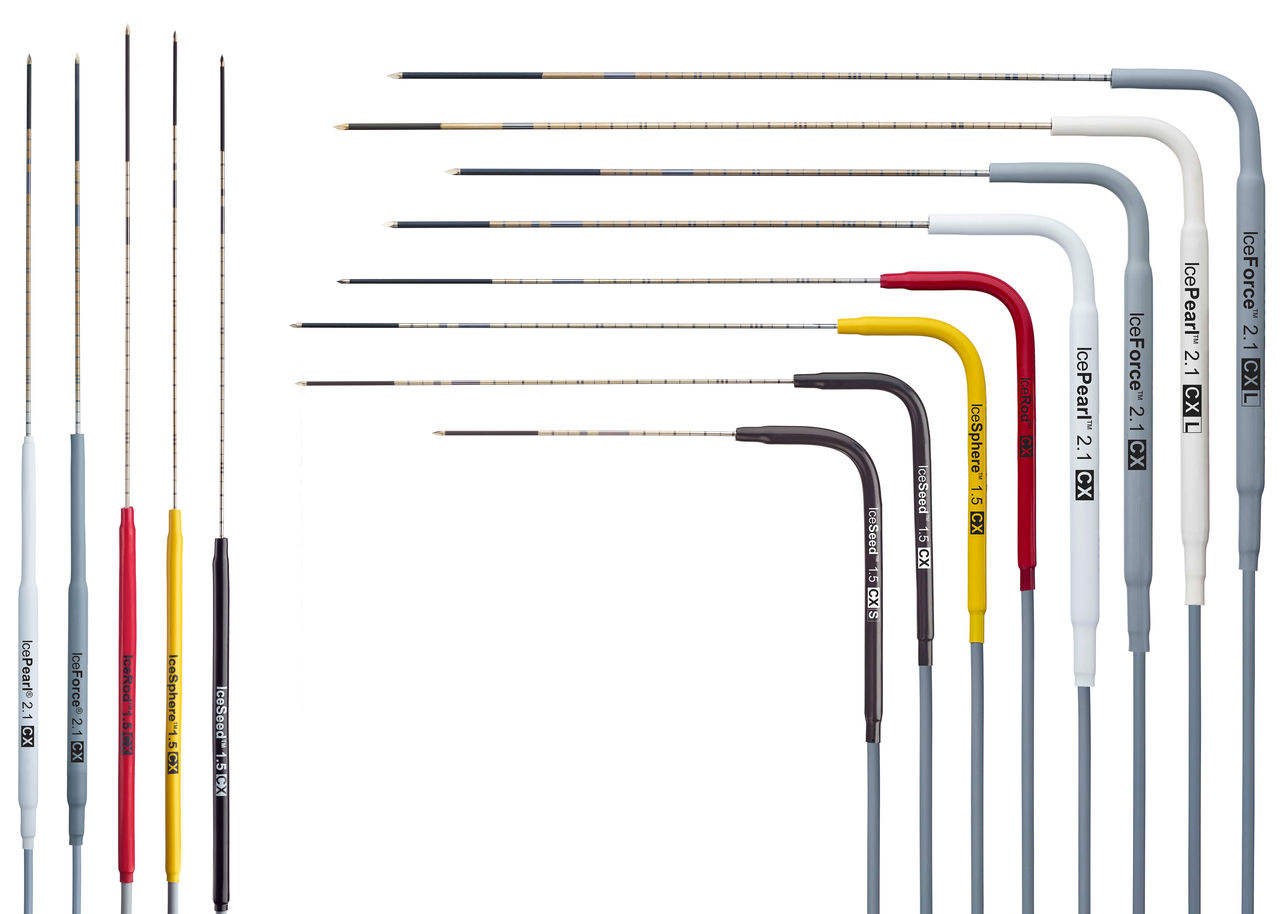

Image-Guided Cryoablation Needles

Used with CT systems, image-guided cryoablation needles enable cryoablation visualization for optimal tumor coverage and improved CT artifact. CX needles also have helium-free thaw options, and a cautery function which allows for track ablation to be performed, creating a uniform zone of coagulative necrosis.


Classic Needle Details

Classic Image-Guided Needles

  • Straight or angled 90° needle configurations in a choice of lengths and diameters
  • Three-facet sharp needle tip of easy percutaneous insertion and control
  • Accurate shaft distance markers to optimize needle placement
  • Lightweight handles to minimize torque on inserted needles, with color-coding for ease of identification
  • Unibody closed-tube design which minimizes risk of gas leakage vs welded tip designs
Needle  Order Reference Shaft Length (cm) Gauge (G)
IceSeed™ 1.5 straight H7493962232010 17.5 17
IceSeed™ 1.5 90° H7493962332020 17.5 17
IceRod™ 1.5 I-Thaw™ straight H7493964940090 17.5 17


CX Needle Details

CX Image-Guided Cryoablation Needles

CX needles have all the benefits of Classic needles, along with:

  • An integral heater to offer:
    • Cautery function for track ablation
    • Helium-free thaw options (i-Thaw™ and FastThaw™)
  • Non-stick coating on distal shaft for ease of needle manoeuvrability and removal
Needle  Order Reference Shaft Length (cm) Gauge (G) Track Ablation Radial Width/Length
1.5 Family
IceSphere™ 1.5 CX 90° H7493961535730 17.5 17 2.1-2.5mm / 14mm
IceRod™ 1.5 CX 90° H7493961435330 17.5 17 2.3mm / 30mm
2.1 Family
IceForce™ 2.1 CX straight H7493961936040 17.5 14 2.5mm / 29mm
IceForce™ 2.1 CX 90° H7493961736020 17.5 14 2.5mm / 29mm
IceForce™ 2.1 CX L 90° H7493962136180 23.0 14 2.5mm / 29mm
IcePearl™ 2.1 CX straight H7493961836030 17.5 14 2.1mm / 13mm
IcePearl™ 2.1 CX 90° H7493961636010 17.5 14 2.1mm / 13mm
IcePearl™ 2.1 CX L 90° H7493962036170 23.0 14 2.1mm / 13mm
CAUTION: The law restricts these devices to sale by or on the order of a physician. Indications, contraindications, warnings and instructions for use can be found in the product labelling supplied with each device. Products shown for INFORMATION purposes only and may not be approved or for sale in certain countries. This material not intended for use in France. 2020 Copyright © Boston Scientific Corporation or its affiliates. All rights reserved. 93-204
