The EKOS™ Endovascular System is the most studied device in the pulmonary embolism space

The HI-PEITHO Study

EKOS™ Endovascular System PE Clinical Studies


HI-PEITHO is the first large-scale randomized trial designed to close critical gaps in pulmonary embolism (PE) care. It studies whether combining EKOS™ catheter-based ultrasound-assisted thrombolysis with anticoagulation (AC) improves patient outcomes compared to the current standard of care - AC alone.

It is designed to generate the most rigorous, highest level of data, contributing to the body of evidence for the treatment and outcomes in acute intermediate-high risk PE.

Filename
PI-1099101-AA-HI-PEITHO-study-summary-EMEA-FINAL.pdf
Size
376 KB
Format
application/pdf
Download the Boston Scientific study summary

Trial overview

  • Large-scale, randomized controlled multi-center and prospective trial in the US and Europe, comparing the EKOS™ treatment vs. the current standard of care: systemic AC.
  • 544 patients with acute intermediate-high risk PE.
  • Across 72 hospitals in US and Europe.
  • The study is designed to detect a 15% vs. 5% difference in primary endpoint event rates.
  • Primary outcome: composite of PE-related death, cardiorespiratory decompensation or collapse, and non-fatal symptomatic and objectively confirmed recurrence of PE.
  • 18 additional secondary endpoints to be assessed.

Patients

  • Enrollment: 544 participants
  • Acute intermediate high-risk PE
  • ​RV/LV > 1.0, elevated troponin and risk of early death/hemodynamic collapse​

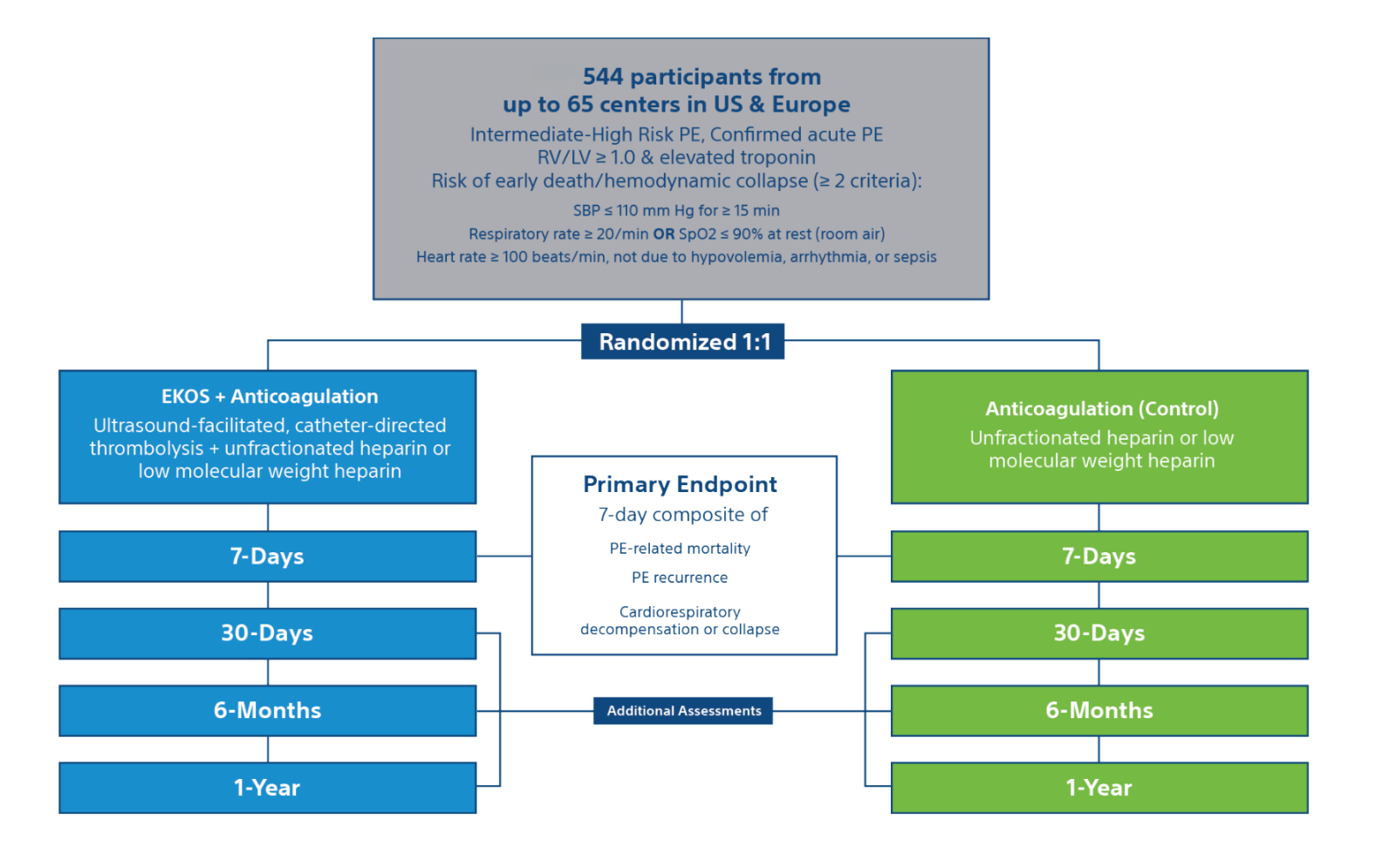

Trial design

icon-ekos-dissolution

544 patients
Across 72 hospitals

icon-ekos-target

Targeted risk group
Intermediate-high risk PE

icon-people

Meaningful outcomes
Real clinical data

Filename
Size
628 KB
Format
image/jpeg
Download the trial design flowchart

Trial end points & assessments

End Points

7-day composite of:

  • PE-related mortality
  • PE recurrence (non-fatal symptomatic and objectively confirmed)
  • Cardiorespiratory decompensation or collapse

Cardiorespiratory decompensation or collapse, defined as at least one of the following:

  • Cardiac arrest or need for CPR​
  • Signs of shock: new onset arterial hypotension with end-organ hypoperfusion​
  • ECMO placement
  • ​Intubation or noninvasive mechanical ventilation​
  • National Early Warning Score (NEWS) of 9 or higher

Long term follow-up
Additional follow-ups at 30-days, 6 months, and 1-year

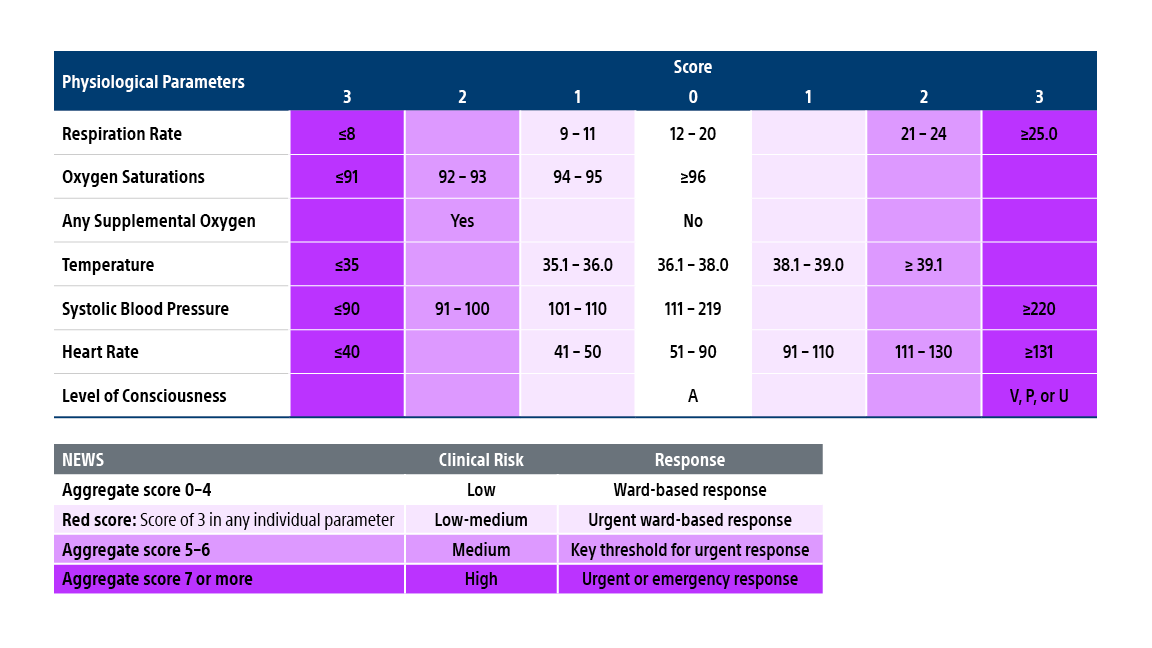

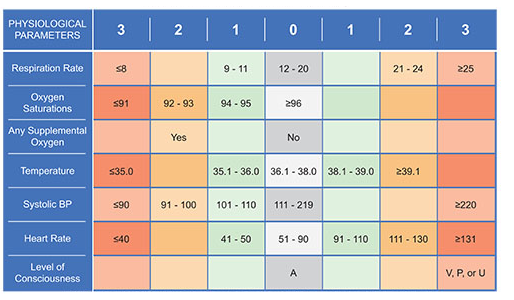

National early warning score (NEWS)

The NEWS is an early warning system score for clinical deterioration in hospitalised patients – it standardises the assessment of acute-illness severity.

The score aims to objectify how the patient is doing at the bedside.

The NEWS is based on an aggregate scoring system based on physiological measurements – respiration rate, oxygen saturations, supplemental oxygen need, temperature, systolic blood pressure, heart rate, and level of consciousness.

Reproduced from: Royal College of Physicians. National Early Warning Score (NEWS): Standardising the assessment of acute-illness severity in the NHS. Report of a working party. London: RCP, 2012

Physiological ParametersScore 3Score 2Score 1Score 0Score 1 (2nd)Score 2 (2nd)Score 3 (2nd)
Respiration Rate≤8-9 - 1113 - 20-21 - 24≥25
Oxygen Saturations≤9192 - 9394 - 95≥96---
Any Supplemental Oxygen-Yes-No---
Temperature (°C)≤35.0-35.1 - 36.036.1 - 38.038.1 - 39.0≥39.1-
Systolic BP (mmHg)≤9091 - 100101 - 110111 - 219--≥220
Heart Rate (bpm)≤40-41 - 5051 - 9091 - 110111 - 130≥131
Level of Consciousness---A--V, P, or U
Filename
Parameters NEWS-514x300pix.jpg
Size
102 KB
Format
image/jpeg
Download the NEWS score
  • Individual primary outcome components
  • GUSTO major (moderate and severe) bleeding within 7 days
  • International Society on Thrombosis and Haemostasis (ISTH) major bleeding
  • Ischemic or hemorrhagic stroke within 7 days and 30 days
  • All-cause mortality
  • Symptomatic PE recurrence within 30 days and 6 months
  • Change from baseline in RV dysfunction on echocardiography at 6 months
  • Chronic thromboembolic pulmonary hypertension (CTEPH) diagnosis within 12 months
  • Health economic assessments
  • Functional status and quality of life measures
  • Cardiopulmonary Exercise Testing (CPET) at select sites

Trial bibliography

Underway HI-PEITHO: The HI-PEITHO study has been designed to address a critical gap in clinical evidence in PE by comparing the clinical benefit of intervention with EKOS™ vs. the current standard of care – anticoagulation.

Principal Investigators: Ken Rosenfeld, M.D., Section Head, Vascular Medecine and Intervention, Division of Cardiology, Mass General Hospital, Boston, Massachussets ; Stavros Konstantinidis, M.D. Ph.D. FESC, FRCP (Glasgow), Professor, Clinical Trials, and Medical Director (CTH), Johannes Gutenberg University, Mainz.

Caution:
The law restricts these devices to sale by or on the order of a physician. Indications, contraindications, warnings, and instructions for use can be found in the product labelling supplied with each device or at www.IFU-BSCI.com. Products shown for INFORMATION purposes only and may not be approved or for sale in certain countries. This material not intended for use in France.
