Unlike thermal cardiac ablation methods, pulsed field ablation (PFA) therapy uses short bursts of electrical pulses to treat atrial fibrillation (AFib). The goal of PFA therapy is to isolate and target specific characteristics of cardiac tissue for irreversible electroporation (IRE), inducing cell death and durable lesions using a non-thermal energy source.

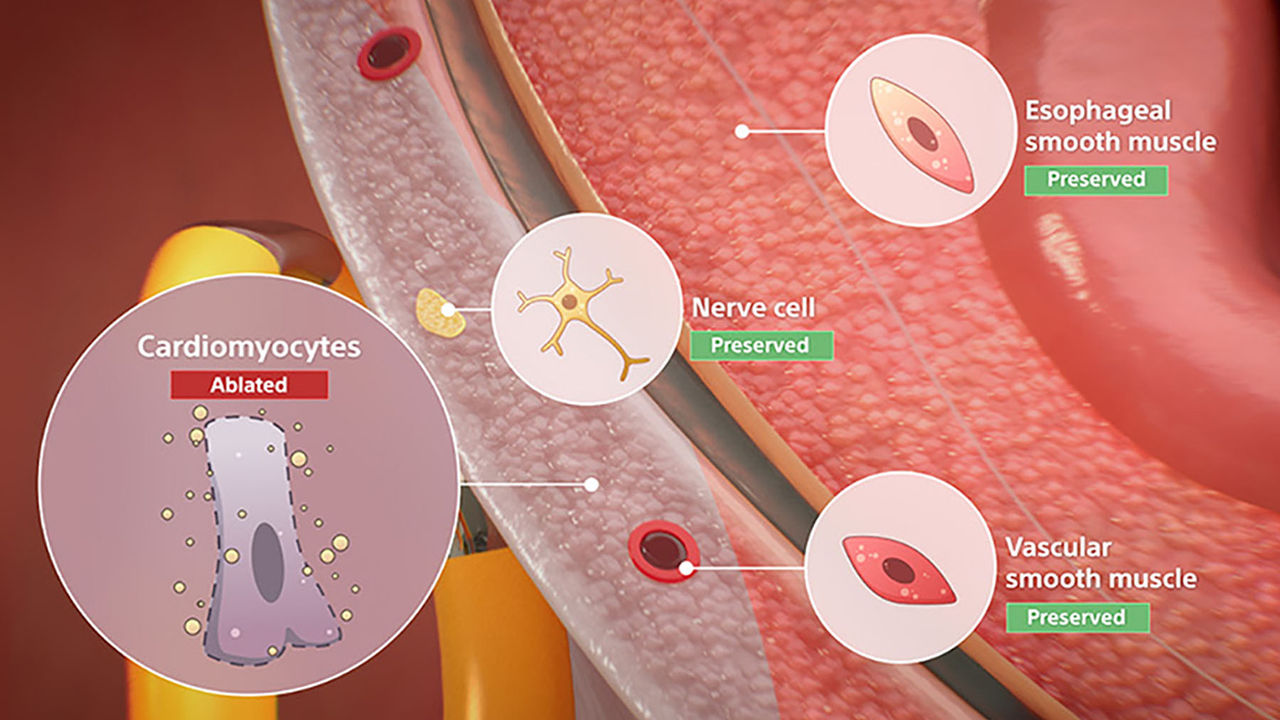

PFA preferentially ablates cardiac cells due to the lower damage threshold for cardiomyocytes, minimising the risk of collateral injury to adjacent structures. While cardiomyocytes are more susceptible to PFA, other tissue and cell types are more resistant and can remain uninjured despite exposure to the field.

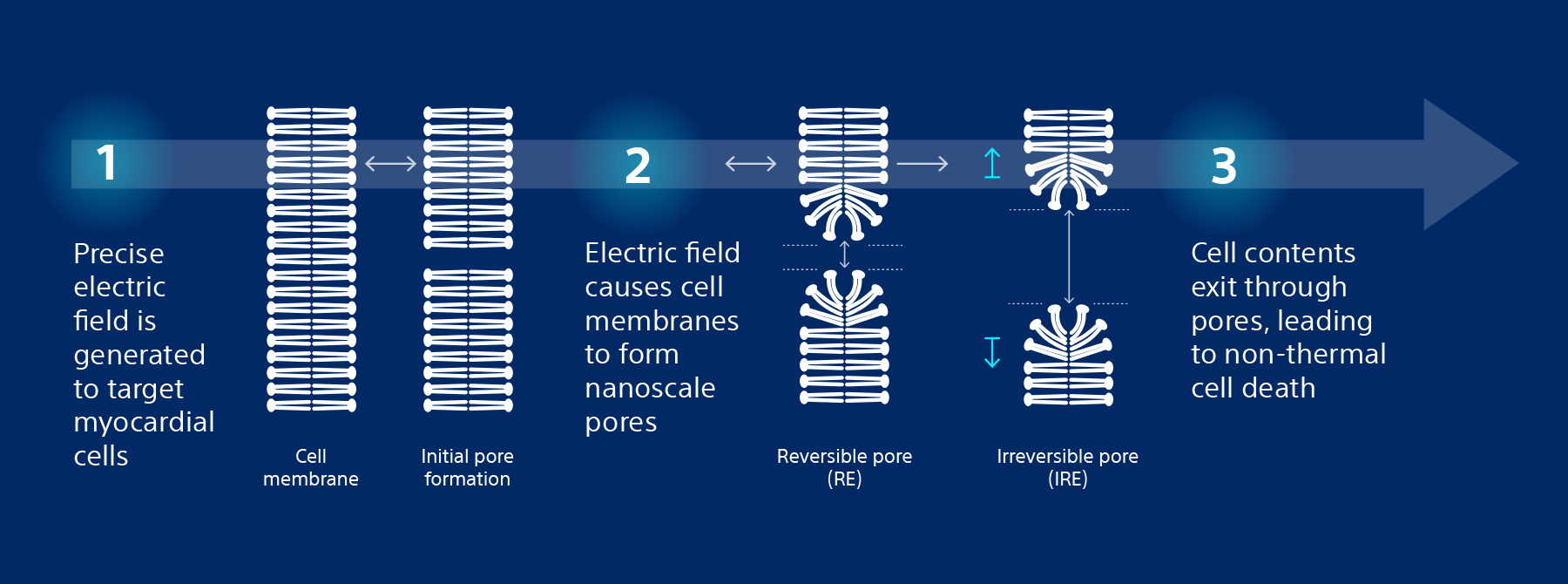

Unlike thermal ablation that causes cell death by local tissue temperature change, PFA applies ultra-rapid electrical pulses above a tissue cell’s specific electrical threshold, destabilising the cell membrane and forming nanoscale pores, resulting in cell death.
Reversible electroporation can occur if pores are not large or durable enough to cause permanent cell death, but could show immediate loss of intracardiac electrograms. This could be perceived as acute isolation through cardiac stunning without achieving the irreversible electroporation needed for durable lesions.

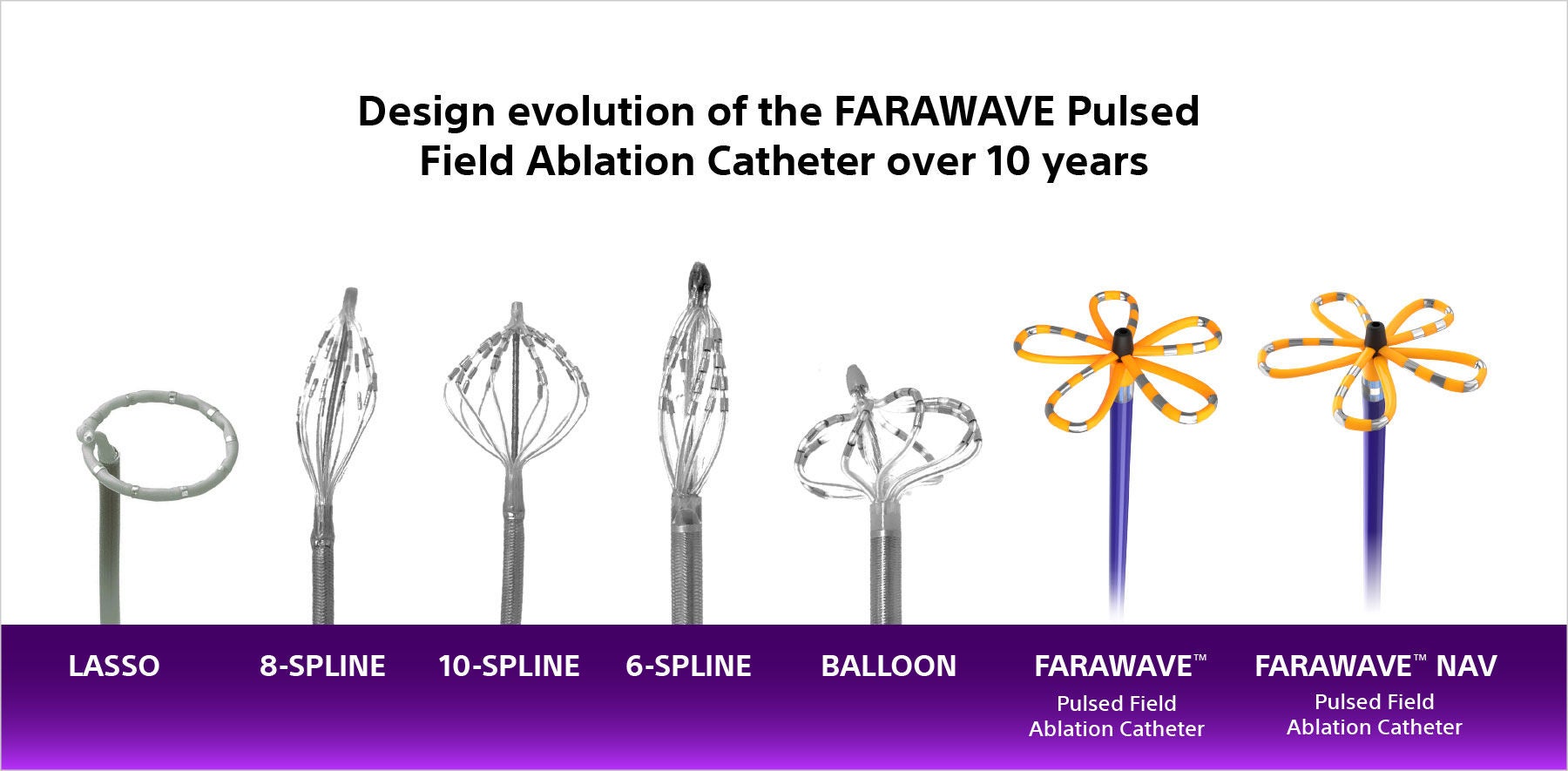

The 5-spline FARAWAVE™ Pulsed Field Ablation Catheter is the optimal shape to achieve catheter placement in a range of pulmonary vein (PV) anatomies and address PFA energy delivery needs. No other design test demonstrated the same maneuverability, variable distal shape tips or circumference ablation capabilities, all without the need to manually manage electrode activation.
Biophysics Part 1: Learn about the tissue-selectivity of PFA and the development of the FARAWAVE PFA Catheter, emphasising the iterative design process and preclinical evaluations.
Biophysics Part 2: Explore the comparative advantages of the FARAWAVE PFA Catheter, highlighting ease of use, safety benefits, reduced procedural risks and improved patient outcomes.

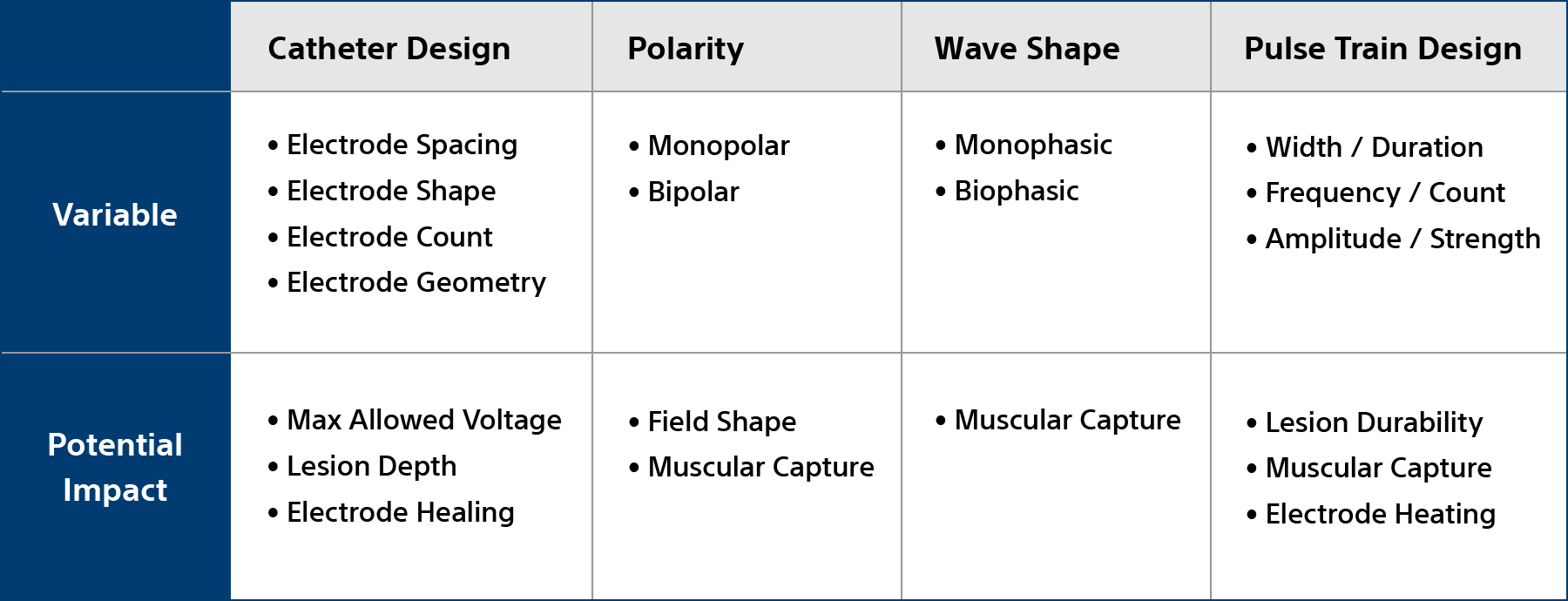

Optimising PFA delivery involves numerous elements of catheter and waveform design in order to create a field of effect for irreversible electroporation (IRE) without causing unwanted artifacts. The extensive FARAWAVE PFA Catheter development timeline in both the pre-clinical and clinical stages drove to balance these factors into the waveform that has now been used in so many patients across the globe.

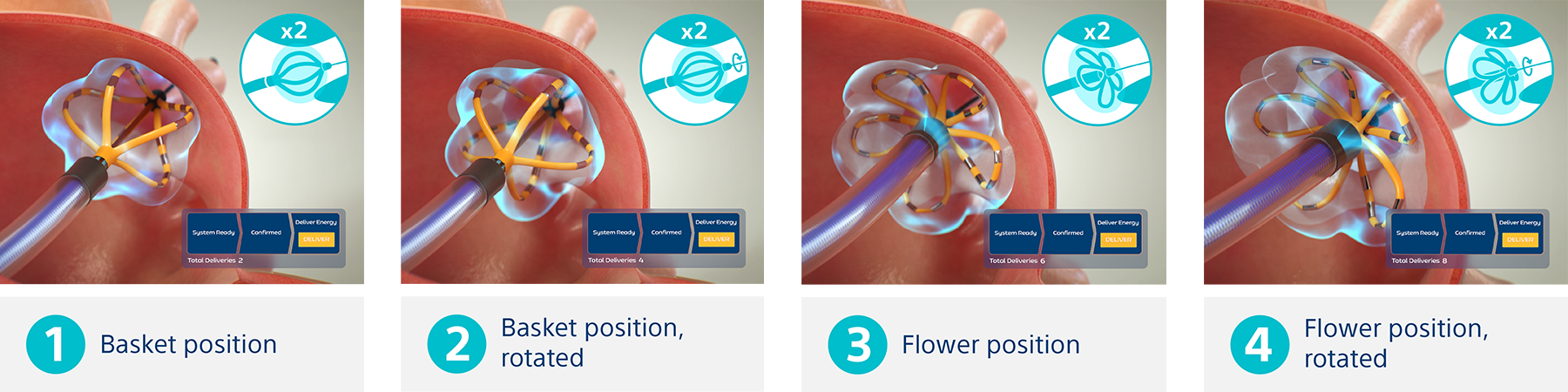

The FARAPULSE dosing protocol is simple yet effective in delivering durable lesions across the PV antrum and ostium. Each vein is preferentially ablated via eight 2.5-second applications utilising both distal shapes in a prescribed series.
Brendan Koop, PhD, details the biophysics and development needs for electroporation optimised for the ablation of cardiomyocytes. This overview explains the development of a catheter for simplified positioning, the waveform for reduced potential of unwanted artifact, and therapeutic dosing for optimised and confident effect.
CONTINUE LEARNING

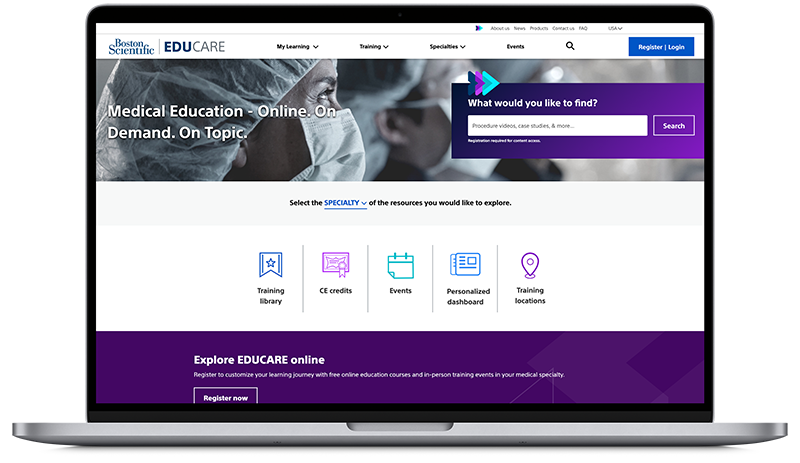

Discover training sessions and interactive learning on the EDUCARE training platform to enhance your knowledge of FARAPULSE and PFA therapy.
EXAMINE THE EVIDENCE
With more published clinical evidence than any other PFA platform, FARAPULSE is dedicated to transforming the treatment of AFib.
References:
1. Reddy VY, Neuzil P, Koruth JS, et al. Pulsed field ablation for pulmonary vein isolation in atrial fibrillation. J Am Coll Cardiol. 2019 Jul 23;74(3):315-26.
2. Kotnik T, Kramar P, Pucihar G, et al. Cell membrane electroporation-Part 1: The phenomenon. IEEE Electrical Insulation. 2012;28(5):14-23.
