PROMUS Element™ Plus BTK
Everolimus-Eluting Platinum Chromium Stent System
The PROMUS Element Plus Stent System establishes a new standard of drug-eluting stent performance with the combination of its highly visible Platinum Chromium alloy and innovative stent design for a superior compression resistance together with the market-leading Everolimus drug.
Explore
Product Details

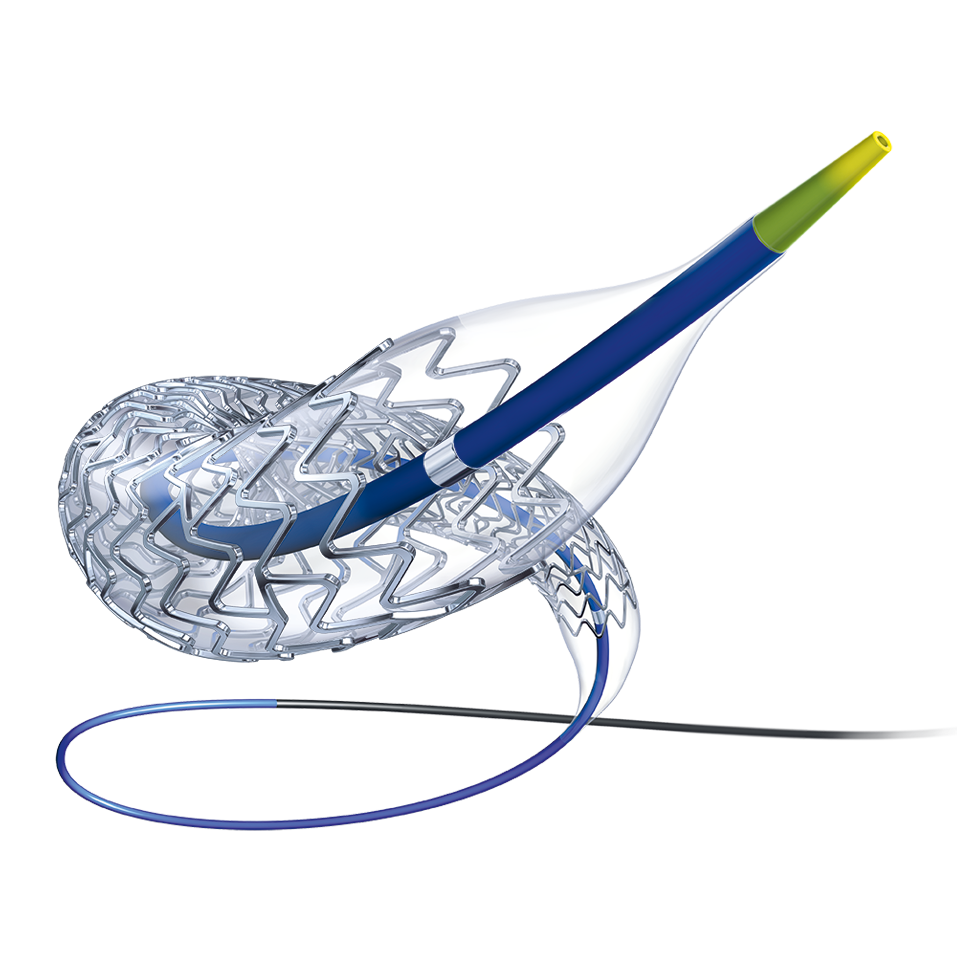

PROMUS Element™ Plus BTK Stent Delivery System

Meet all clinical needs
Focal Resistant Lesions
When blood flow is limited by a focal lesion and PTA is not sufficient to establish good patency due to calcium or vessel recoil
Restenotic Lesions
To treat flow-limiting restenosis consequent to PTA or BMS procedures
Short Dissections
When a dissection occurs immediately after PTA
Discover superior performance
Visibility
Platinum Chromium
- More than twice compression resistance of Cobalt Chromium stents
- 40% less recoil than Cobalt-Chromium
- Exceptional visibility and radiopacity
Efficacy
The Everolimus Drug & Fluorinated Copolymer
- Exceptional efficacy
- Long-term safety
- Proven performance in over 1800 patients in Coronary PROMUS Platinum clinical program
Deliverability
Stent Architecture and Delivery System
- Better conformability to deliver drug into irregular and calcified plaques
- Bi-Segment™ Inner Shaft to optimize pushability and trackability
- Both Over-The-Wire and Monorail to match physicians’ technique preferences
Ordering Information
Stent Diameter mm | Stent Length mm | Cath usable Length cm | Balloon nominal pressure ATM kPa | Balloon rated burst pressure ATM kPa | Guide Catheter compatibility F mm | Recommended Guide Sheat F mm | Catheter Outer Diameter F mm | Guidewire compatibility in mm | Crossing profile in mm | |
---|---|---|---|---|---|---|---|---|---|---|
H749 39215221210 | 2.25 | 12 | 144 | 11 / 1117 | 18 / 1827 | 5 / 1.42 | 4 / 1.5 | 2.3-2.7¹ / 0.80-0.95¹ | 0.014 / 0.36 | 0.040 / 1.02 |
H749 39215251210 | 2.50 | 12 | 144 | 11 / 1117 | 18 / 1827 | 5 / 1.42 | 4 / 1.5 | 2.3-2.7¹ / 0.80-0.95¹ | 0.014 / 0.36 | 0.040 / 1.02 |
H749 39215301210 | 3.0 | 12 | 144 | 11 / 1117 | 16 / 1620 | 5 / 1.42 | 4 / 1.5 | 2.3-2.7¹ / 0.80-0.95¹ | 0.014 / 0.36 | 0.040 / 1.02 |
H749 39215351210 | 3.50 | 12 | 144 | 11 / 1117 | 16 / 1620 | 5 / 1.42 | 4 / 1.5 | 2.3-2.7¹ / 0.80-0.95¹ | 0.014 / 0.36 | 0.040 / 1.02 |
H749 39215401210 | 4.00 | 12 | 144 | 11 / 1117 | 16 / 1620 | 5 / 1.42 | 4 / 1.5 | 2.3-2.7¹ / 0.80-0.95¹ | 0.014 / 0.36 | 0.040/ 1.02 |
H749 39215222010 | 2.25 | 20 | 144 | 11 / 1117 | 18 / 1827 | 5 / 1.42 | 4 / 1.5 | 2.3-2.7¹ / 0.80-0.95¹ | 0.014 / 0.36 | 0.040 / 1.02 |
H749 39215252010 | 2.50 | 20 | 144 | 11 / 1117 | 18 / 1827 | 5 / 1.42 | 4 / 1.5 | 2.3-2.7¹ / 0.80-0.95¹ | 0.014 / 0.36 | 0.040 / 1.02 |
H749 39215302010 | 3.0 | 20 | 144 | 11 / 1117 | 16 / 1620 | 5 / 1.42 | 4 / 1.5 | 2.3-2.7¹ / 0.80-0.95¹ | 0.014 / 0.36 | 0.040 / 1.02 |
H749 39215352010 | 3.50 | 20 | 144 | 11 / 1117 | 16 / 1620 | 5 / 1.42 | 4 / 1.5 | 2.3-2.7¹ / 0.80-0.95¹ | 0.014 / 0.36 | 0.040 / 1.02 |
H749 39215402010 | 4.00 | 20 | 144 | 11 / 1117 | 16 / 1620 | 5 / 1.42 | 4 / 1.5 | 2.3-2.7¹ / 0.80-0.95¹ | 0.014 / 0.36 | 0.040 / 1.02 |
H749 39215222810 | 2.25 | 28 | 144 | 11 / 1117 | 18 / 1827 | 5 / 1.42 | 4 / 1.5 | 2.3-2.7¹ / 0.80-0.95¹ | 0.014 / 0.36 | 0.040 / 1.02 |
H749 392152528102.50 | 2.50 | 28 | 144 | 11 / 1117 | 18 / 1827 | 5 / 1.42 | 4 / 1.5 | 2.3-2.7¹ / 0.80-0.95¹ | 0.014 / 0.36 | 0.040 / 1.02 |
H749 39215302810 | 3.0 | 28 | 144 | 11 / 1117 | 16 / 1620 | 5 / 1.42 | 4 / 1.5 | 2.3-2.7¹ / 0.80-0.95¹ | 0.014 / 0.36 | 0.040 / 1.02 |
H749 39215352810 | 3.50 | 28 | 144 | 11 / 1117 | 16 / 1620 | 5 / 1.42 | 4 / 1.5 | 2.3-2.7¹ / 0.80-0.95¹ | 0.014 / 0.36 | 0.040 / 1.02 |
H749 39215402810 | 4.00 | 28 | 144 | 11 / 1117 | 16 / 1620 | 5 / 1.42 | 4 / 1.5 | 2.3-2.7¹ / 0.80-0.95¹ | 0.014 / 0.36 | 0.040 / 1.02 |
H749 39215253810 | 2.50 | 38 | 144 | 11 / 1117 | 18 / 1827 | 5 / 1.42 | 4 / 1.5 | 2.3-2.7¹ / 0.80-0.95¹ | 0.014 / 0.36 | 0.040 / 1.02 |
H749 39215303810 | 3.0 | 38 | 144 | 11 / 1117 | 16 / 1620 | 5 / 1.42 | 4 / 1.5 | 2.3-2.7¹ / 0.80-0.95¹ | 0.014 / 0.36 | 0.040 / 1.02 |
H749 39215353810 | 3.50 | 38 | 144 | 11 / 1117 | 16 / 1620 | 5 / 1.42 | 4 / 1.5 | 2.3-2.7¹ / 0.80-0.95¹ | 0.014 / 0.36 | 0.040 / 1.02 |
H749 39215403810 | 4.00 | 38 | 144 | 11 / 1117 | 16 / 1620 | 5 / 1.42 | 4 / 1.5 | 2.3-2.7¹ / 0.80-0.95¹ | 0.014 / 0.36 | 0.040 / 1.02 |
Stent Diameter mm | Stent Length mm | Cath usable Length cm | Balloon nominal pressure ATM kPa | Balloon rated burst pressure ATM kPa | Guide Catheter compability F mm | Recommended Guide Sheat F mm | Catheter Outer Diameter F mm | Guidewire compability in mm | Crossing profile in mm | |
---|---|---|---|---|---|---|---|---|---|---|
H749 39227221210 | 2.25 | 12 | 144 | 11 / 1117 | 18 / 1827 | 6 / 1.68 | 5 / 1.93 | 3.4-2.4² / 1.20-0.85² | 0.014 / 0.36 | 0.040 / 1.02 |
H749 39227251210 | 2.50 | 12 | 144 | 11 / 1117 | 18 / 1827 | 6 / 1.68 | 5 / 1.93 | 3.4-2.4² / 1.20-0.85² | 0.014 / 0.36 | 0.040 / 1.02 |
H749 39227301210 | 3.0 | 12 | 144 | 11 / 1117 | 16 / 1620 | 6 / 1.68 | 5 / 1.93 | 3.4-2.7³ / 1.20-0.95³ | 0.014 / 0.36 | 0.040 / 1.02 |
H749 39227351210 | 3.50 | 12 | 144 | 11 / 1117 | 16 / 1620 | 6 / 1.68 | 5 / 1.93 | 3.4-2.7³ / 1.20-0.95³ | 0.014 / 0.36 | 0.040 / 1.02 |
H749 39227401210 | 4.00 | 12 | 144 | 11 / 1117 | 16 / 1620 | 6 / 1.68 | 5 / 1.93 | 3.4-2.7³ / 1.20-0.95³ | 0.014 / 0.36 | 0.040 / 1.02 |
H749 39227222010 | 2.25 | 20 | 144 | 11 / 1117 | 18 / 1827 | 6 / 1.68 | 5 / 1.93 | 3.4-2.4² / 1.20-0.85² | 0.014 / 0.36 | 0.040 / 1.02 |
H749 39227252010 | 2.50 | 20 | 144 | 11 / 1117 | 18 / 1827 | 6 / 1.68 | 5 / 1.93 | 3.4-2.4² / 1.20-0.85² | 0.014 / 0.36 | 0.040 / 1.02 |
H749 39227302010 | 3.0 | 20 | 144 | 11 / 1117 | 16 / 1620 | 6 / 1.68 | 5 / 1.93 | 3.4-2.7³ / 1.20-0.95³ | 0.014 / 0.36 | 0.040 / 1.02 |
H749 39227352010 | 3.50 | 20 | 144 | 11 / 1117 | 16 / 1620 | 6 / 1.68 | 5 / 1.93 | 3.4-2.7³ / 1.20-0.95³ | 0.014 / 0.36 | 0.040 / 1.02 |
H749 39227402010 | 4.00 | 20 | 144 | 11 / 1117 | 16 / 1620 | 6 / 1.68 | 5 / 1.93 | 3.4-2.4² / 1.20-0.85² | 0.014 / 0.36 | 0.040 / 1.02 |
H749 39227222810 | 2.25 | 28 | 144 | 11 / 1117 | 18 / 1827 | 6 / 1.68 | 5 / 1.93 | 3.4-2.4² / 1.20-0.85² | 0.014 / 0.36 | 0.040 / 1.02 |
H749 39227252810 | 2.50 | 28 | 144 | 11 / 1117 | 18 / 1827 | 6 / 1.68 | 5 / 1.93 | 3.4-2.4² / 1.20-0.85² | 0.014 / 0.36 | 0.040 / 1.02 |
H749 39227302810 | 3.0 | 28 | 144 | 11 / 1117 | 16 / 1620 | 6 / 1.68 | 5 / 1.93 | 3.4-2.7³ / 1.20-0.95³ | 0.014 / 0.36 | 0.040 / 1.02 |
H749 39227352810 | 3.50 | 28 | 144 | 11 / 1117 | 16 / 1620 | 6 / 1.68 | 5 / 1.93 | 3.4-2.7³ / 1.20-0.95³ | 0.014 / 0.36 | 0.040 / 1.02 |
H749 39227402810 | 4.00 | 28 | 144 | 11 / 1117 | 16 / 1620 | 6 / 1.68 | 5 / 1.93 | 3.4-2.7³ / 1.20-0.95³ | 0.014 / 0.36 | 0.040 / 1.02 |
H749 39227253810 | 2.50 | 38 | 144 | 11 / 1117 | 18 / 1827 | 6 / 1.68 | 5 / 1.93 | 3.4-2.4² / 1.20-0.85² | 0.014 / 0.36 | 0.040 / 1.02 |
H749 39227303810 | 3.0 | 38 | 144 | 11 / 1117 | 16 / 1620 | 6 / 1.68 | 5 / 1.93 | 3.4-2.4² / 1.20-0.85* | 0.014 / 0.36 | 0.040 / 1.02 |
H749 39227353810 | 3.50 | 38 | 144 | 11 / 1117 | 16 / 1620 | 6 / 1.68 | 5 / 1.93 | 3.4-2.7³ / 1.20-0.95³ | 0.014 / 0.36 | 0.040 / 1.02 |
H749 39227403810 | 4.00 | 38 | 144 | 11 / 1117 | 16 / 1620 | 6 / 1.68 | 5 / 1.93 | 3.4-2.7³ / 1.20-0.95³ | 0.014 / 0.36 | 0.040 / 1.0 |
