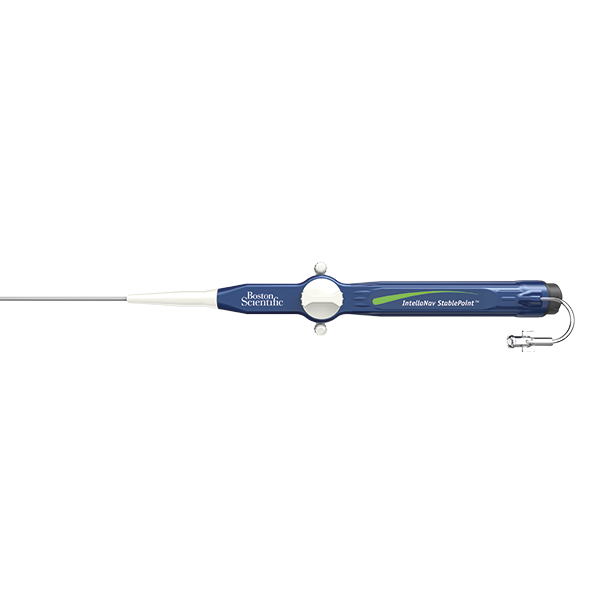

INTELLANAV STABLEPOINT™

Ablation Catheter

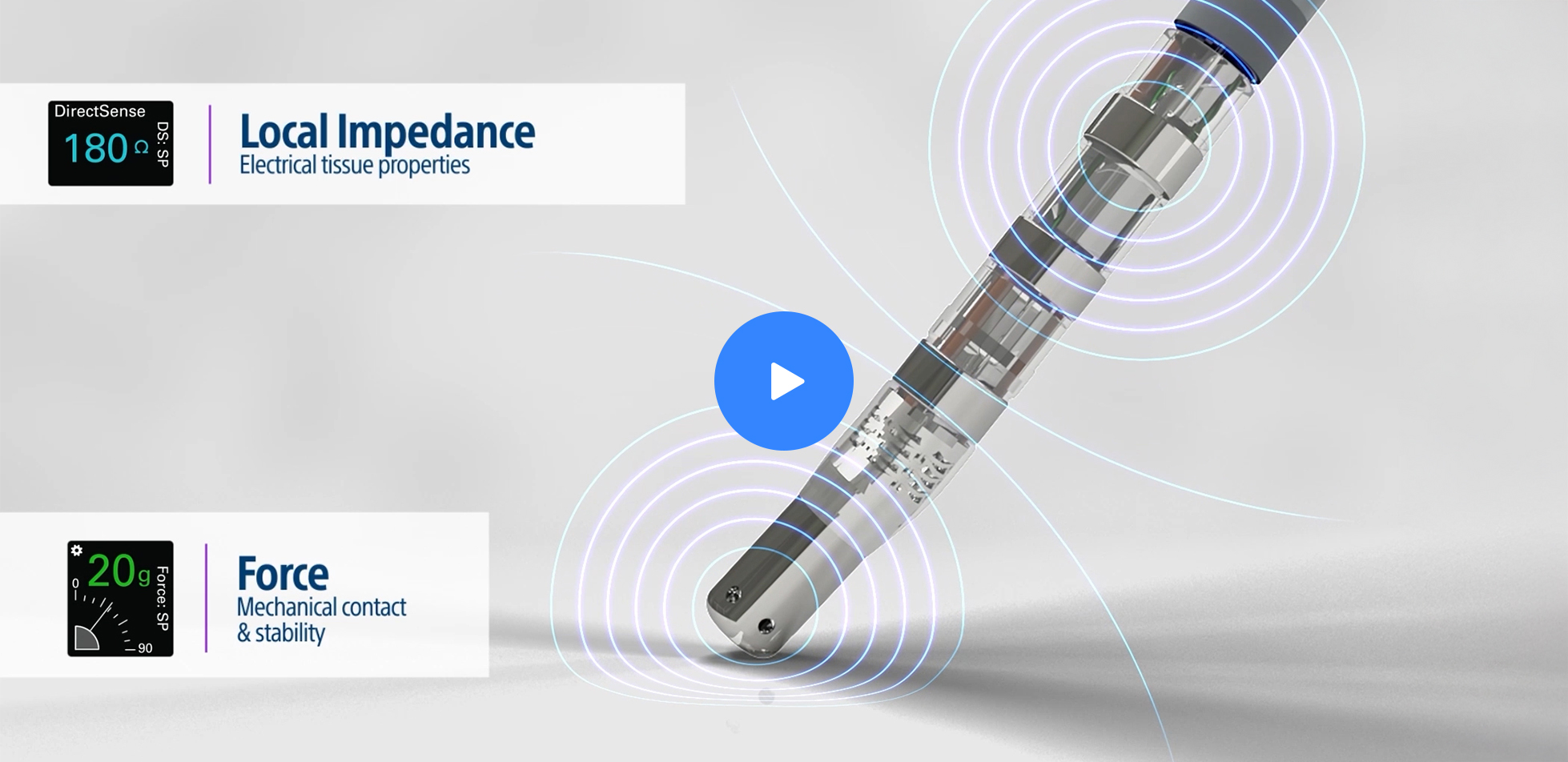

INTELLANAV STABLEPOINT™ Ablation Catheter, enabled with DIRECTSENSE™ Technology, combines the power of contact force and local impedance to give you dynamic insights at and below the cardiac tissue surface. Unlike any other technology, this integrated solution, available exclusively via RHYTHMIA HDx™, enables you to diagnose, ablate, and validate with more critical information than ever before.

Key Resources

INTELLANAV STABLEPOINT™ Ablation Catheter

Ordering Information

INTELLANAV STABLEPOINT™

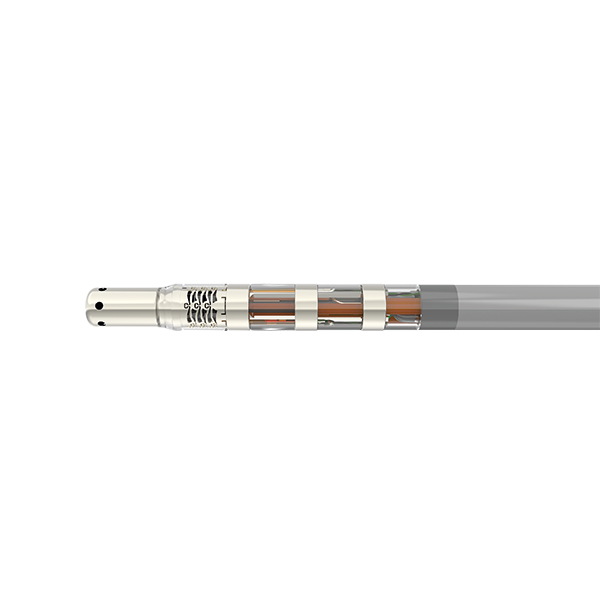

Electrode information: Quadripolar
Electrode spacing: 4 - 2.5 - 2.5mm
Model Number Shaft Size Tip Size Curve Style Shaft Length

M004 ERFSDS9620 0

7.5 F 7F / 4mm Standard 110cm

M004 ERFSDS9620K2 0

7.5 F 7F / 4mm Large 110cm
Compatible Sheath: ≥ 8.5F

RHYTHMIA HDx™ SYSTEM
Model Number Description
M004 RARC03 0 INTELLANAV STABLEPOINT Catheter Cable 200 cm (6.6. Ft)
M004 RA6301 0 INTELLANAV STABLEPOINT Connection Box - MAESTRO
M004 117 0 METRIQ™ Irrigation Tubing Set
M004 4100 0 METRIQ™ Irrigation Pump
M004 4000 0 MAESTRO 4000™ Controller
M004 EPT4010 0 MAESTRO 4000™ Pod, 150 W
Only compatible with MAESTRO 4000 Controller & METRIQ Irrigation Pump
