Expect™ Slimline (SL)
Endoscopic Ultrasound Aspiration Needle
The Expect Slimline (SL) Needle is an EUS-FNA needle that is indicated for four diagnostic and therapeutic indications, providing physicians with clinical options to manage their patients.
Key Resources
Explore
Product Details
The Expect Slimline (SL) Needle is an EUS-FNA needle that is indicated for four diagnostic and therapeutic indications, providing physicians with clinical options to manage their patients.
The Expect Slimline (SL) Needle is designed to sample targeted submucosal and extramural gastrointestinal lesions through the accessory channel of a curvilinear echoendoscope. It can also be used for the delivery of injectable materials (fluids) or fiducials into tissue or for passage of accessory devices.
Compatible with New Fiducial Markers: The Expect Slimline (SL) 22ga EUS Needle is compatible with the new LumiCoilTM Platinum Fiducial Markers, which feature platinum construction designed for clear visibility in CT, X-Ray, EUS, CBCT, and MRI procedures.* Two loading options are available for the straight marker configuration based on preference; through the needle tip or through the needle’s luer**.

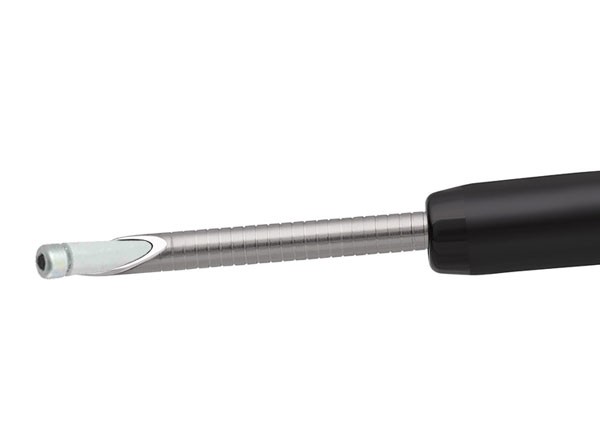

Sharp needle grind: For precise targeting and sampling
Cobalt-Chromium construction***: Provides benefits over some stainless steel alloys including greater needle hardness and excellent tensile properties to deliver:1****
- Superior needle penetration1
- Improved pushability and kink resistance1
- Increased resistance to needle damage or deformation after multiple passes1
Echogenic pattern extends onto needle tip:
- Provides precise guidance within the target site
- Helps maintain tip visibility at all times
Stylet cap with integrated clip
- Keeps stylet safely contained
Custom sheath sizes
- Designed to improve passability
Control ZONE™ and Lubricomp Polymer
- Two ergonomically defined areas designed to optimize control during actuation
The Expect Slimline (SL) 19ga Flexible EUS-FNA Needle is compatible with the Mauna Kea Technologies Cellvizio AQ-Flex™ 19 Confocal Miniprobes™ accessory device to perform optical biopsy procedures. Learn more about Cellvizio.
Ordering Information
ExpectTM Slimline Needles*
| Order Number | Description | Needle Size (gauge) / (mm) | Minimum Working Channel (mm) | Sheath Diameter (mm) | Units |
|---|---|---|---|---|---|
| M00555500 | Expect Slimline Handle Needle | 19 / 1.10 | 2.8 | 1.83 | box 1 |
| M00555501 | Expect Slimline Handle Needle | 19 / 1.10 | 2.8 | 1.83 | box 5 |
| M00555530 | Expect Slimline Handle Needle | 19 Flex / 1.14 | 2.8 | 1.73 | box 1 |
| M00555531 | Expect Slimline Handle Needle | 19 Flex / 1.14 | 2.8 | 1.73 | box 5 |
| M00555510 | Expect Slimline Handle Needle | 22 / 0.72 | 2.4 | 1.65 | box 1 |
| M00555511 | Expect Slimline Handle Needle | 22 / 0.72 | 2.4 | 1.65 | box 5 |
| M00555520 | Expect Slimline Handle Needle | 25 / 0.52 | 2.4 | 1.52 | box 1 |
| M00555521 | Expect Slimline Handle Needle | 25 / 0.52 | 2.4 | 1.52 | box 5 |
- Packaging includes a 20cc syringe and one-way stopcock
- Working length: 137.5cm to 141.5cm, adjustable
- Needle length: 0cm to 8cm, adjustable
Clinical Information
An Introduction to EUS-FNA Sample Preparation Techniques, Mohammad Al-Haddad, MD ›
The Value of Obtaining a Cell Block during FNA Sampling, Shantel Hebert-Magee, MD (pathology) ›
**Luer loading option for straight configuration only.
***Cobalt-Chromium is used for all Expect Slimline Needles except for the 19ga Flexible Needle which is made of Nitinol.
****This study compared a cobalt-chromium alloy with nanoflex and 304 stainless steels.
1 Catheter and Specialty Needle Alloys, an abstract from Materials & Processes for Medical Devices Conference & Exposition, Minneapolis, MN, August 10-12, 2009.
