EMBOLD™
Detachable Coil System
The Embold™ Coil System is a portfolio of three fully retractable coils used for arterial and venous peripheral embolisations. Together, the EMBOLD™ Fibered Coil, the EMBOLD™ Packing Coil, and the EMBOLD™ Soft Coil were built to handle most cases with a single delivery platform.
Key Resources
Explore
Product details
Three coils. Any case.
See the benefits of the EMBOLD™ Coil System in anatomy

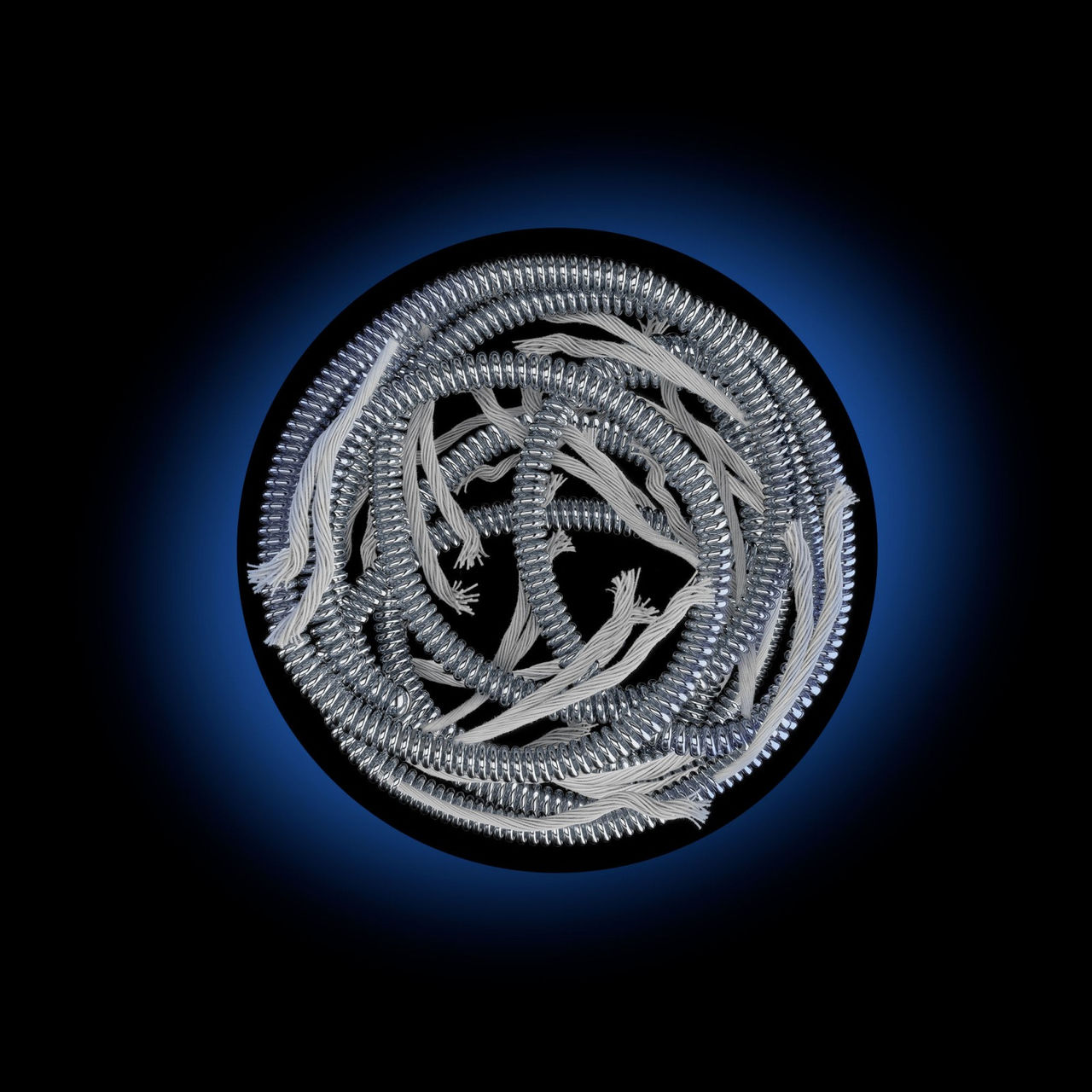

Versatility in one coil: this highly thrombogenic coil is built to maximise procedural flexibility and reliability.

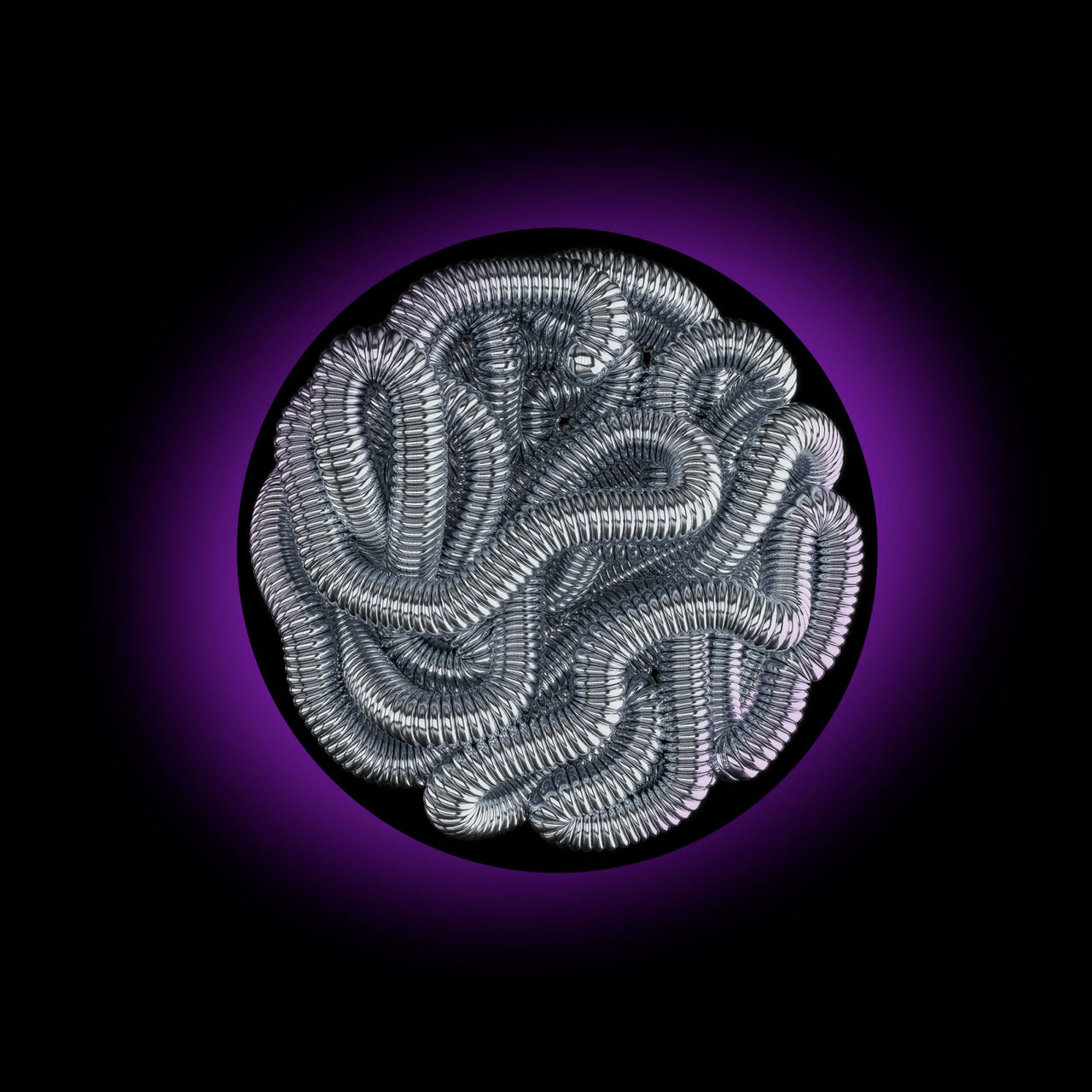

High-density pack: pack-to-black with ease. This high-volume coil packs densely and conforms to any vessel.2

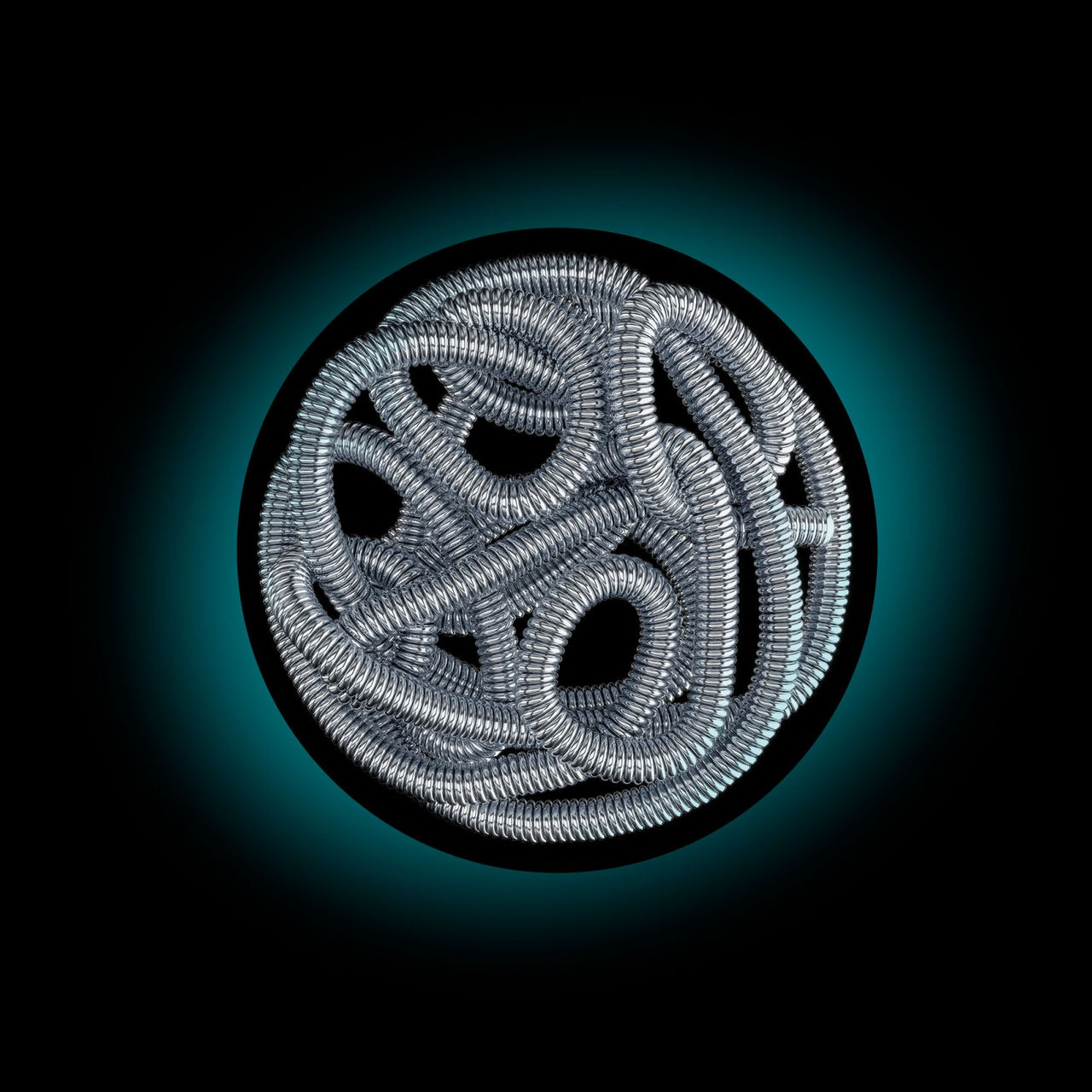

Reliable distal occlusion: designed to embolise tortuous anatomy and small vessels, while avoiding catheter kickback and premature deployment.
EMBOLD™ Detachable Coil System
Simple by Design

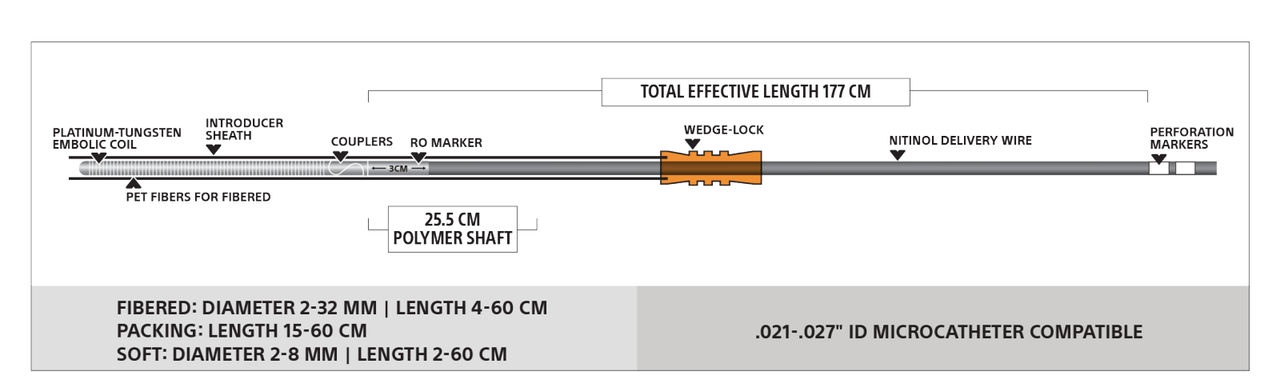

Technical information
EMBOLD™ Fibered Coil in 3D
Ordering information

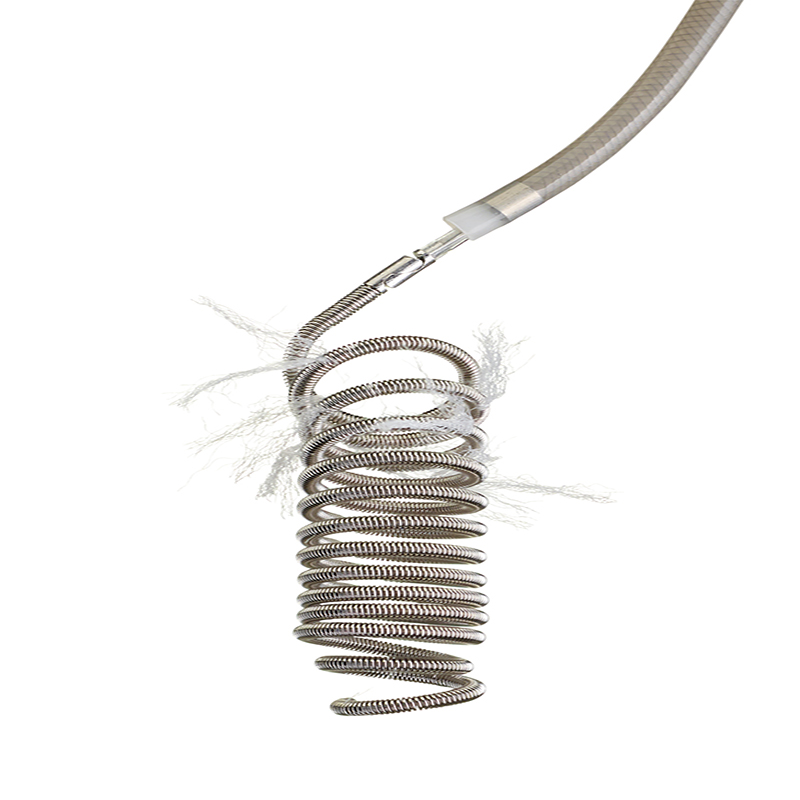

EMBOLD™ Fibered Coil
| Diameter (mm) | Length (cm) | UPN | GTIN |
| 2 | 4 | M001394240020040 | 8714729983521 |
| 2 | 6 | M001394240020060 | 8714729983538 |
| 3 | 6 | M001394240030060 | 8714729983545 |
| 3 | 12 | M001394240030120 | 8714729983552 |
| 4 | 8 | M001394240040080 | 8714729983569 |
| 4 | 15 | M001394240040150 | 8714729983576 |
| 5 | 8 | M001394240050080 | 8714729983583 |
| 5 | 15 | M001394240050150 | 8714729983590 |
| 6 | 10 | M001394240060100 | 8714729983606 |
| 6 | 20 | M001394240060200 | 8714729983613 |
| 8 | 20 | M001394240080200 | 8714729983620 |
| 10 | 20 | M001394240100200 | 8714729983637 |
| 10 | 30 | M001394240100300 | 8714729983644 |
| 10 | 50 | M001394240100500 | 8714729983651 |
| 12 | 20 | M001394240120200 | 8714729983668 |
| 12 | 30 | M001394240120300 | 8714729983675 |
| 12 | 50 | M001394240120500 | 8714729983682 |
| 14 | 20 | M001394240140200 | 8714729983699 |
| 14 | 30 | M001394240140300 | 8714729983705 |
| 14 | 50 | M001394240140500 | 8714729983712 |
| 18 | 50 | M001394240180500 | 8714729983729 |
| 20 | 50 | M001394240200500 | 8714729983736 |
| 22 | 60 | M001394240220600 | 8714729983743 |
| 32 | 60 | M001394240320600 | 191506010485 |

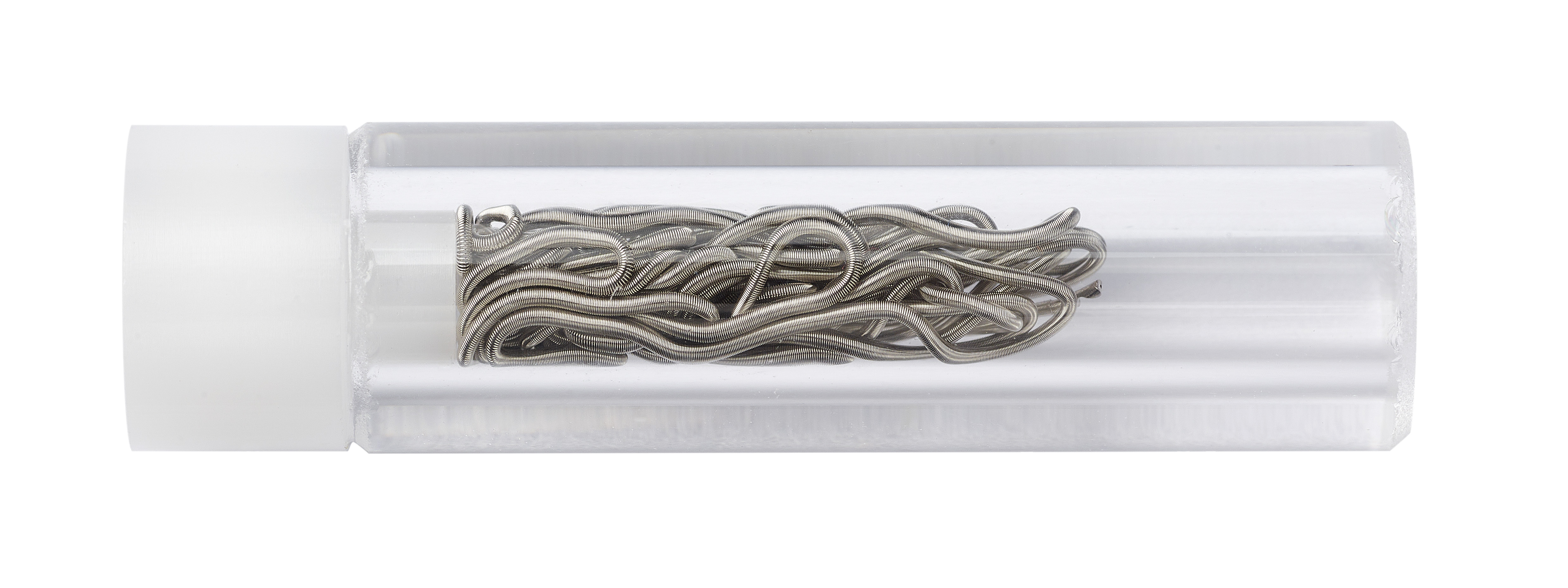

EMBOLD™ Packing Coil
| Diameter (mm) | Length (cm) | UPN | GTIN |
| N/A | 15 | M001394260000150 | 191506026585 |
| N/A | 30 | M001394260000300 | 191506026592 |
| N/A | 45 | M001394260000450 | 191506026608 |
| N/A | 60 | M001394260000600 | 191506026615 |

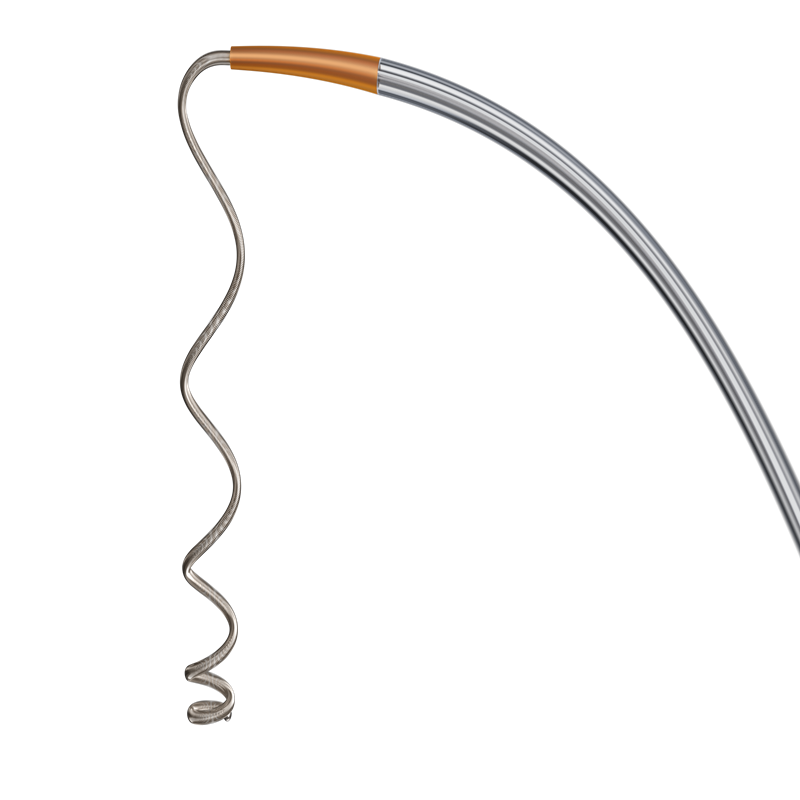

EMBOLD™ Soft Coil
| Diameter (mm) | Length (cm) | UPN | GTIN |
| 2 | 2 | M001394250020020 | 191506026363 |
| 2 | 4 | M001394250020040 | 191506026370 |
| 2 | 6 | M001394250020060 | 191506026387 |
| 2 | 8 | M001394250020080 | 191506026394 |
| 3 | 4 | M001394250030040 | 191506026400 |
| 3 | 8 | M001394250030080 | 191506026417 |
| 3 | 12 | M001394250030120 | 191506026424 |
| 3 | 15 | M001394250030150 | 191506026431 |
| 4 | 8 | M001394250040080 | 191506026448 |
| 4 | 10 | M001394250040100 | 191506026455 |
| 4 | 15 | M001394250040150 | 191506026462 |
| 4 | 30 | M001394250040300 | 191506026479 |
| 5 | 10 | M001394250050100 | 191506026486 |
| 5 | 15 | M001394250050150 | 191506026493 |
| 5 | 20 | M001394250050200 | 191506026509 |
| 5 | 30 | M001394250050300 | 191506026516 |
| 6 | 15 | M001394250060150 | 191506026523 |
| 6 | 20 | M001394250060200 | 191506026530 |
| 6 | 30 | M001394250060300 | 191506026547 |
| 6 | 60 | M001394250060600 | 191506026554 |
| 8 | 30 | M001394250080300 | 191506026561 |
| 8 | 60 | M001394250080600 | 191506026578 |
References:
- The testing was performed by or on behalf of BSC. Data on file.
- In clinical use cases, Embold™ Packing Coils are intended to be used with a backstop like Embold™ Fibered Coil.
