MAMBA™
Microcatheter Family
With their proprietary tapered coil and integrated tip design, MAMBA Microcatheters are engineered to be resilient and optimize support without compromising flexibility and profile.
Explore
Design Overview
| Small Crossing Profile MAMBA Flex: 2.1F MAMBA: 2.4F |
Innovative Tapered Coil | Integrated Tip | Highly Lubricious and Durable Coating |
| Small Crossing Profile MAMBA Flex: 2.1F MAMBA: 2.4F |
| Innovative Tapered Coil |
| Integrated Tip |
| Highly Lubricious and Durable Coating |
Integrated Tip
MAMBA Microcatheter’s unique integrated tip is engineered with a Tapered Coil that extends to within less than 1 mm of the distal tip, providing a metal backbone that is designed for maximum durability, guidewire support, and torque transmission for exceptional deliverability.
Tapered Coil
MAMBA Microcatheter’s game-changing proprietary Tapered Coil is optimized for exceptional pushability and torque transmission without compromising on flexibility or profile, providing outstanding delivery and support in a variety of clinical scenarios.

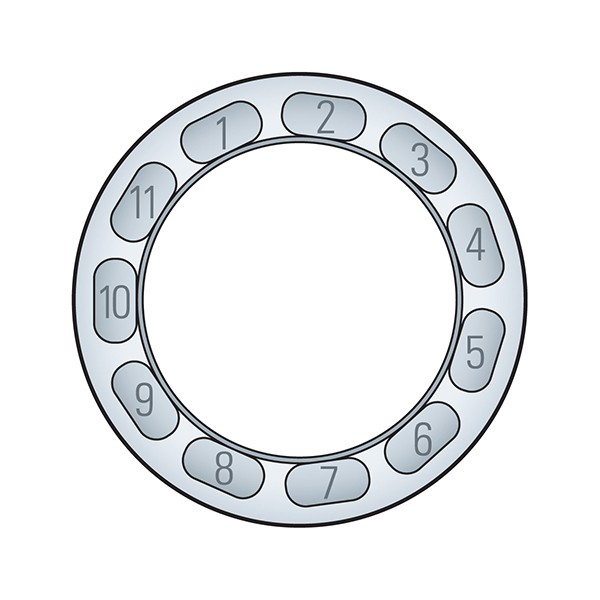

Constructed from 11 individually tapered filars that extend from hub to tip, the innovative Tapered Coil provides a flexible distal shaft as the filars taper, while maintaining a continuous metal backbone for impressive push and support.
Optimized Design
MAMBA and MAMBA Flex Microcatheters are engineered with unique Tapered Coil profiles to optimize each device for different clinical use:
- 3 coil taper zones optimize MAMBA for exceptional antegrade pushability and wire support
- 5 taper zones optimize MAMBA Flex for deliverability through tortuous anatomy
MAMBA Microcatheter
- 2.4F crossing profile
- 3 coil taper zones for exceptional antegrade wire penetration support
- Highly pushable and torqueable
Shaft & Body Schematic
MAMBA Flex 135/150 Microcatheters
- 2.1F crossing profile
- 5 coil taper zones for enhanced flexibility, deliverability, and wire follow
- Excellent deliverability through tortuous vessels
- 135 cm length for antegrade
- 150 cm length for retrograde
Shaft & Body Schematic
Product Specifications
| Lesion Entry Profile | Crossing Profile | Proximal Shaft Profile | Distal I.D. (in/mm) | Proximal I.D. (in/mm) | Usable Length (cm) | Recommended Guidewire (in/mm) | |
|---|---|---|---|---|---|---|---|
| MAMBA Microcatheter | 1.4F | 2.4F | 2.9F | 0.018/.46 | 0.023/.58 | 135 | 0.014/.36 |
| MAMBA Flex 135 Microcatheter | 1.4F | 2.1F | 2.9F | 0.018/.46 | 0.023/.58 | 135 | 0.014/.36 |
| MAMBA Flex 150 Microcatheter | 1.4F | 2.1F | 2.9F | 0.018/.46 | 0.023/.58 | 150 | 0.014/.36 |
Ordering Information
| GTIN | REF/Catalog Number | Material Description |
|---|---|---|
| 8714729940265 | H749 392871352 0 | MAMBA 135 Microcatheter |
| 8714729940302 | H749 392871356 0 | MAMBA Flex 135 Microcatheter |
| 8714729940340 | H749 392871502 0 | MAMBA Flex 150 Microcatheter |
