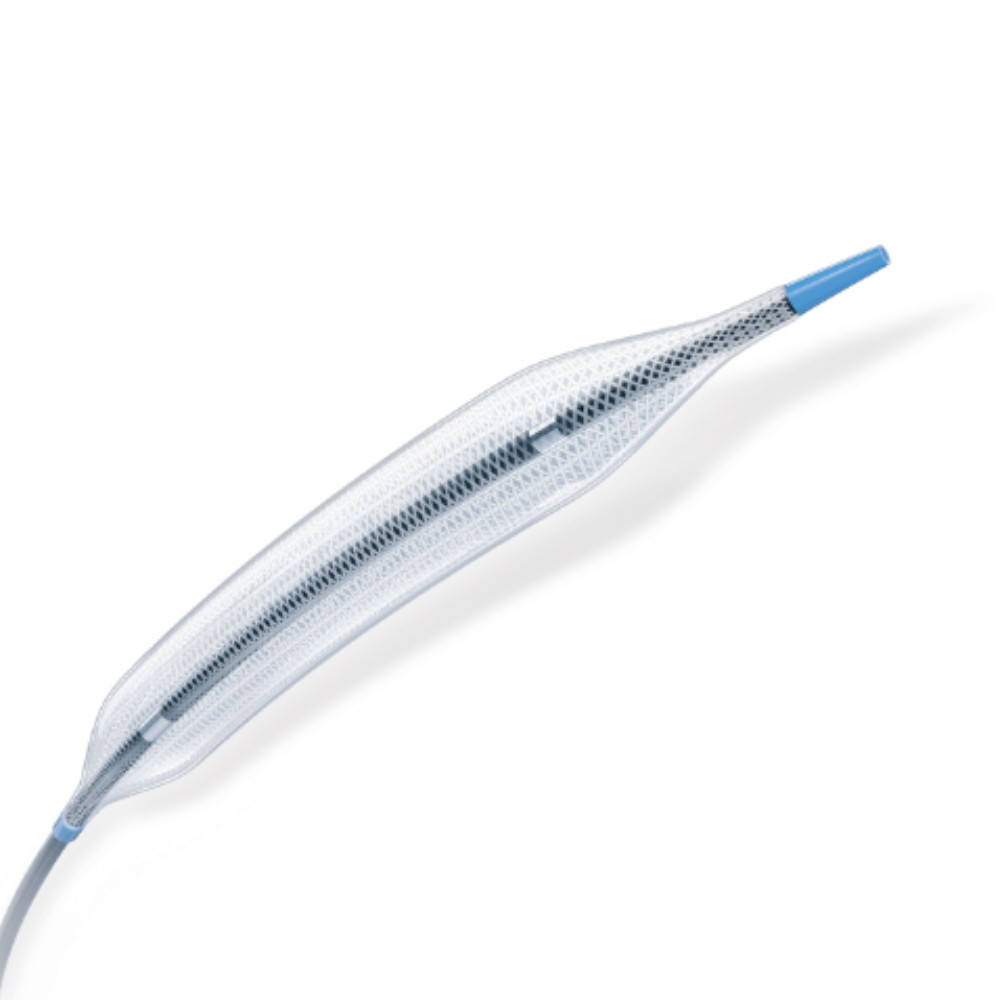

Athletis™
Ultra-High-Pressure Balloon
With pressures up to 40 ATM and a class-leading low lesion entry profile, Athletis offers optimized deliverability to reach and treat highly calcified, long, stenotic, or resistant fibrotic lesions.
Explore
Product Details
Ultra-High Pressure:

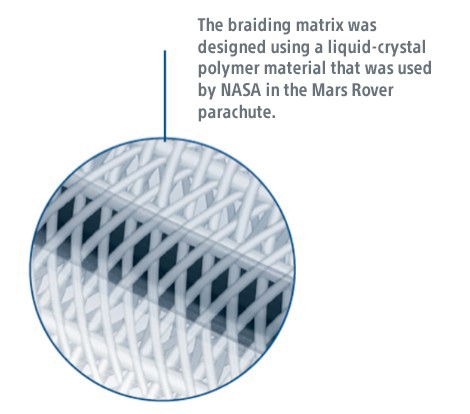

Athletis' proprietary braided balloon design enables optimized deliverability and ultra-high pressures up to 40 ATM. The unique, non-compliant balloon design enables Athletis to open to the stated diameter even in highlyresistant lesions.
Ultra-Low Profile

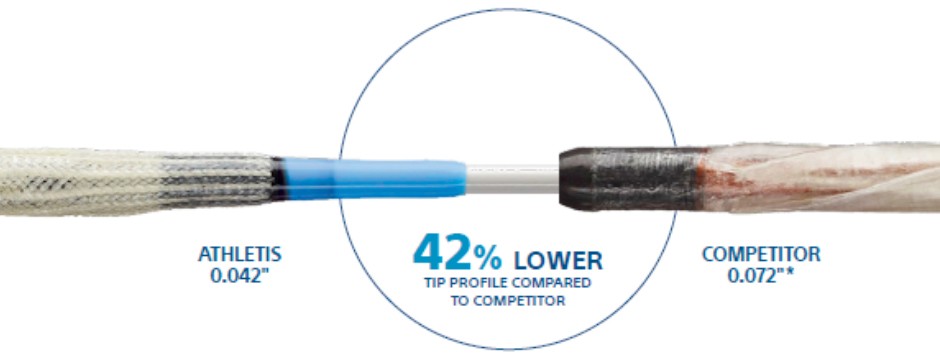

Athletis features a class-leading low lesion entry profile with an 0.042" flexible, tapered tip over an 0.035" guidewire.
Optimized Deliverability
With an ideal blend of track and a low crossing profile, Athletis is designed to reachhighly calcified, long, stenotic, or resistant fibrotic lesions, including those commonly found in AV access procedures.
Ordering information
| UPN 6F 7F 8F | Balloon Length (mm) | |
| Balloon Diameter (mm) | Catheter Working Length (cm) | 20 |
| 4 | 50 | H74939347040250 |
| 75 | H74939347040270 | |
| 5 | 50 | H74939347050250 |
| 75 | H74939347050270 | |
| 6 | 50 | H74939347060250 |
| 75 | H74939347060270 | |
| 135 | H74939347060210 | |
| 7 | 50 | H74939347070250 |
| 75 | H74939347070270 | |
| 135 | H74939347070210 | |
| 8 | 50 | H74939347080250 |
| 75 | H74939347080270 | |
| 135 | H74939347080210 | |
| 9 | 50 | H74939347090250 |
| 75 | H74939347090270 | |
| 10 | 75 | H74939347100270 |
| 12 | 75 | H74939347120270 |
| 135 | H74939347120210 | |
| UPN 6F 7F 8F | Balloon Length (mm) | |
| Balloon Diameter (mm) | Catheter Working Length (cm) | 30 |
| 8 | 50 | H74939347080350 |
| 75 | H74939347080370 | |
| UPN 6F 7F 8F | Balloon Length (mm) | |
| Balloon Diameter (mm) | Catheter Working Length (cm) | 40 |
| 4 | 50 | H74939347040450 |
| 75 | H74939347040470 | |
| 5 | 50 | H74939347050450 |
| 75 | H74939347050470 | |
| 135 | H74939347050410 | |
| 6 | 50 | H74939347060450 |
| 75 | H74939347060470 | |
| 135 | H74939347060410 | |
| 7 | 50 | H74939347070450 |
| 75 | H74939347070470 | |
| 135 | H74939347070410 | |
| 8 | 50 | H74939347080450 |
| 75 | H74939347080470 | |
| 135 | H74939347080410 | |
| 9 | 50 | H74939347090450 |
| 75 | H74939347090470 | |
| 135 | H74939347090410 | |
| 10 | 75 | H74939347100470 |
| 135 | H74939347100410 | |
| 12 | 75 | H74939347120470 |
| 135 | H74939347120410 | |
| UPN 6F 7F 8F | Balloon Length (mm) | |
| Balloon Diameter (mm) | Catheter Working Length (cm) | 60 |
| 4 | 50 | H74939347040650 |
| 75 | H74939347040670 | |
| 5 | 50 | H74939347050650 |
| 75 | H74939347050670 | |
| 6 | 50 | H74939347060650 |
| 75 | H74939347060670 | |
| 7 | 50 | H74939347070650 |
| 75 | H74939347070670 | |
| 8 | 50 | H74939347080650 |
| 75 | H74939347080670 | |
| 12 | 75 | H74939347120670 |
| 135 | H74939347120610 | |
| UPN 6F 7F 8F | Balloon Length (mm) | |
| Balloon Diameter (mm) | Catheter Working Length (cm) | 80 |
| 4 | 50 | H74939347040850 |
| 75 | H74939347040870 | |
| 5 | 50 | H74939347050850 |
| 75 | H74939347050870 | |
| 6 | 50 | H74939347060850 |
| 75 | H74939347060870 | |
| 7 | 50 | H74939347070850 |
| 75 | H74939347070870 | |
| 8 | 50 | H74939347080850 |
| 75 | H74939347080870 | |
| 9 | 50 | H74939347090850 |
| 75 | H74939347090870 | |
| 10 | 75 | H74939347100870 |
| UPN 6F 7F 8F | Balloon Length (mm) | |
| Balloon Diameter (mm) | Catheter Working Length (cm) | 100 |
| 4 | 50 | H74939347041050 |
| 75 | H74939347041070 | |
| 5 | 50 | H74939347051050 |
| 75 | H74939347051070 | |
| 6 | 50 | H74939347061050 |
| 75 | H74939347061070 | |
| 7 | 50 | H74939347071050 |
| 75 | H74939347071070 | |
| 8 | 50 | H74939347081050 |
| 75 | H74939347081070 | |
Inflation Device Ordering InformationEncore 40 is the recommended inflation device for Athletis. To order, use UPN M001394472540.
Resources (-)
-

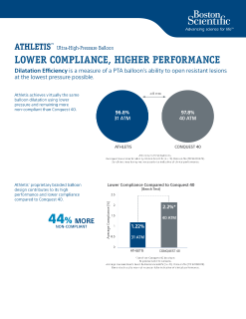

athletis dilatation efficiency brochure
