OptiCross™

Coronary Imaging Catheter

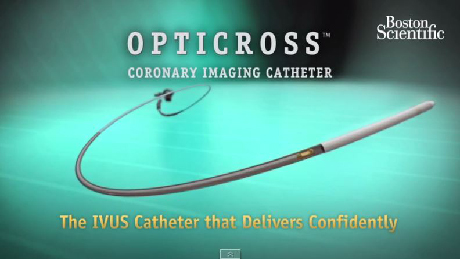

OptiCross Coronary Imaging Catheter

The OptiCross™ Intravascular Ultrasound (IVUS) catheter is a highly deliverable catheter that physicians rate more deliverable than Volcano Eagle Eye™*, especially in complex lesions.

Key Resources

Explore

Product Overview

Exceptional Deliverability

Superior Deliverability

Advanced coating and balloon-like technology for better deliverability and smooth shaft transition for better crossability.

Best in Class Image Quality

Enhanced Image Quality

High image resolution (38 micron axial resolution) and deep vessel penetration enabled by wide band technology.

Advanced Design

Improved Ease of Use

Easy to flush catheter for faster prep, intuitive software to help decrease procedure time and easy integration of IVUS and FFR into cath lab.


Product Specifications OptiCross™ vs OptiCross™ 6

OPTICROSS Coronary Imaging Catheters Product Specifications



OPTICROSS

OPTICROSS 6

Typical Use

Coronary

Coronary

Transducer Frequency

40 MHz

40 MHz

Maximum Diameter Penetration

6 mm

6 mm

Sheath Compatibility (with max wire)

5F

6F

Guide Catheter Compatibility

5F (ID ≥ 0.058")

6F (ID ≥ 0.064")

Guidewire Lumen Length

16 mm

16 mm

Guidewire Compatibility

≤ 0.014"

≤ 0.014"

Entry Profile

0.026"

0.017"

Imaging Window Profile

2.6F

2.9F

Crossing Profile

3.1F

3.1F

Prep Location

Proximal

Proximal

Catheter Telescoping Length

150 mm

150 mm

Sled Pullback Length

100 mm

100 mm

Tip to Transducer Distance

20 mm

20 mm

Distal Marker to Transducer

15 mm

15 mm

Working Length

135 mm

135 mm

Hydrophilic Coating

Bio-SlideTM

Z-GlideTM

Ordering Information

Ref/Catalog Number

Description

H749518120

OPTICROSS™Coronary Imaging Catheter

H7495181260

OPTICROSS™ 6 Coronary Imaging Catheter

H749A70200

Automatic Pullback Sled

Product Details OptiCross™

Superior Deliverability5

OptiCross™ has better deliverability than Volcano* & improved image quality2

OptiCross™ Improvements

  • 23% shorter tip to transducer length4
  • Smallest crossing profile5
  • Redesigned Monorail Catheter
OptiCross
5F=1.6mm

Improved Image Quality

 Axial Resolution
Eagle Eye™ Catheter< 170 micron
Revolution™ Catheter50 micron
iCross™ Catheter43 micron
OptiCross™ Catheter38 micron
  • Axial resolution is important to clearly see stent struts.

OptiCross™ Catheter
Image quality of OptiCross
Atlantis SR Pro2™ Catheter
Image quality of iCross
  • Better axial resolution
  • Darker, more apparent lumen

Improved Ease of Use

OptiCross™ Colored Tip: For enhanced visualization during prep

OptiCross™ 1 cm Telescope Marker: Quickly gauge pullback distance

Telescope Improvements

  • Extended proximal shaft covers drive cable to reduce entanglement.
  • Stiffer telescope reduces likelihood of kinking during imaging core advancement
Atlantis SR Pro2™ Catheter
Atlantis SR Pro Imaging Catheter
OptiCross™ Coronary Imaging Catheter
OptiCross Coronary Imaging Cathether
New Hub Design
  • "Click" sound with connection
  • Reduced potential for connection error
Atlantis SR Pro2™ Catheter
iCross mdu connection
OptiCross™ Catheter
OptiCross mdu connection

5 French Guide Catheter Compatible

Guide Catheter Compatibility6
  Imaging Catheter
  OptiCross™ CatheterAtlantis SR Pro2™ CatheterEagle Eye™ CatheterRevolution™ Catheter
Guide
Catheter
Convey Guiding Catheter***

Launcher Coronary Guide Catheter
(Medtronic)

Heart Rail III Coroary Guiding Catheters
(Terumo Medical)

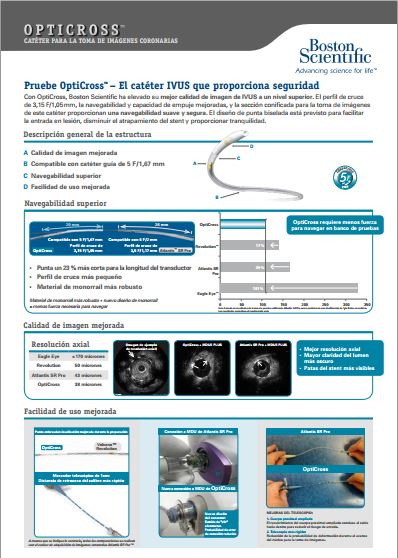

Product Spec Sheet
