NC EMERGE™

PTCA Dilatation Catheter

NC EMERGE PTCA Dilatation Catheter
play icon
Quest for the Better Balloon
NC EMERGE PTCA Dilatation Catheter
Balloon Manufacturing Video: Quest for the Better Balloon

The Future Built on a Legacy

For decades, we have worked together to define the future. By bringing technology and performance together, we continue our commitment to evolving balloon catheter technology.

Explore

Product Details

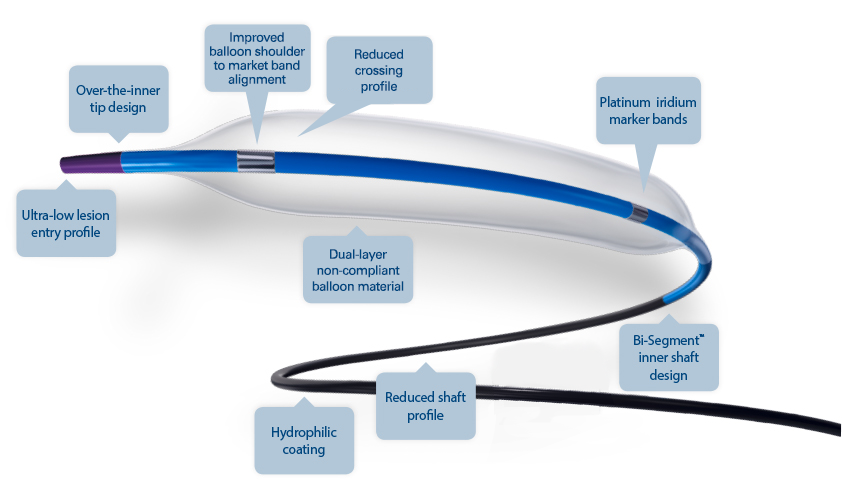

NC EMERGE is Boston Scientific's Most Advanced PTCA Catheter

NC Emerge is Boston Scientific's Most Advanced PTCA Catheter

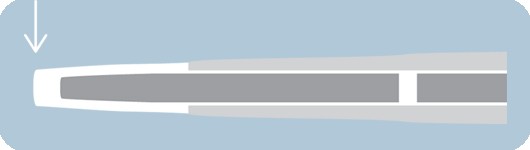

Ultra-low lesion entry point

  • 0.017" lesion entry profile
  • Improves overall flexibility and performance in tortuous anatomy

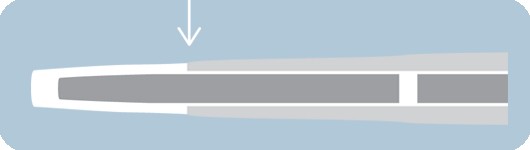

Over-the-inner tip design

  • Outer tip material rides over the inner shaft
  • Designed to improve overall flexibility and tip performance
  • Short tip designed to lessen tip catch occurrence and offer greater control

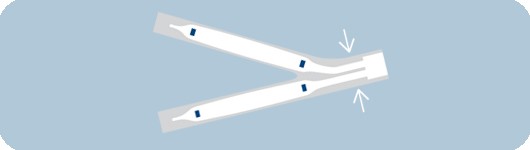

Reduced shaft profile

  • Designed for exceptional simultaneous use performance
  • Allows for use of two MonorailTM catheters in a 6 F
    guide catheter and two Over-the-Wire catheters in an 8 F guide catheter*
* 6 F guide catheter with a minimum 0.070" ID, 8 F guide catheter with a minimum 0.088" ID

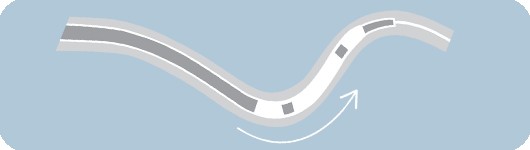

Hydrophilic coating

  • Reduced frictional force on the catheter shaft

Reduced crossing profile†

  • 0.031" (0.787 mm) crossing profile
† Crossing profile is defined as the maximum diameter found between the proximal end of the balloon and the distal tip of the catheter.  Definition excerpted from FDA Guidance document titeled, Class II Special Controls Guidance Document for Certain Percutaneous Transluminal Coronary Angioplasty (PTCA) Catheters.

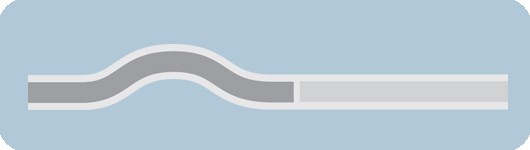

Bi-Segment™ inner shaft design

  • Designed for maximum deliverability
  • Both stiff and flexible segments to enhance pushability and trackability

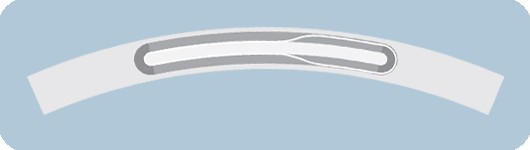

Slope™ outer shaft

  • One piece outer shaft provides a seamless transition
  • Designed to optimize pushability
  • Slope outer shaft on OTW devices

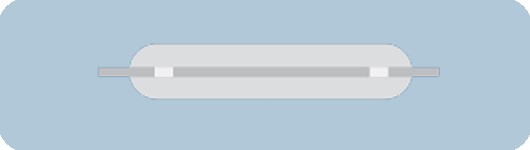

Non-compliant balloon material

  • Designed for less balloon growth and increased rated
    burst pressure
  • Unique blend of balloon materials provides excellent
    re-wrap


Platinum iridium marker bands

  • Provides optimal radiopacity and excellent visibility

Ordering Information

MonorailBalloon Length
Balloon Diameter (mm)6 mm8 mm12 mm15 mm20 mm30 mm
2H7493926706200H7493926708200H7493926712200H7493926715200H7493926720200H7493926730200
2.25H7493926706220H7493926708220H7493926712220H7493926715220H7493926720220H7493926730220
2.5H7493926706250H7493926708250H7493926712250H7493926715250H7493926720250H7493926730250
2.75H7493926706270H7493926708270H7493926712270H7493926715270H7493926720270H7493926730270
3H7493926706300H7493926708300H7493926712300H7493926715300H7493926720300H7493926730300
3.25H7493926706320H7493926708320H7493926712320H7493926715320H7493926720320H7493926730320
3.5H7493926706350H7493926708350H7493926712350H7493926715350H7493926720350H7493926730350
3.75H7493926706370H7493926708370H7493926712370H7493926715370H7493926720370H7493926730370
4H7493926706400H7493926708400H7493926712400H7493926715400H7493926720400H7493926730400
4.5H7493926706450H7493926708450H7493926712450H7493926715450H7493926720450
5H7493926706500H7493926708500H7493926712500H7493926715500H7493926720500
5.5 H7493926708550H7493926712550H7493926715550H7493926720550
6 H7493926708600H7493926712600H7493926715600H7493926720600
OTWBalloon Length
Balloon Diameter (mm)6 mm8 mm12 mm15 mm20 mm30 mm
2H7493926806200H7493926808200H7493926812200H7493926815200H7493926820200H7493926830200
2.25H7493926806220H7493926808220H7493926812220H7493926815220H7493926820220H7493926830220
2.5H7493926806250H7493926808250H7493926812250H7493926815250H7493926820250H7493926830250
2.75H7493926806270H7493926808270H7493926812270H7493926815270H7493926820270H7493926830270
3H7493926806300H7493926808300H7493926812300H7493926815300H7493926820300H7493926830300
3.25H7493926806320H7493926808320H7493926812320H7493926815320H7493926820320H7493926830320
3.5H7493926806350H7493926808350H7493926812350H7493926815350H7493926820350H7493926830350
3.75H7493926806370H7493926808370H7493926812370H7493926815370H7493926820370H7493926830370
4H7493926806400H7493926808400H7493926812400H7493926815400H7493926820400H7493926830400
4.5H7493926806450H7493926808450H7493926812450H7493926815450H7493926820450
5H7493926806500H7493926808500H7493926812500H7493926815500H7493926820500
5.5 H7493926808550H7493926812550H7493926815550H7493926820550
6 H7493926808600H7493926812600H7493926815600H7493926820600
