Zero Tip™

Nitinol Stone Retrieval Basket

Tipless Basket Design
Composite Sheath Material
Multiple Sizes
Composite Sheath Material - multi-layer sheath provides exceptional strength while maintaining flexibility.

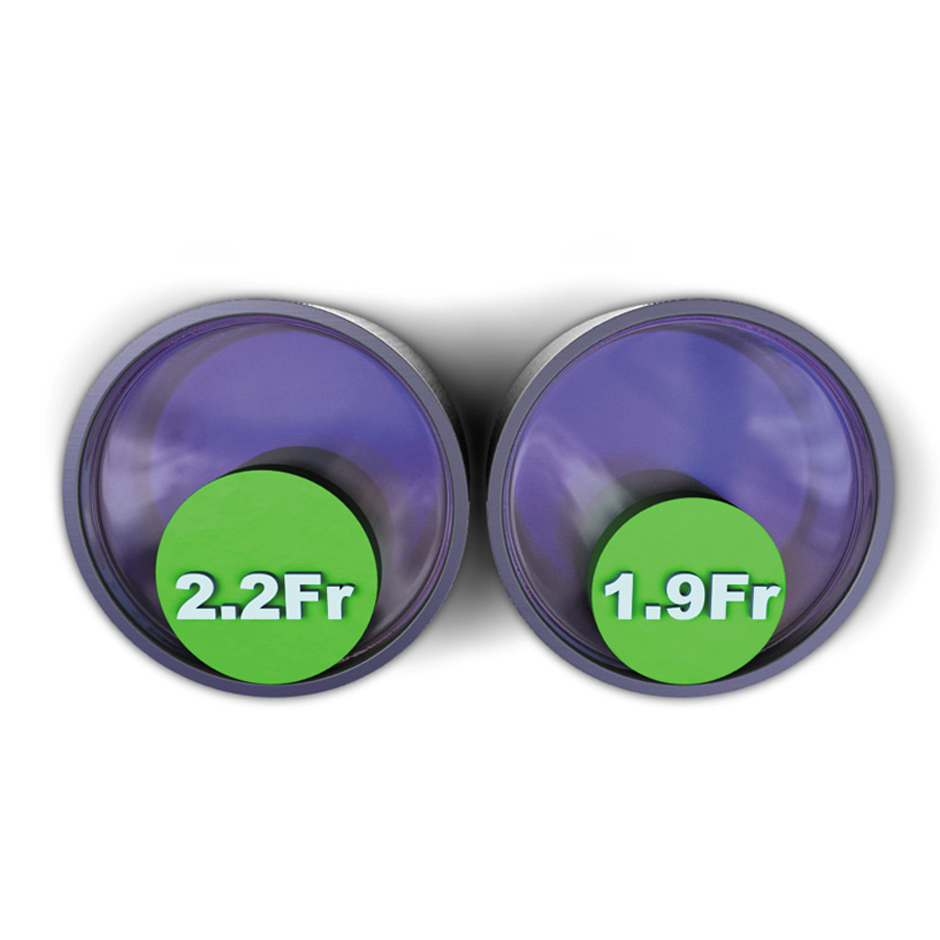

Multiple Sizes - In a 3.6Fr working channel, a 1.9Fr sheath offers 41% more irrigation flow than a 2.2Fr sheath and 128% more than a 2.4Fr sheath1.

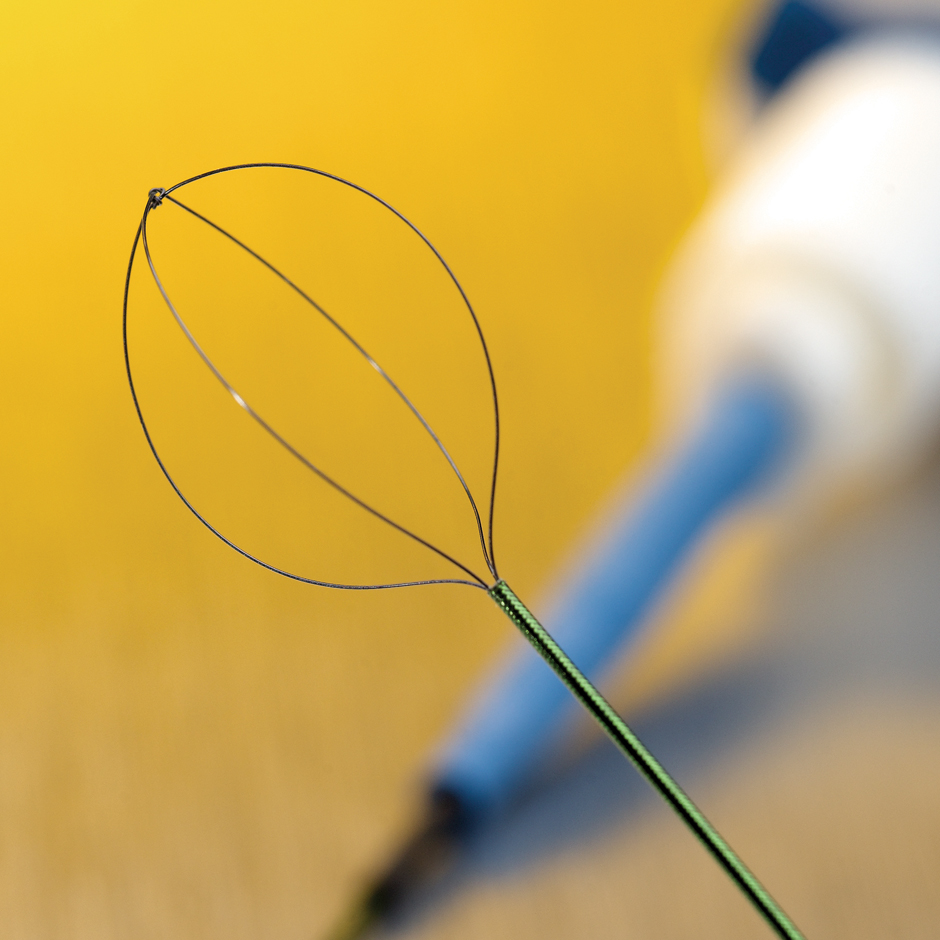

The workhorse basket that gets the job done. This 4-wire nitinol basket is reliable, durable and built to maintain its shape in the most challenging anatomy, even after multiple cycles.

Resources

Explore



Product Details

Multiple Sizes | Zero Tip™ Nitinol Stone Retrieval Basket

Multiple Sizes

  • 3.0F baskets accommodate larger stones
  • In a 3.6F working channel, a 1.9F sheath offers 41% more irrigation flow than a 2.2F sheath and 128% more than a 2.4F sheath1
  • 12mm and 16mm basket OD

Tipless Basket Design

  • Tipless basket allows close stone approximation
  • Flat distal surface designed to eliminate tissue-to-tip interface for atraumatic manipulation
  • Knotted basket tip helps prevent wire movement for reliable stone capture

Composite Sheath Material

  • Low-friction sheath provides smooth scope passage
  • Multi-layer sheath provides exceptional strength while maintaining flexibility

Ordering Information

Order Number UPN Description Size Quantity
390104 M0063901040 Zero Tip Nitinol Retrieval Basket 1.9F x 90cm (12mm OD) Each
390105 M0063901050 Zero Tip Nitinol Retrieval Basket 1.9F x 120cm (12mm OD) Each
390100 M0063901000 Zero Tip Nitinol Retrieval Basket 2.4F x 90cm (12mm OD) Each
390101 M0063901010 Zero Tip Nitinol Retrieval Basket 2.4F x 120cm (12mm OD) Each
390102 M0063901020 Zero Tip Nitinol Retrieval Basket 3.0F x 90cm (16mm OD) Each
390103 M0063901030 Zero Tip Nitinol Retrieval Basket 3.0F x 120cm (16mm OD) Each

Reimbursement



References

1. Based on internal bench study measuring water output through a simulated 3.6F scope working channel over 30 seconds with 1.9F, 2.2F, or 2.4F retrieval basket in the working channel; n=10 p<.000
