INTELLATIP MIFI™ OPEN-IRRIGATED

Ablation Catheter

The INTELLATIP MIFI™ OI Ablation Catheter combines Boston Scientific’s proprietary MicroFidelity (MiFi) mini-electrode sensor technology for Unparalleled Clarity with our open-irrigated Total Tip Cooling™ design for Cool Performance.

Key Resources

Spec Sheet Product Brochure Indications, Safety, & Warnings

Product Details

Unparalleled Clarity. Cool Performance.

Unparalleled Clarity

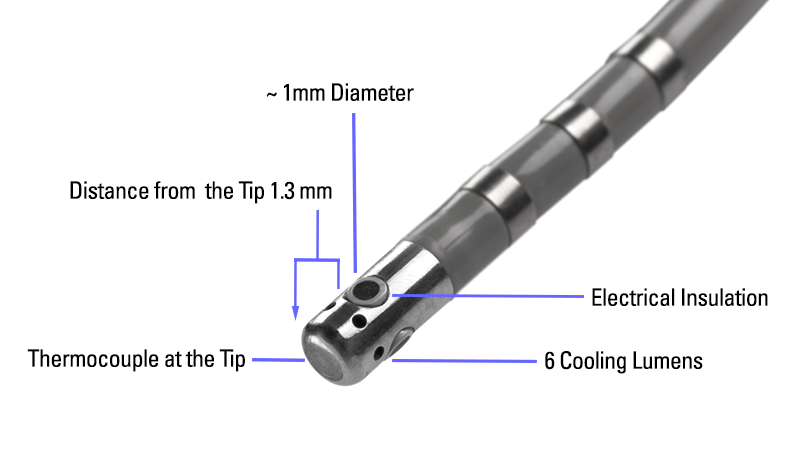

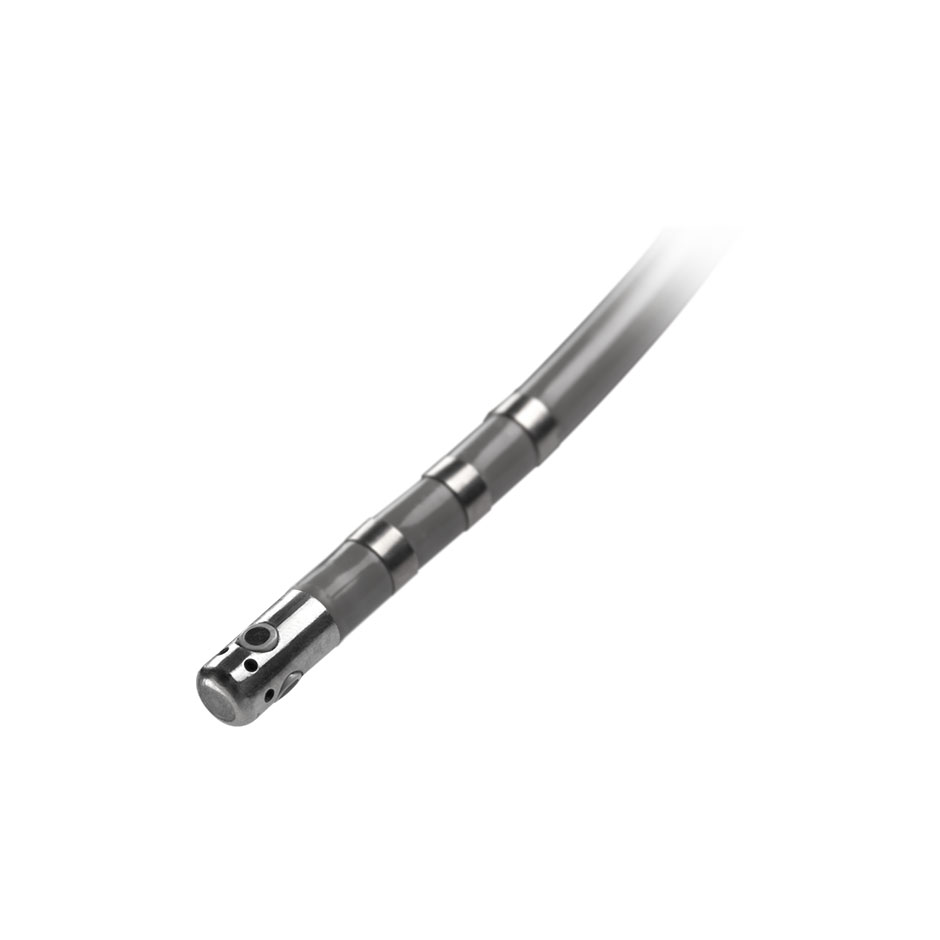

IntellaTip MiFi's Unique Catheter Design IntellaTip MiFi's Unique Catheter Design

3 Sophisticated Mini-Electrodes

  • Enable localized recording of a small area
  • Deliver signals of unparalleled clarity
  • Allow multiple channels for highly localized EGMs



Cool Performance

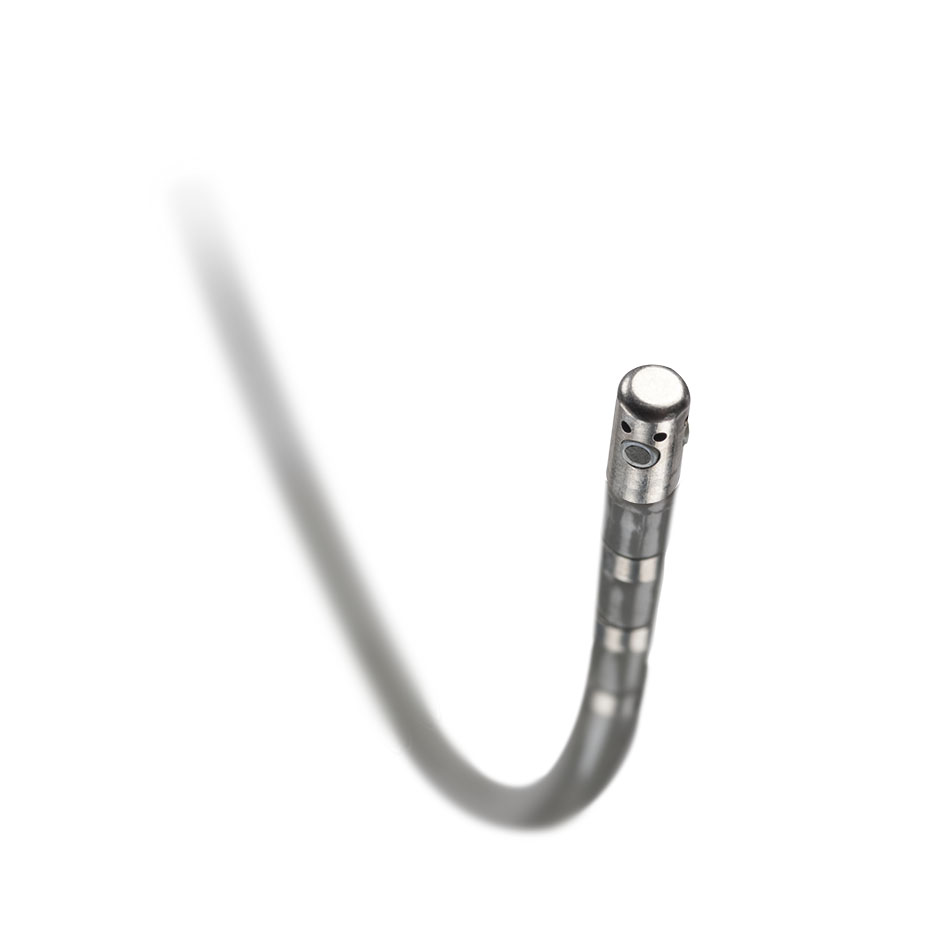

IntellaTip MiFi's Unique Catheter Design IntellaTip MiFi's Unique Catheter Design

Total Tip Cooling Design

  • Dual cooling chambers uniformly cool the entire tip internally
  • Optimized flow pattern actively washes entire tip electrode externally
  • Consistent cooling throughout RF delivery

Curve Styles and Options:

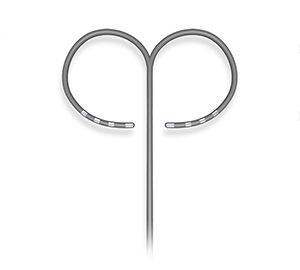

Standard Radius Curve

Standard Curve Standard Curve

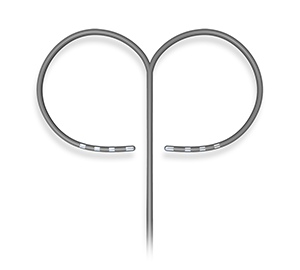

Large Radius Curve (K2)

Large Curve Large Curve

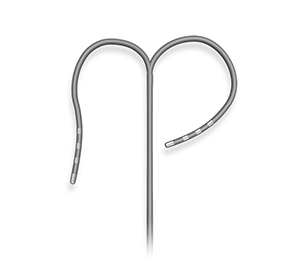

Asymmetric 4 Curve (N4)

Assymetric Curve Assymetric Curve


Catheter configurations are illustrative representations only and may not reflect actual performance.



Ordering Information

Electrode Configuration: Quadripolar

Electrode Spacing 2.5mm

Model Number Shaft Size Tip Size Curve Style Shaft Length
M004 PM9620 0 7.5F 7.5F/4.5mm Standard 110cm
M004 PM9620K2 0 7.5F 7.5F/4.5mm Large 110cm
M004 PM9620N4 0 7.5F 7.5F/4.5mm Asymmetric 110cm

Cables and Accessories

Model Number Description
M004 627 0 INTELLATIP MIFI OI Ablation Catheter Cable (10 ft)

M004 1212 0

INTELLATIP MIFI Filter Module (reference cable included)

M004 3636 0

Reference Cable from Filter Module to Pod (32 in)

M004 653S 0

Cable from Filter Module or Pod to Recorder (2 required)

M004 117 0

METRIQ™ Irrigation Tubing Set.

Catheter Cable

Model No. M004 627 0

Bifurcated design connects the catheter to the Filter Module and Pod

Total length – 10 ft.

IntellaTip MiFi Filter Module IntellaTip MiFi Filter Module

Filter Module

Model No. M004 1212 0

Provides passive filtration of
mini-electrodes

Allows for the information from mini-electrodes to be visualized on the recording system

Designed to work with the Maestro Controller

IntellaTip MiFi Reference Cable IntellaTip MiFi Reference Cable

Reference Cable

Model No. M004 3636 0

Connects Filter Module to Pod

To minimize system noise,
keep cables untangled

Total length – 32 in.
