CRE™

Single-Use Pulmonary Balloon Dilator

The CRE Pulmonary Balloon Dilator is intended to be used to endoscopically dilate strictures of the airway tree. As the first balloon indicated for the airway–it is designed with three-in-one technology and provides successive, gradual dilation of strictures.

Key Resources

Indications, Safety, and Warnings

Explore



Product Details

Three-in-One Technology
Helps eliminate the need for multiple balloons to employ multi-size dilation therapy

High Degree of Radial Vector Force
Promotes low stricture compliance with little or no balloon waisting

Rectilinear Shoulder Design
Engineered to help promote endoscopic visualization
Designed to provide greater usable balloon surface area during dilation

Radiopaque Markers
Designed to facilitate fluoroscopic guidance of balloon positioning within a stricture

Inflation and Deflation
Designed for rapid inflation and deflation when used with the Alliance™ II Inflation System

0.035” Guidewire Compatible

Designed for use with 0.035" Jagwire™ Pulmonary Guidewires



Ordering Information

CRE Pulmonary Balloon Dilator CRE Pulmonary Balloon Dilator

CRE Pulmonary Balloon Dilator

GTIN Order Number Diameter at 3 ATM Diameter (mm) at Intermediate Pressure
Diameter (mm) at Maximum Balloon Length (cm) Catheter Length (cm) Units
08714729456186 M00550300 12 13.5 @ 4.5 atm 15 @ 8 atm 5.5 75 Each
08714729456193 M00550310 15 16.5 @ 4.5 atm 18 @ 7 atm 5.5 75 Each
08714729456209 M00550320 18 19 @ 4.5 atm 20 @ 6 atm 5.5 75 Each
08714729456216 M00550330 8 9 @ 5.5 atm 10 @ 9 atm 3.0 75 Each
08714729456223 M00550340 10 11 @ 5 atm 12 @ 8 atm 3.0 75 Each
08714729456230 M00550350 12 13.5 @ 4.5 atm 15 @ 8 atm 3.0 75 Each

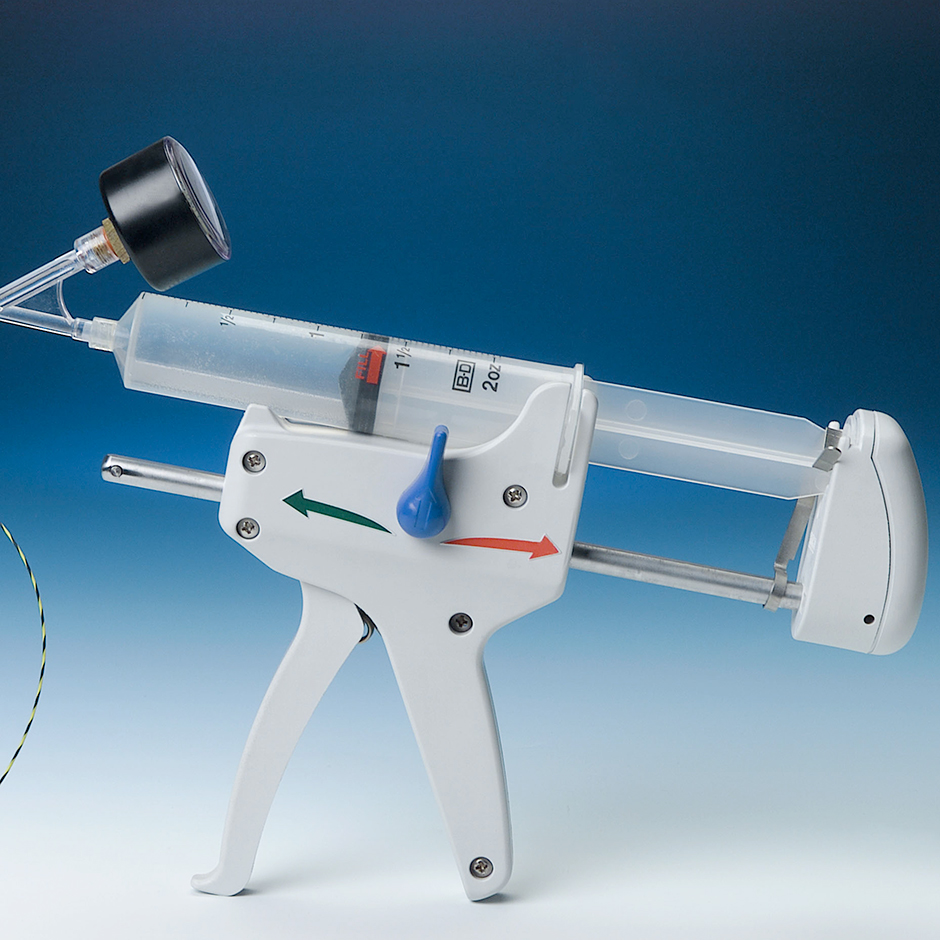

Alliance II Inflation System

GTIN Order Number Description Units
08714729283881 M00550620 Inflation Handle Each
08714729129332 M00550601 Single-Use Syringe/Gauge Assembly Box 5

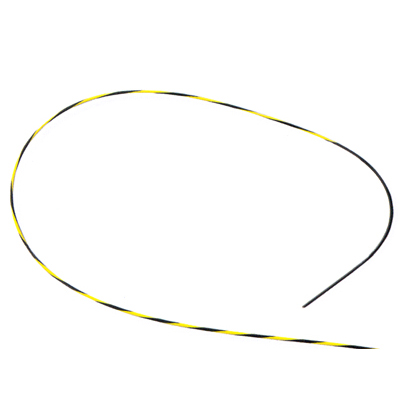

Jagwire Single-Use Pulmonary Guidewire

GTIN Order Number Description O.D. (in) Length (cm)
Units
08714729455813 M00515171 Jagwire Single-Use Pulmonary Guidewire .035 180 Box 2
