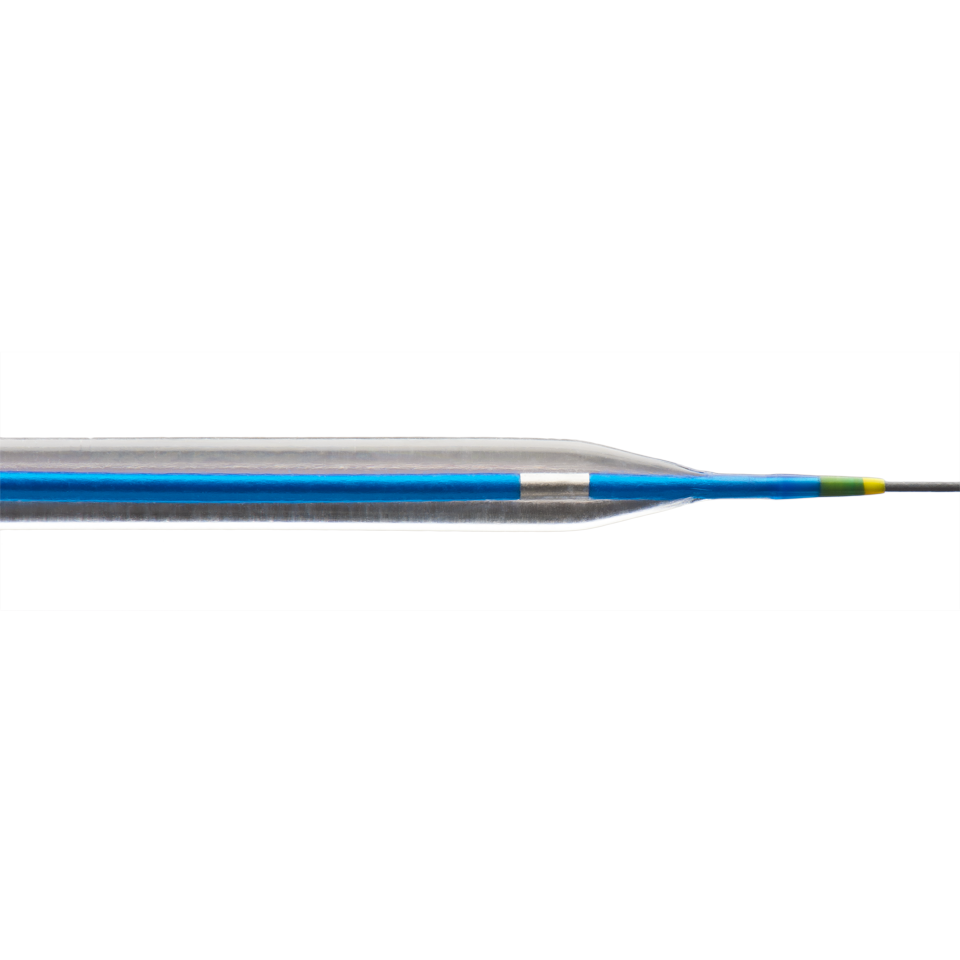

Coyote™
Balloon Dilatation Catheter
Introducing Coyote, the go-to below-the-knee (BTK) peripheral balloon. Confidently take on BTK procedures with the ultimate in deliverability, crossability, and ultra-low profile.
Explore
Product Details
Get to
- With four catheter configurations optimized for maximum push and excellent track
Get through
- With an ultra-low lesion entry profile (0.017"/0.43 mm) and best-in-class crossing profile (0.030"/0.76 mm)
Get going
- With deflation times of less than 10 seconds* and balloon lengths up to 220 mm
Coyote™ Balloon Dilatation Catheter Monorail™
Coyote Over-the-Wire Balloon Catheter
Ordering Information
| Catheter Length | Balloon Diameter (mm) | Balloon Length (mm) | |
|---|---|---|---|
| 90 cm | 150 cm | ||
| H74939185150490 | H74939185150410 | 1.5 | 40 |
| H74939185200690 | H74939185200610 | 2.0 | 60 |
| H74939185200890 | H74939185200810 | 2.0 | 80 |
| H74939185201090 | H74939185201010 | 2.0 | 100 |
| H74939185201290 | H74939185201210 | 2.0 | 120 |
| H74939185201590 | H74939185201510 | 2.0 | 150 |
| H74939185202290 | H74939185202210 | 2.0 | 220 |
| H74939185250690 | H74939185250610 | 2.5 | 60 |
| H74939185250890 | H74939185250810 | 2.5 | 80 |
| H74939185251090 | H74939185251010 | 2.5 | 100 |
| H74939185251290 | H74939185251210 | 2.5 | 120 |
| H74939185251590 | H74939185251510 | 2.5 | 150 |
| H74939185252290 | H74939185252210 | 2.5 | 220 |
| H74939185300690 | H74939185300610 | 3.0 | 60 |
| H74939185300890 | H74939185300810 | 3.0 | 80 |
| H74939185301090 | H74939185301010 | 3.0 | 100 |
| H74939185301290 | H74939185301210 | 3.0 | 120 |
| H74939185301590 | H74939185301510 | 3.0 | 150 |
| H74939185302290 | H74939185302210 | 3.0 | 220 |
| H74939185350690 | H74939185350610 | 3.5 | 60 |
| H74939185350890 | H74939185350810 | 3.5 | 80 |
| H74939185351090 | H74939185351010 | 3.5 | 100 |
| H74939185351290 | H74939185351210 | 3.5 | 120 |
| H74939185351590 | H74939185351510 | 3.5 | 150 |
| H74939185352290 | H74939185352210 | 3.5 | 220 |
| H74939185400690 | H74939185400610 | 4.0 | 60 |
| H74939185400890 | H74939185400810 | 4.0 | 80 |
| H74939185401090 | H74939185401010 | 4.0 | 100 |
| H74939185401290 | H74939185401210 | 4.0 | 120 |
| H74939185401590 | H74939185401510 | 4.0 | 150 |
| H74939185402290 | H74939185402210 | 4.0 | 220 |
| Catheter Length | Balloon Diameter (mm) | Balloon Length (mm) | |
|---|---|---|---|
| 90 cm | 150 cm | ||
| H74939186150490 | H74939186150410 | 1.5 | 40 |
| H74939186200690 | H74939186200610 | 2.0 | 60 |
| H74939186200890 | H74939186200810 | 2.0 | 80 |
| H74939186201090 | H74939186201010 | 2.0 | 100 |
| H74939186201290 | H74939186201210 | 2.0 | 120 |
| H74939186201590 | H74939186201510 | 2.0 | 150 |
| H74939186202290 | H74939186202210 | 2.0 | 220 |
| H74939186250690 | H74939186250610 | 2.5 | 60 |
| H74939186250890 | H74939186250810 | 2.5 | 80 |
| H74939186251090 | H74939186251010 | 2.5 | 100 |
| H74939186251290 | H74939186251210 | 2.5 | 120 |
| H74939186251590 | H74939186251510 | 2.5 | 150 |
| H74939186252290 | H74939186252210 | 2.5 | 220 |
| H74939186300690 | H74939186300610 | 3.0 | 60 |
| H74939186300890 | H74939186300810 | 3.0 | 80 |
| H74939186301090 | H74939186301010 | 3.0 | 100 |
| H74939186301290 | H74939186301210 | 3.0 | 120 |
| H74939186301590 | H74939186301510 | 3.0 | 150 |
| H74939186302290 | H74939186302210 | 3.0 | 220 |
| H74939186350690 | H74939186350610 | 3.5 | 60 |
| H74939186350890 | H74939186350810 | 3.5 | 80 |
| H74939186351090 | H74939186351010 | 3.5 | 100 |
| H74939186351290 | H74939186351210 | 3.5 | 120 |
| H74939186351590 | H74939186351510 | 3.5 | 150 |
| H74939186352290 | H74939186352210 | 3.5 | 220 |
| H74939186400690 | H74939186400610 | 4.0 | 60 |
| H74939186400890 | H74939186400810 | 4.0 | 80 |
| H74939186401090 | H74939186401010 | 4.0 | 100 |
| H74939186401290 | H74939186401210 | 4.0 | 120 |
| H74939186401590 | H74939186401510 | 4.0 | 150 |
| H74939186402290 | H74939186402210 | 4.0 | 220 |
