Tip electrode surface area 30 mm
Ring electrode surface area 10 mm
ME surface area 0.5 mm
Far-Field Signal from Conventional Bi-Poles (CBPs)
Accurate Tip Location with Mini-Electrodes (MEs)

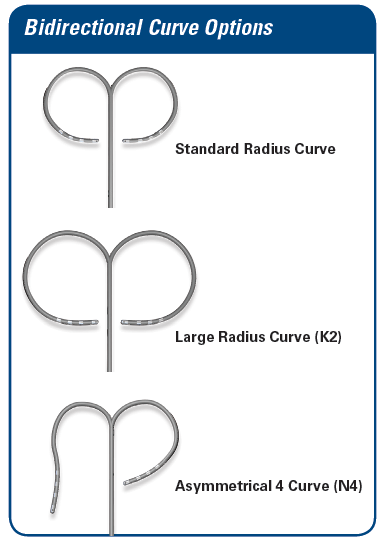

|Catheter Model No.||Shaft Size||Tip Size||Curve Style||Cable Model No.|
|M004 EPM9620 0||7.5F/2.5 mm||7F/4.5 mm (straight)||Standard||M004 621 0 / /M004 627 0|
|M004 EPM9620K2 0||7.5F/2.5 mm||7F/4.5 mm (straight)||Large||M004 621 0 / /M004 627 0|
|M004 EPM9620N4 0||7.5F/2.5 mm||7F/4.5 mm (straight)||Asymmetric-4||M004 621 0 / /M004 627 0|
IntellaTip MiFi OI Catheter is indicated for use with an 8F sheath
All IntellaTip MiFi OI Catheters are 110 cm in length
All IntellaTip MiFi OI Catheters require the use of 1 Valleylab® Ground Pad (Model M004 354 0)
|M004 1212 0||Filter Module (reference cable included)|
|M004 3636 0||Reference Cable from Filter Module to Pod (81cm)|
|M004 621 0||Catheter Cable to Stockert-EP Shuttle and to Filter Module (3 m)|
|M004 627 0||Catheter Cable to Maestro 4000™ Cardiac Ablation Controller and to Filter Module – Uniflow|
|M004 653S 0||Catheter Cable from Filter Module or Pod to Recorder (2 required)|
|M004 116 0||Irrigation Tubing Set (CoolFlow™ Irrigation Pump)|
|M004 117 0||MetriQ™ Irrigation Tubing Set|
7F = 2.33 mm, 7.5F = 2.5 mm, 8F = 2.66 mm

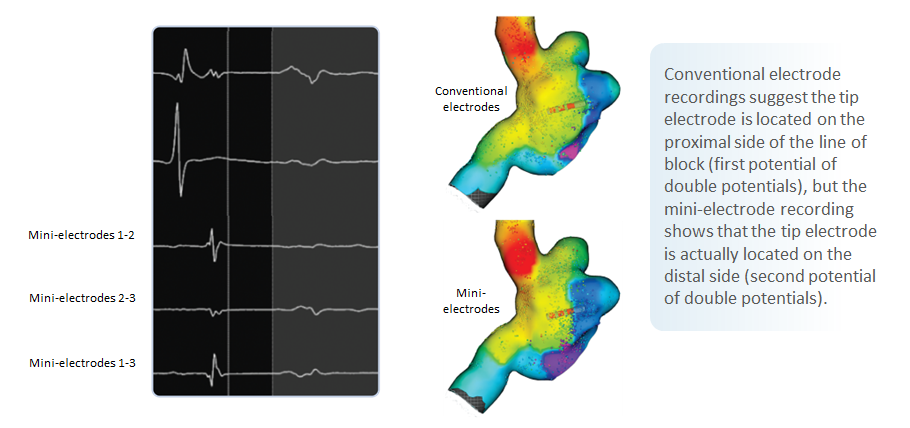

Unique design of the INTELLATIP MIFI™ OI catheter allows for precise identification of the catheter tip location.
Maps generated with the mini-electrodes provide accurate information of tip location in relation to the line of block2
1 Chen S., et al. (May, 2012). A Novel Map and Ablate Technology to Identify Arrhythmogenic Atrial Substrate. Poster session presented at Heart Rhythm Society, Boston, MA. (Right atrial canine model utilizing EnSite NavX™, n=9). Results from case studies are not necessarily predictive of results in other cases. Results in other cases may vary.
2 Jackman W, et al. (May, 2012). Mini Recording Electrodes Within a Conventional 4.5 mm Tip Electrode Improves Ablation Catheter Mapping Resolution. Poster session presented at Heart Rhythm Society, Boston, MA. (Right Atrial canine model, n=4. Operator utilized RHYTHMIA Mapping System with 4.5 mm Open-Irrigated INTELLATIP MIFI catheter). Results from case studies are not necessarily predictive of results in other cases. Results in other cases may vary.
